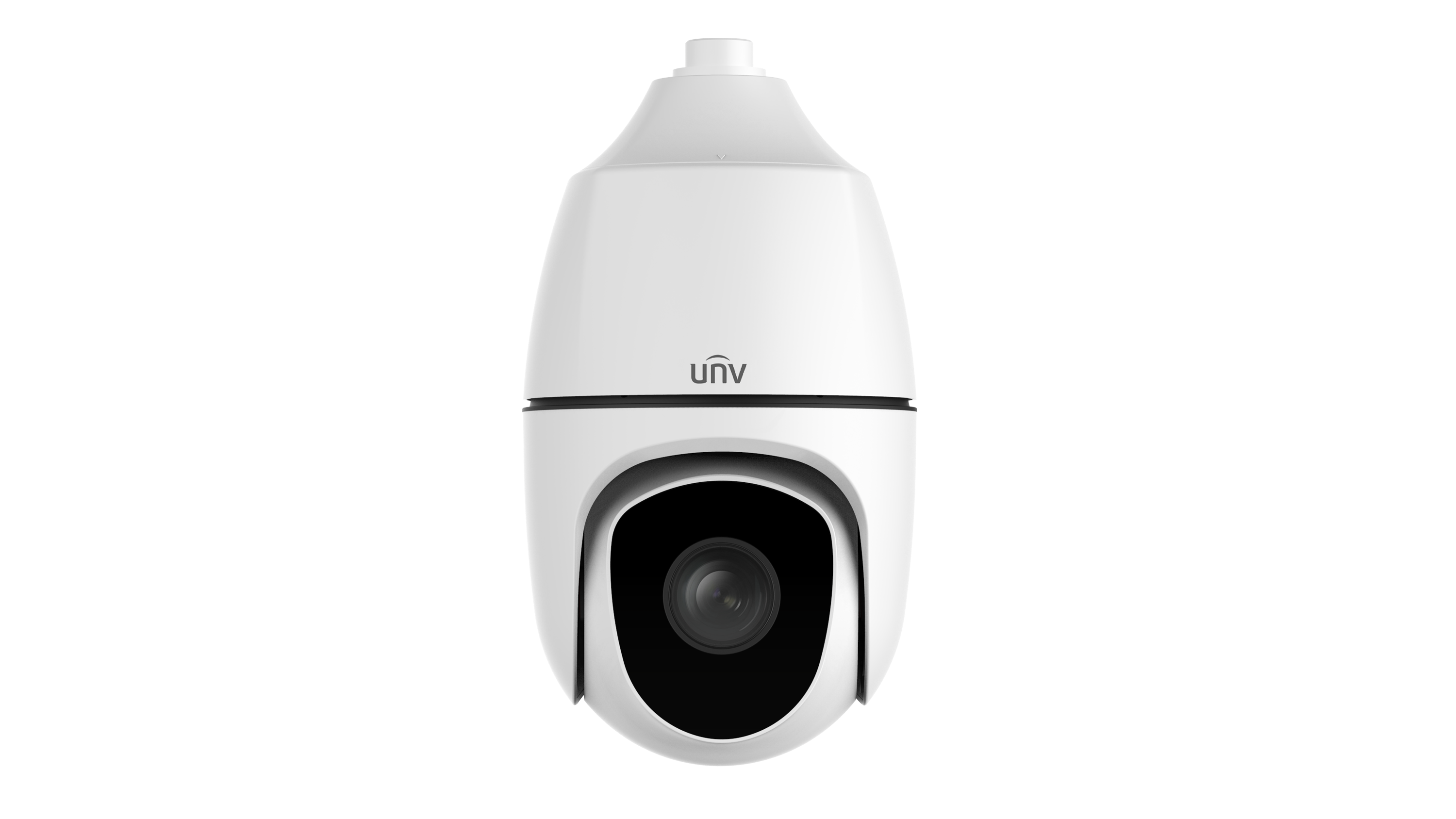

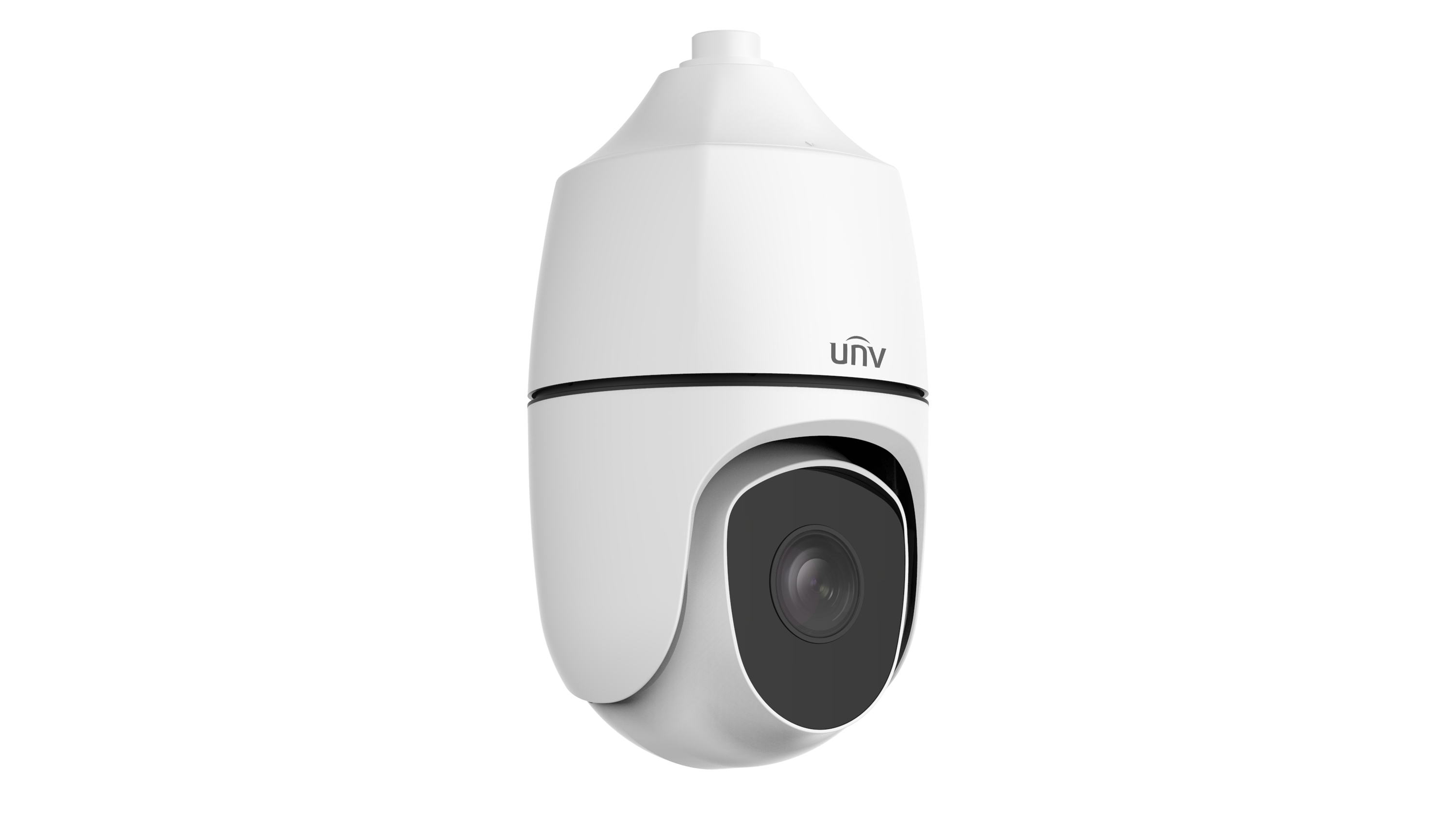

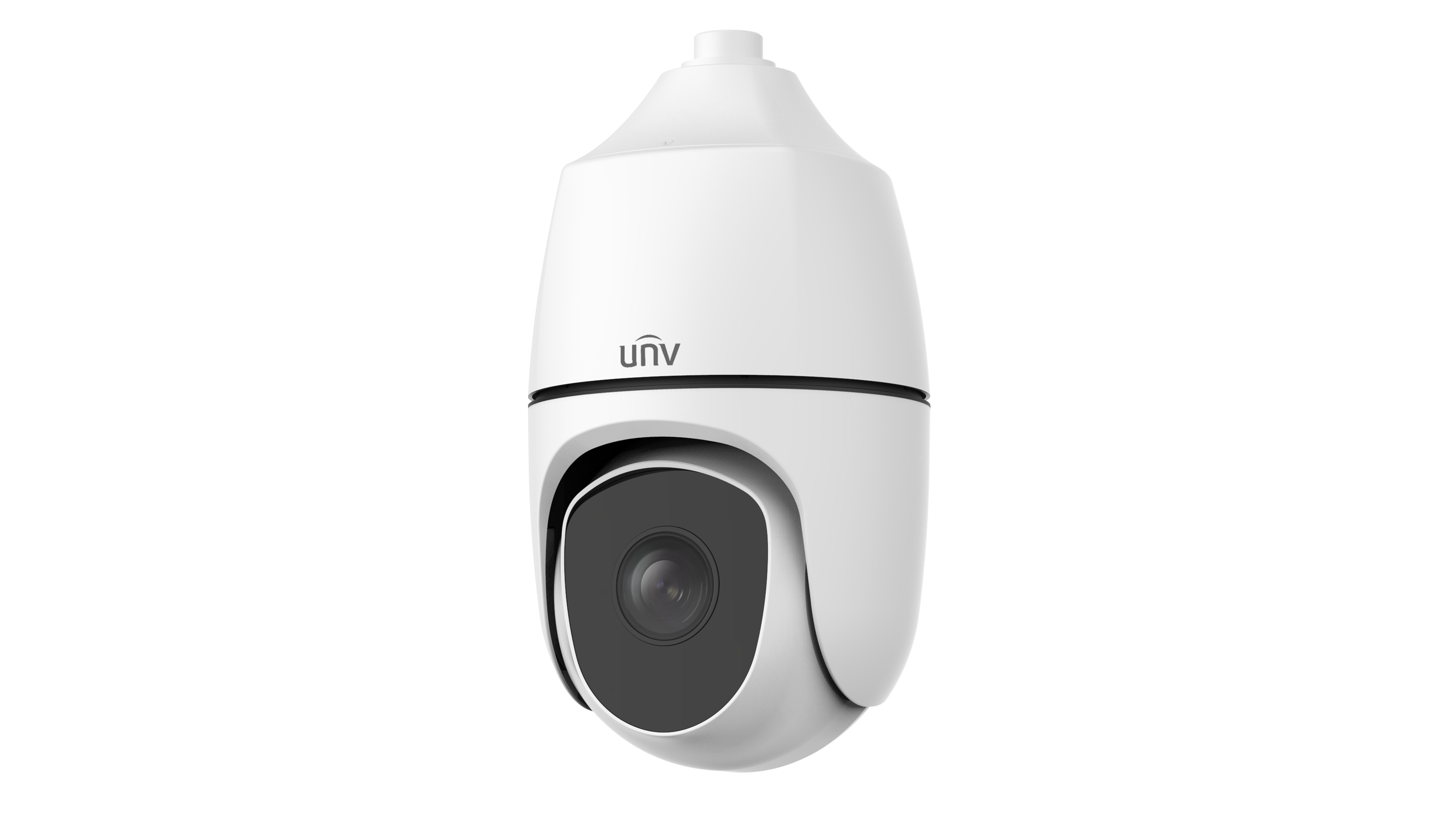

IPC6852ER-X45-VF | ||||||||
Camera | ||||||||
Sensor | 1/1.8" CMOS | |||||||
Min. Illumination | Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual,1 to 1/100000 s | |||||||
WDR | 120 dB | |||||||
S/N | >52 dB | |||||||
Lens | ||||||||
Focal Length | 5.7 to 256.5 mm | |||||||
Digital Zoom | 16X | |||||||
Optical Zoom | 45X | |||||||
Iris | F1.2 to F4.6 | |||||||
Field of View (H) | 59.5° ~ 2.2° | |||||||
Field of View (V) | 35.6° ~ 1.2° | |||||||
Field of View (D) | 73.19° ~ 2.60° | |||||||
DORI | ||||||||
DORI Distance (Lens) | 5.7~256.5(mm) | |||||||
DORI Distance (Detect) | 88.4m~3980.2m(290.2ft~13058.3ft) | |||||||
DORI Distance (Observe) | 35.4m~1592.1m(116.1ft~5223.3ft) | |||||||
DORI Distance (Recognize) | 17.7m~796.0m(58.0ft~2611.7ft) | |||||||
DORI Distance (Identify) | 8.8m~398.0m(29.0ft~1305.8ft) | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | 250m | |||||||
IR On/Off Control | Auto/Manual | |||||||
Wavelength | 850 nm | |||||||
Image | ||||||||
EIS | Support | |||||||
Defog | Digital Defog, Optical Defog | |||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Heatwave Reduction | Support | |||||||
Image Stabilization | EIS (Gyroscope) | |||||||
Video | ||||||||
Privacy Mask | 24 areas, up to 4 areas per scene | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
U-code | Support | |||||||
ROI | Support | |||||||
Video Stream | Triple Streams | |||||||
OSD | Up to 10 OSDs | |||||||
Intelligent | ||||||||
Exception Detection | Object Removed, Object Left Behind | |||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
PTZ | ||||||||
Pan Range | 360° (endless) | |||||||
Pan Speed | 0.1°/s ~ 180°/s | |||||||
Tilt Range | –15° ~ 90° (auto reverse) | |||||||
Tilt Speed | 0.1°/s ~ 180°/s | |||||||
Number of Presets | 1024 | |||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||
Patrol Stay Time | 15 s to 1800 s | |||||||
Preset Image Freeze | Support | |||||||
Home Position | Support | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 7/2 | |||||||
Serial Port | 1 * RS485 | |||||||
Built-in Mic | N/A | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Video Output | N/A | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | |||||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
General | ||||||||
Power | AC 24V ±25%, DC 24V±25%, PoE++ (IEEE 802.3bt) | |||||||
Power Consumption | Max 61W | |||||||
Power Interface | Wires with cold-pressed terminal | |||||||
Dimensions | Ø 270 x 497mm (Ø 10.6" x 19.6") (Ø x H) | |||||||
Weight | 10.3kg(22.66lb) | |||||||
Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 6 KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
