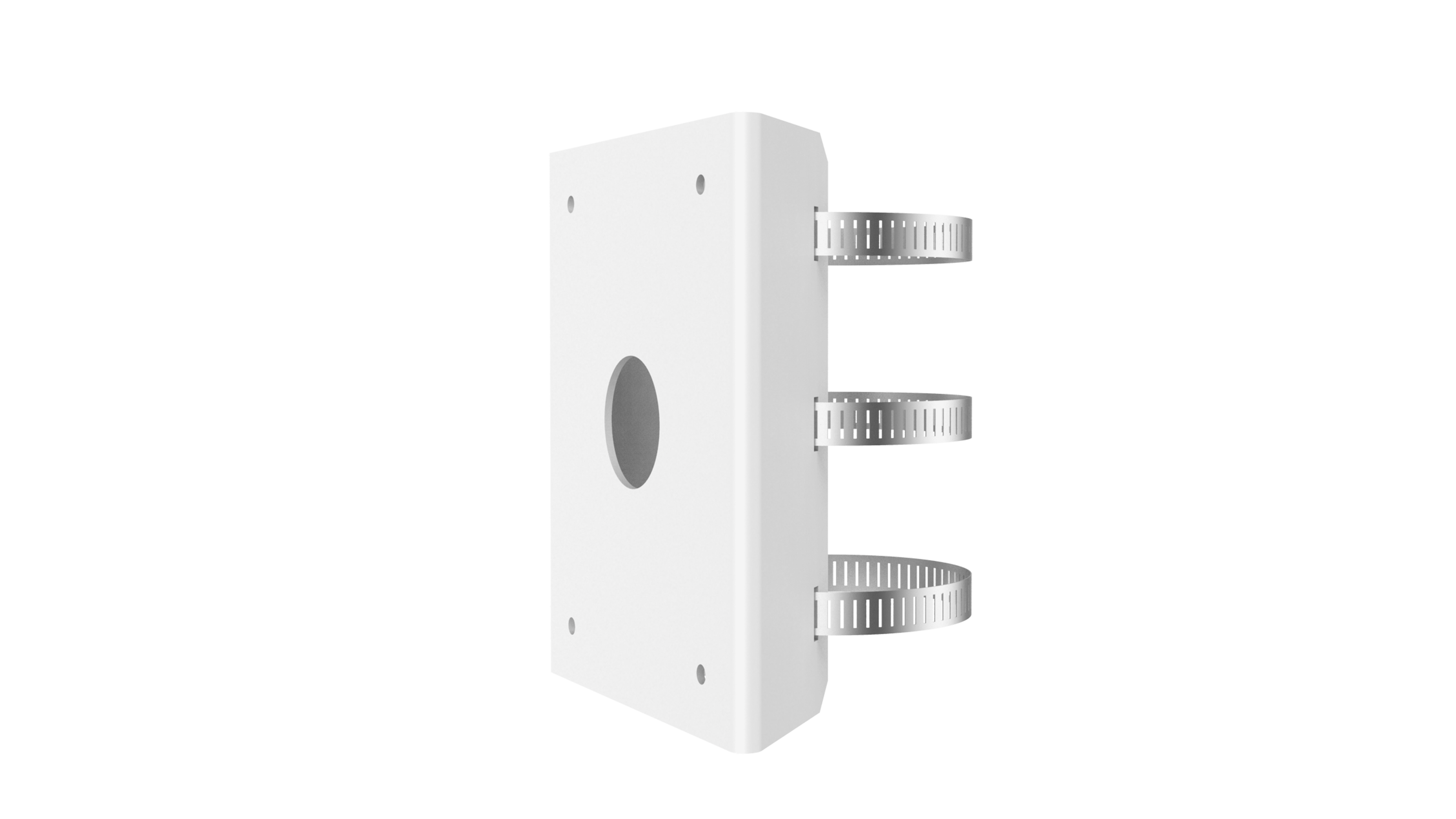

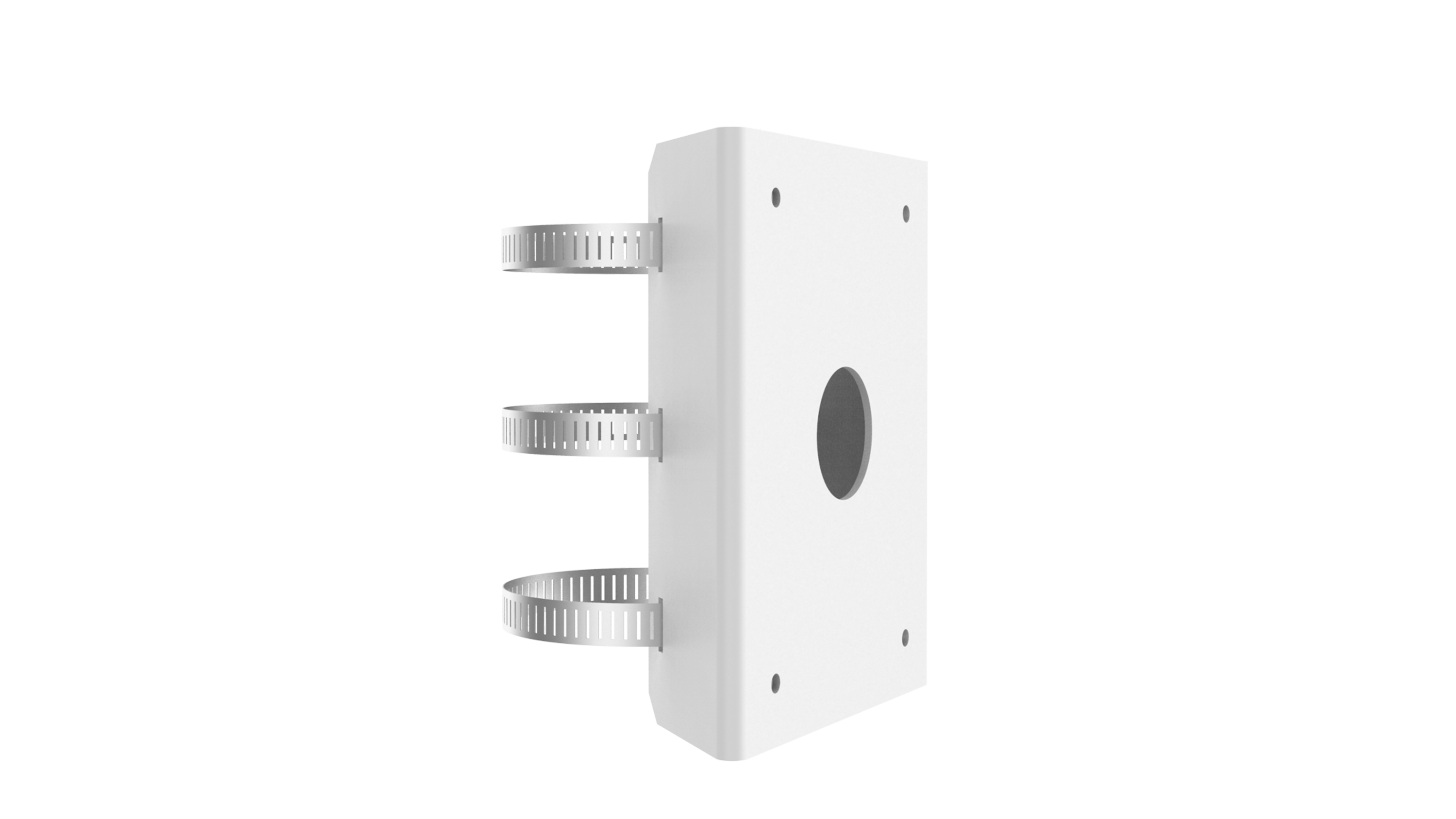

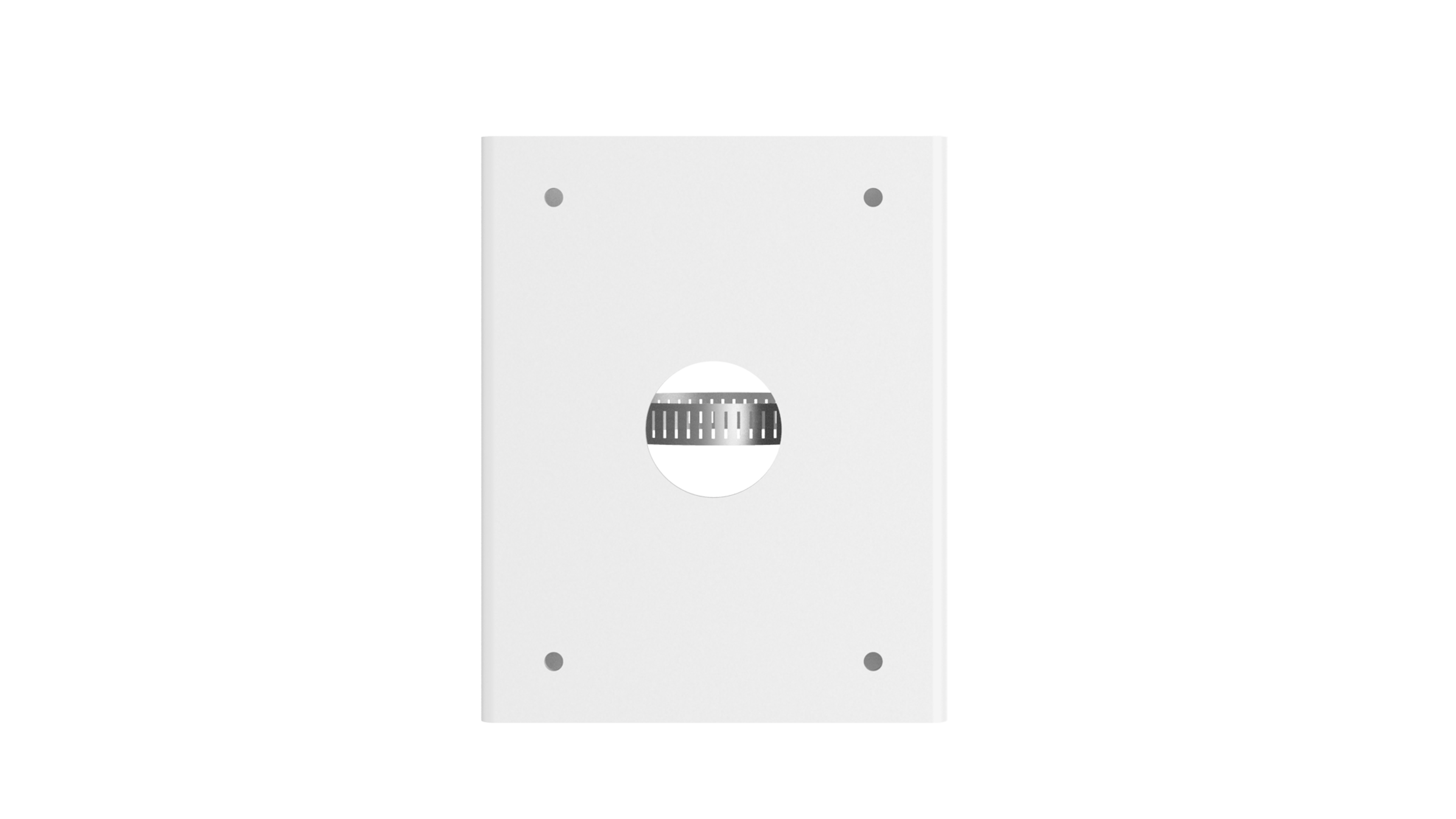

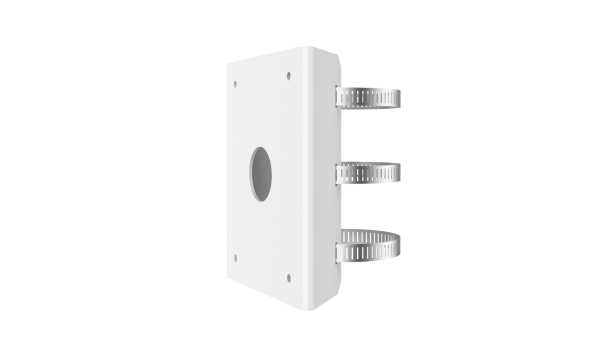

| TR-UP08-A-IN | ||||||||
| Bracket | ||||||||
| Application | Indoor or outdoor, pole installation for PTZ dome camera | |||||||
| Bracket Dimensions | 215 mm x 175 mm x 60.0 mm (8.5” x 6.9” x 2.4”) | |||||||
| Embrace Hoop Diameter | 67 mm ~ 127 mm (2.6” ~ 5”) | |||||||
| Bracket Weight | 1.47 kg (3.2 lb) | |||||||
| Bracket Material | Steel | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/8/27 3:57:51 | UNV TR-UP08-A-IN Pole Mount Adapter.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2025/10/28 3:10:09 | TR-UP08-A-IN_HD_Image_1.png | png | Download |
| HD Image | 2025/10/28 3:10:09 | TR-UP08-A-IN_HD_Image_2.png | png | Download |
| HD Image | 2025/10/28 3:10:09 | TR-UP08-A-IN_HD_Image_3.png | png | Download |
| Class | Date | Title | Download |
| Dimensions | 2025/10/28 3:10:09 | TR-UP08-A-IN_Dimensions_1.png | Download |
