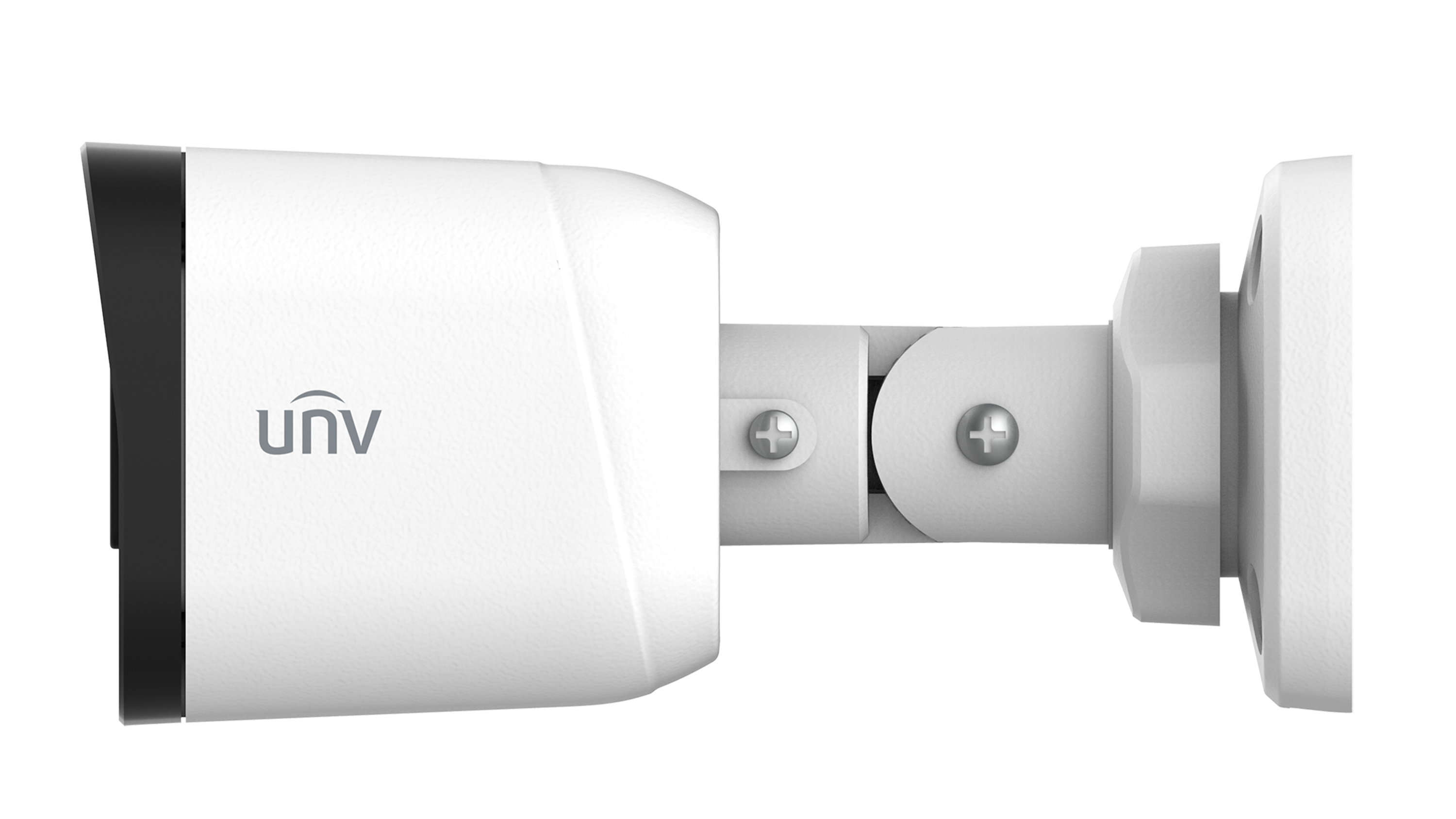

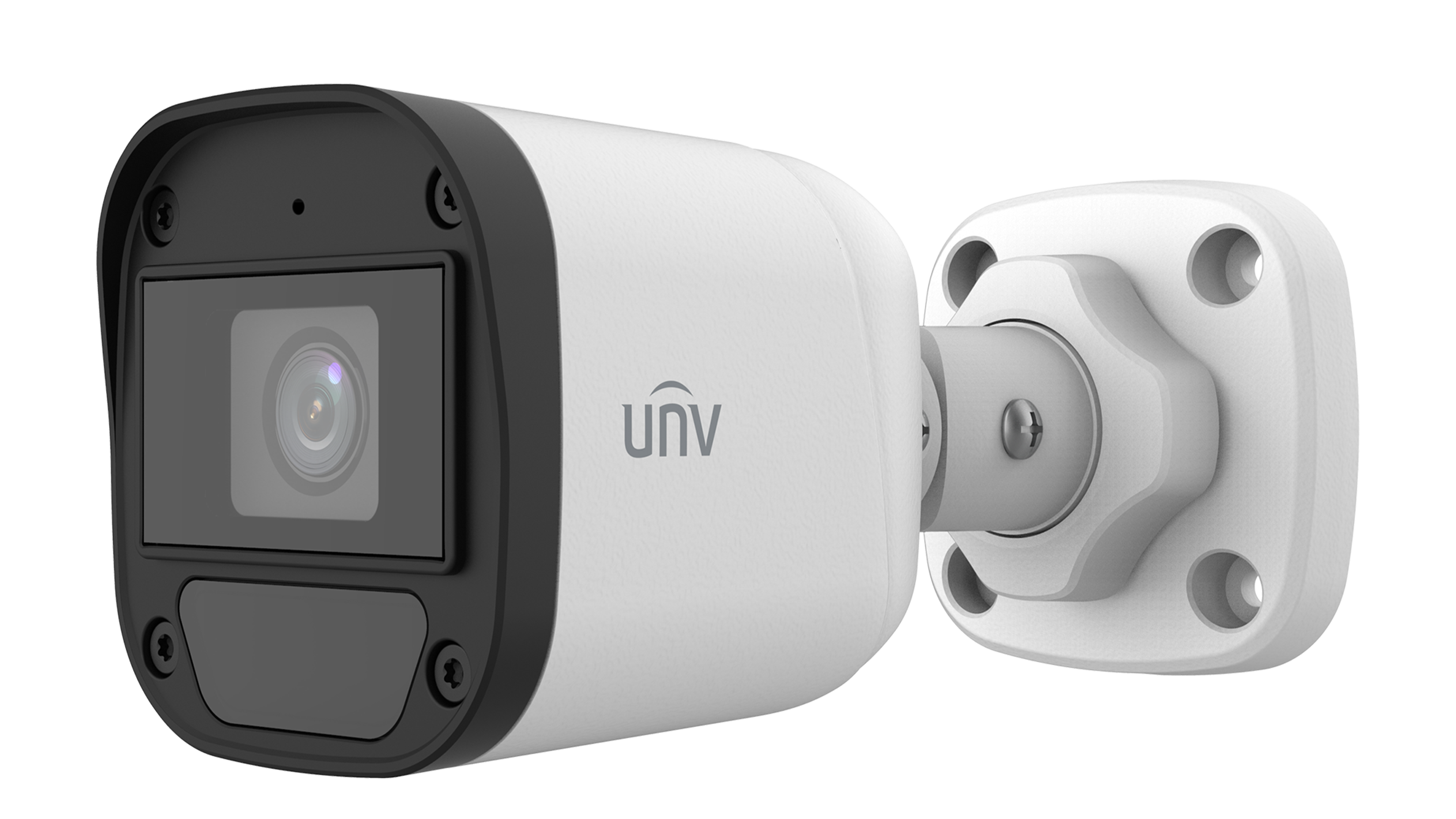

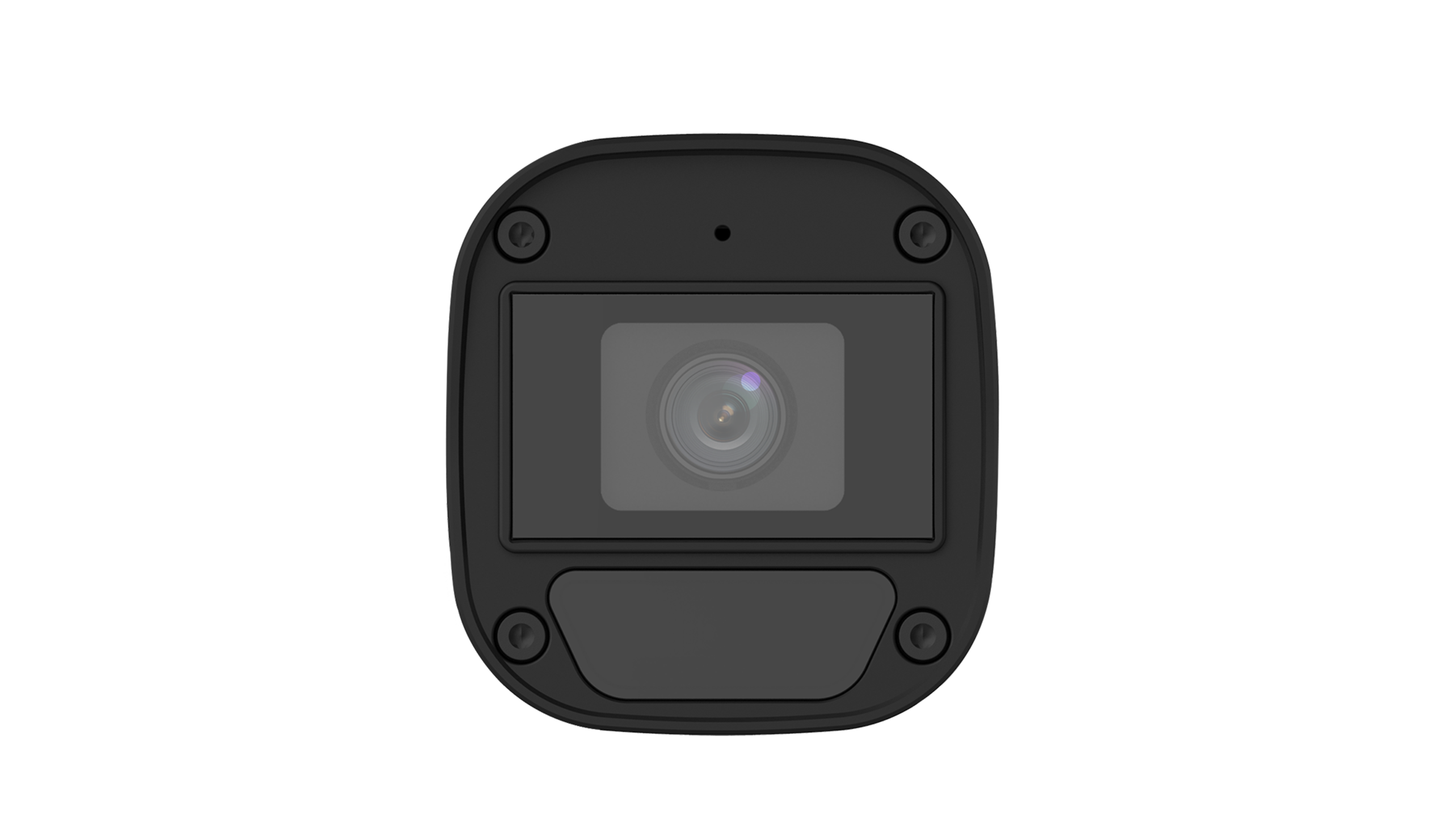

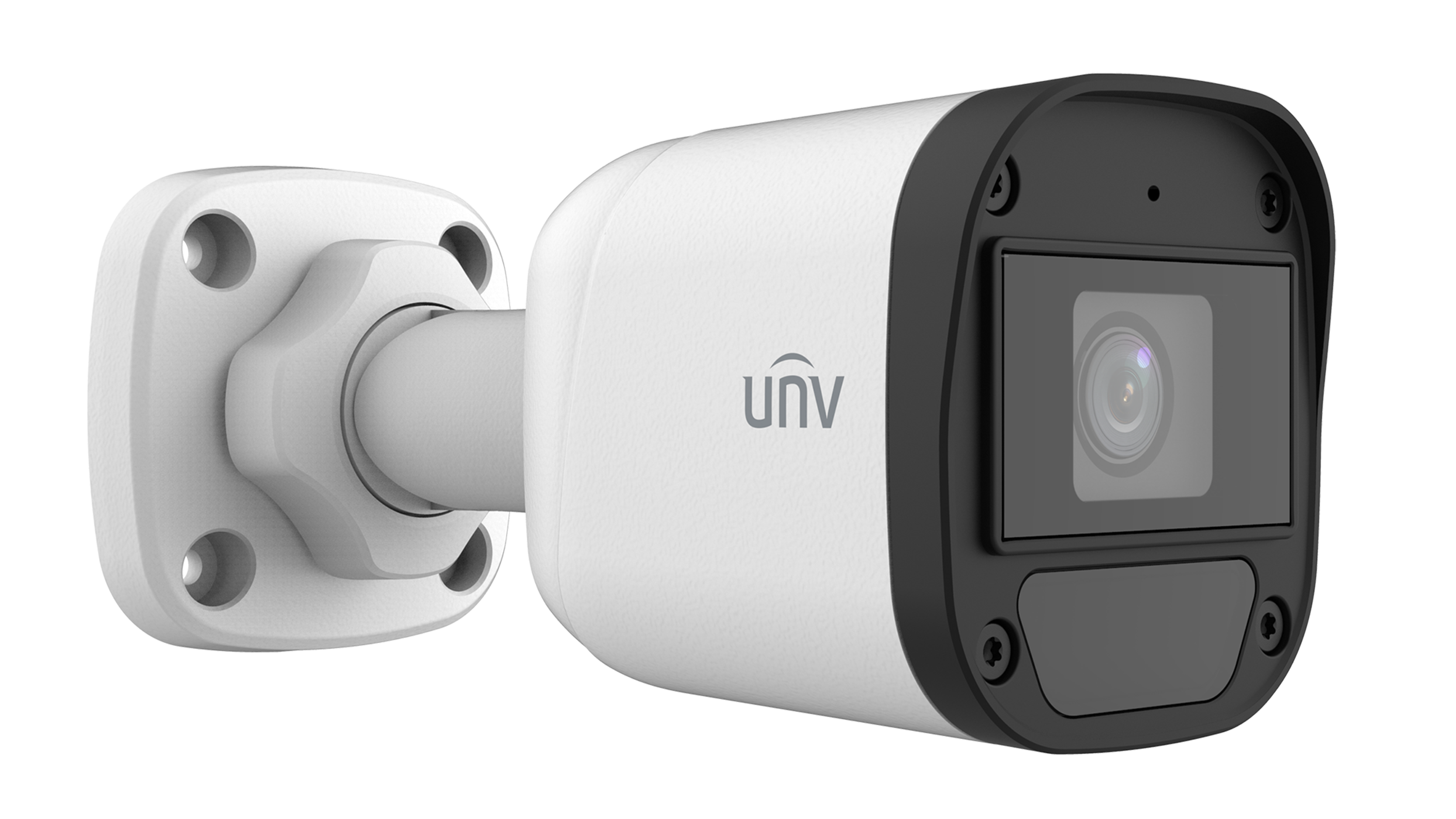

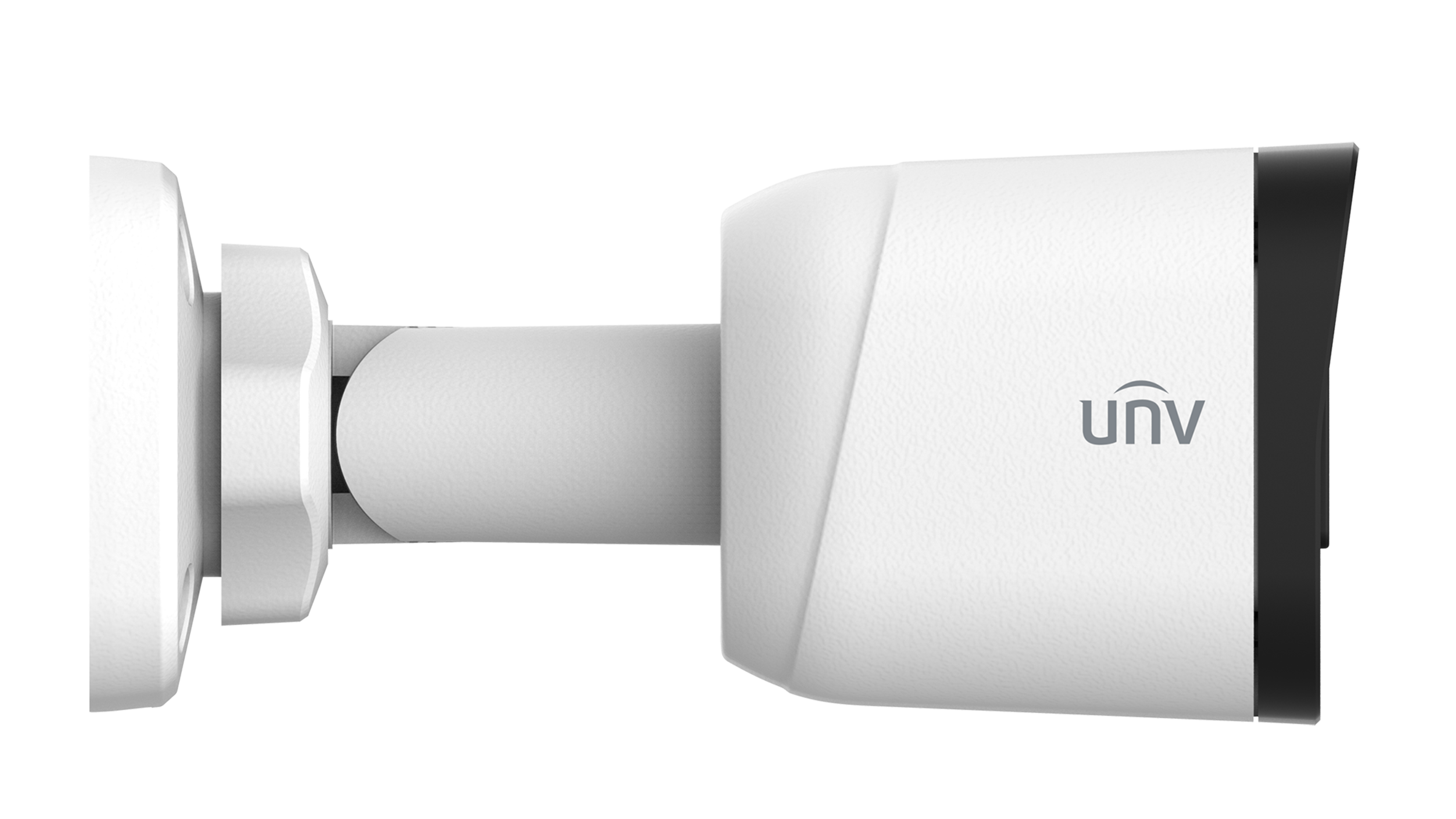

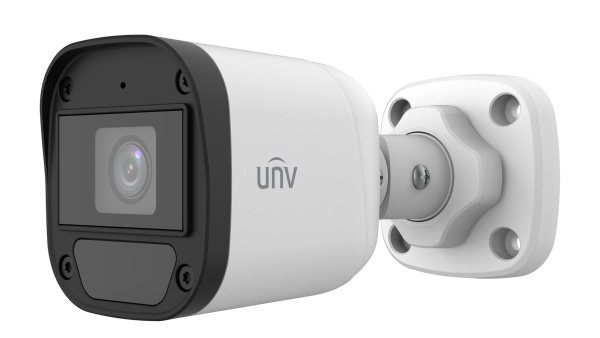

UAC-B115-AF28(40)
5MP Fixed IR Bullet Analog Camera
• 5MP high quality imageTVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
Specification
Accessories
Download
How to buy
 UAC-B115-AF28UAC-B115-AF40
Sensor
Pixel5 MP
Sensor Size1/2.7" CMOS
Min. Illumination0.02 lux (F2.0, AGC ON)
0 lux (IR ON)
Lens
Focus2.8 mm4.0 mm
Lens MountM12
Angle of View (H)102.2°82.9°
Angle of View (V)53.9°46.1°
Angle of View (D)124.8°100.0°
Illuminator
Illuminator NumberOne IR illuminator
Illumination Distance20m
Lifetime≥ 60000 hours
Video
Resolution5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V)
Frame RateTVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVBS: PAL, NTSC
Shutter TimePAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
Day/NightThree modes: Auto (default), Day, Night
Digital Noise Reduction2D
White BalanceTwo modes: Auto (default), Manual
WDRDWDR
Smart IRSupport
FlipSupports 180°horizontal flip, 180°vertical flip
Digital DefogN/A
Audio
Built-in MicSupport
Camera AudioTVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps
Interface
Power Interface5.5 mm Power Interface
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity≤ 95% RH (non-condensing)
Surge Protection4kV for power&4kV for video output interfaces
General
PowerDC 12 V ± 25%
Power ConsumptionMAX 3.3W
MountCorner Mount&Pole Mount
Dimensions142mm*63mm*65mm (L*W*H)
MaterialPlastic
Weight138g(0.30lb)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
SafetyCE-LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
