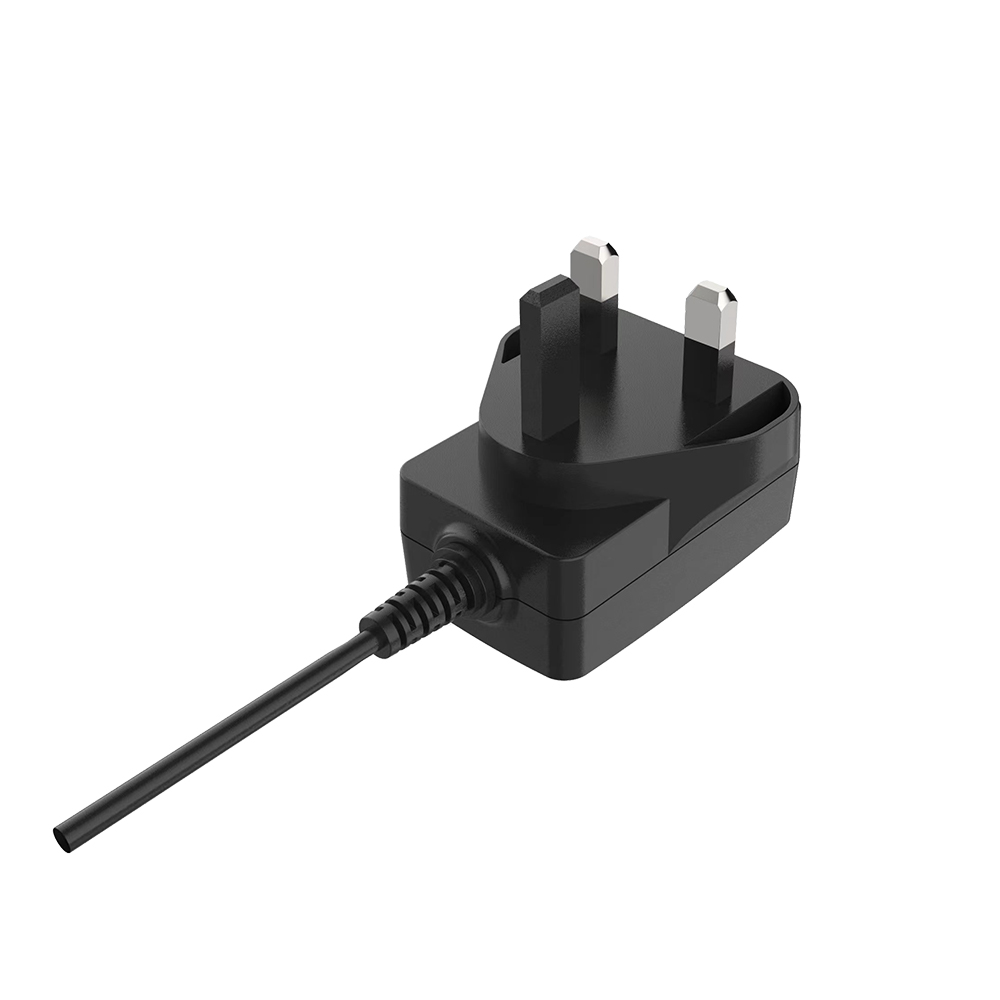

| PWR-DC1201B-UK | ||||||||
| Power | ||||||||
| Model | PWR-DC1201B-UK | |||||||
| Input | AC 100-240V, 50/60Hz, max. 0.4A | |||||||
| Output | DC 12V/1.0A | |||||||
| Output cable | DC5521, 1.2m | |||||||
| Certification | CE, UKCA, DOE VI | |||||||
| Operating environment | 0°C to 40°C (32°F to 104°F), ≤90%RH (non-condensing) | |||||||
| Installation method | Wall plug-in | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/8/26 20:51:54 | UNV PWR-DC1201B-UK Wall Plug-in UK Power Adapter.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2025/10/28 3:10:21 | PWR-DC1201B-UK_HD_Image_1.jpg | jpg | Download |
| Class | Date | Title | Language | Type | Preview | Download |
| Quick Guide | 2024/8/16 4:08:15 | Quick Guide.pdf | English | Preview | Download A > |
