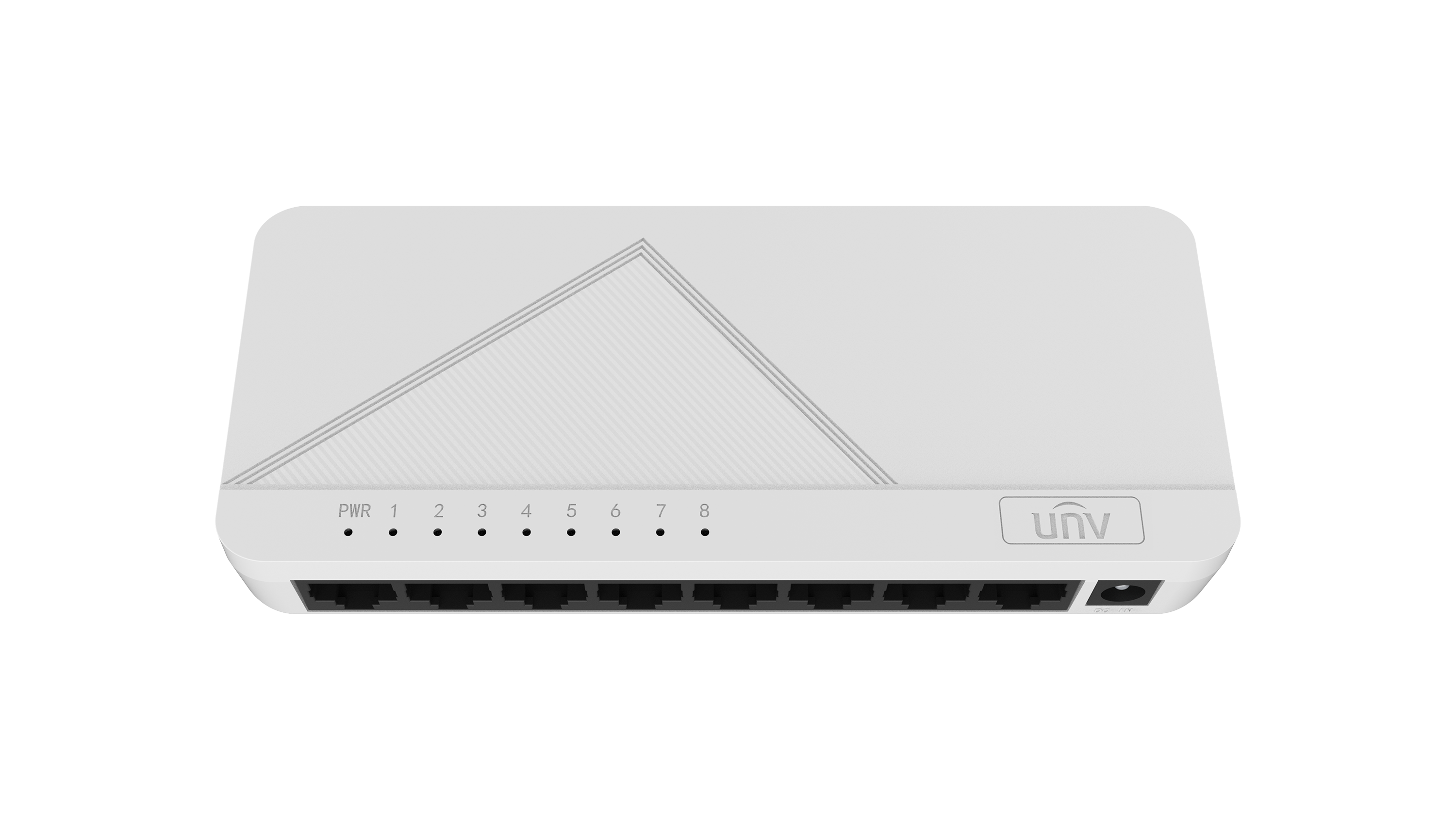

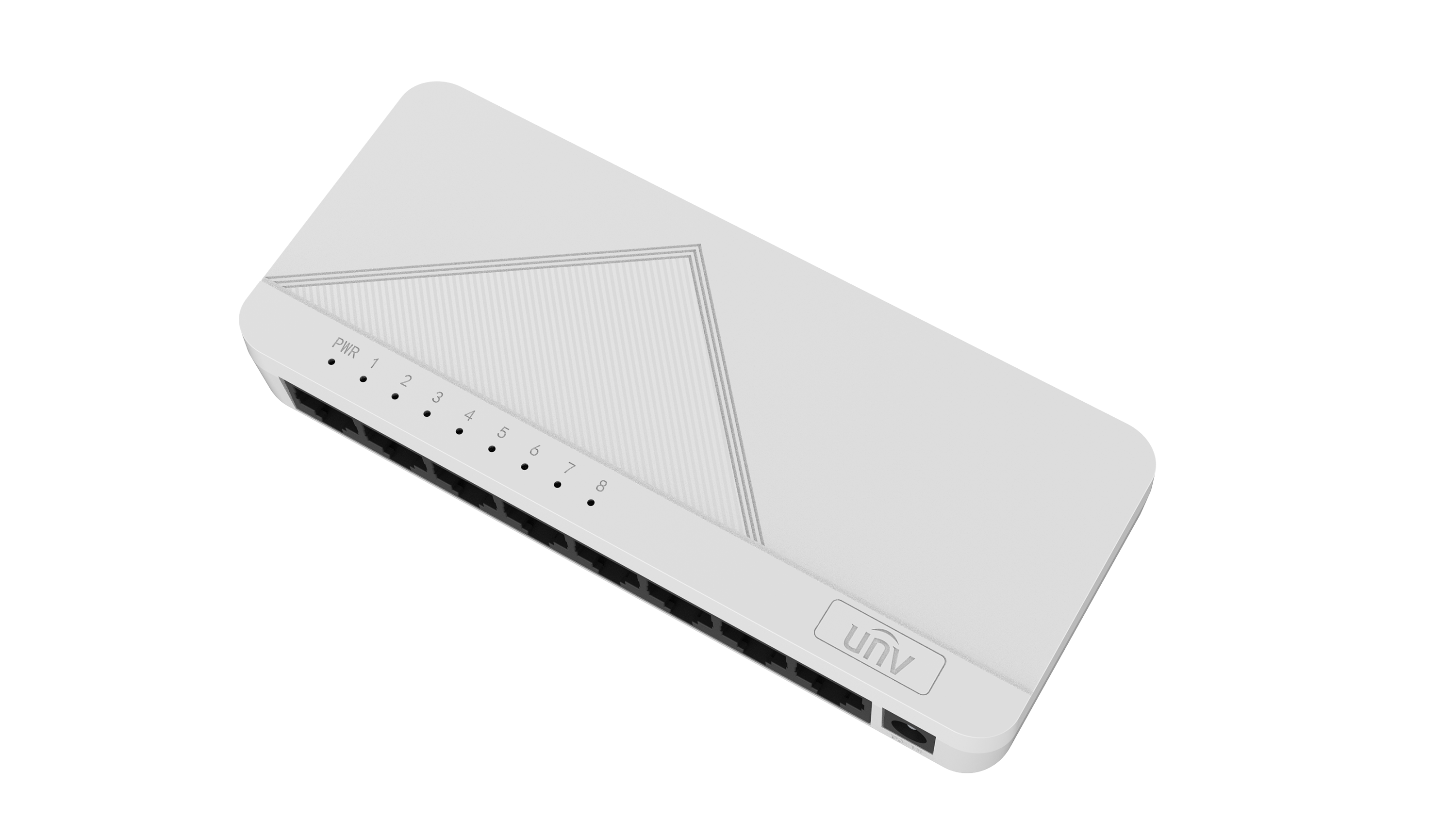

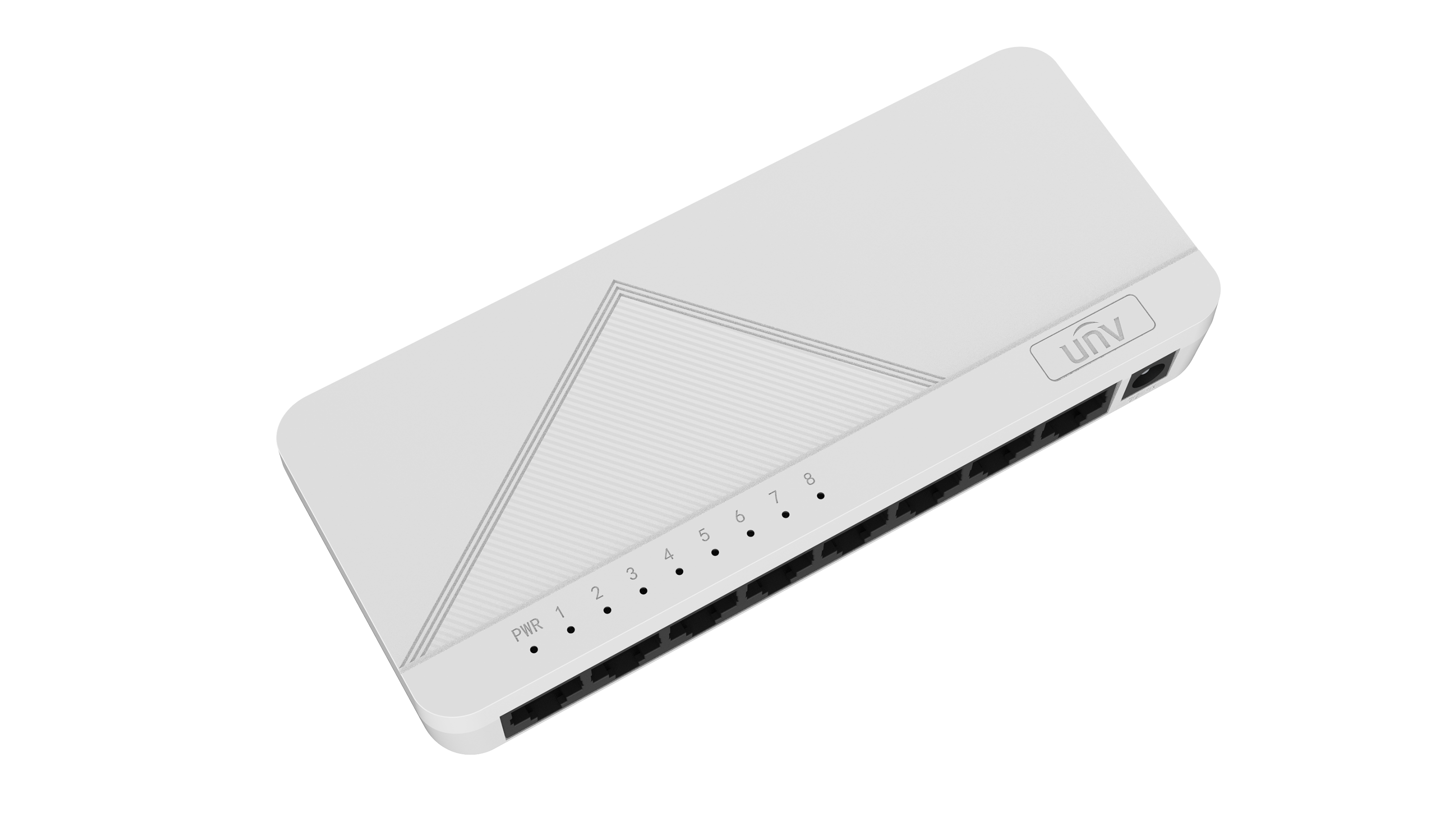

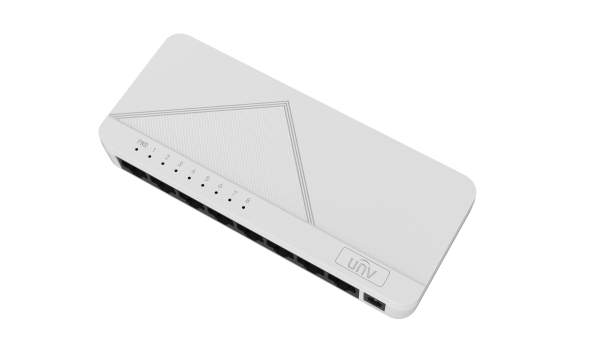

| NSW1010-8GT-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 8 x 10/100/1000Mbps port (RJ45) | |||||||
| Network Media | 10Base-T: Cat3, 4, 5 or higher UTP/STP (≤100m)  100Base-TX: Cat5 or higher UTP/STP (≤100m) 1000Base-TX: Cat5e or higher UTP/STP (≤100m)  | |||||||
| Switching capacity | 16 Gbps | |||||||
| Forwarding performance | 11.9Mpps | |||||||
| MAC | 2K | |||||||
| Jumbo Frame | 15K | |||||||
| Transfer Mode | Store-and-forward | |||||||
| Dimensions (W×D×H) | Product:  145*60*21.5mm Packaging: 146*88*50mm  | |||||||
| Carton Information | Carton dimensions:  530*475*315mm Carton quantity: 100PCS Carton weight: 17.6kg  | |||||||
| Weight | Product: 0.111kg   Packaging: 0.166kg  | |||||||
| Mount Method | Desktop mount, wall mount | |||||||
| Cooling Fans | 0 | |||||||
| Operating humidity | 10%~90% (non-condensing) | |||||||
| Storage Temperature | -20°C to 70°C | |||||||
| Storage Humidity | 5% to 90% RH, noncondensing | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/6/20 15:19:51 | UNV NSW1010-8GT-IN Unmanaged Ethernet Switch.pdf | English | Preview | Download A > |
