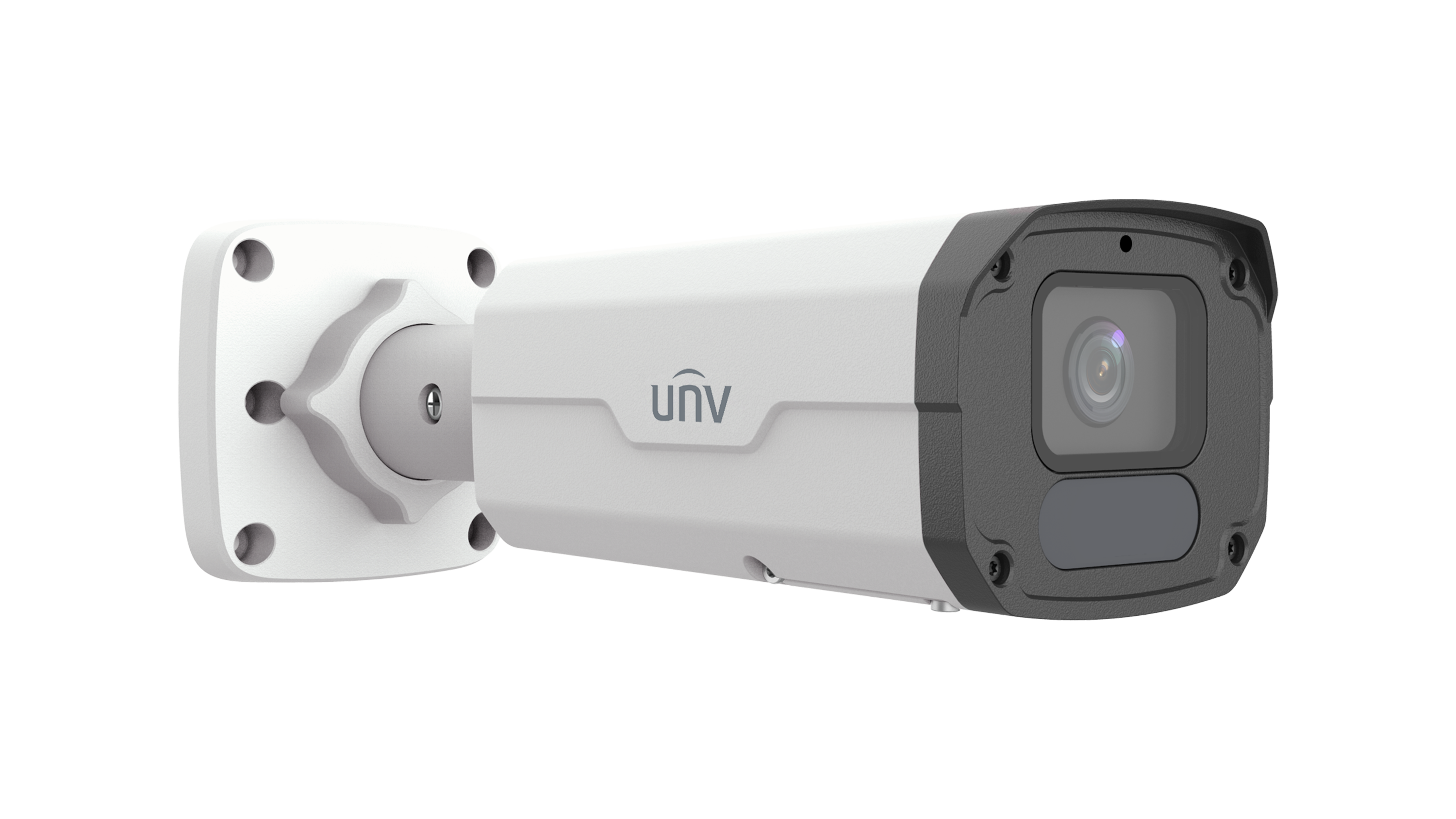

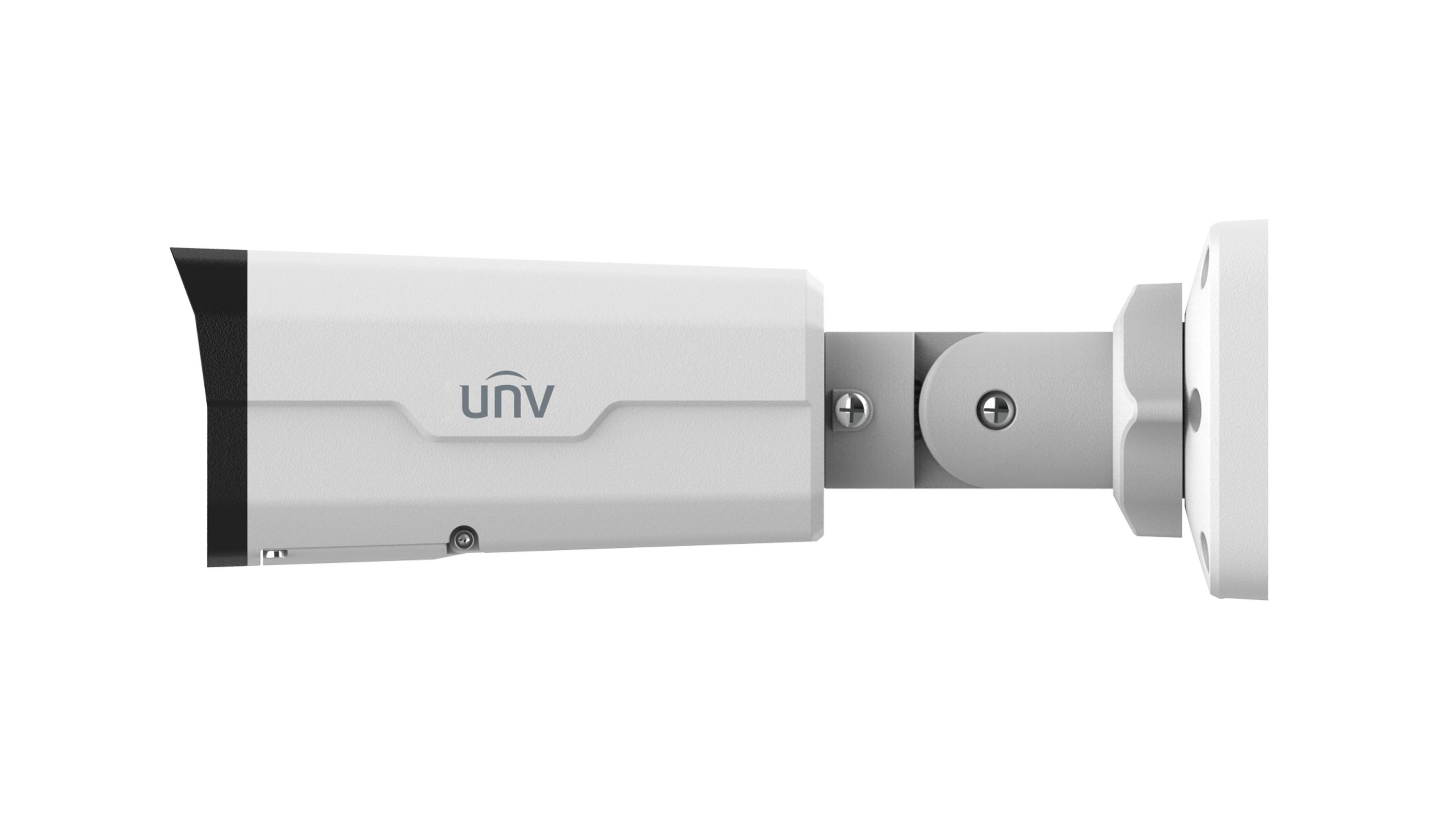

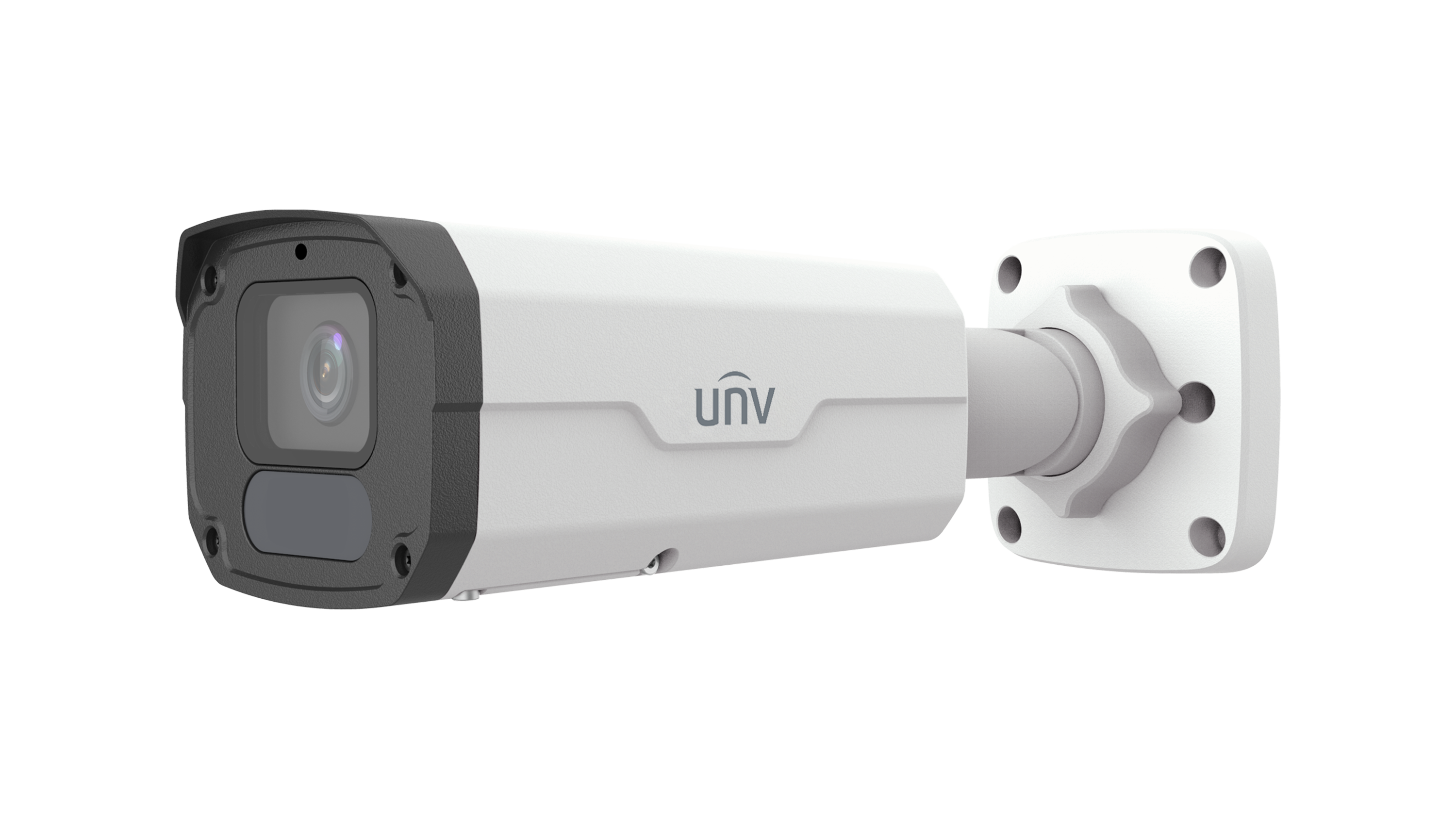

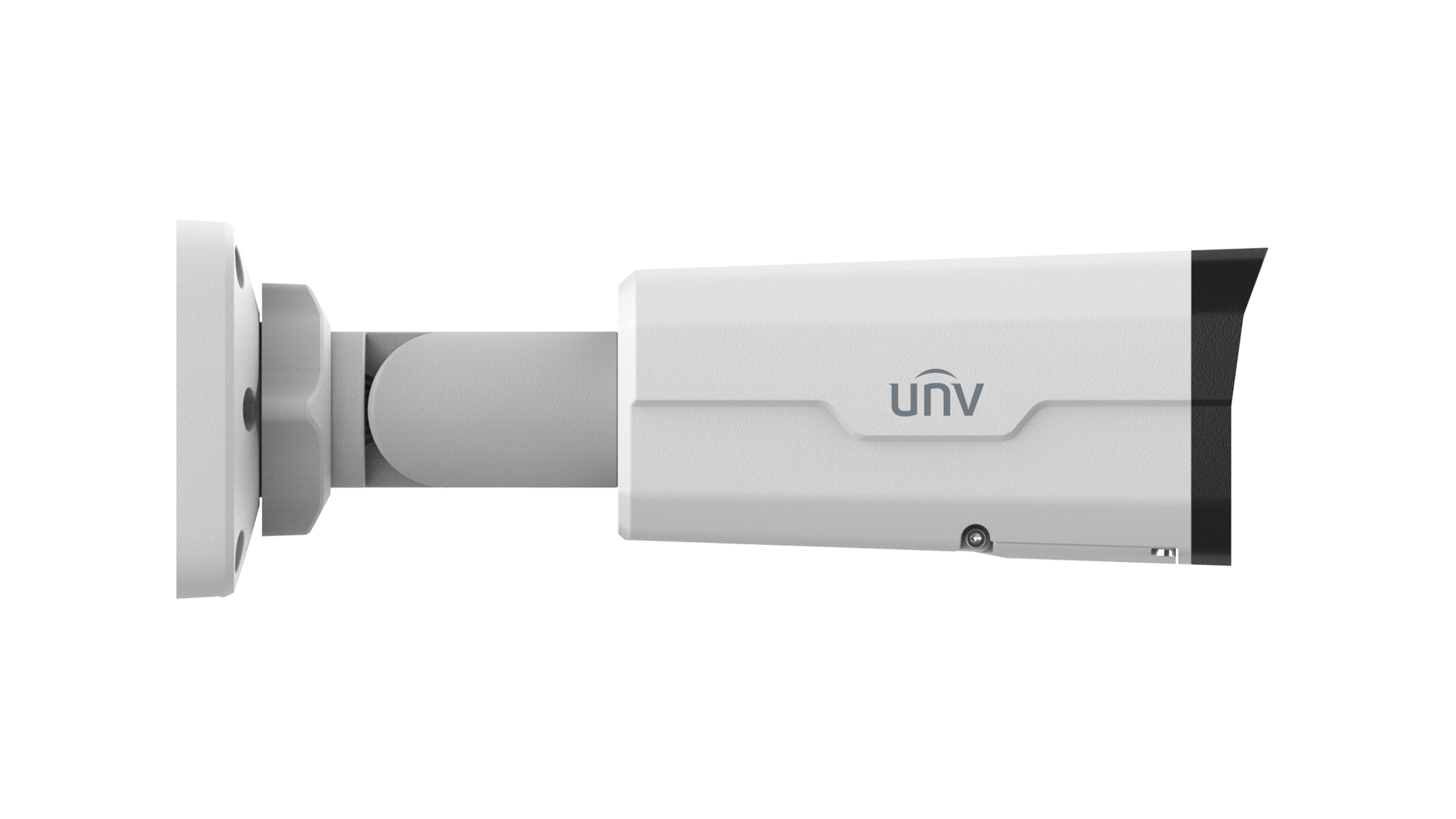

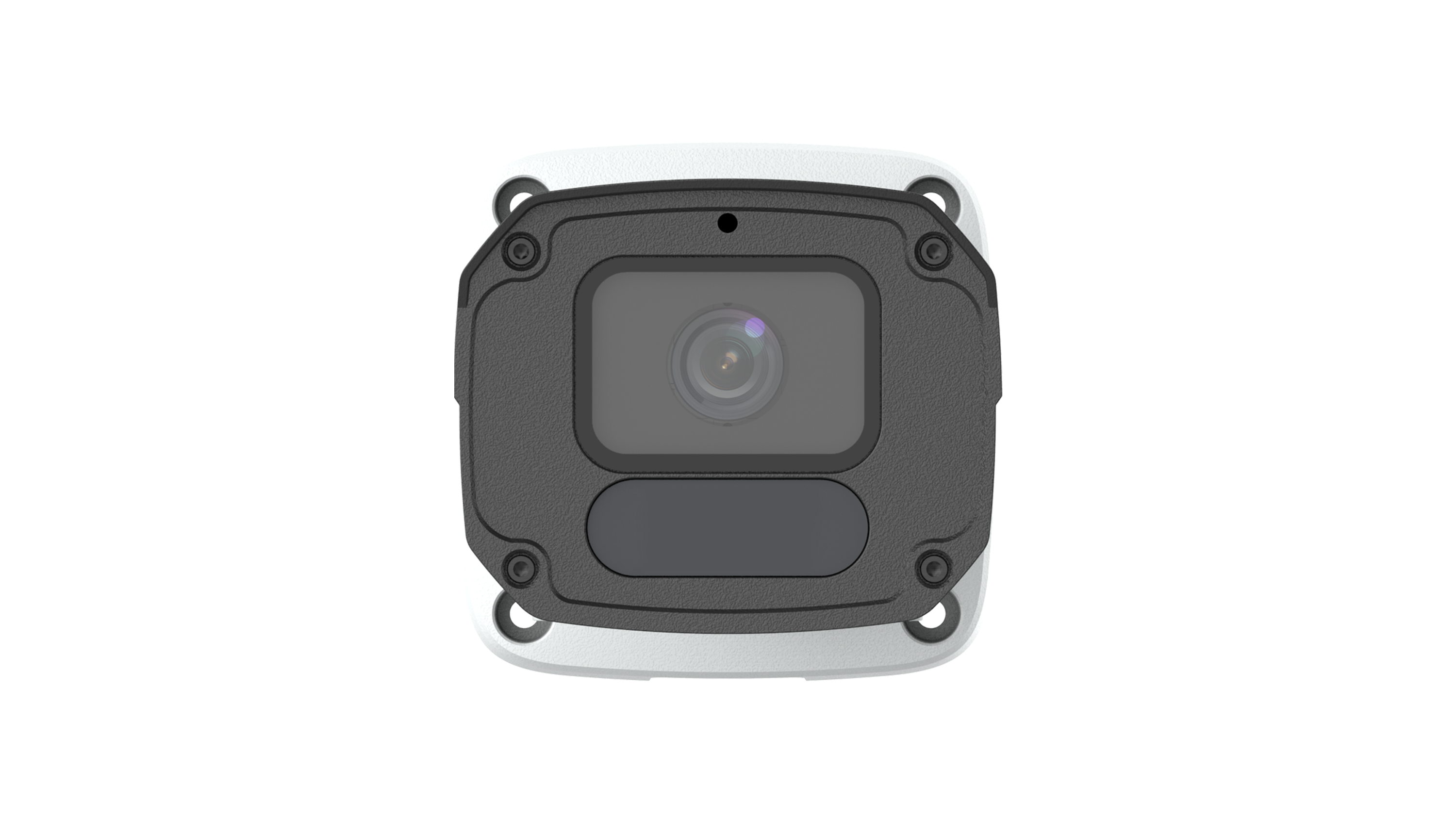

IPC2228SB-ADF40KM-I1 | ||||||||
Camera | ||||||||
Max Resolution | 8 MP | |||||||
Sensor | 1/2.8" CMOS | |||||||
Min. Illumination | Colour:0.002 lux (F1.6, AGC ON) 0 lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
WDR | 120 dB | |||||||
S/N | >56 dB | |||||||
Lens | ||||||||
Focal Length | 4.0 mm | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 84° | |||||||
Field of View (V) | 47° | |||||||
Field of View (D) | 103.3° | |||||||
Iris Type | Fixed | |||||||
DORI | ||||||||
DORI Distance (Lens) | 4.0mm | |||||||
DORI Distance (Detect) | 124.2m(407.6ft) | |||||||
DORI Distance (Observe) | 49.7m(163.0ft) | |||||||
DORI Distance (Recognize) | 24.8m(81.5ft) | |||||||
DORI Distance (Identify) | 12.4m(40.8ft) | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | 80 m (262 ft) | |||||||
Wavelength | 850 nm | |||||||
Video | ||||||||
Frame Rate-Main Stream | 8MP (3840*2160), Max 30fps | |||||||
Frame Rate-Sub Stream | 1080P (1920*1080), Max 30fps | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
Frame Rate-Third Stream | D1 (720*576), Max 30fps | |||||||
ROI | Support | |||||||
Video Stream | Triple Streams | |||||||
OSD | Up to 10 OSDs | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
HLC | Support | |||||||
Defog | Digital Defog | |||||||
Intelligent | ||||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 8 kHz, 16 kHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Built-in Mic | Support | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
General | ||||||||
Built-in DC12V Output | Support | |||||||
Power | DC12V(±25%), PoE (IEEE 802.3af) | |||||||
Power Consumption | Max 10W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | 245 x 87 x 86 mm (9.6" x 3.4" x 3.4") (L x W x H) | |||||||
Weight | 0.82kg(1.81lb) | |||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 3rd Ed., 2021-10-22 ) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
