IPC2A24SE-ADZK-I0

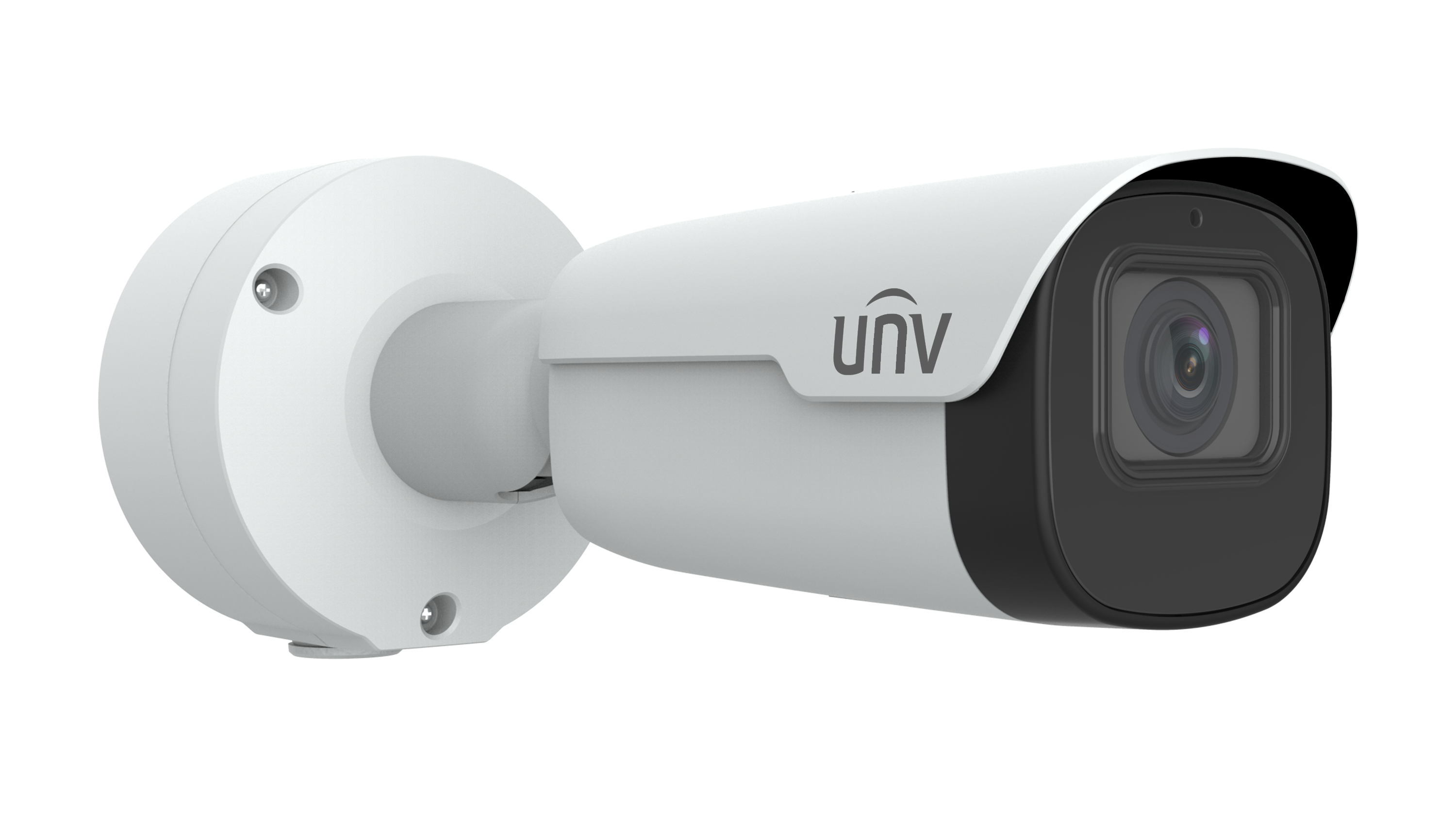

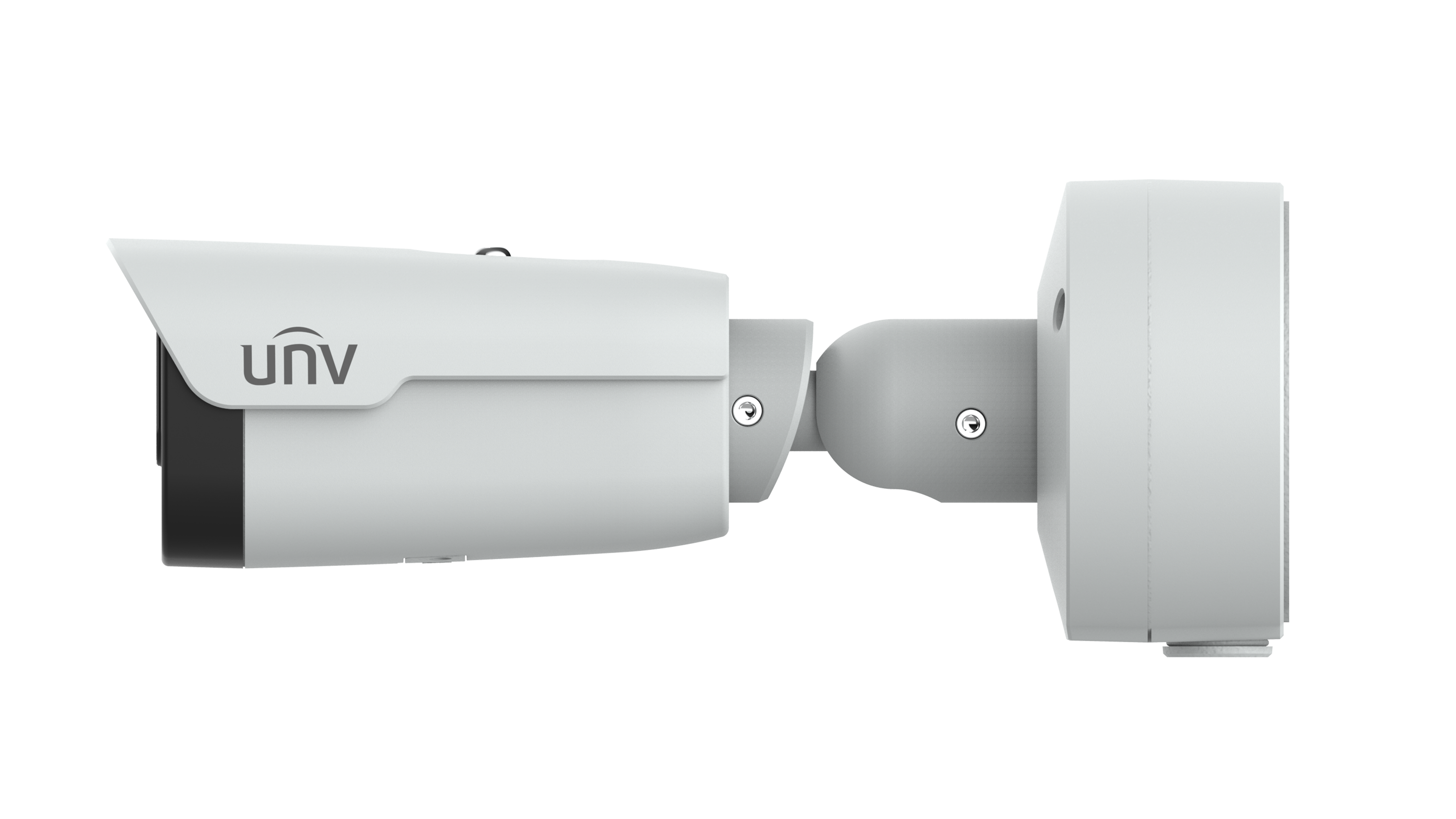

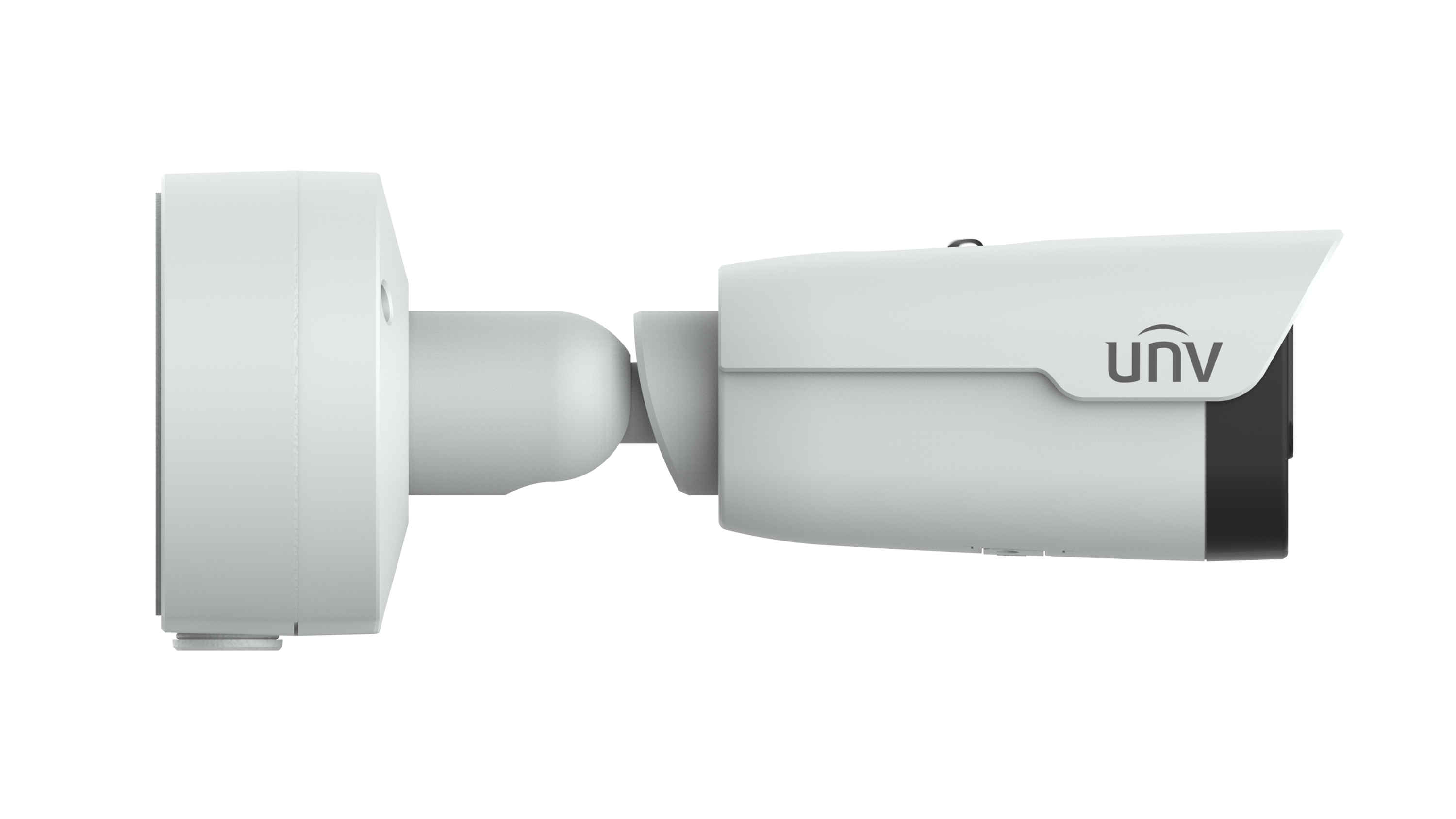

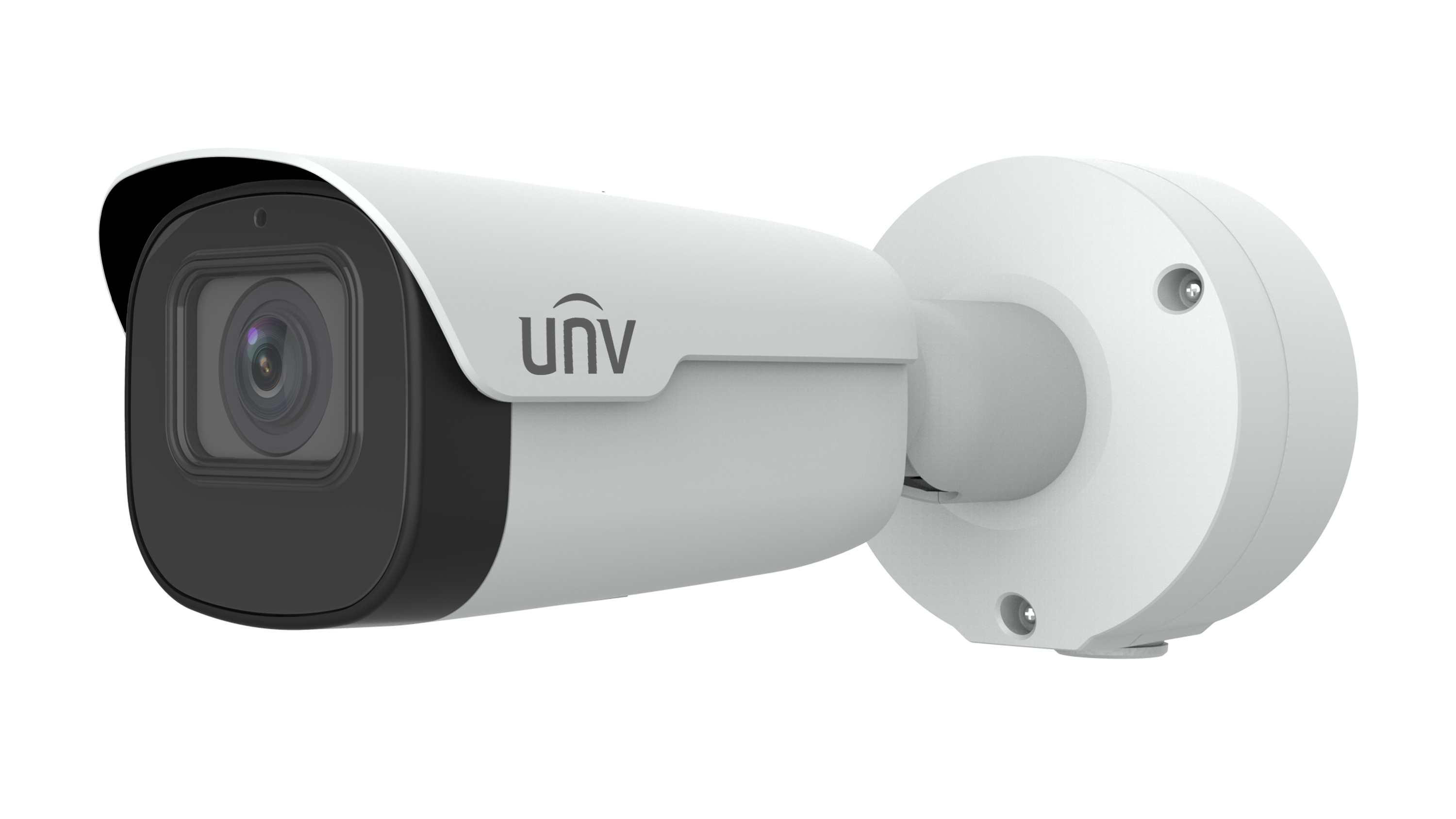

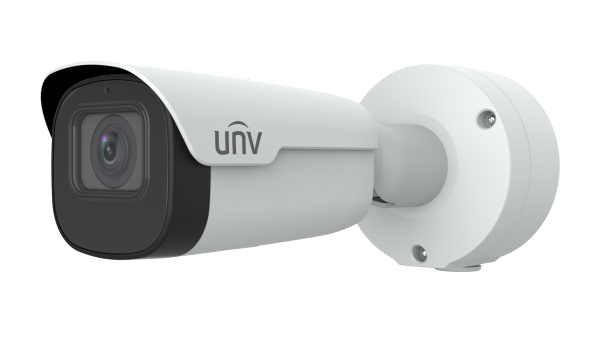

4MP LightHunter VF IR Bullet Network Camera
• High quality image with 4MP,1/1.8’’ CMOS sensor
• 2688*1520@30fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in heater, support normal start-up at low temperature
• DC12V or PoE (IEEE 802.3af) power supply
• Wide voltage range of ±25% in DC
• Audio 1 in and 1 out, Alarm 2 in and 1 out
Specification
Accessories
Download
How to buy
 IPC2A24SE-ADZK-I0
Camera
Sensor1/1.8" CMOS
Min. IlluminationColour:0.0005 lux (F1.2, AGC ON)
0 lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
WDR120 dB
Adjustment AnglePan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
S/N>56 dB
Lens
Focal Length2.8 to 12 mm
Digital Zoom16X
Optical Zoom5X
IrisF1.2
Field of View (H)113.7°~42.6°
Field of View (V)59.0°~24.1°
Field of View (D)139.9°~52.4°
Iris TypeFixed
DORI
DORI Distance (Lens)2.8~12(mm)
DORI Distance (Detect)68.0m(223.0ft)~166.2m(545.2ft)
DORI Distance (Observe)27.2m(89.2ft)~66.5m(218.1ft)
DORI Distance (Recognize)13.6m(44.6ft)~33.2m(109.0ft)
DORI Distance (Identify)6.8m(22.3ft)~16.6m(54.5ft)
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame Rate-Main Stream4MP (2688*1520), Max 30fps
Frame Rate-Sub Stream1080P (1920*1080), Max 30fps
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
ROISupport
Video StreamTriple Streams
OSDUp to 10 OSDs
Privacy MaskUp to 4 areas
Frame Rate-Third StreamD1 (720*576), Max 30fps
Events
Basic DetectionMotion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind, Scene Change, Defocus Detection
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Intelligent
Exception DetectionObject Removed, Object Left Behind, Scene Change, Defocus Detection
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People CountingSupport People Flow Counting and Crowd Density Monitoring
Traffic MonitoringSupport capturing car license picture when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate16KHZ
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLCSupport
BLCSupport
Smart IRSupport
DefogDigital Defog
Heatwave ReductionN/A
Network
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
Interface
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O2/1
Built-in MicSupport
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output1 BNC (For debugging)
Illuminator
Illumination Distance (IR)80 m (262 ft)
IR On/Off ControlAuto/Manual
Wavelength850 nm
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General
PowerDC12V(±25%), PoE(IEEE 802.3af)
Power ConsumptionMax 10W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ 130 x 322 mm (Ø 5.1” x 12.7”) (Ø x H)
Weight1.3Kg(2.87lb)
Working Environment-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
HeaterSupport
