UAC-D122-AF28M | UAC-D122-AF40M | |||||||
Sensor | ||||||||
Pixel | 2MP | |||||||
Sensor Size | 1/2.9" CMOS | |||||||
Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) | |||||||
Lens | ||||||||
Focus | 2.8 mm | 4.0 mm | ||||||
Lens Mount | M12 | |||||||
Angle of View (H) | 101.5° | 83.8° | ||||||
Angle of View (V) | 56.9° | 42.7° | ||||||
Angle of View (D) | 117.4° | 100.1° | ||||||
Illuminator | ||||||||
Illuminator Number | One IR illuminator | |||||||
Illumination Distance | 30m | |||||||
Lifetime | ≥60000 hours | |||||||
Video | ||||||||
Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) | |||||||
Frame Rate | TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC | |||||||
Shutter Time | PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s | |||||||
Image | ||||||||
Exposure Mode | Four modes: Global(default), BLC, HLC, DWDR | |||||||
Day/Night | Three modes: Auto (default), Day, Night | |||||||
Digital Noise Reduction | 2D/3D | |||||||
White Balance | Two modes: Auto (default), Manual | |||||||
WDR | DWDR | |||||||
Smart IR | Support | |||||||
Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
Digital Defog | Support | |||||||
Audio | ||||||||
Built-in Mic | Support | |||||||
Camera Audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps | |||||||
Interface | ||||||||
Power Interface | 5.5 mm Power Interface | |||||||
Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
Operating Environment | ||||||||
Temperature | -30°C to 60°C (-22°F to 140°F) | |||||||
Humidity | ≤95% RH (non-condensing) | |||||||
Surge Protection | 4KV for power, 4KV for video output interfaces | |||||||
Ingress Protection | IP67 | |||||||
IK Rating | IK10 | |||||||
General | ||||||||
Power | DC12V±25% | |||||||
Power Consumption | MAX 3.3W | |||||||
Mount | Wall Mount, Pole Mount, Corner Mount, Tilted Mount, Pendant Mount | |||||||
Dimensions | Φ109mm*83mm (diameter*height) | |||||||
Material | Metal | |||||||
Weight | 372g(0.82lb) |
Class | Date | Title | Language | Type | Download |
Datasheet | 2024/8/27 11:23:03 | UNV UAC-D122-AF28(40)M 2MP LightHunter HD IR Fixed Dome Analog Camera.pdf | English | Download |
Class | Date | Title | Type | Download |

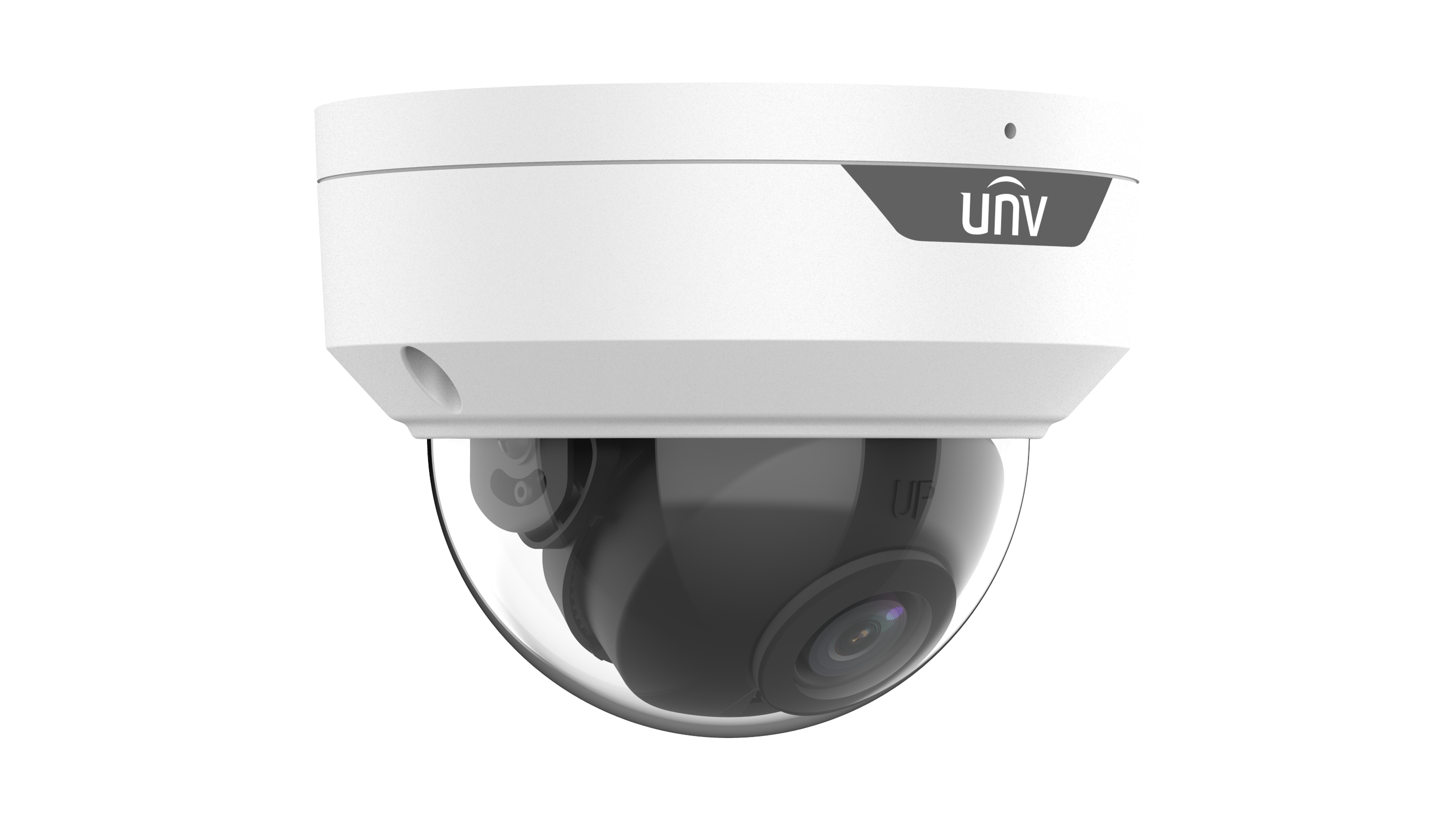

HD Image | 2024/9/12 15:07:18 | UAC-D122-AF28M_HD_Image_1.png | png | Download |

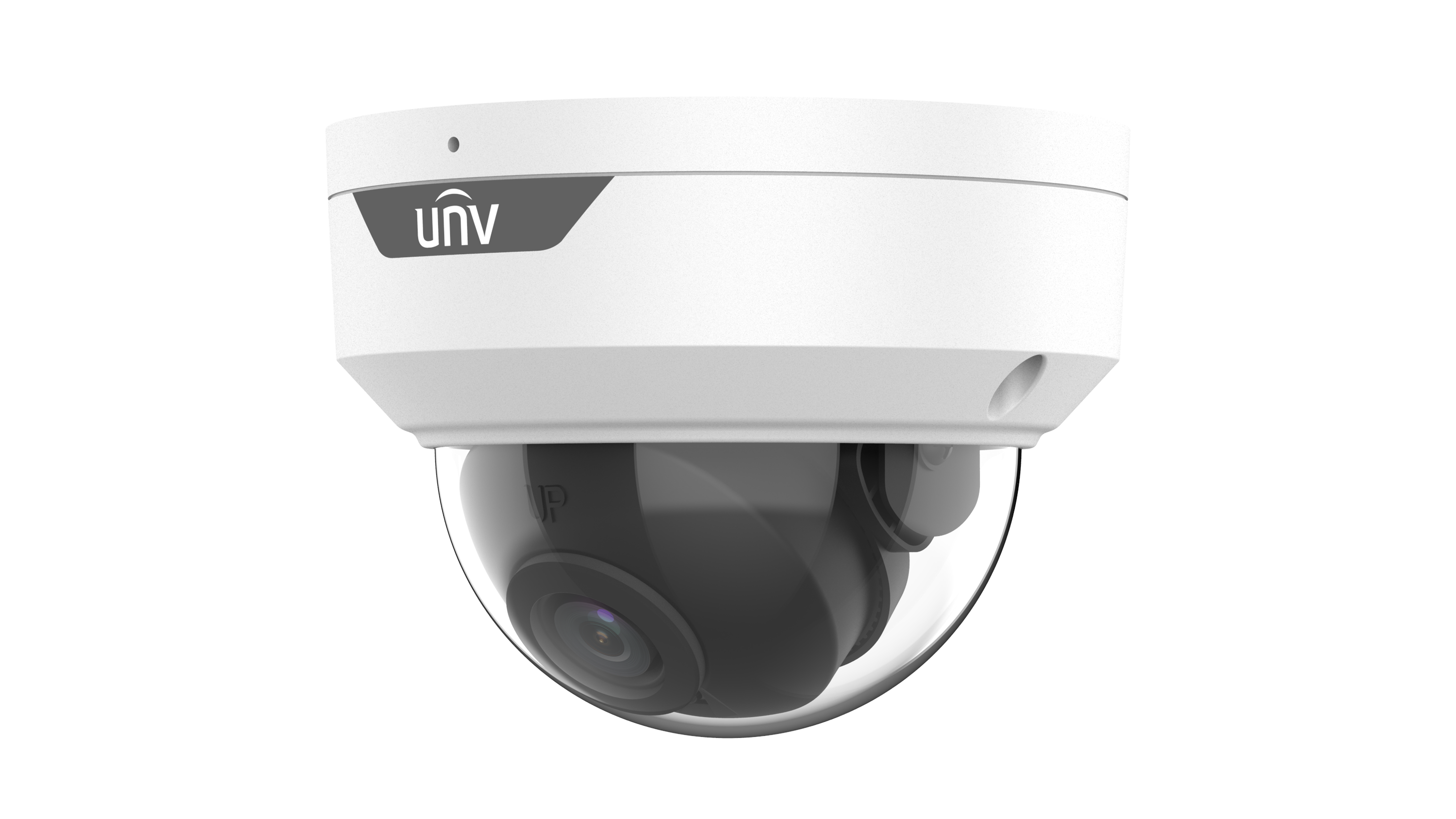

HD Image | 2024/9/12 15:07:18 | UAC-D122-AF28M_HD_Image_2.png | png | Download |

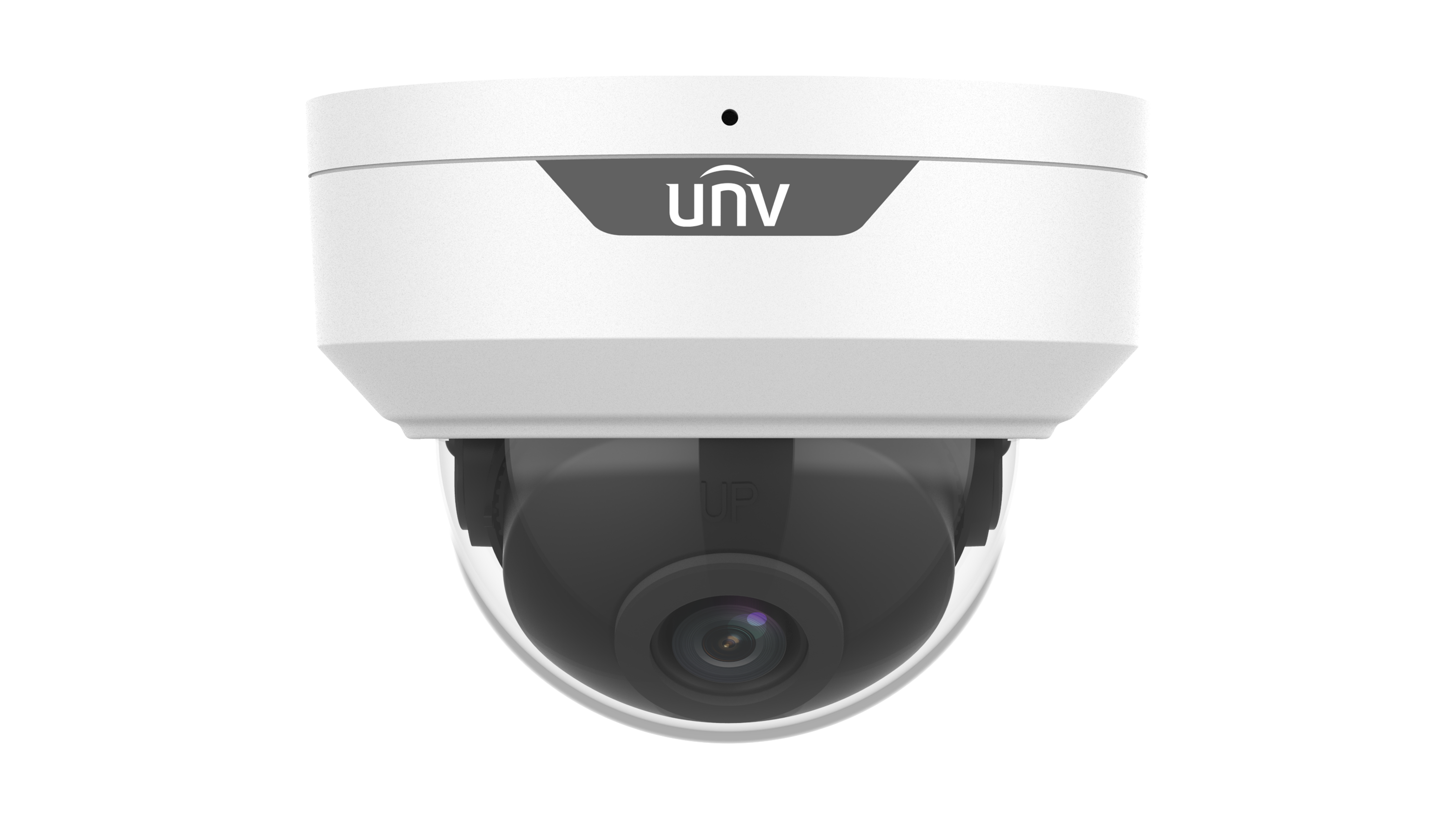

HD Image | 2024/9/12 15:07:18 | UAC-D122-AF28M_HD_Image_3.png | png | Download |
Class | Date | Title | Language | Type | Download |
User Manual | 2024/8/14 16:06:25 | UNV-Analog Cameras User Manual.pdf | English | Download |
Class | Date | Title | Language | Type | Download |
Quick Guide | 2024/8/21 5:22:12 | UNV-UAC-D Series-Analog Fixed Dome Cameras Quick Guide.pdf | English | Download |
