OEI-372S-H-W-Z

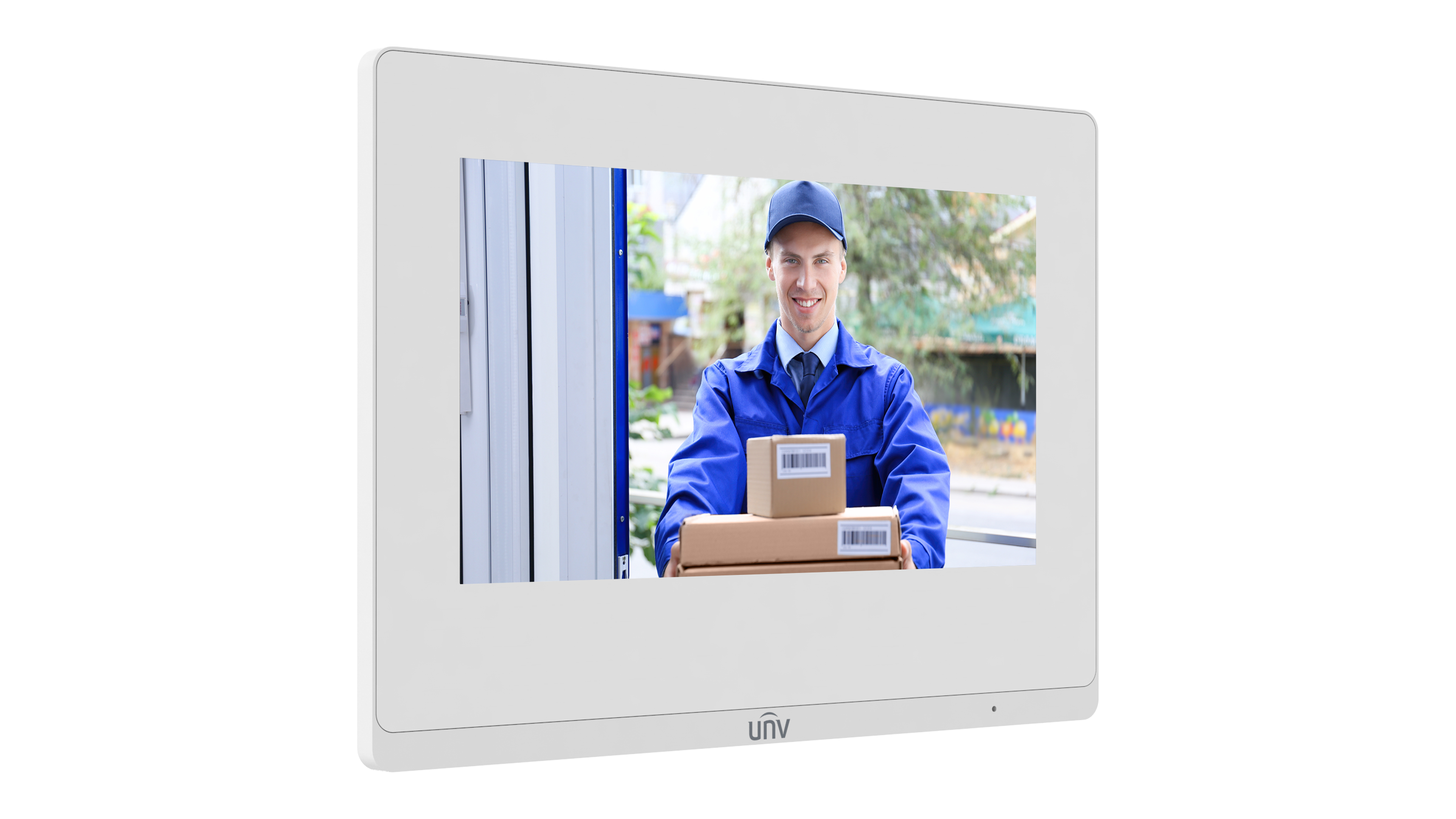

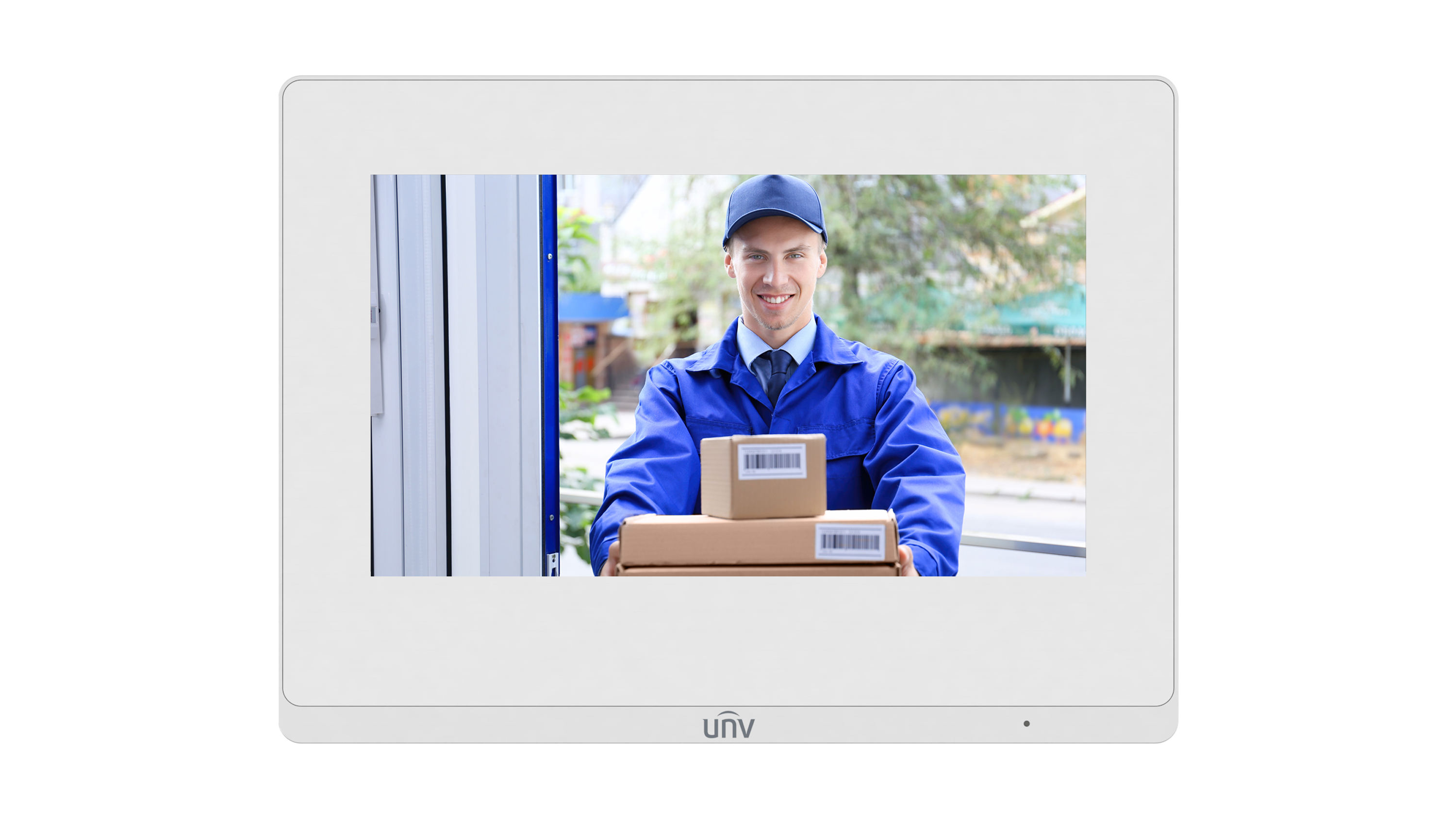

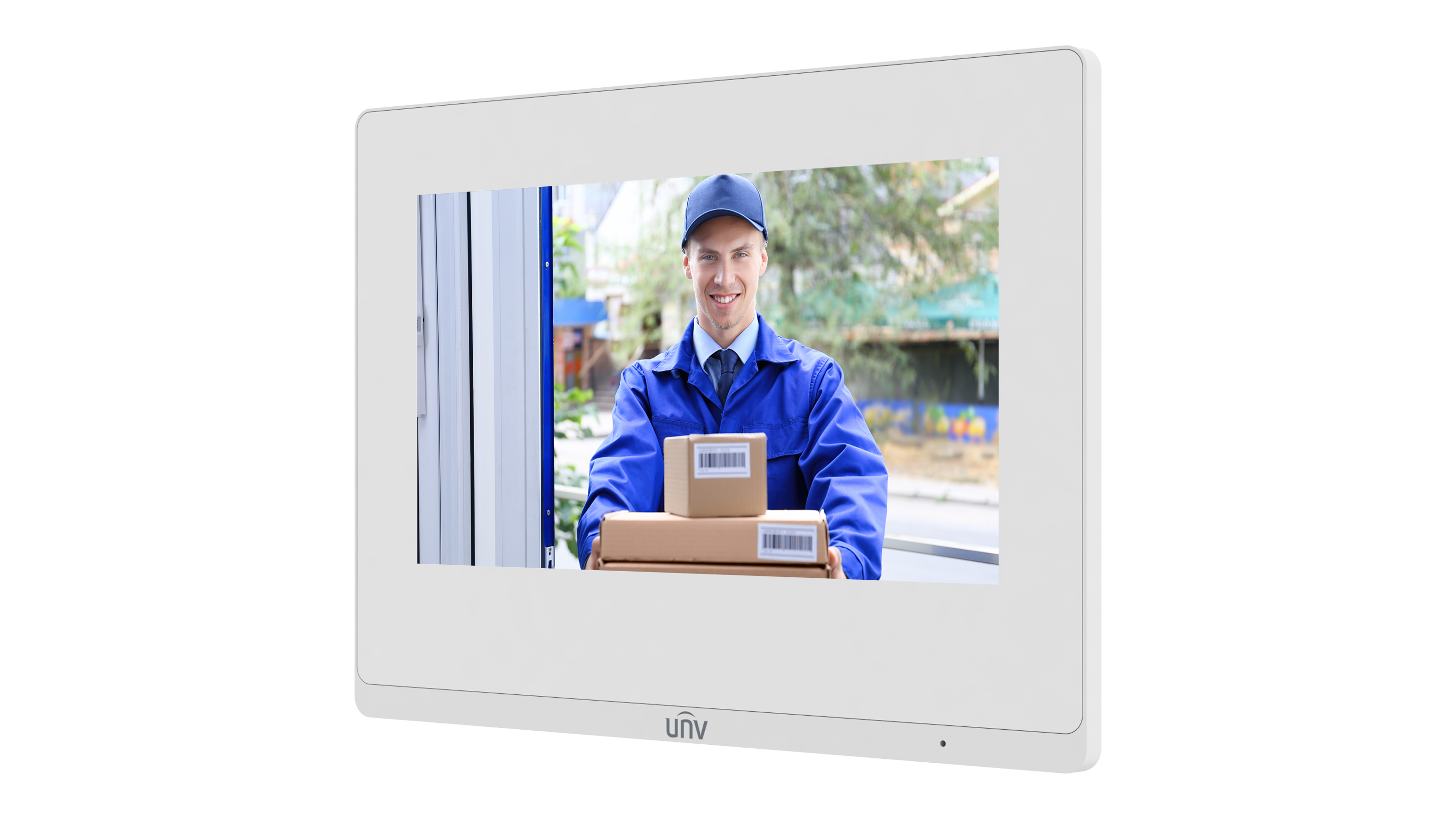

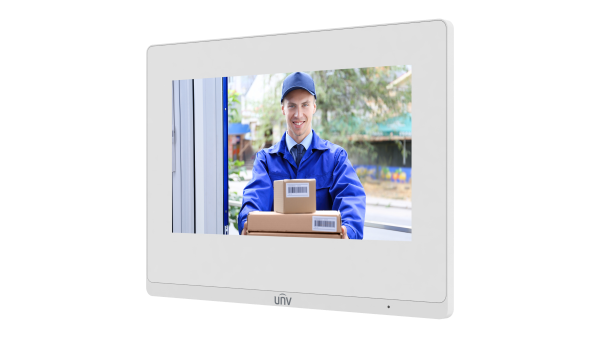

Wall Mounted 7-Inch Indoor Station(White,WiFi)
• Durable ABS casing with a glass panel.
• 1024×600 HD touchscreen display.
• Batch configuration and transfer.
• Remote and one-touch unlocking of linked door stations.
• Network camera monitoring and security alarm.
Specification

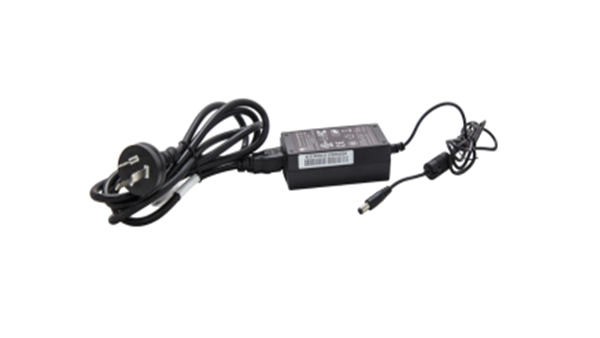

Accessories
Download
How to buy
 OEI-372S-H-W-Z
Hardware Specification
Power SupplyDC12V±25%,IEEE802.3af, Standard PoE
Power Consumption＜10W
Screen7-inch ultra-thin TFT LCD screen
Screen Resolution1024×600
Operation SystemLinux
Audio QualityNoise suppression,echo cancellation and AGC
Audio Input1 built-in omnidirectional microphone
Audio Output1 built-in speaker
Audio Compression StandardMP3 G711
Audio Compression Bitrate128Kbps
InterfacePower*1, network*1, WiFi*1,RS485*1, IO output*2, IO input*8, TF card slot*1
Network100Mbps network port, supports IEEE802.3af PoE power supply,WIFI4、2.4GHZ
Weight360g
Dimensions (L x W x H)193mm×143mm×25mm
Operating Environment-10°C to +55°C, 10% to 90%, non-condensing, indoor
Basic Business
ProtocolUNV private protocol
Network protocolTCP/IP, IPv4, HTTP, RTP, RTSP, NTP
Specification Index
Capacity200 ScreenShots
200 Zone Alarms
A total of 20 connected devices, including IPCs, entrance stations, NVRs (up to 2), and Doorbells
Linked Indoor Station Capacity19 extensions
