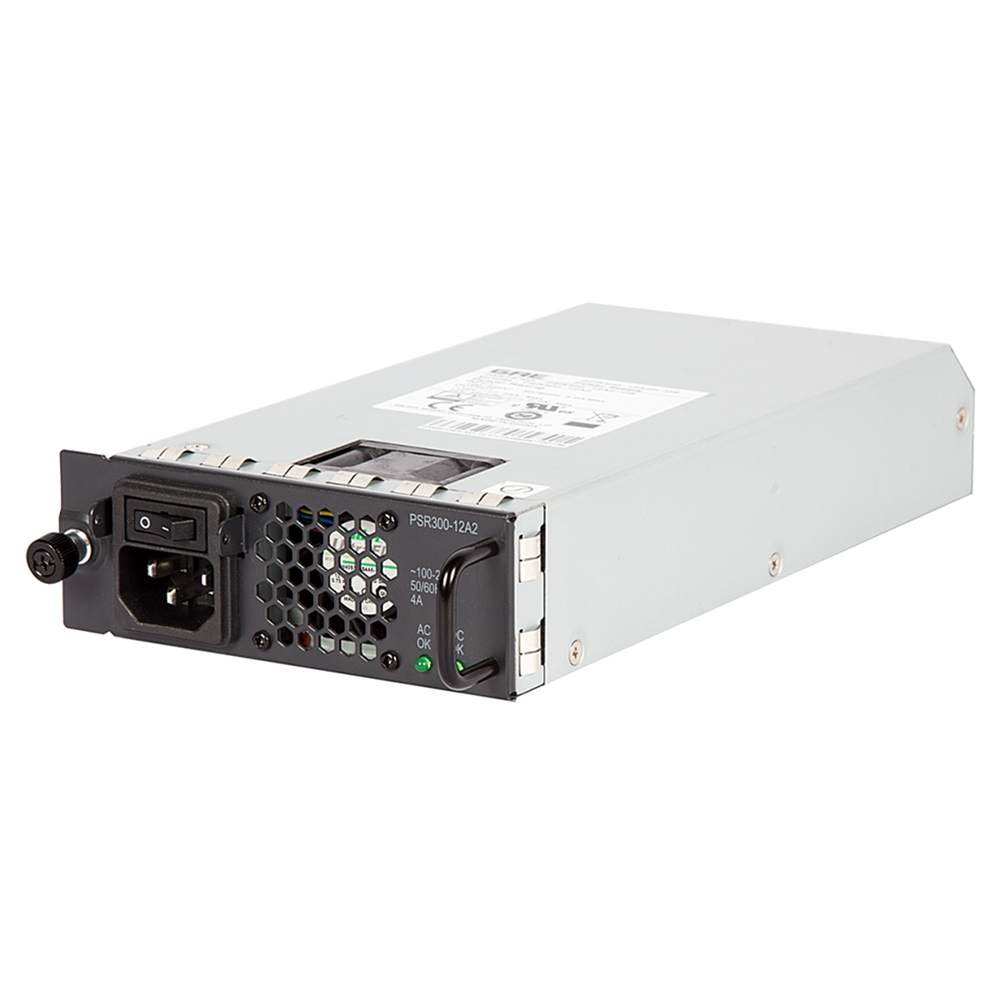

| PWR-300A-IN |
AC Input |
Voltage | 90~264V AC |
Frequency | 47~63Hz |
Power Factor | ≥0.95 |
Input Current | ≤4A@100VAC |
Input Protection | Input undervoltage, Input overvoltage |
DC Output |
Voltage/Current | +12VDC/25A, +12VStandby/0.7A |
Output Power | 312W |
Output Efficiency | ≥83%, 220V AC/25A |
Line Regulation | ±5% |
Load Regulation | ±3% |
Regulated Voltage Accuracy | ±5% |
Dynamic Response Overshoot | ±5% |
Current Sharing Rate | ±5% |
Output Protection | Short Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection |
Other |
Indicator light | Normal: green on, Abnormal: Yellow on |
Working Temperature | 0~55℃ |
Storage Temperature | -40~70℃ |
Working Humidity | 10%~90% |
Heat dissipation | Ventilating fan design, heat emission at back |
Dimension (D×H×W) | 234.9mm×40.13mm×101.6mm |
Certification |
EMC standards | EN55022, EN55024 |
NEBS standards | GR-63-CORE ISSUE 2 |
Approved standards | CB, FCC, UL |
