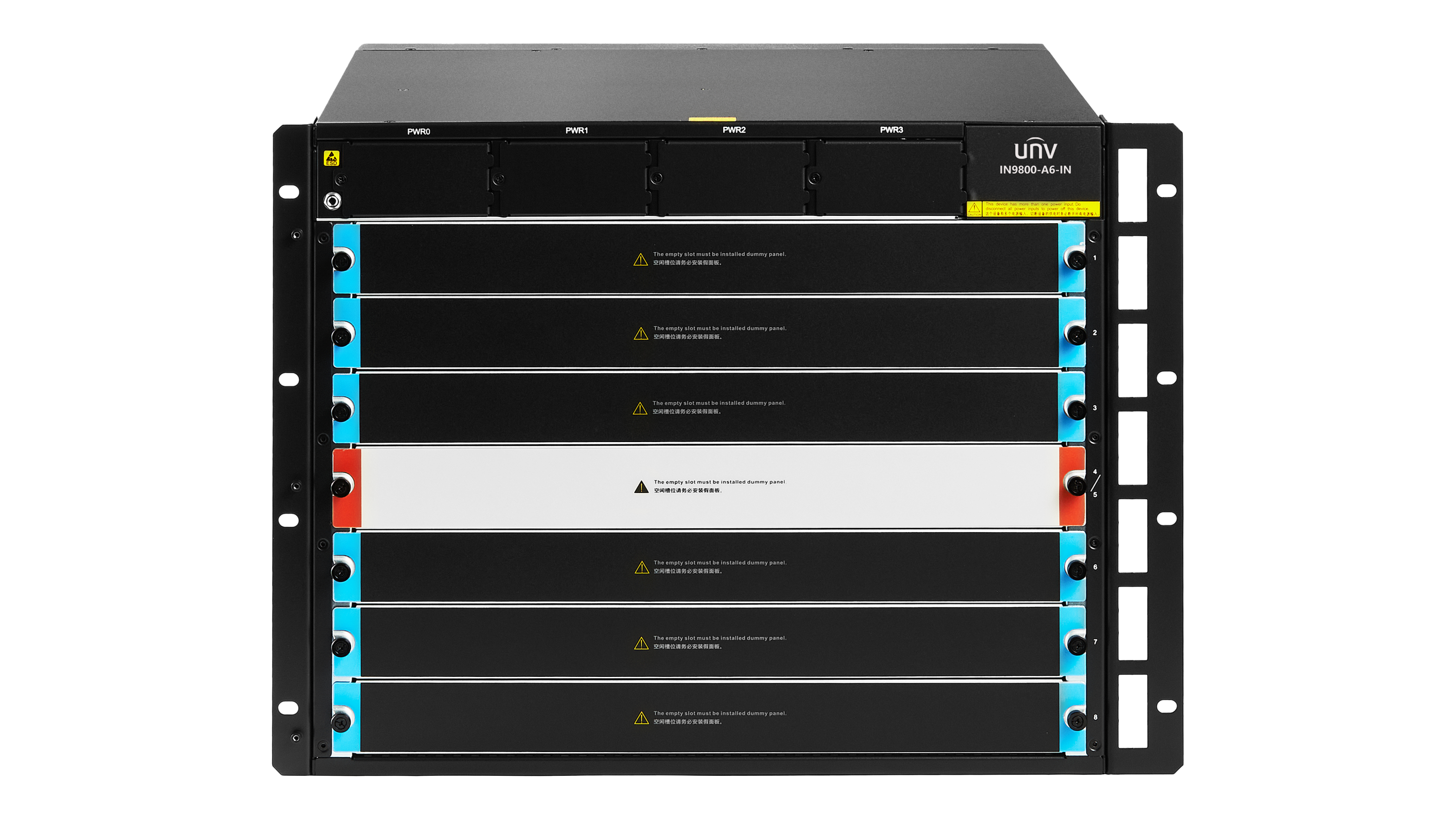

IN9800-A6-IN | ||||||||
Hardware Specification | ||||||||

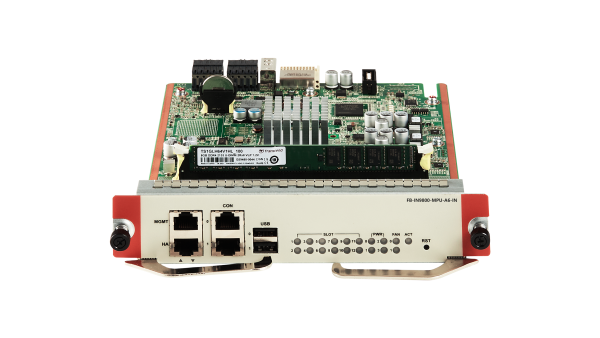

MPU Slots | 2*Half-width slot | |||||||
SFU Slots | 1 | |||||||
Module Slots | 6 | |||||||
Switching Capacity | 2.88Tbps | |||||||
Forwarding Performance | 1714.17Mpps | |||||||
Fan Slots | 2 | |||||||
Fan | 8 | |||||||
Power Slots | 4 | |||||||
Power Supply | Voltage: 110V~240V, 50/60Hz | |||||||
Max.Power | 550W | |||||||
Weight | Empyt Frame: ≤19kg; Fully Loaded: ≤50kg | |||||||
Dimensions | 420*448*353mm, 8U | |||||||
Operating Temperature | 0℃ to 45℃ | |||||||
Operating Humidity | 5% to 95%, non-condensing | |||||||
Storage Temperature | -40℃ to +70℃ | |||||||
Storage Humidity | 5% to 95%, non-condensing | |||||||
MTBF | >200000h | |||||||
Software Specification | ||||||||
Layer-3 | IPv4: Static routing, RIP v1/2, OSPF, ISIS, BGP, policy-go-together, etc. IPv6: IPv6 static routing, RIPng, OSPFv3, ISISv6, BGP4+, transition tunnel technology from IPv4 to IPv6, etc. | |||||||
Layer-2 | VLAN, QinQ, flexible QinQ, VLAN Mapping, full duplex traffic control, back pressure traffic control, link aggregation (support 128 aggregation groups, with each group consisting of 8 members), cross-board link aggregation, cross-board port/flow mirroring, port broadcast/multicast/unknown unicast forwarding storm suppression, Jumbo Frame, VLAN division based on port/protocol/subnet and MAC, PVLAN, GVRP, CoS priority, etc. | |||||||
Virtualization Features | Support VSM (Virtual Switching Matrix) N:1 virtualization technology, which performs virtualization of multiple L2 ~ 7 physical devices into a single L2 ~7 logical device. Support service chain technology, which defines business streams based on L2-7 protocol features, and allows on-demand assignment of physical/logical service modules for traffic passage. Support IP-based unified management between the host and service modules and unified configuration interface | |||||||
Data Center | Support 802.1Qbg and DCB Support mainstream Overlay standards such as VXLAN Support Openflow1.3 protocol | |||||||
Maintenance | Support FTP, TFTP, X-modem Support Web management port, SNMP v1/v2/v3 Support RMON, NTP clock, intelligent power management | |||||||
Reliability | Support STP, RSTP, MSTP. Support master control board 1+1 redundancy Support power N+1 redundancy Passive backplane design; all boards support hot-plug Support online status monitoring protocol to perform detection of key components including master control engine, backplane, chip and storage | |||||||
Multicast | Support IGMPv1/v2/v3, IGMPv1/v2/v3 Snooping, PIM-SM/PIM-DM/PIM-SSM | |||||||
ACL | Support ACL rules including source IP, source port, destination IP, destination port, protocol number, physical port |
