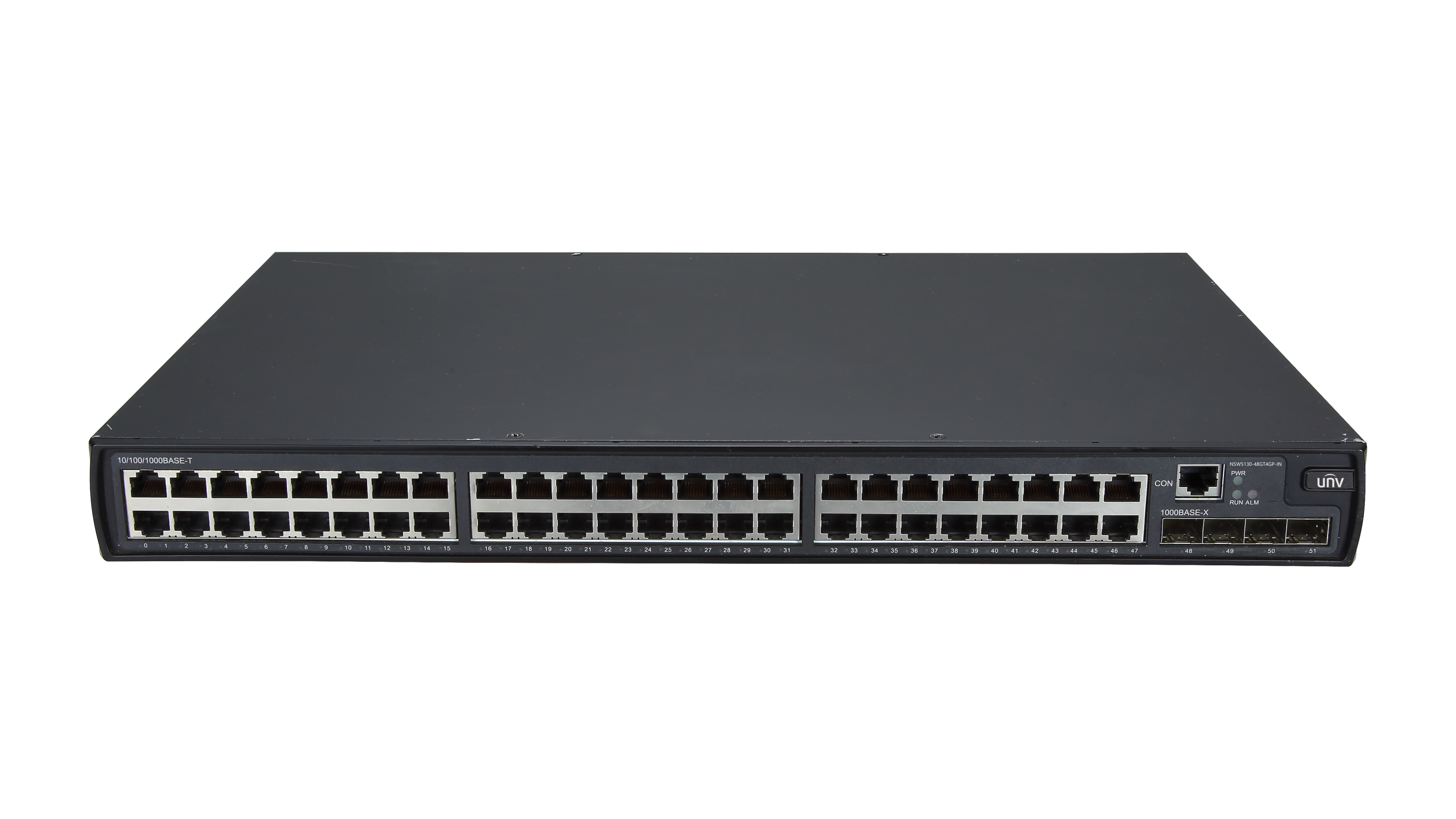

NSW5130-48GT4GP-IN | ||||||||
Hardware Specification | ||||||||
Port | 48*10/100/1000Mbps RJ45 port, 4*1000Mbps SFP | |||||||
Switching Capacity | 104Gbps | |||||||
Forwarding Performance | 77.38Mpps | |||||||
Weight | 4.3kg | |||||||
Dimensions | 440×296×44mm | |||||||
Power Supply | AC: 100 to 240V, 50/60Hz | |||||||
Max.Power | 34W | |||||||
Fan | 0 | |||||||
Operating Temperature | 0℃ to 45℃ | |||||||
Operating Humidity | 5% to 95%, non-condensing | |||||||
Indicator | PWR, RUN, LINK/ACT, PoE | |||||||
MAC | Support static, dynamic, and blackhole MAC table entries ( for single-port MAC address users ≥4K). Support source MAC address filtering | |||||||
Software Specification | ||||||||
VLAN | Support 4K 802.1Q VLAN Support VLAN based on MAC/ IP subnet/authentication policy/interface VLAN Support GVRP Support QinQ | |||||||
Basic | Support port aggregation, port mirroring, RSPAN, port isolation, port traffic identification, Support ND | |||||||
Reliability | Support STP, RSTP, MSTP | |||||||
Multicast | Support IGMP Snooping etc. | |||||||
DHCP | Support DHCP Client, DHCP Server, DHCP Snooping | |||||||
ACL | Support ACL rules based on VLAN, MAC address, IP address, TCP/UDP port number | |||||||
QoS | Support 8 priority queues per port Support traffic classification based on 802.1p/DSCP/TOS Support speed limit on ports and streams Support SP, WRR, SP + WRR queue scheduling | |||||||
Security | Support authentication modes based on MAC, 802.1x, and Portal; support local and support local and centralized authentication. Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection. Support port isolation, port security Support broadcast storm suppression Support SSH2.0 | |||||||
Maintenance | Support real-time temperature detection and alarm. Support SNMP, CLI, Web managemen. Support local and remote output of system logs, operation logs, debugging information. |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 3/17/2025 11:39:04 PM | UNV NSW5130-48GT4GP-IN Gigabit Ethernet Switch.pdf | English | Preview | Download A > |
Class | Date | Title | Type | Download |
HD Image | 3/2/2025 3:01:07 AM | NSW5130-48GT4GP-IN_HD_Image_1.png | png | Download |
