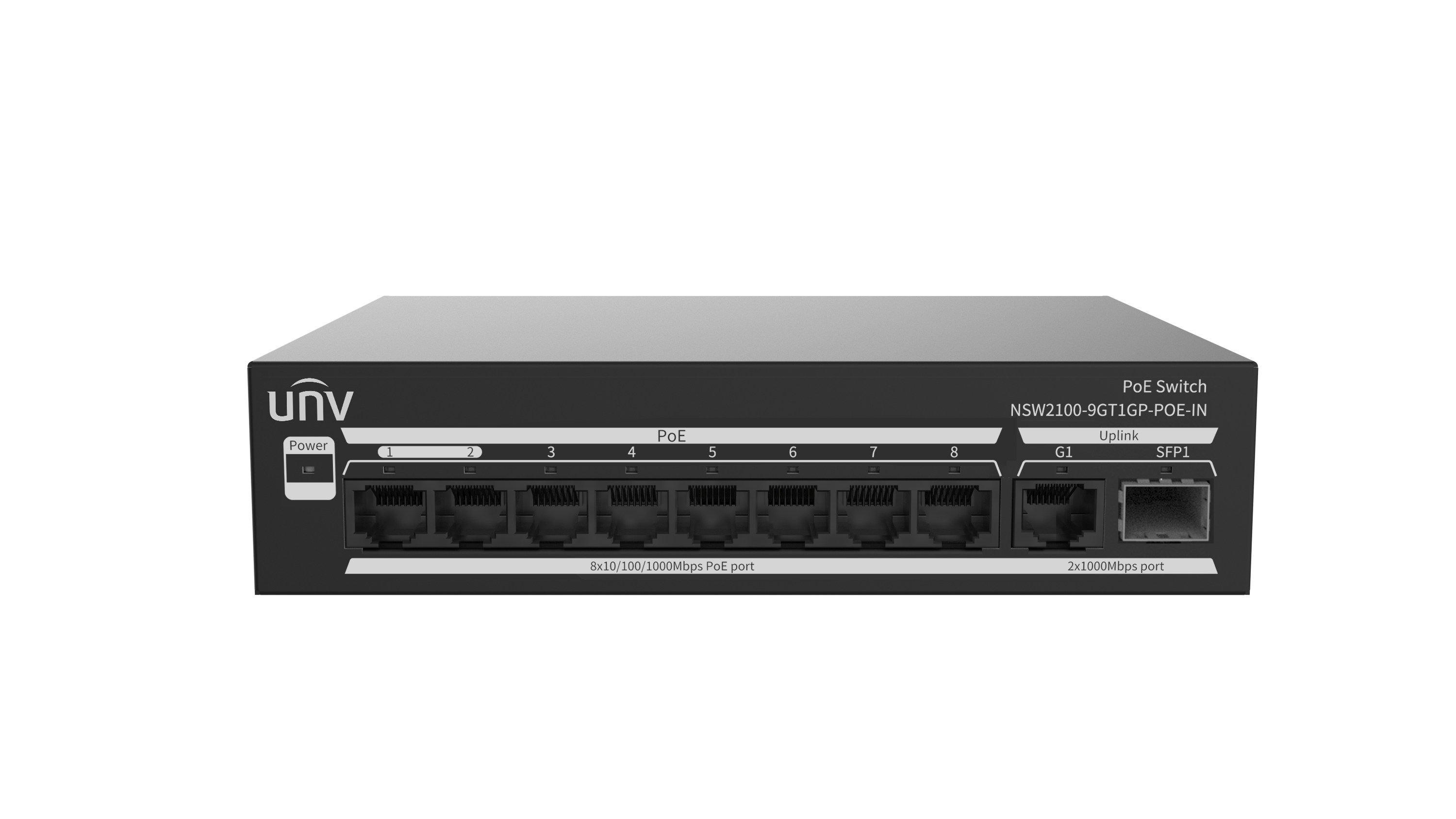

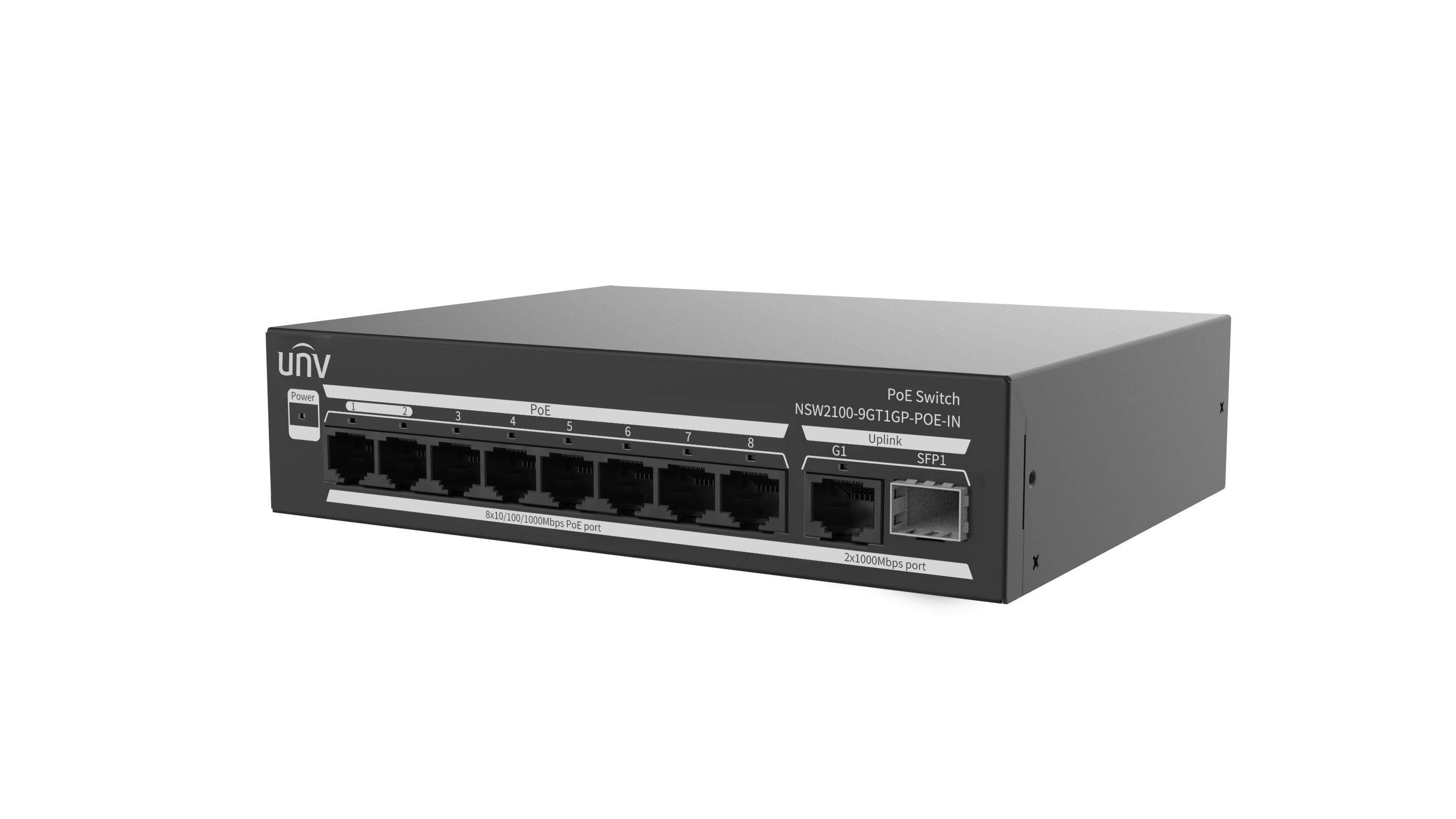

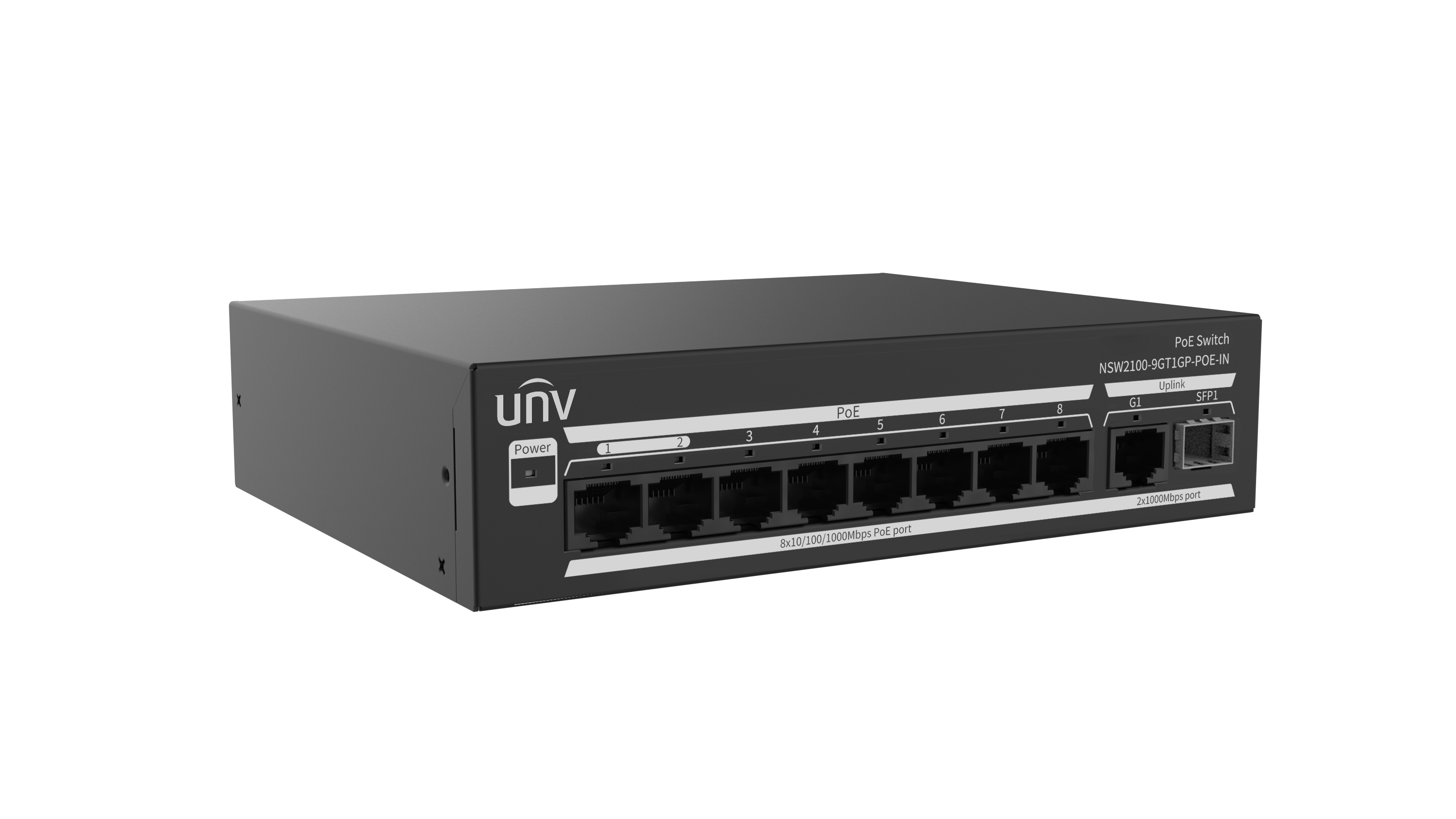

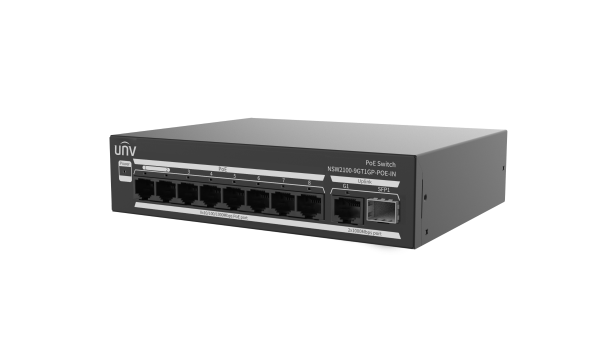

NSW2100-9GT1GP-POE-IN
Gigabits PoE Switch
• Supports Web login, and device configuration and management on the Web interface
• Supports visiting the cloud by scanning the QR code. Allows to view the device status in real time on the app, and remotely restart the PoE power supply.
• Supports PoE power supply ; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
• Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
• Supports port priority. The packets received by the priority port will be forwarded first when the switch is fully loaded and the priority port will be powered first when the PoE power supply is full.
• All metal casing, secure and reliable.
Specification
Download
How to buy
 NSW2100-9GT1GP-POE-IN
Hardware Specification
Ports Type8x 10/100/1000Mbps PoE port (RJ45)
1 x 10/100/1000Mbps port (RJ45)
1 x Gigabit SFP
StandardsIEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at
Switching capacity20Gbps
Forwarding performance14.88Mpps
Packet Buffer4 M bit
MAC8K
Weight0.67KG
Dimensions (W×D×H)169*132*40mm
Power SupplyAC: 100V to 240V, 50/60Hz
Max.Power123W
Max.PoE PowerMode A & ModeB,
Maximum total power: 120W
Maximum PoE power for single port: 30W
Cooling Fans0
Operating temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Operating humidity10%～90% (non-condensing)
Storage Temperature-40 ℃ to 70 ℃
Storage Humidity5% to 90% RH, noncondensing
IndicatorPOWER Off: No AC input, Power On (Green): Normal power input, Power On (Yellow): The total PoE power is higher than 85% of the total power of the device, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data
Software Specification
EthernetSupports full duplex, half duplex, and auto-negotiation working modes
Supports enabling/disabling ports
Supports port auto-negotiation rate
Supports port priority flow control.
Supports port flow statistics
Supports four link aggregation groups (up to eight ports)
VLANallows up to 10 VLANs with IDs from 1 to 4094
MACSupport static MAC, up to 32.
POEAllows to view PoE status and enable/disable PoE power supply in the APP
Loop DetectionLoop Detection
SecuritySupports port isolation
MaintenanceSupports N:1 port mirroring
Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software.
SystemAllows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, etc.
Allows to edit and manage the IP address and device name
