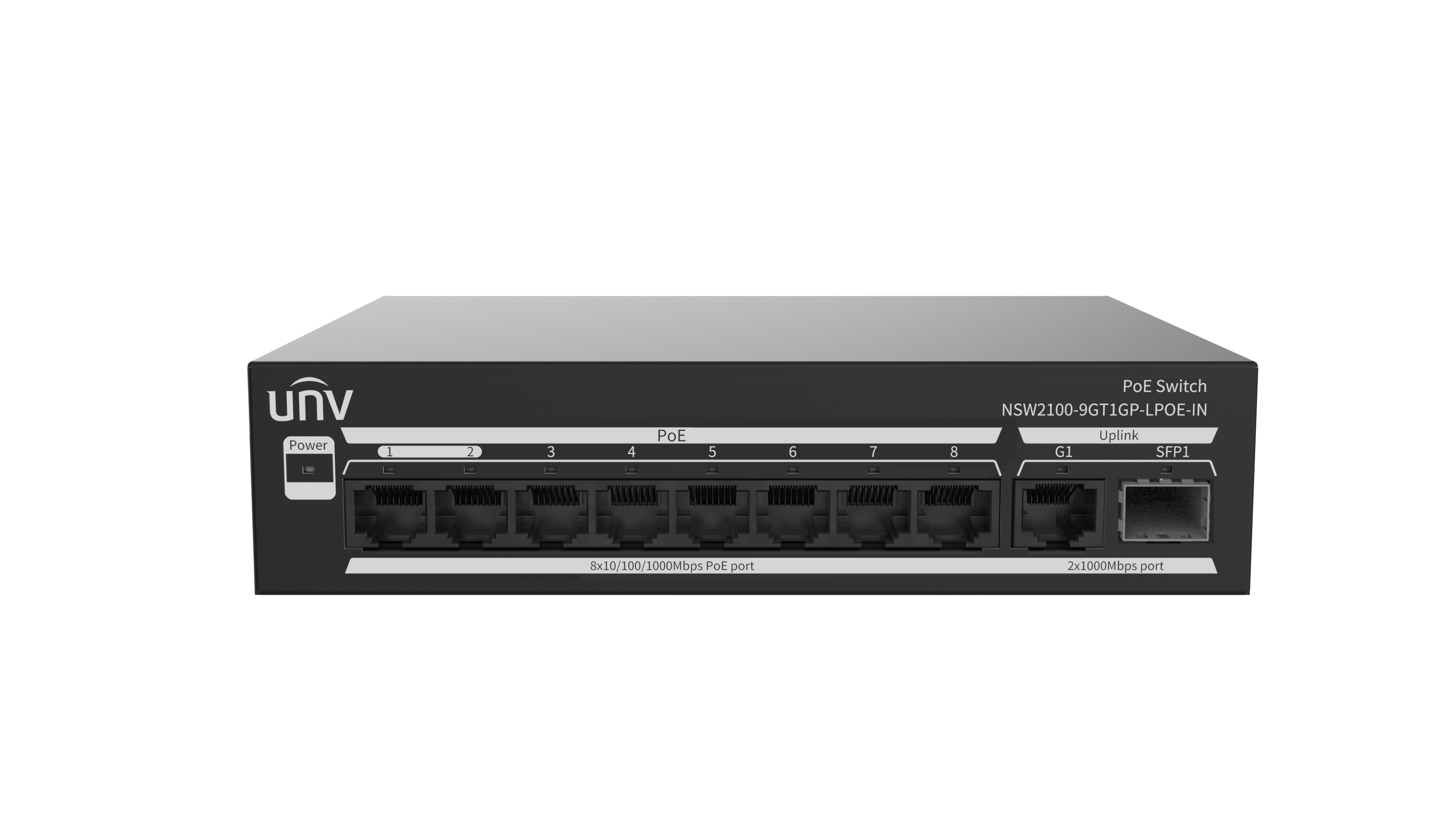

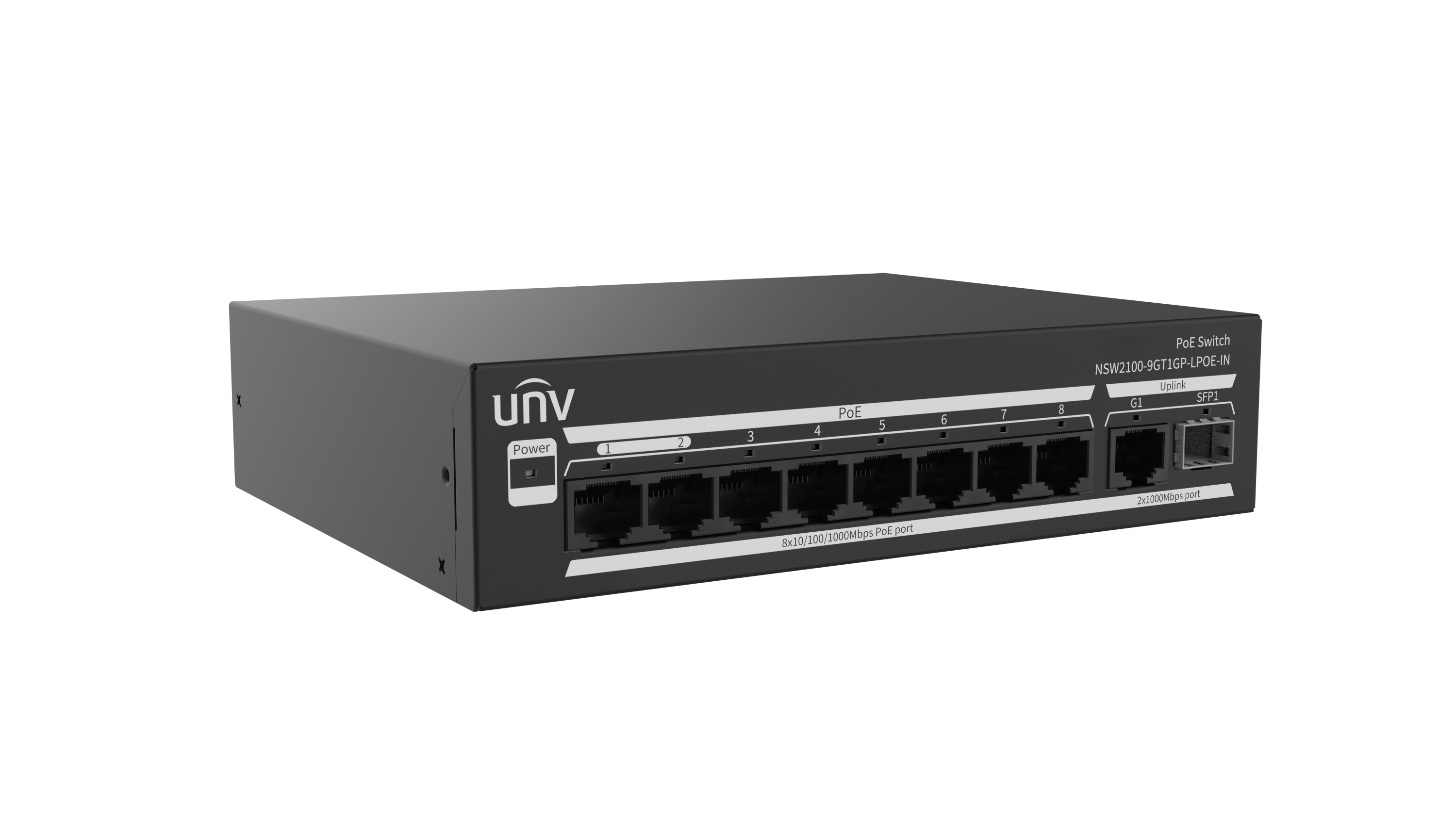

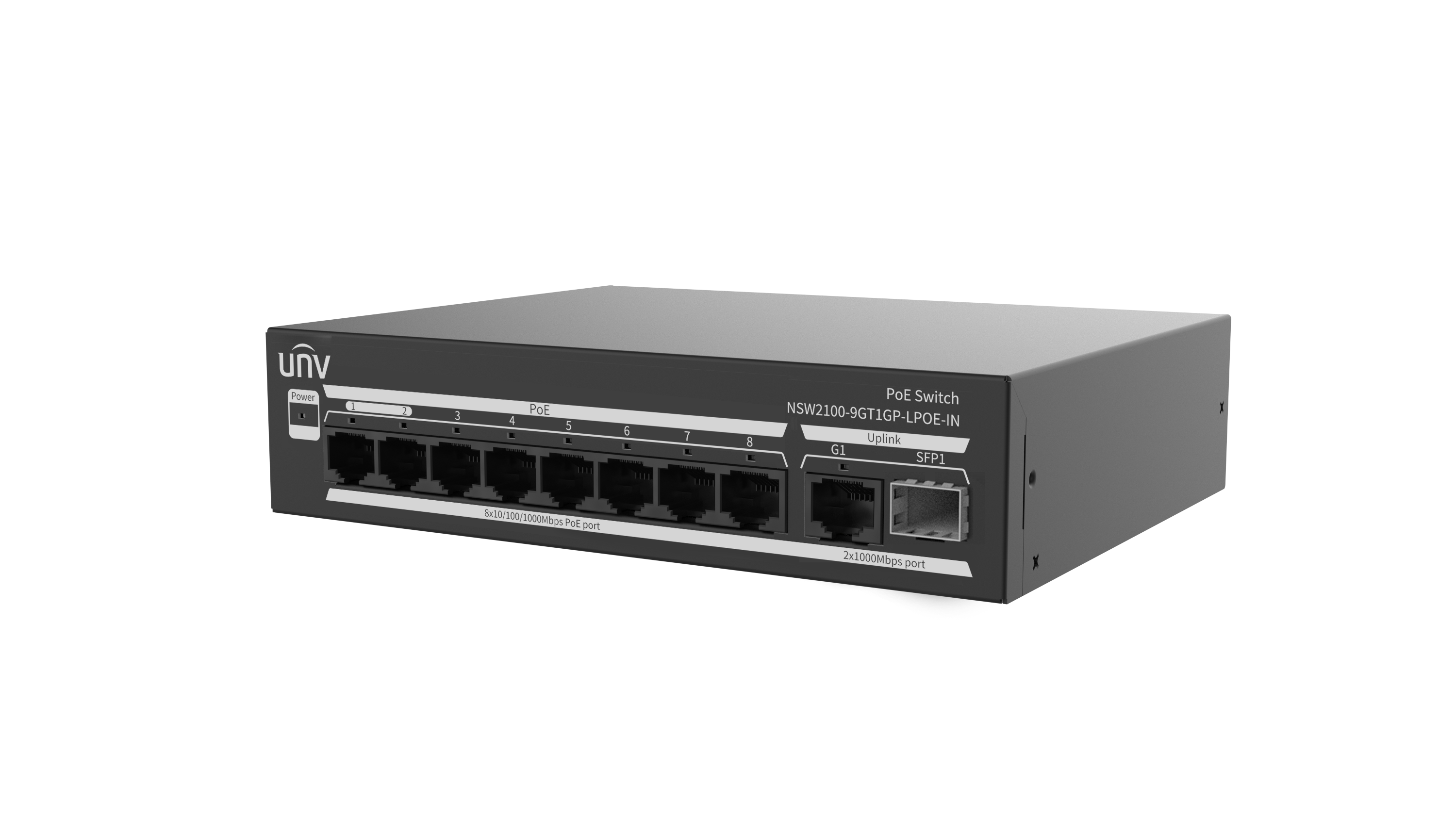

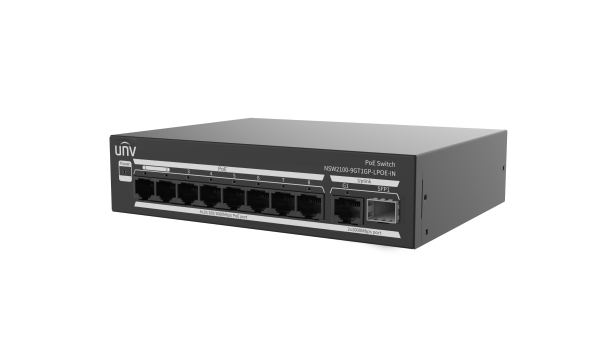

NSW2100-9GT1GP-LPOE-IN | ||||||||
Hardware Specification | ||||||||
Ports Type | 8x 10/100/1000Mbps PoE port (RJ45) 1 x 10/100/1000Mbps port (RJ45) 1 x Gigabit SFP | |||||||
Standards | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at | |||||||
Switching capacity | 20Gbps | |||||||
Forwarding performance | 14.88Mpps | |||||||
Packet Buffer | 4 M bit | |||||||
MAC | 8K | |||||||
Weight | 0.65KG | |||||||
Dimensions (W×D×H) | 169*132*40mm | |||||||
Power Supply | AC: 100V to 240V, 50/60Hz | |||||||
Max.Power | 70W | |||||||
Max.PoE Power | Mode A & ModeB, Maximum total power: 65W Maximum PoE power for single port: 30W | |||||||
Cooling Fans | 0 | |||||||
Operating temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) | |||||||
Operating humidity | 10%~90% (non-condensing) | |||||||
Storage Temperature | -40 ℃ to 70 ℃ | |||||||
Storage Humidity | 5% to 90% RH, noncondensing | |||||||
Indicator | POWER Off: No AC input, Power On (Green): Normal power input, Power On (Yellow): The total PoE power is higher than 85% of the total power of the device, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data | |||||||
Software Specification | ||||||||
Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port priority flow control. Supports port flow statistics Supports four link aggregation groups (up to eight ports) | |||||||
VLAN | allows up to 10 VLANs with IDs from 1 to 4094 | |||||||
MAC | Support static MAC, up to 32. | |||||||
POE | Allows to view PoE status and enable/disable PoE power supply in the APP | |||||||
Loop Detection | Loop Detection | |||||||
Security | Supports port isolation | |||||||
Maintenance | Supports N:1 port mirroring Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software. | |||||||
System | Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name |
