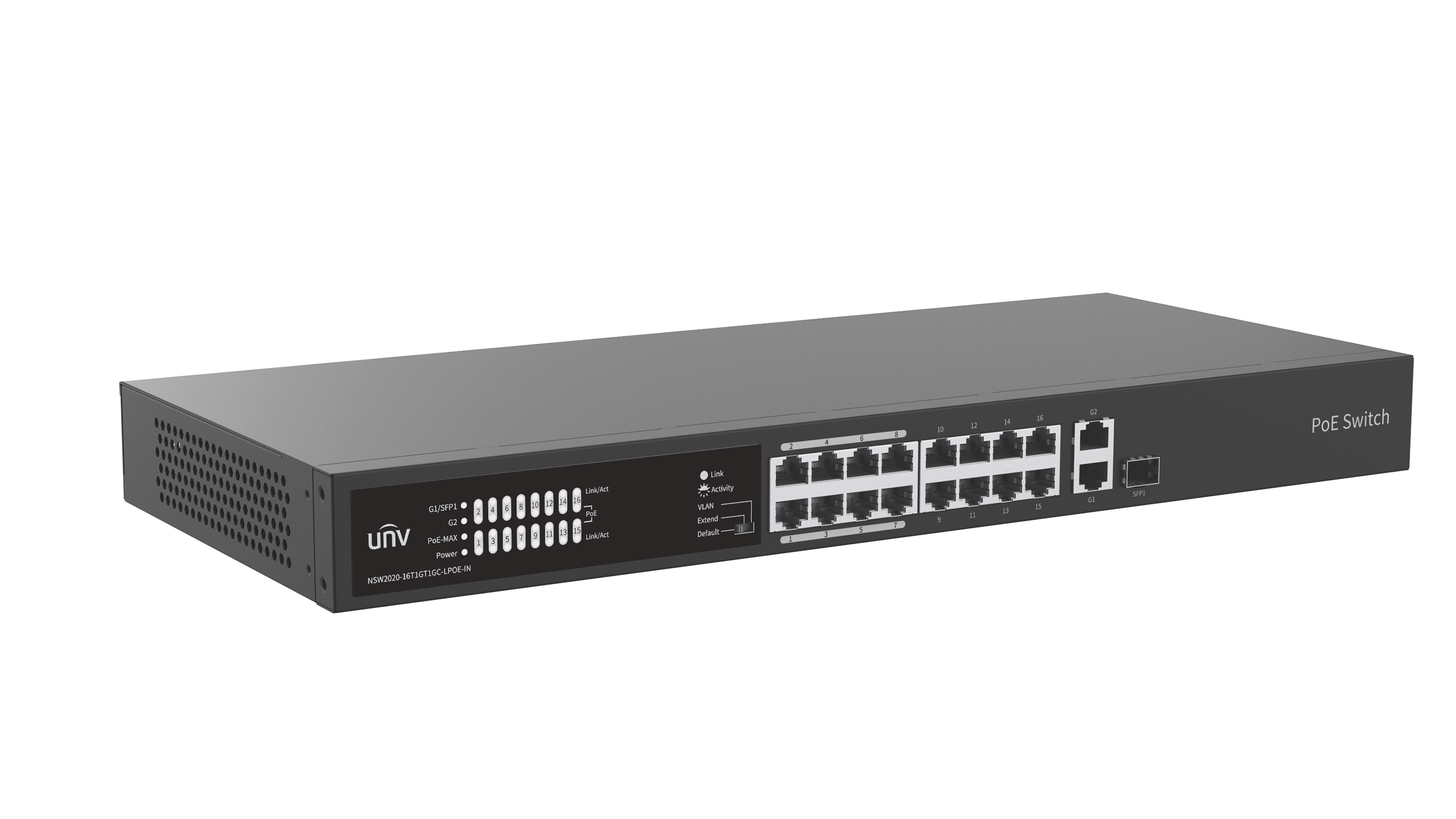

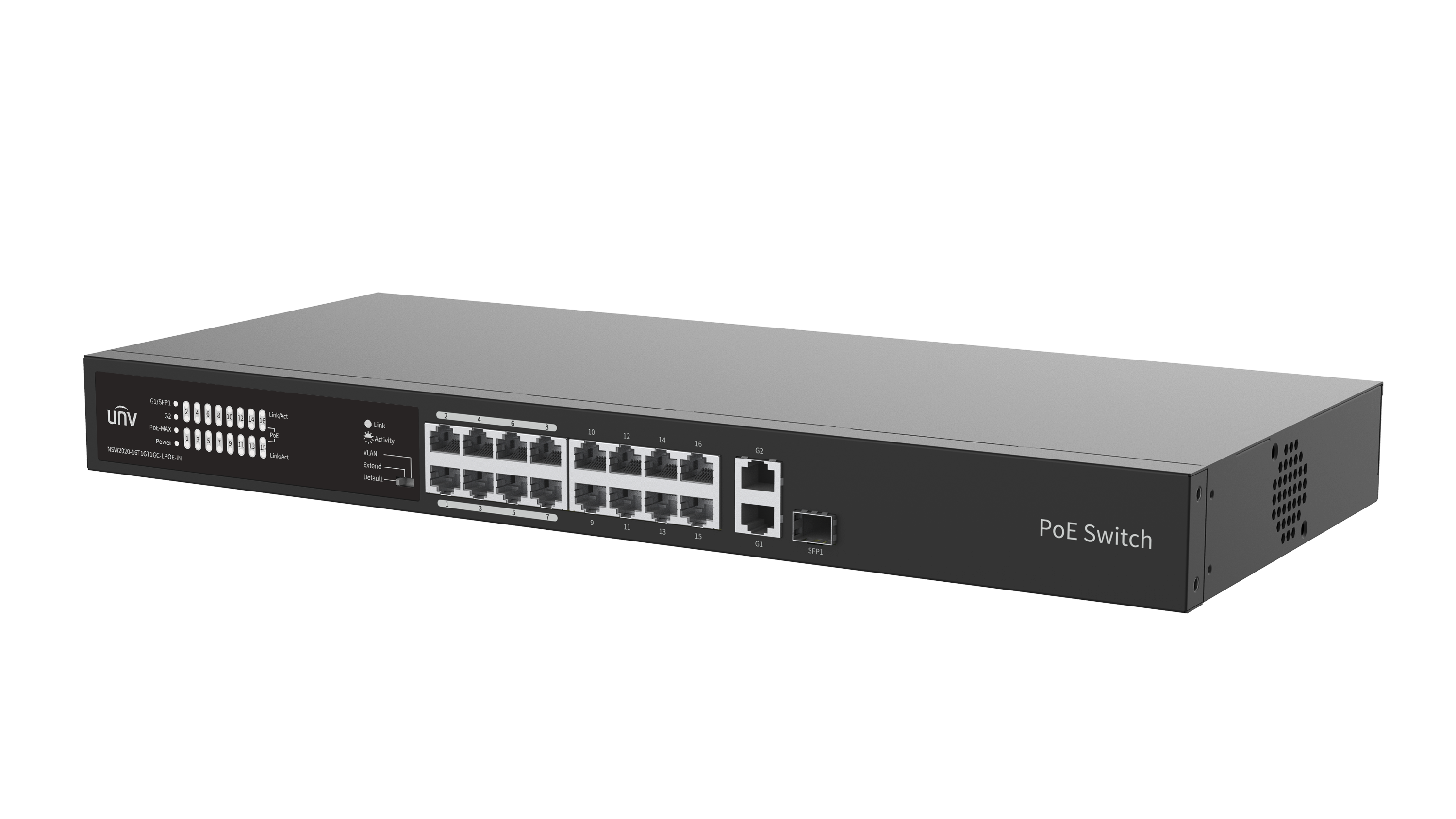

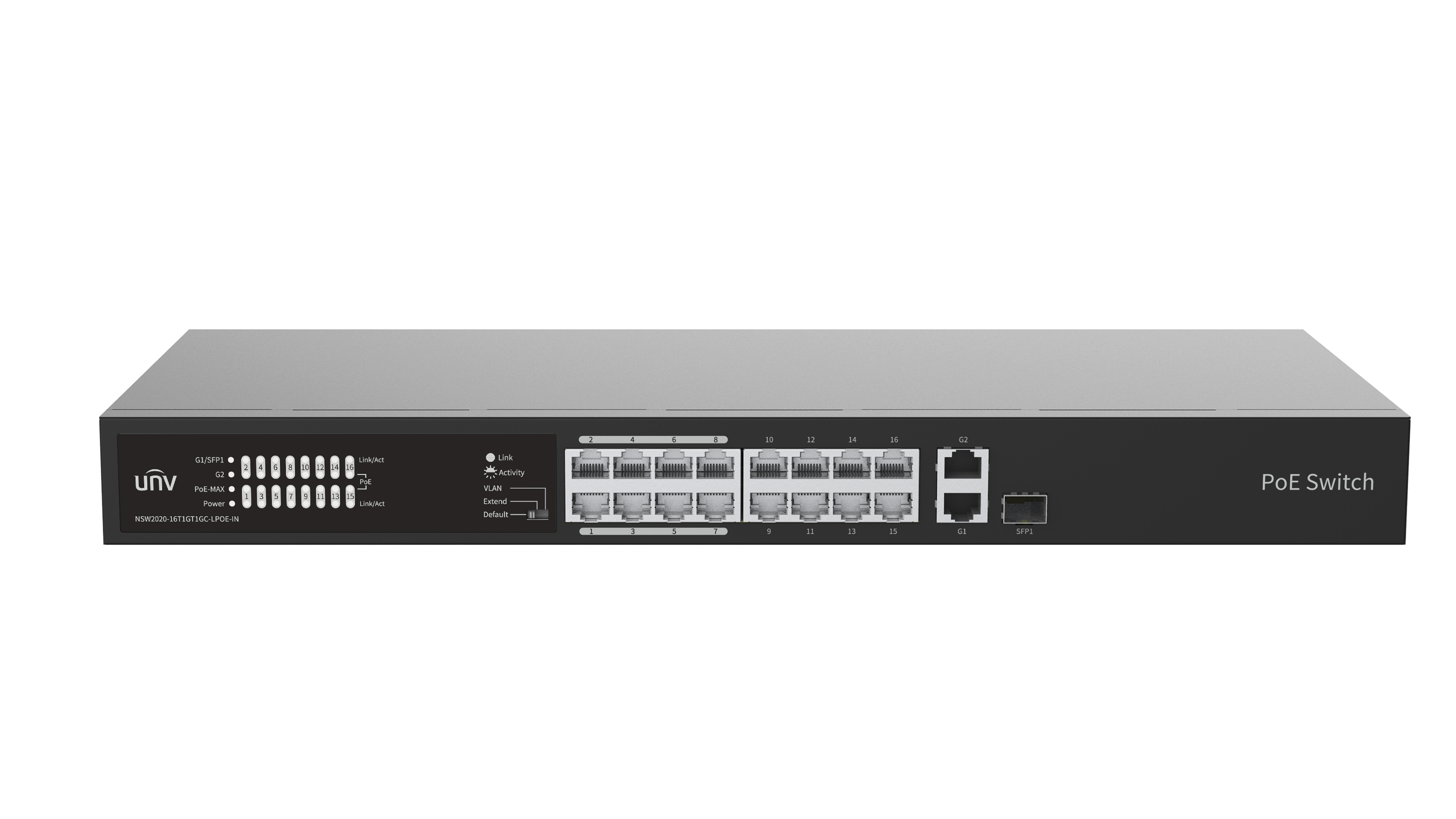

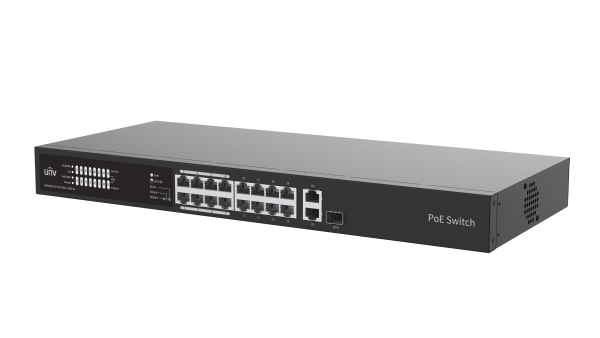

NSW2020-16T1GT1GC-LPOE-IN
Unmanaged Ethernet Switch(PoE)
• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
Specification
Download
How to buy
 NSW2020-16T1GT1GC-LPOE-IN
Hardware Specification
Ports Type16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
StandardsIEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Switching capacity7.2 Gbps
Forwarding performance5.36Mpps
Packet Buffer4 M bit
MAC16K
Weight1.99KG
Power SupplyAC: 100-240V, 50/60Hz
Dimensions (W×D×H)440*195*44mm
Max.Power146W
Max. PoE PowerMax capacity: 135 W, Max capacity for single port: 30 W
Prior Ports1 to 8
Cooling Fans0
Operating temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Operating humidity10%～90% (non-condensing)
IndicatorPOWER Steady on: AC input is normal, POWER Off: No AC input,
PoE-MAX off ：The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal
Working ModeDefault (Normal mode) : All ports can communicate with each other, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time
Hardware Specification
PoE Mode802.3at/af , ModeB : (4/5+，7/8-)
