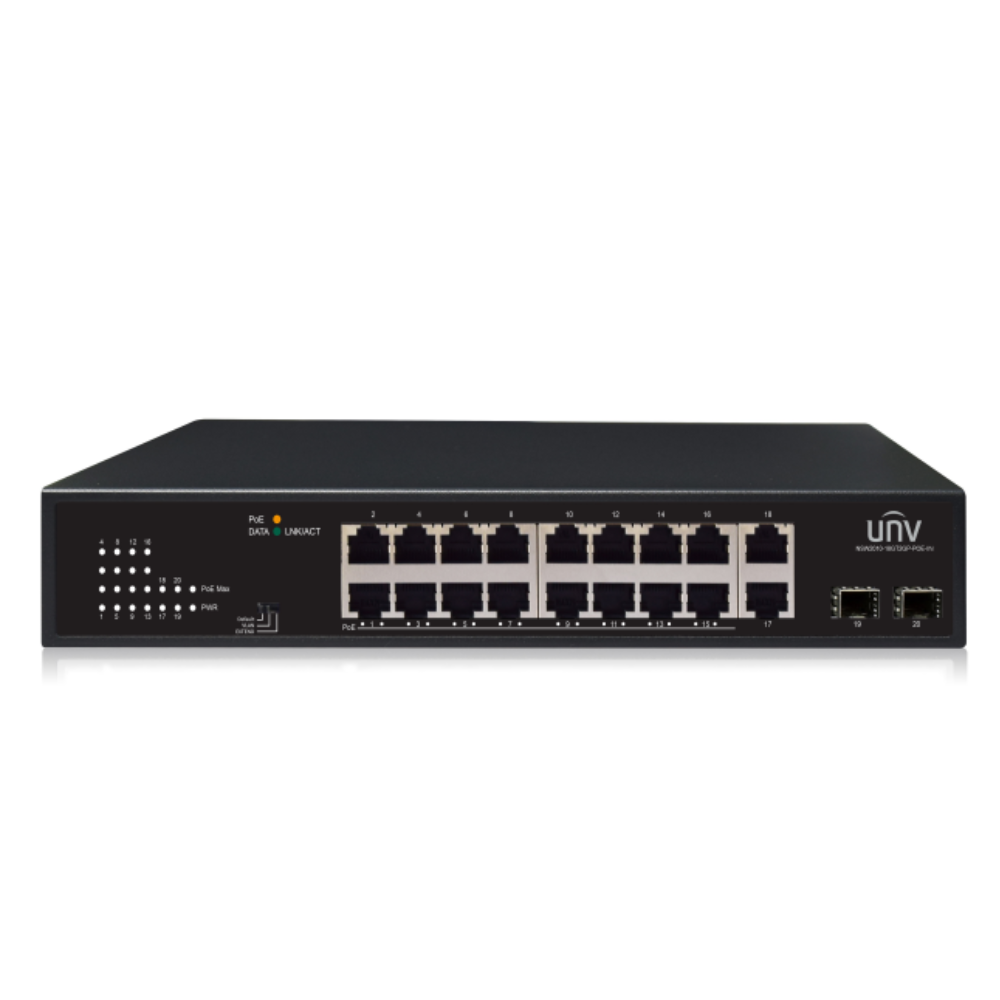

| NSW2010-18GT2GP-POE-IN |
Hardware Specification |
Ports Type | 16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports(SFP) |
Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
Switching capacity | 40 Gbps |
MAC | 8K |
Packet Buffer | 4 M bit |
Forwarding performance | 29.76Mpps |
Power supply | AC: 100-240 V, 50/60 Hz |
PoE | support POE |
Max. PoE Power | Max capacity: 185 W, Max capacity for single port: 30 W |
Cooling Fans | 1 |
Weight | <4.2 kg |
Indicator | PWR (Green), LNK/ACT (Green), PoE (Orange) |
Storage Temperature | -40 ℃ to 70 ℃ |
Operating temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
Operating humidity | 10%~90% (non-condensing) |
Storage humidity | 5%~90% (non-condensing) |
Dimensions (W×D×H) | 280mm x 180mm x 44mm (11"×7.1"×1.7") |
Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports., Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports |
