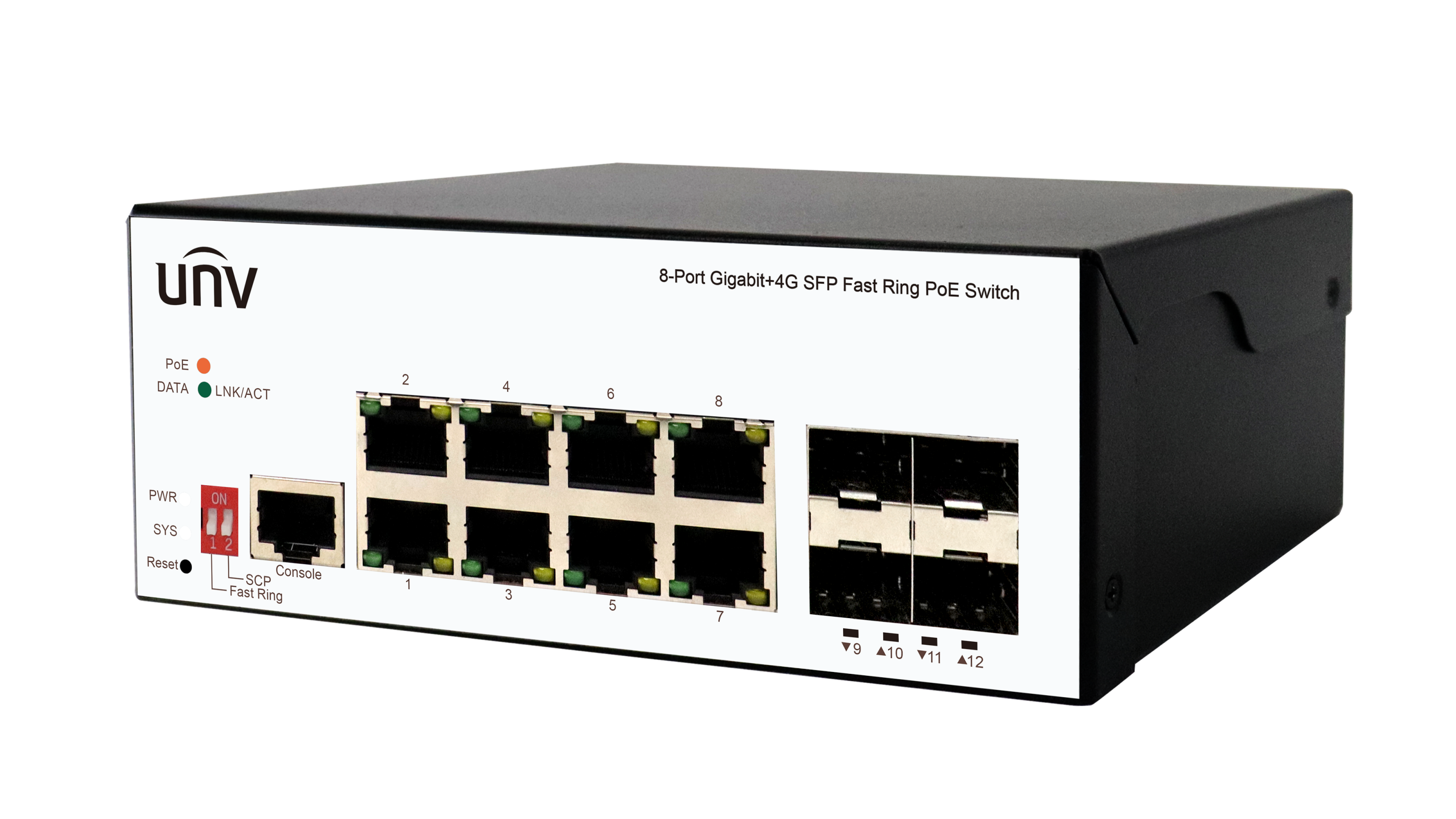

KIT/1*ISW5000-8GT4GP-POE-IN/1*PWR-DC5428-A-NB | ||||||||
Hardware Specification | ||||||||
Standards | IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3ab、IEEE802.3x、IEEE802.3af、IEEE802.3at | |||||||
Ports Type | 8*10/100/1000Mbps RJ45 Ports 4*1000Mbps SFP Slots | |||||||
Switching capacity | 24Gbps | |||||||
Jumbo Frame | 9KBytes | |||||||
Forwarding performance | 17.86Mpps | |||||||
Packet Buffer | 4.1M bit | |||||||
MAC | 8K | |||||||
Transfer Mode | Store-and-forward | |||||||
Max.PoE Power | Max capacity: 120W Max capacity for single port: 30W Mode A 1/2(-),3/6(+) | |||||||
Dimensions (W×D×H) | 145*109*58mm | |||||||
Operating Temperature | -30°C to 65 °C | |||||||
Operating Humidity | 5% ~ 95% non-condensing | |||||||
Storage Humidity | 0% ~ 95% non-condensing | |||||||
Power Supply | DC:48-57V, Max.Power 135W (Powered by adapter) Adapter: AC100-240V, 50/60Hz | |||||||
Indicator | PWR, LNK/ACT | |||||||
Electrostatic Standard | Contact ±6KV, Air ±8KV | |||||||
Surge Protection | Differential mode ±2KV Common mode ±4KV | |||||||
Software Specification | ||||||||
MAC Address | MAC Aging Time MAC Filter MAC Notification | |||||||
Basic Management | Console/Telnet/SSH Http/Https、SSL/TLS FTP/TFTP Syslog SNMP(v1/v2c/v3)、SNMP Trap SNTP/NTP CPU protect Software/Hardware watchdog Firmware Upgrade/Backup Ping/Traceroute | |||||||
Port Config | Bandwidth Control Flow Control EEE MTU CFM(802.1ag) EFM OAM(802.3ah) DDM Storm Control Port Isolation Port Security Virtual Cable Test ULDP | |||||||
Discovery | LLDP(802.1ab) LLDP-MED | |||||||
Link Aggregation | Static LACP(802.3ad) Load Balance(src-mac/dst-mac/src-ip/dst-ip) Max groups and ports per group | |||||||
VLAN | VLAN(802.1Q 4K) Access/Trunk/Hybrid Private VLAN VLAN Filter MAC-based VLAN Protocol-based VLAN IP Subnet-based VLAN Voice VLAN GVRP/GMRP QinQ/Selective-QinQ/Flexible QinQ VLAN Translation/N:1 VLAN Translation Guest VLAN | |||||||
Network Loop Detection | Loopback Detection ERPS | |||||||
Spanning Tree | STP/RSTP/MSTP MSTP Support 64 instance BPDU Guard/Root Guard/BPDU Tunnel | |||||||
ARP | Static ARP ARP Scanning Prevention ARP Spoofing Prevention ARP Guard Gratuitous ARP Dynamic ARP Inspection ARP Quantity Control | |||||||
ICMP | Anti ICMP Attack ICMP Rate Limit ICMP Unreachable Drop | |||||||
IP Forward | Static Route Route Aggregation | |||||||
Multicast VALN | Multicast VALN | |||||||
IGMP | IGMP SNOOPING V1/V2/V3 Fast Leave IGMP Proxy | |||||||
DHCP | DHCP Server DHCPv4 Client/BOOTP DHCPv4 Relay DHCPv4 Snooping DHCPv4 Option 82/43/60/61/67 | |||||||
IPv6 Basic | IPv6 ND Snooping | |||||||
DHCPv6 | DHCPv6 Relay DHCPv6 Snooping IPv6 SAVI Security RA DHCPv6 Server | |||||||
IPv6 Unicast Routing | Static Route | |||||||
IPv6 Multicast Routing | MLD v1/V2 Snooping | |||||||
IPv6 Features | SNMP over IPv6 Support HTTP over IPv6 Support SSH over IPv6 Support DNS over IPv6 Support IPv6 ping/traceroute Support IPv6 Telnet Support IPv6 Radius+ Support IPv6 Tacacs+ Support IPv6 SNTP/NTP Support IPv6 FTP/TFTP Support IPv6 IPSec Support IPv6 ACL | |||||||
Basic | Trust COS/DSCP Trust Port | |||||||
Scheduling | SP WRR WDRR | |||||||
PolicyMap Stream | Based on VLAN Based on COS/DSCP Aggregate PolicyMap Ingress PolicyMap | |||||||
Policing | CAR Stream Shaping(leak algorithm) Ingress Policing | |||||||
Rewrite | COS/802.1p Priority IP Precedence IPv4 DSCP/IPv6 DSCP drop-precedence internal-priority Ingress/Egress Rewrite | |||||||
Queuing | DSCP to DSCP mapping DSCP to DP mapping DSCP to Queue mapping COS to DP mapping COS to Queue mapping | |||||||
IP-ACL | SIP/DIP IP Protocol IP Priority(DSCP,TOS, Precedence) TCP,UDP src,dst Port | |||||||
MAC-ACL | SRC/DST MAC VLAN COS Tag/Untag | |||||||
IP-MAC ACL | MAC-ACL and IP-ACL | |||||||
User-defined ACL | Base on user defined profile | |||||||
ACL Features | Based on time period ACL ACL on VLAN Based on ACL Stream | |||||||
802.1x | Port Based Authentication Support EAPoR MAC based Authentication Guest VLAN | |||||||
MAB | Based on Port Authentication Based on MAC Authentication | |||||||
MAC Address Count Limit | Based on Port Based on VLAN | |||||||
IP Address Count Limit | Based on Port Based on VLAN | |||||||
Access Management | Based on source mac and IP address | |||||||
Deny DoS Attack | TCP Flag TCP Flagment IP Segment ICMP | |||||||
TACACS+ | Standard Support | |||||||
Radius | Standard Support Client, Support MD5 | |||||||
SSL | Openssl 1.1.0 | |||||||
MRPP | Compatiable ERRP | |||||||
ULPP | Uplink Protection Protocol Smart Link/Monitor Link | |||||||
ULSM | Uplink State Monitor | |||||||
Mirror | Support one to one, multi to one Port based mirror, support ingress, egress, and both CPU based mirror Flow based mirror RSPAN | |||||||
PoE Management | ON/OFF Config Alive Checking for PD 7/24 On/Off Scheduling |
