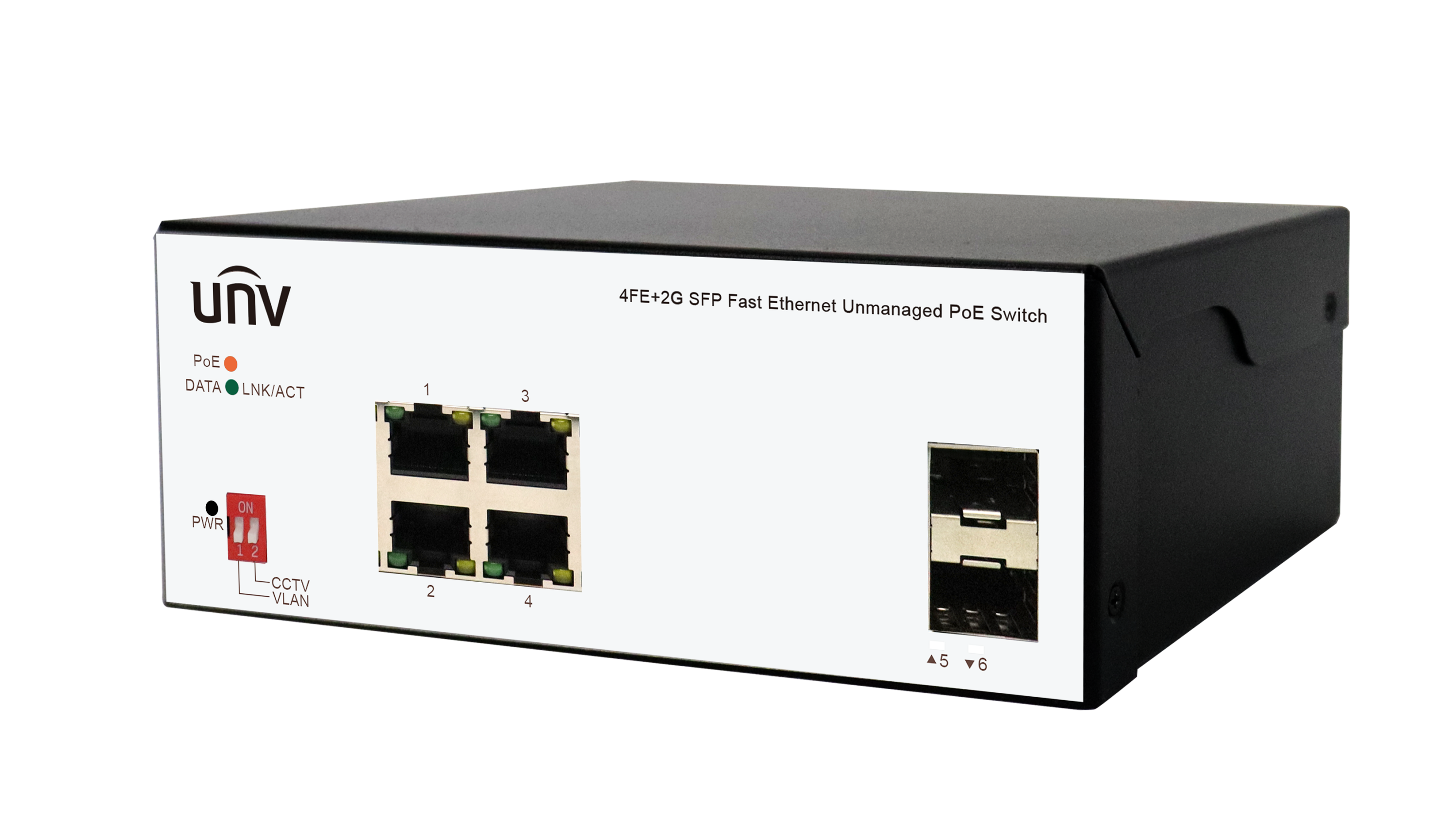

KIT/1*ISW2000-4T2GP-POE-IN/1*PWR-DC5218-A-NB | ||||||||
Hardware Specification | ||||||||
Standards | IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3ab、IEEE802.3x、IEEE802.3af、IEEE802.3at | |||||||
Ports Type | 4*10/100Mbps RJ45 Ports 2*1000Mbps SFP Slots | |||||||
Switching capacity | 4.8Gbps | |||||||
Jumbo Frame | 16KBytes | |||||||
Forwarding performance | 3.57Mpps | |||||||
Packet Buffer | 2 M bit | |||||||
MAC | 4K | |||||||
Transfer Mode | Store-and-forward | |||||||
Max. PoE Power | Max capacity: 65 W, Max capacity for single port: 30 W | |||||||
Dimensions (W×D×H) | 145*109*58mm | |||||||
Operating Temperature | -30°C to 65 °C | |||||||
Operating Humidity | 5% ~ 95% non-condensing | |||||||
Storage Humidity | 0% ~ 95% non-condensing | |||||||
Indicator | PWR, LNK/ACT, PoE,DATA | |||||||
Electrostatic Standard | Contact ±6KV, Air ±8KV | |||||||
Surge Protection | Differential mode ±2KV Common mode ±4KV |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 3/17/2025 7:39:01 PM | UNV ISW2000-4T2GP-POE-IN Unmanaged Harsh PoE Switch.pdf | English | Preview | Download A > |
Class | Date | Title | Type | Download |
HD Image | 4/17/2025 3:00:27 AM | KIT/1*ISW2000-4T2GP-POE-IN/1*PWR-DC5218-A-NB_HD_Image_1.png | png | Download |
