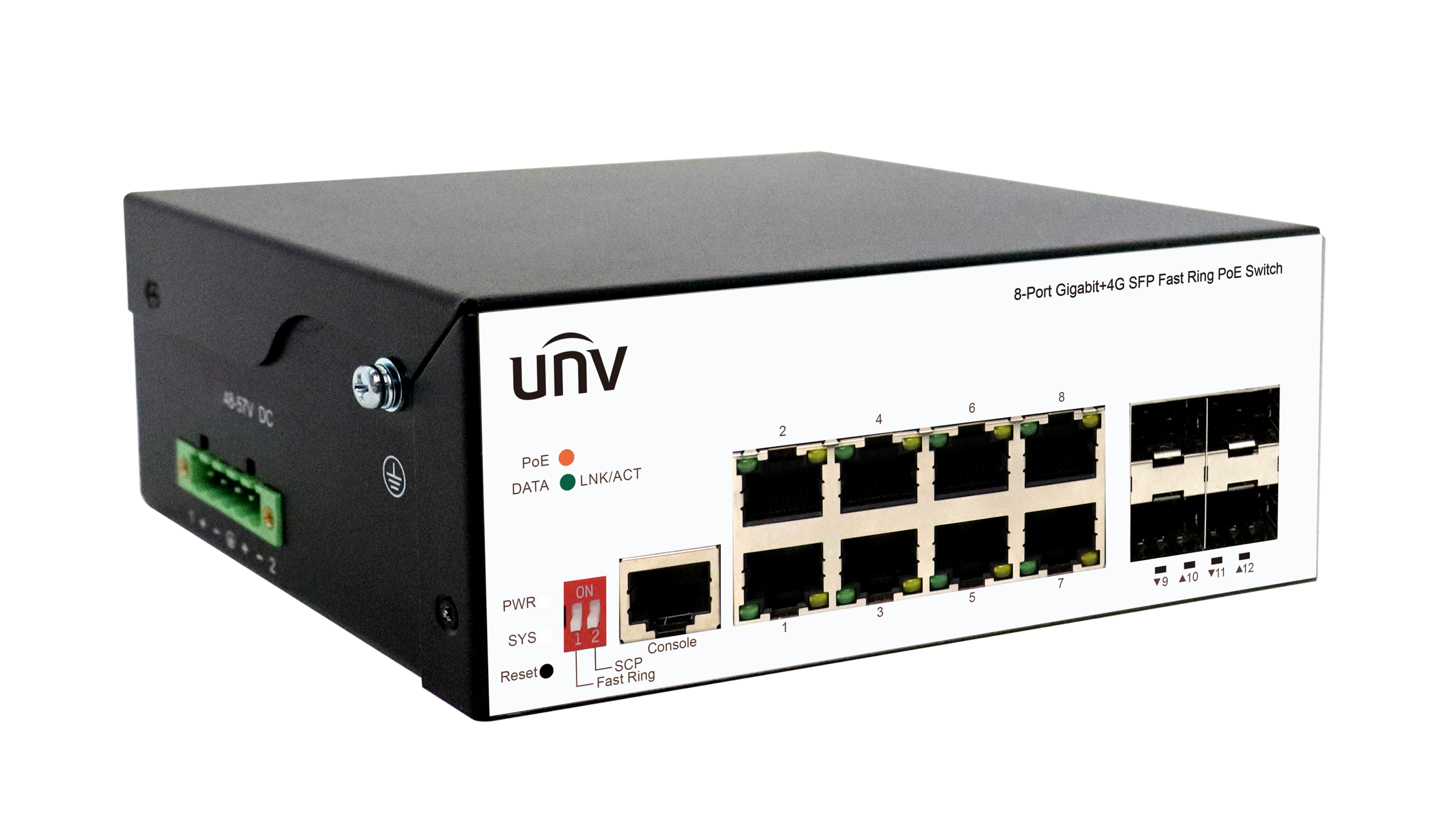

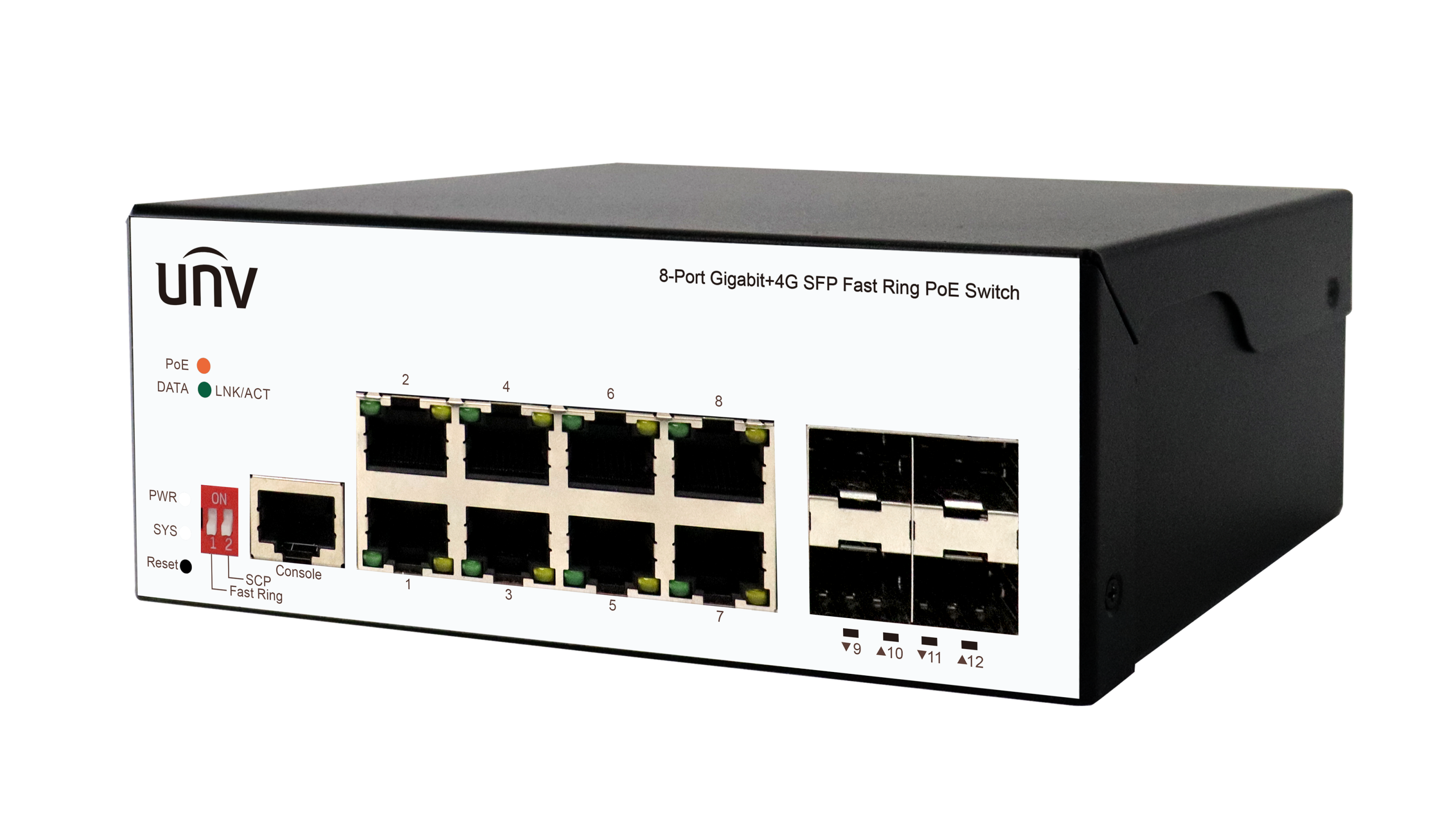

ISW5000-8GT4GP-POE-IN | ||||||||
Hardware Specification | ||||||||
Standards | IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3ab、IEEE802.3x、IEEE802.3af、IEEE802.3at | |||||||
Ports Type | 8*10/100/1000Mbps RJ45 Ports 4*1000Mbps SFP Slots | |||||||
Switching capacity | 24Gbps | |||||||
Jumbo Frame | 9KBytes | |||||||
Forwarding performance | 17.86Mpps | |||||||
MAC | 8K | |||||||
Transfer Mode | Store-and-forward | |||||||
PoE | support POE | |||||||
Max.PoE Power | Max capacity: 120W Max capacity for single port: 30W Mode A 1/2(-),3/6(+) | |||||||
Dimensions (W×D×H) | 145*109*58mm | |||||||
Operating Temperature | -30°C to 65 °C | |||||||
Operating Humidity | 5% ~ 95% non-condensing | |||||||
Storage Humidity | 0% ~ 95% non-condensing | |||||||
Indicator | PWR, LNK/ACT | |||||||
Electrostatic Standard | Contact ±6KV, Air ±8KV | |||||||
Surge Protection | Differential mode ±2KV Common mode ±4KV |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 6/20/2025 5:27:29 PM | UNV ISW5000-8GT4GP-POE-IN Harsh Fast Ring Managed PoE Switch.pdf | English | Preview | Download A > |
