GC-CAB6-2m-IN | ||||||||
Cable | ||||||||

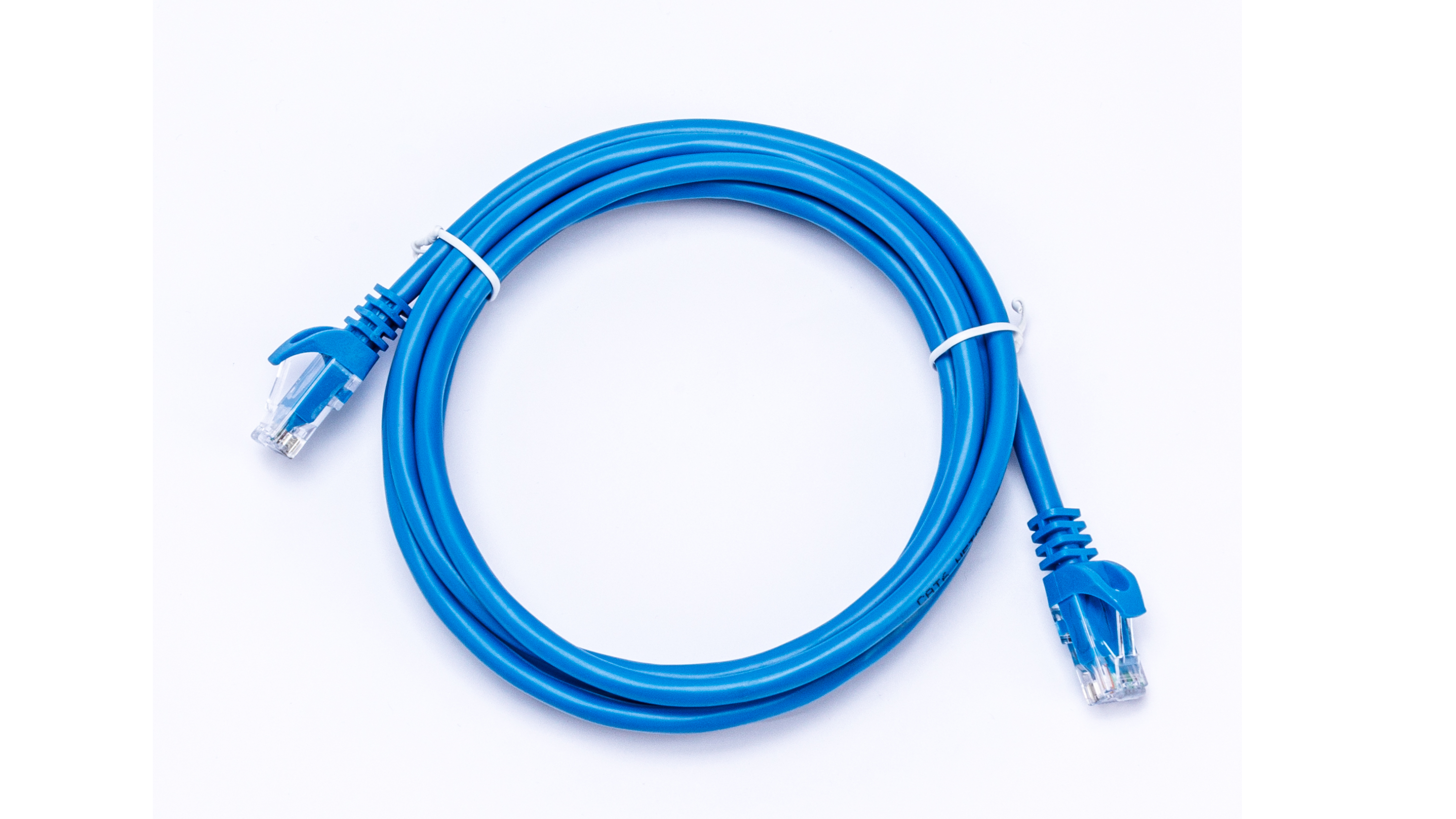

Product model | U /UTP CAT6 PVC Patch Cord | |||||||
Test Standard | TIA-568.2-D, ISO/IEC 11801, RoHS 2.0 | |||||||
Conductor | ||||||||
Material | Bare Copper (99.95%) | |||||||
Nom.O.D.(mm) | 7*0.16mm±0.005mm, 26AWG | |||||||
Insulation | ||||||||
Material | HDPE | |||||||
Diameter | 0.80±0.05 mm | |||||||
Sheath | ||||||||
Material | PVC | |||||||
Thickness | 0.55 mm±0.05mm | |||||||
External O.D. | 5.5mm±0.3mm | |||||||
Color | Blue(RAL5015) | |||||||
Physical | ||||||||
Length | 2m |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 6/20/2025 7:00:01 PM | UNV GC-CAB6-2m-IN UTP Patch Cord.pdf | English | Preview | Download A > |
Class | Date | Title | Type | Download |
HD Image | 5/22/2025 3:37:32 AM | GC-CAB6-2m-IN_HD_Image_1.png | png | Download |
