GC-RJ5e-IN | ||||||||
Physical | ||||||||

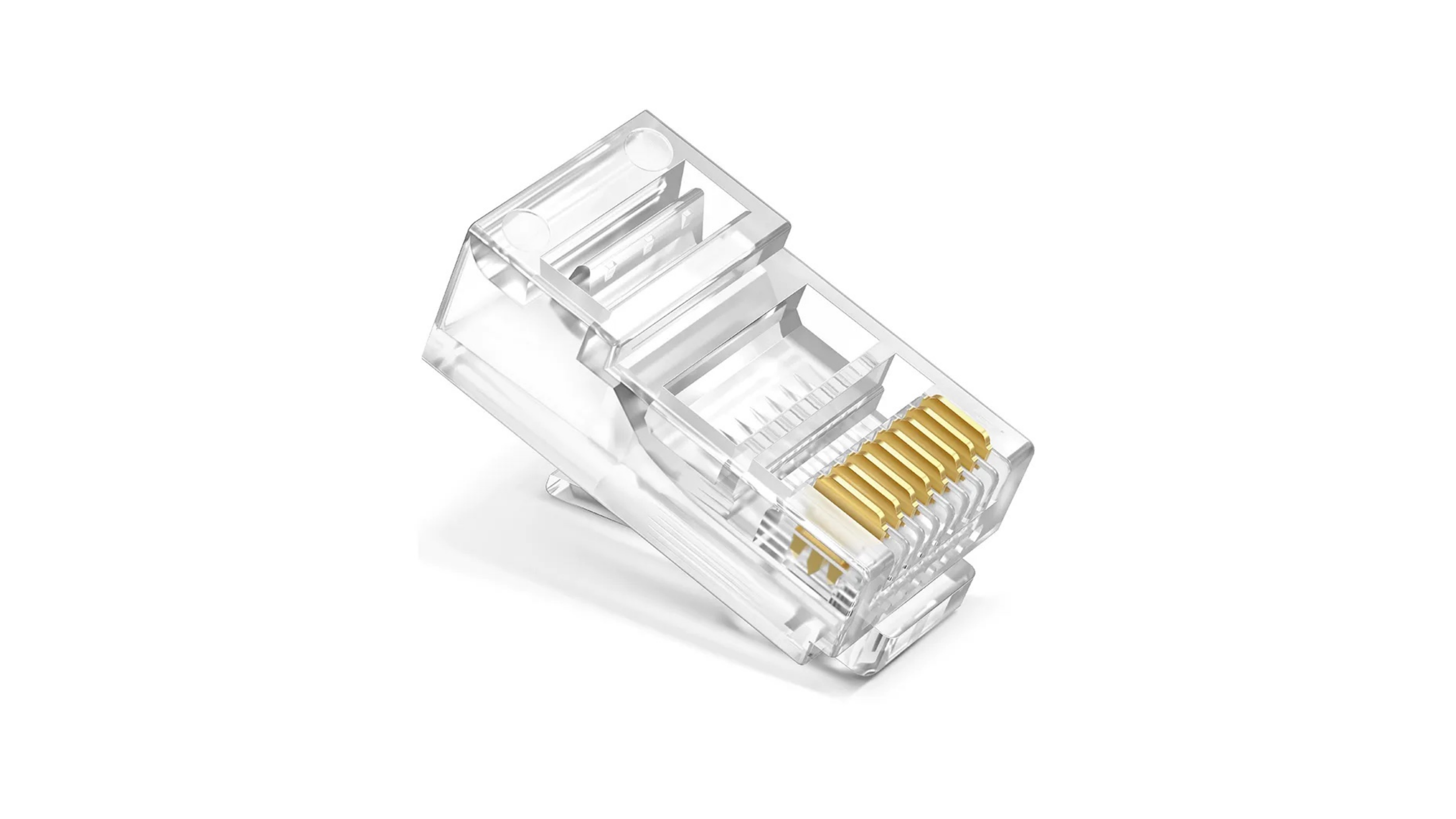

Product Type | UTP CAT5E RJ-45 8P8C plugs | |||||||
Packing | 100PCS / Box, 50 Boxes / Case Once packing dimension:12*6.5*9cm Twice packing dimension:50*35*27cm | |||||||
Weight | 0.21kg / Box 10.5kg / Case | |||||||
Mechanical | ||||||||
Shell Material | Polycarbonate | |||||||
Conductor Material | Copper alloy ,3μ inches gold-plated | |||||||
Operating Life | ≥750 Cycles | |||||||
Fire Resistance | UL 94V-2 | |||||||
Cable | 24-26AWG | |||||||
Maximum Insulation Diameter of Solid Wire | 0.89-0.99mm | |||||||
Maximum insulation Diameter of Cable Jacket | 5.4mm | |||||||
Electrical | ||||||||
Voltage Rating | 150V AC RMS | |||||||
Current Rating | 1.5A | |||||||
Insulation Resistance | ≥1000MΩ,500V DC | |||||||
Withstand Voltage | 1000V D.C. or A.C. PEAK; one contact to all other contacts continued together. 1500V D.C. or A.C. PEAK; all contacts connected together to shield,,(housing/mounting plate) if present. @0.5mA 50 Hz or 60 Hz a minute. | |||||||
Standard | IEC 60603-7 | |||||||
Environment | ||||||||
Operating Temperature | -10℃ to 40℃ | |||||||
Store Temperature | -25℃ to 55℃ | |||||||
Operating Humidity | <80%RH |
