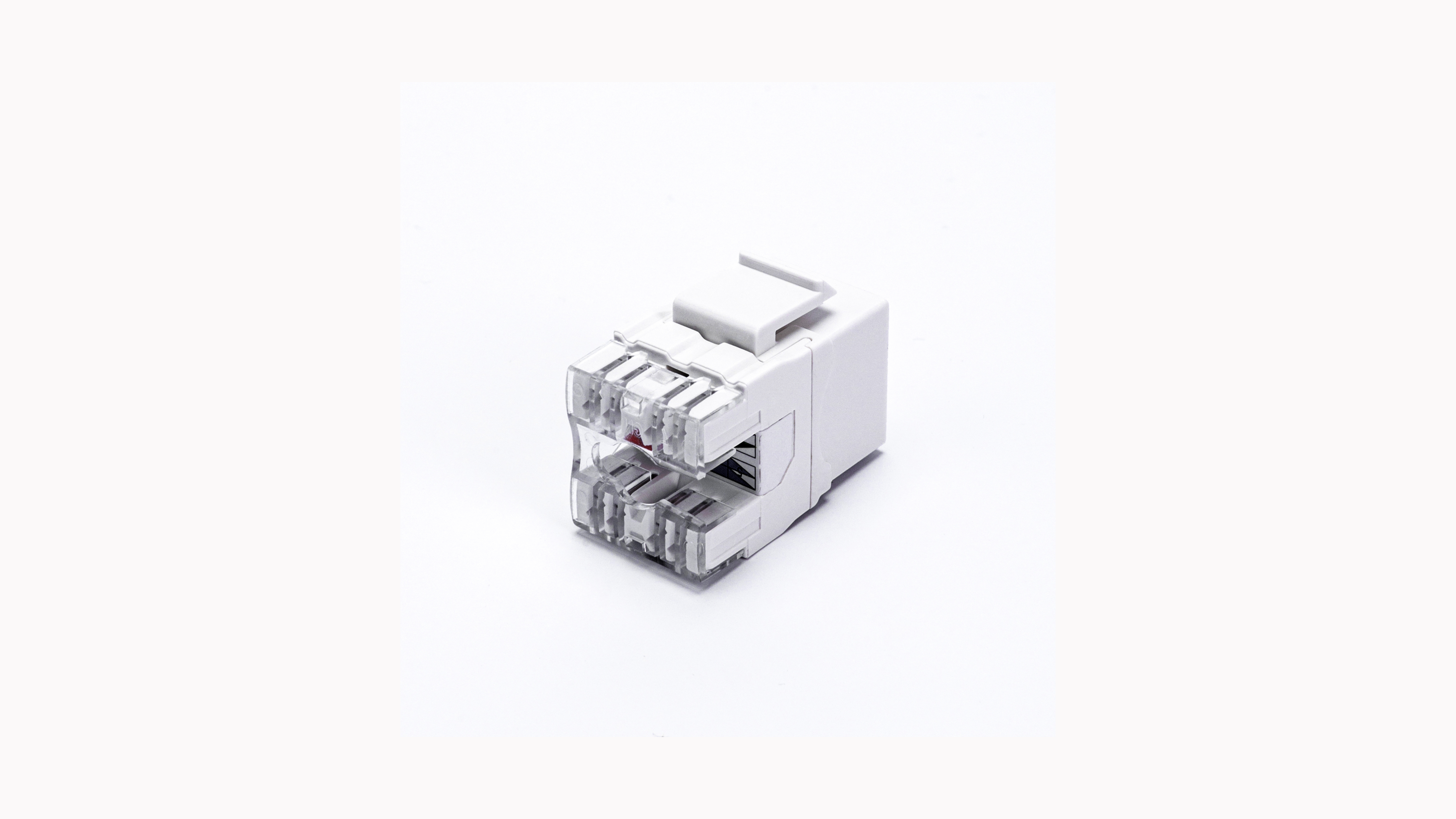

| GC-MD6-IN |
Physical |
Product Type | UTP CAT6 Punch-down Module |
Packing | Once Packing: 1 PCS / packet Twice Packing: 100 PCS / Box |
Mechanical |
Shell Material | PC |
Termination Contact Plating | Phosphor Bronze, 3μ inches gold-plated |
IDC Material | Phosphor Bronze |
Plug to Jack Mating Cycles | ≥750 times |
IDC Cycles | ≥200 times |
Compatible Conductor Gauge,solid | 0.45mm -- 0.65mm |
OD. of Connector Calbe | 5.0mm -- 8.5mm |
Termination Type | IDC, 110 Block tools or Krone tools, Support T568A&T568B wiring |
Installation | Standard face plates , blank patch panels |
Electrical |
Voltage Rating | 125V AC RMS |
Current Rating at Temperature | 1.5 A @ 20 °C |
Contact Resistance | ≤20mΩ |
Insulation Resistance | ≥500MΩ,100V DC |
Withstand Voltage | DC 1000V or AC 700V @ 60s |
Standard | ANSI/TIA568C.2-2009 |
Environment |
Operating Temperature | -25℃ to 70℃ |
Store Temperature | 10 to 90%RH |
