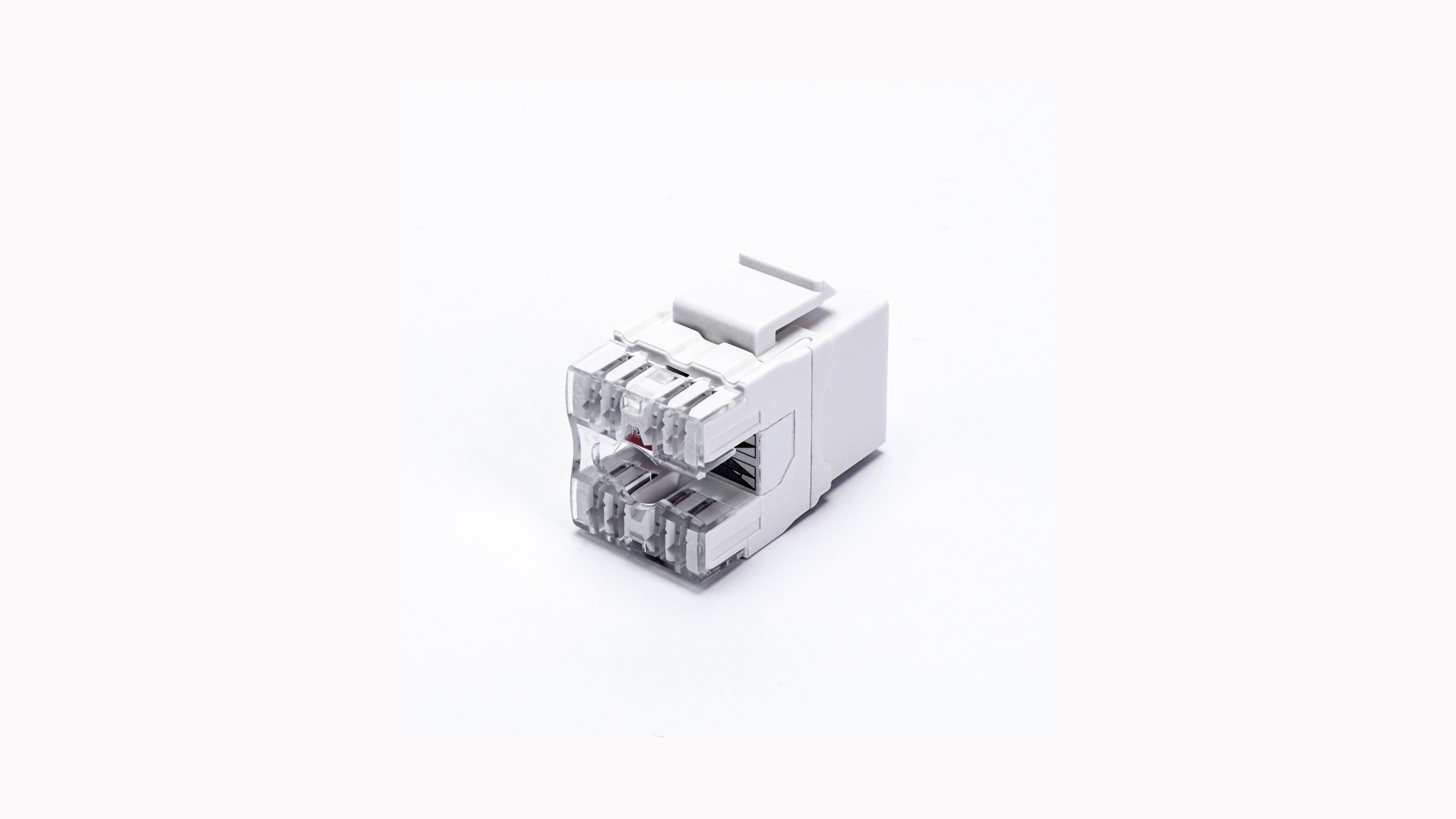

GC-MD5e-IN | ||||||||
Physical | ||||||||
Product Type | UTP CAT5e Punch-down Module | |||||||
Packing | Once Packing: 1 PCS / packet Twice Packing: 100 PCS / Box | |||||||
Mechanical | ||||||||
Shell Material | PC | |||||||
Termination Contact Plating | Phosphor Bronze, 3μ inches gold-plated | |||||||
IDC Material | Phosphor Bronze | |||||||
Plug to Jack Mating Cycles | ≥750 times | |||||||
IDC Cycles | ≥200 times | |||||||
Compatible Conductor Gauge,solid | 0.35mm -- 0.6mm | |||||||
OD. of Connector Calbe | 5.0mm -- 7.5mm | |||||||
Termination Type | IDC, 110 Block tools or Krone tools, Support T568A&T568B wiring | |||||||
Installation | Standard face plates , blank patch panels | |||||||
Electrical | ||||||||
Voltage Rating | 125V AC RMS | |||||||
Current Rating at Temperature | 1.5 A @ 20 °C | |||||||
Contact Resistance | ≤20mΩ | |||||||
Insulation Resistance | ≥500MΩ,100V DC | |||||||
Withstand Voltage | DC 1000V or AC 700V @ 60s | |||||||
Standard | ANSI/TIA568C.2-2009 | |||||||
Environment | ||||||||
Operating Temperature | -25℃ to 70℃ | |||||||
Store Temperature | 10 to 90%RH |
