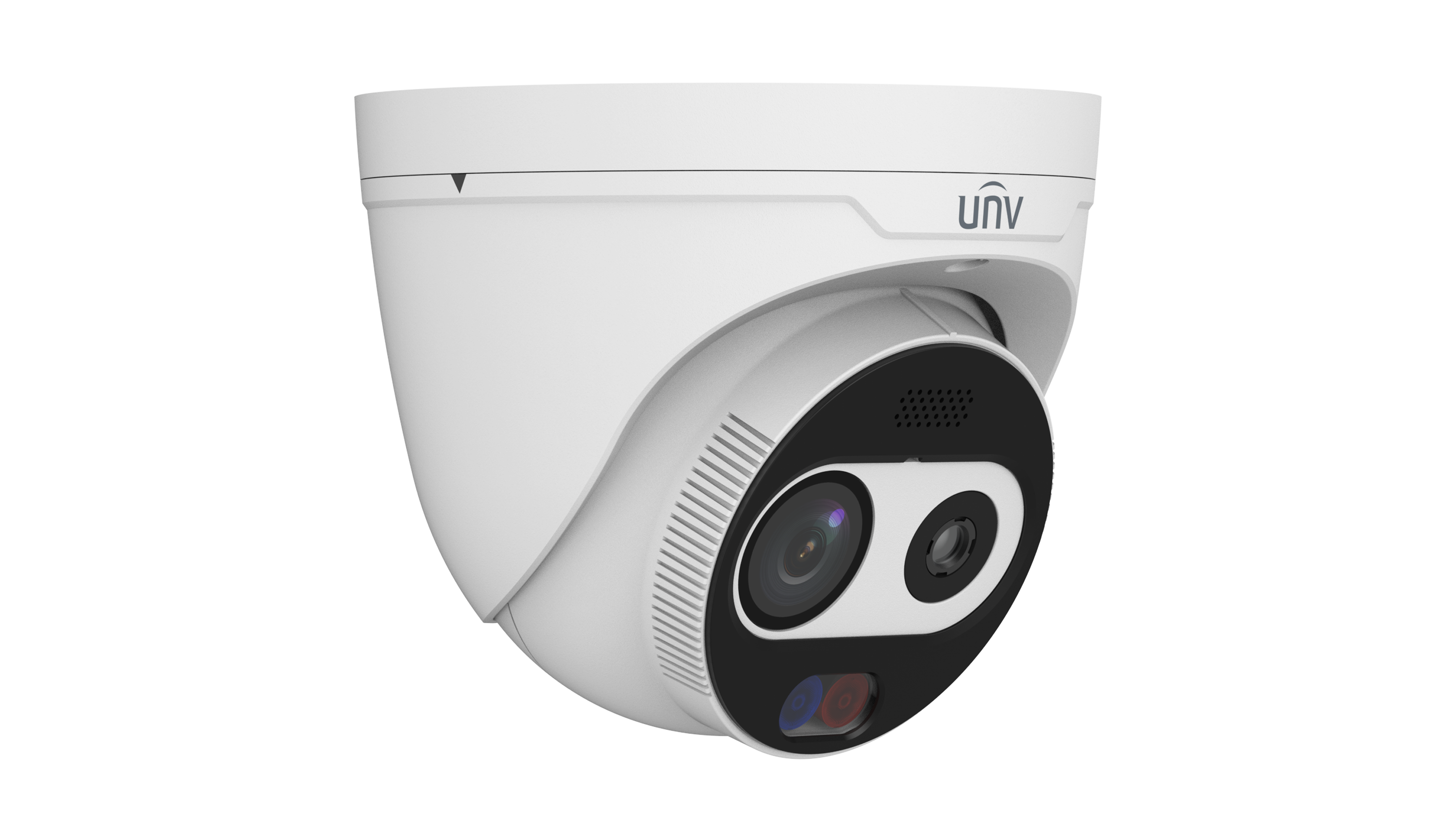

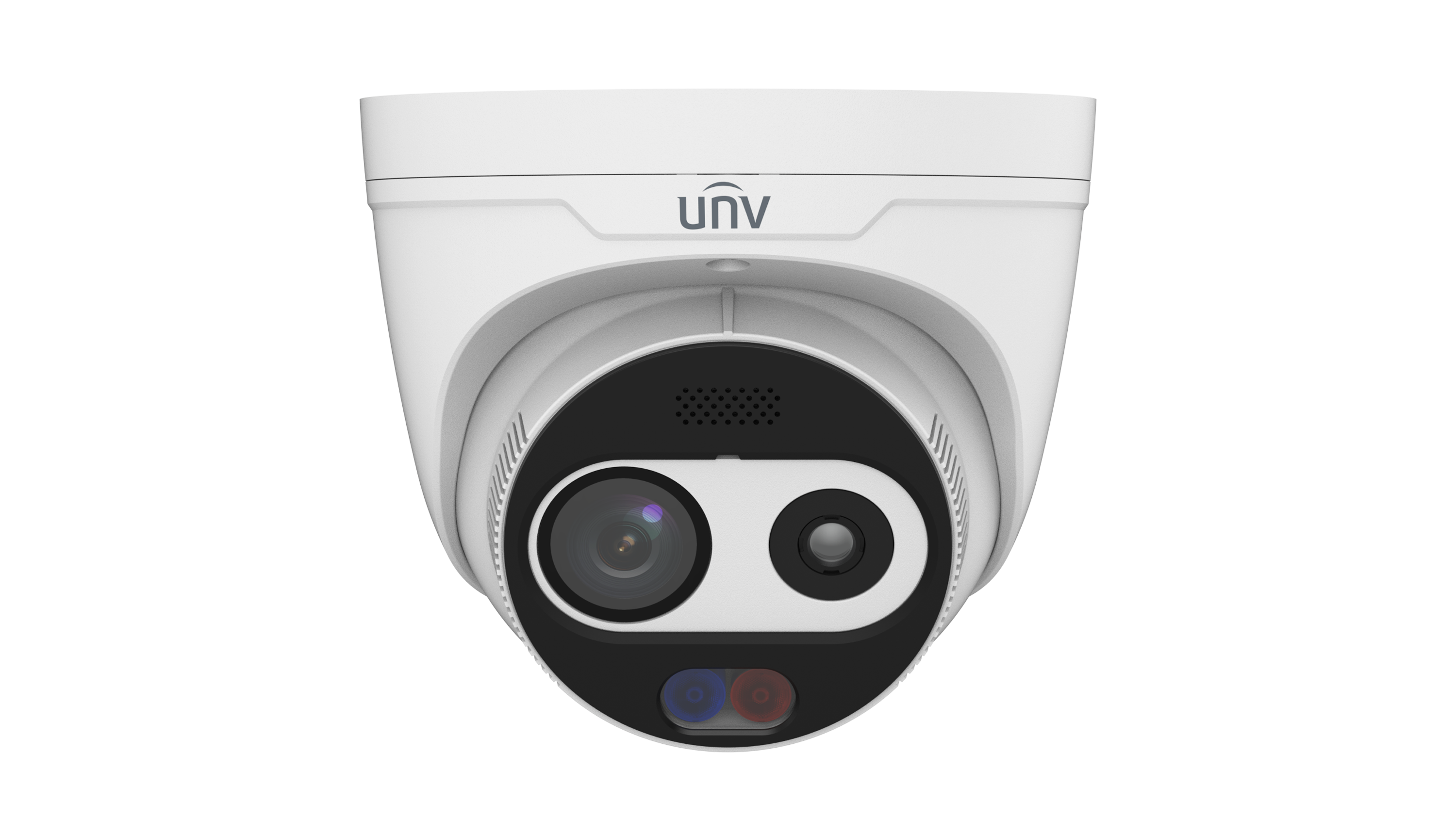

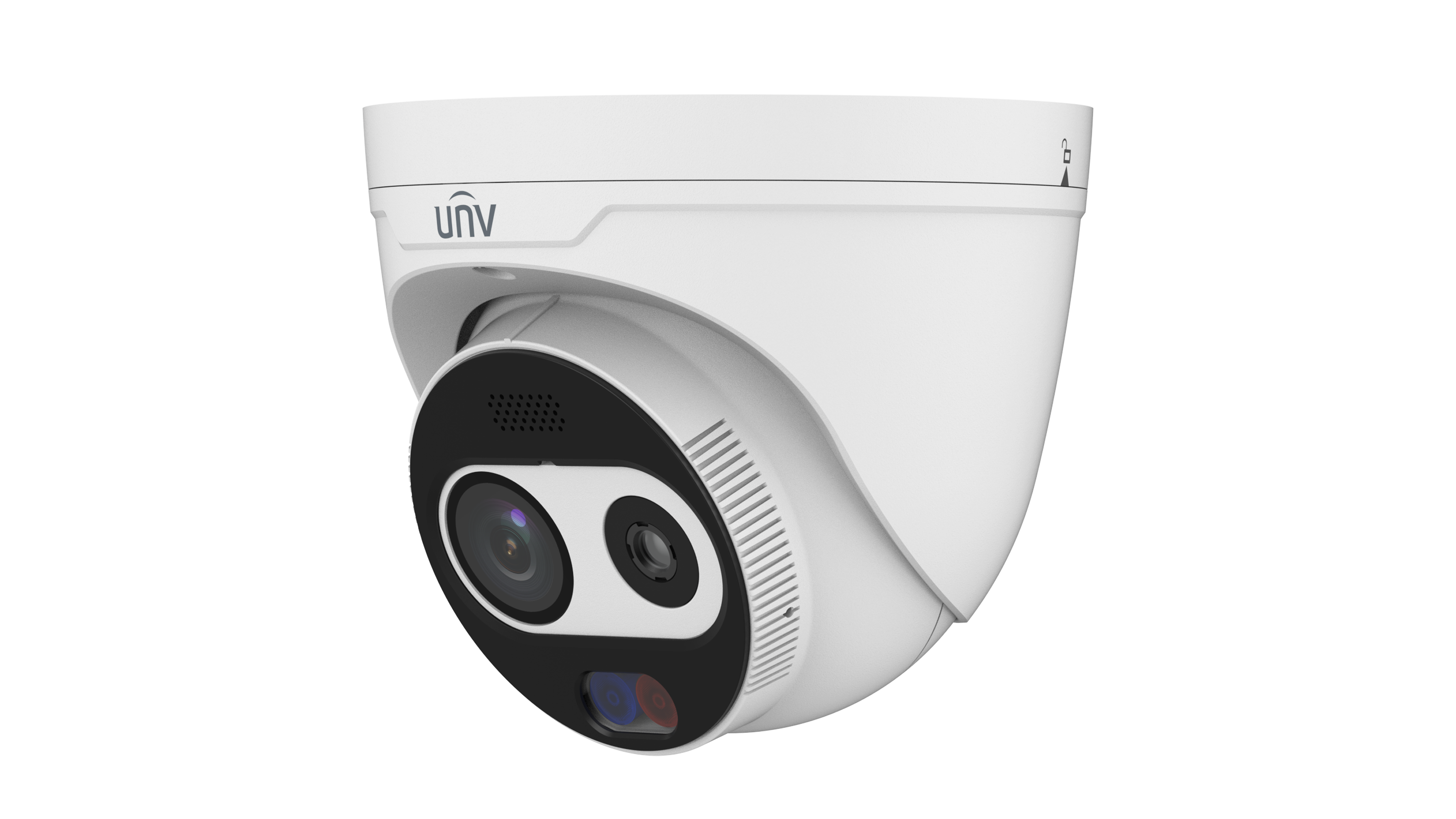

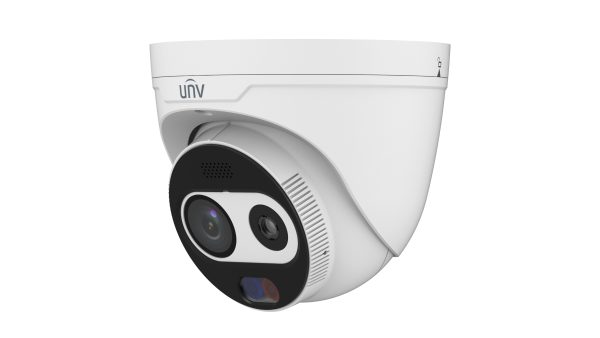

TIC3612SA-F3-4F4AC-I1 | ||||||||
Channel | ||||||||
Camera | ||||||||
Original Resolution | N/A | 256 × 192 | ||||||
Sensor | 1/2.8" CMOS | Vanadium oxide uncooled focal plane arrays | ||||||
Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) B/W: 0.002lux(F1.6,AGC ON) 0 lux with IR |
N/A | ||||||
Day/Night | IR-cut filter with auto switch (ICR) | N/A | ||||||
Pixel Size | N/A | 12 um | ||||||
NETD | < 50 mk@F1.0@25 ℃ | < 50 mk@F1.0@25 ℃ | ||||||
Shutter | Auto/Manual, 1 to 1/100000 s | Auto/Manual, 1 to 1/100000 s | ||||||
WDR | 120 dB | 120 dB | ||||||
S/N | >56 dB | >56 dB | ||||||
Lens | ||||||||
Focal Length | 4mm | 3 mm | ||||||
Iris | F1.6 | F1.0 | ||||||
Field of View (H) | 72.9° | 58.0° | ||||||
Field of View (V) | 44.4° | 42.5° | ||||||
Field of View (D) | 89.8° | 72° | ||||||
DORI | ||||||||
DORI Distance (Detect) | 90.0m(295.3ft) | N/A | ||||||
DORI Distance (Observe) | 36.0m(118.1ft) | N/A | ||||||
DORI Distance (Recognize) | 18.0m(59.1ft) | N/A | ||||||
DORI Distance (Identify) | 9.0m(29.5ft) | N/A | ||||||
Illuminator | ||||||||
Wavelength | 750 nm | N/A | ||||||
Illumination Distance (IR) | 30m | N/A | ||||||
Light On/Off Control | Auto/Manual | N/A | ||||||
Video | ||||||||
Frame Rate | 4MP(2688*1520), Max 30fps | 960P(1280*960), Max 30fps | ||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG | ||||||
Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps | ||||||
U-code | Support | Support | ||||||
ROI | Support | Support | ||||||
Video Stream | Triple Streams | Triple Streams | ||||||
OSD | Up to 8 OSDs | Up to 8 OSDs | ||||||
Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) | N/A | ||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | N/A | ||||||
Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | ||||||
HLC | Support | N/A | ||||||
BLC | Support | N/A | ||||||
Defog | Digital Defog | N/A | ||||||
Palette | N/A | puce, rain, fusion, mazarine, medical, arctic, lava, color 2, color 1, green hot, red hot, black hot, ice hot, depict hot, rainbow 3, rainbow 2, rainbow 1, hot iron, iron oxide red, white hot | ||||||
Intelligent | ||||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle) | ||||||
Smoke Detection | Support | N/A | ||||||
Temperature Measurement Accuracy | ±8 ℃ (±14.4 ℉) or ±8% (whichever is greater) | |||||||
Temperature Range | Selectable between -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) and 100 ℃ to 550 ℃ (212 ℉ to 1022 ℉) | |||||||
Events | ||||||||
Fire Detection | N/A | Support | ||||||
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | N/A | ||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | ||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | G.711U, G.711A | ||||||
Audio Bitrate | 128 Kbps | 128 Kbps | ||||||
Two-way Audio | Support | Support | ||||||
Suppression | Support | Support | ||||||
Sampling Rate | 16KHZ | 16KHZ | ||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
Network Storage | ANR | ANR | ||||||
Network | ||||||||
Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
Client | EZStation, UNV-Link, UNV-Link Pro | EZStation, UNV-Link, UNV-Link Pro | ||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||||||
Interface | ||||||||
Built-in Mic | Support | Support | ||||||
Built-in Speaker | Support | Support | ||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | ||||||
Alarm I/O | 2/2 | 2/2 | ||||||
Serial Port | 1 channel RS485 interface | 1 channel RS485 interface | ||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | 1 × RJ45 10 M/100 M Base-TX Ethernet | ||||||
Video Output | N/A | 1 BNC (For debugging) | ||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||
Safety | CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
General | ||||||||
Power | DC12V(±25%), PoE(IEEE802.3af) | DC12V(±25%), PoE(IEEE802.3af) | ||||||
Power Consumption | Max 12W | Max 12W | ||||||
Power Interface | Ø5.5 mm coaxial power plug | Ø5.5 mm coaxial power plug | ||||||
Dimensions | Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H) | Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H) | ||||||
Weight | 0.72kg(1.6lb) | 0.72kg(1.6lb) | ||||||
Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
Surge Protection | 6 KV | 6 KV | ||||||
Reset Button | Support | Support | ||||||
RTC | Support | Support | ||||||
Web Client Language | 1 Language: English | 1 Language: English | ||||||
Live View | ||||||||
Maximum Bitstream | 35 | 35 | ||||||
Maximum Bandwidth | 50 Mbps | 50 Mbps | ||||||
OSD Font | Vector | Vector | ||||||
OSD Color | Support | Support | ||||||
OSD Character Number | 40 | 40 | ||||||
Other | ||||||||
Corridor Mode | Support | Support | ||||||
Software Version | Q6202 | Q6202 |
