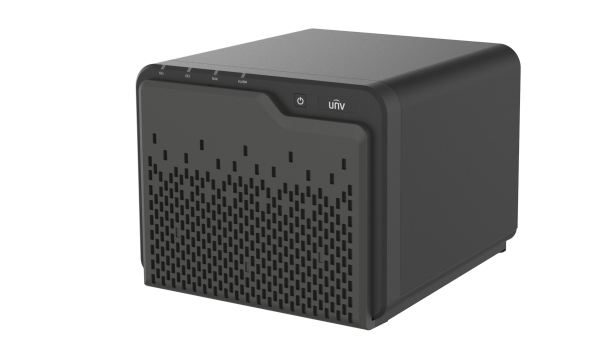

| DX204 | ||||||||
| Module | ||||||||
| OS | Embedded Linux | |||||||
| CPU | Intel quad-core X86_64 processor | |||||||
| RAM | 4GB DDR4, dual SO-DIMM slots, expandable to 32GB | |||||||
| HDD | 4 * SATA3.0 slots, compatible with 3.5-inch or 2.5-inch SATA HDD/SSD | |||||||
| Network interface | 2*GE, 1*PCIe 3.0 for expansion to 10Gigabit network | |||||||
| HDMI | 1*HDMI 2.0, resolution up to 4096 x 2160@60Hz | |||||||
| USB | 2*USB3.0 | |||||||
| M.2 HDD slot | 2 (NVMe), with one slot supporting SATA3.0 | |||||||
| EMMC | 8GB (standard) | |||||||
| Dimensions | 226mm (L) × 246mm (W) × 186mm (H) | |||||||
| Weight | 3.6 kg (without HDD) | |||||||
| Power consumption | 33W (with HDD fully configured) | |||||||
| Noise | Room temperature 25°C≤31dB(A) Within the environment’s highest specified limit ≤39.4dB(A) (low power operation mode) | |||||||
| Operating temperature | 0°C to +45°C | |||||||
| Storage temperature | -20°C to +70°C | |||||||
| Storage humidity | 5% to 95% (non-condensing) | |||||||
| Operating humidity | 5% to 95% (non-condensing) | |||||||
| Function | ||||||||
| Access protocol | Supports Onvif cameras | |||||||
| Performance | ||||||||
| Video storage performance | 64*2Mbps | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/8/26 20:37:44 | UNV DX204 DX204 Desktop NAS.pdf | English | Preview | Download A > |
