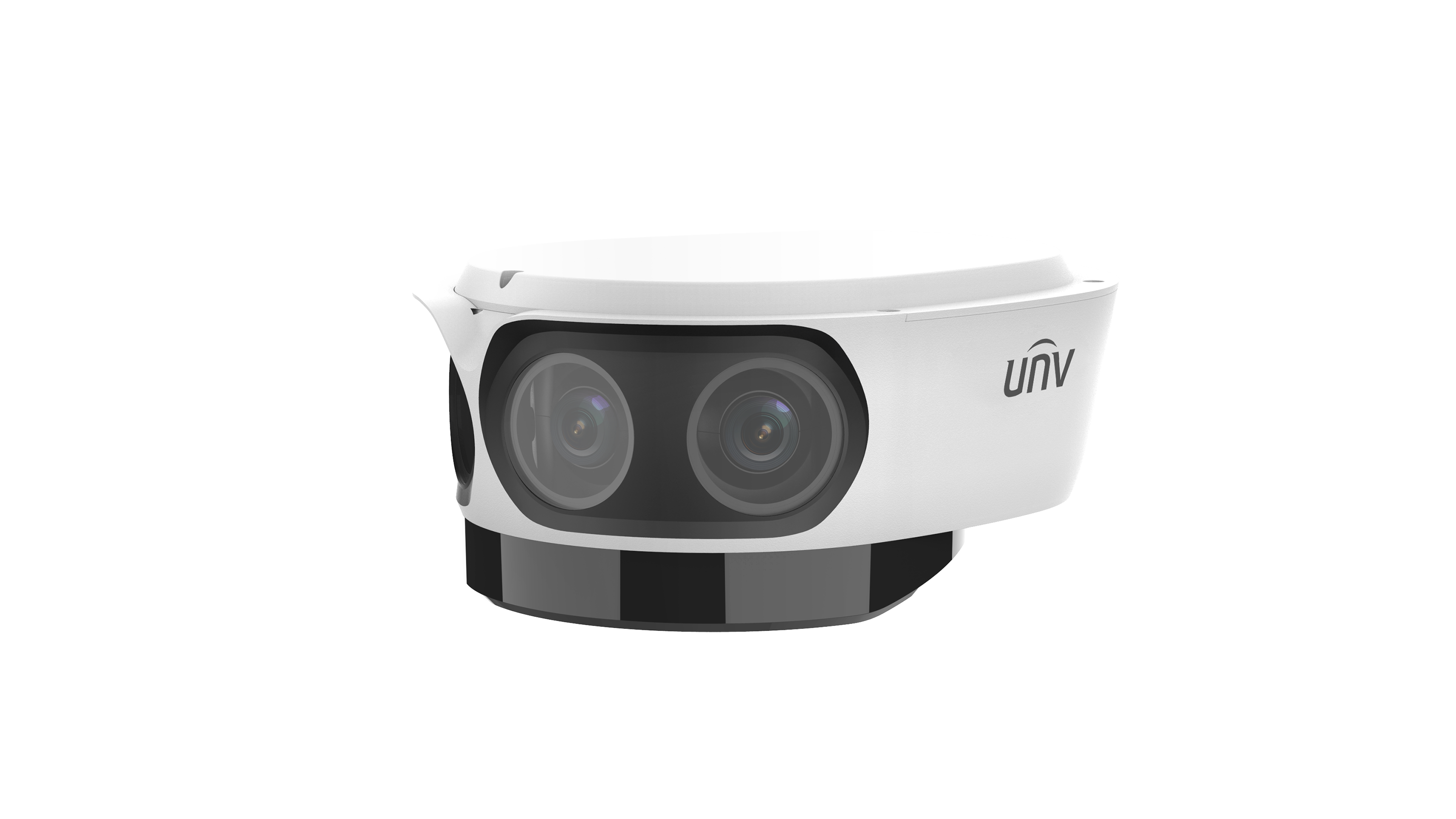

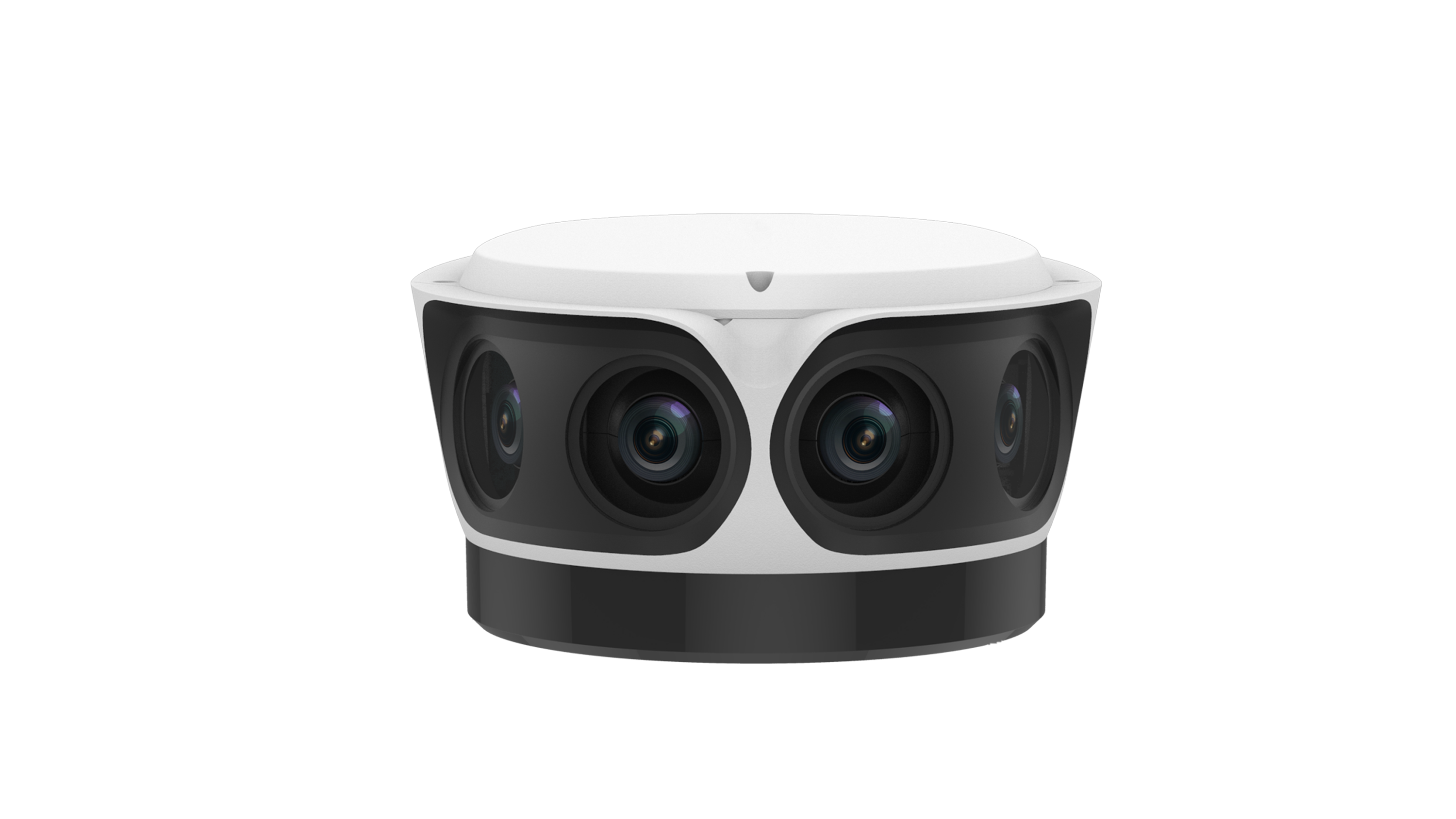

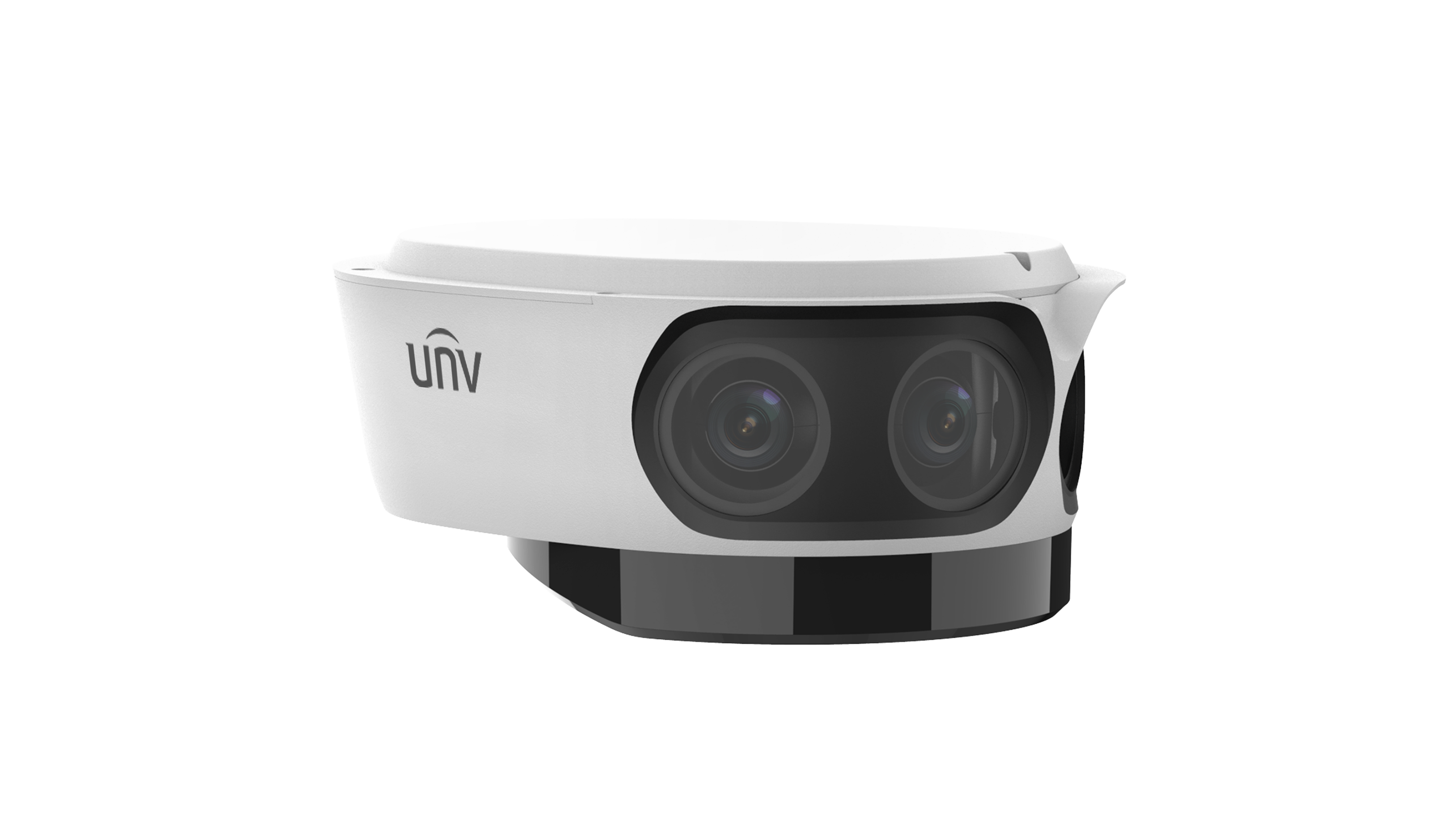

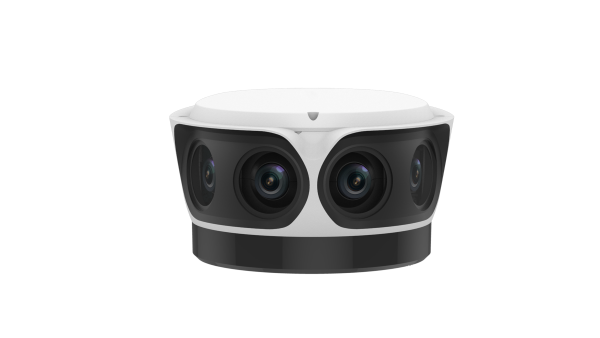

IPC8544EA-KM-I1
16MP LightHunter OmniView Fixed IR Network Camera
• High quality image with 16 MP, 1/1.8” CMOS sensor 4800 × 2688@30 fps in the main stream offers 180° panoramic view, and 16 : 9 ratio can better fit the screen
• Smart IR, up to 50 m (164 ft) IR distance
• Built-in fan, allows dissipating heat and eliminating the mist of window
• Ultra 265, H.265, H.264, MJPEG
• 2D/3D DNR (Digital Noise Reduction)
• AC24V, DC24V or PoE (IEEE 802.3at) power supply
• Micro SD, up to 512 GB
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP67 ingress protection
Specification

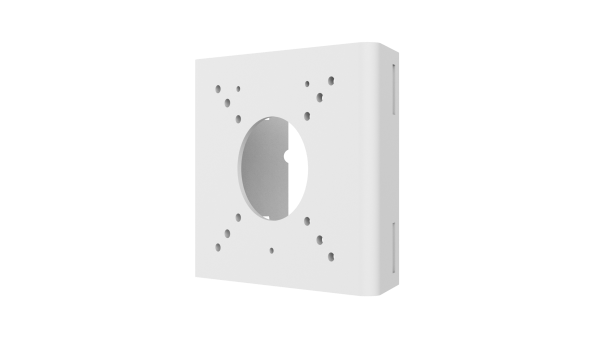

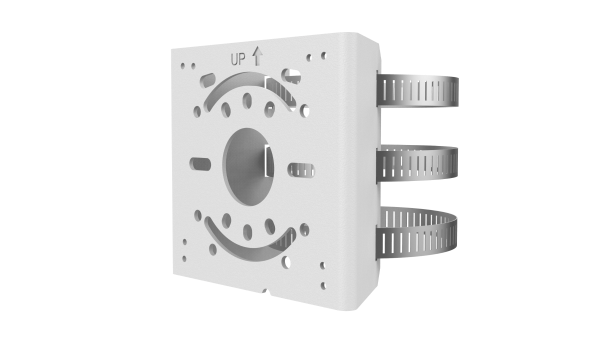

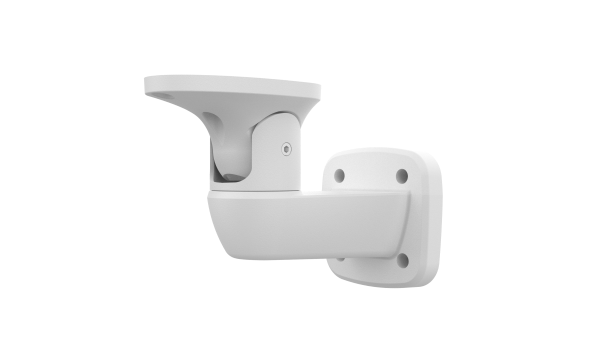

Accessories
Download
How to buy
 IPC8544EA-KM-I1
Camera
Sensor1/1.8" CMOS
Min. IlluminationColour: 0.001lux (F1.6, AGC ON)
0lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
WDRDWDR
S/N>56 dB
Lens
Focal Length2.8 mm
IrisF1.6
Field of View (H)180°
Field of View (V)90°
Field of View (D)221.4°
Iris TypeFixed
DORI
DORI Distance (Lens)2.8mm
DORI Distance (Detect)63.0m(206.7ft)
DORI Distance (Observe)25.2m(82.7ft)
DORI Distance (Recognize)12.6m(41.3ft)
DORI Distance (Identify)6.3m(20.7ft)
Illuminator
Illumination Distance (IR)50 m (164.0 ft)
Wavelength850 nm
IR On/Off ControlAuto/Manual
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip Vertical, Flip Horizontal, 180°
HLCSupport
BLCSupport
DefogDigital Defog
Heatwave ReductionN/A
Events
Basic DetectionMotion Detection, Tampering Alarm, Audio Detection
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Network
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T),
API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, UNV-Link, UNV-Link Pro
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame Rate-Main Stream4800×2688, Max. 30 fps
Frame Rate-Sub Stream2688×1520, Max. 30 fps
Frame Rate-Third Stream1280×720, Max. 30 fps
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
ROISupport
Video StreamTriple Streams
OSDUp to 10 OSDs
Privacy MaskUp to 8 areas (8 blacks/ 8 mosaics)
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate16KHZ
Interface
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O2/1
Serial Port1 channel RS485 interface
Network1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
PowerAC24V±25%/DC24V±25%, PoE(IEEE 802.3at)
Power ConsumptionMax 23W
Power InterfaceWires with cold-pressed terminal
Dimensions259 x 211 x 115 mm (10.2" x 8.3" x 4.5") (L x W x H)
Weight2.271kg(5.01lb)
Working Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Reset ButtonSupport
