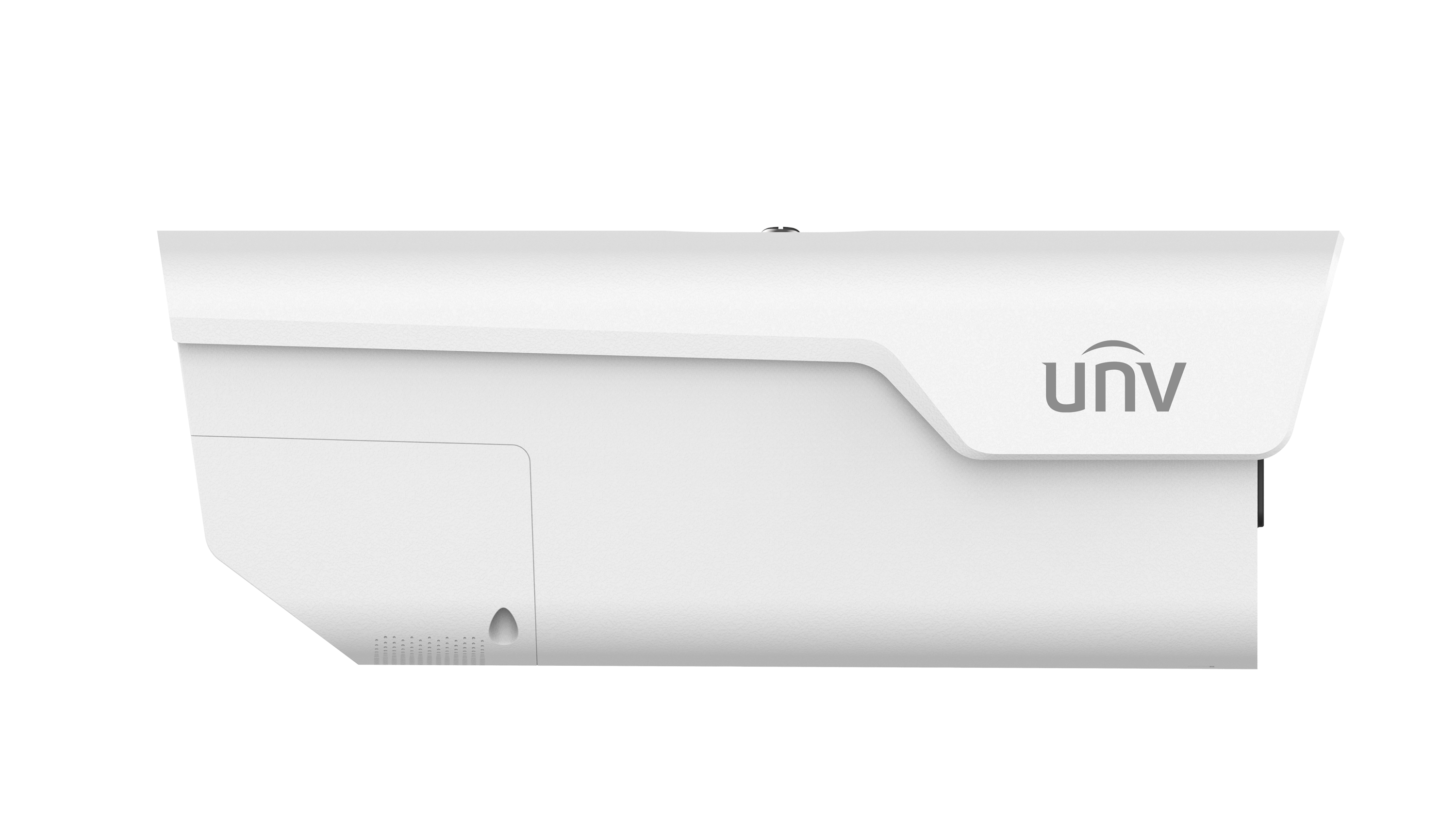

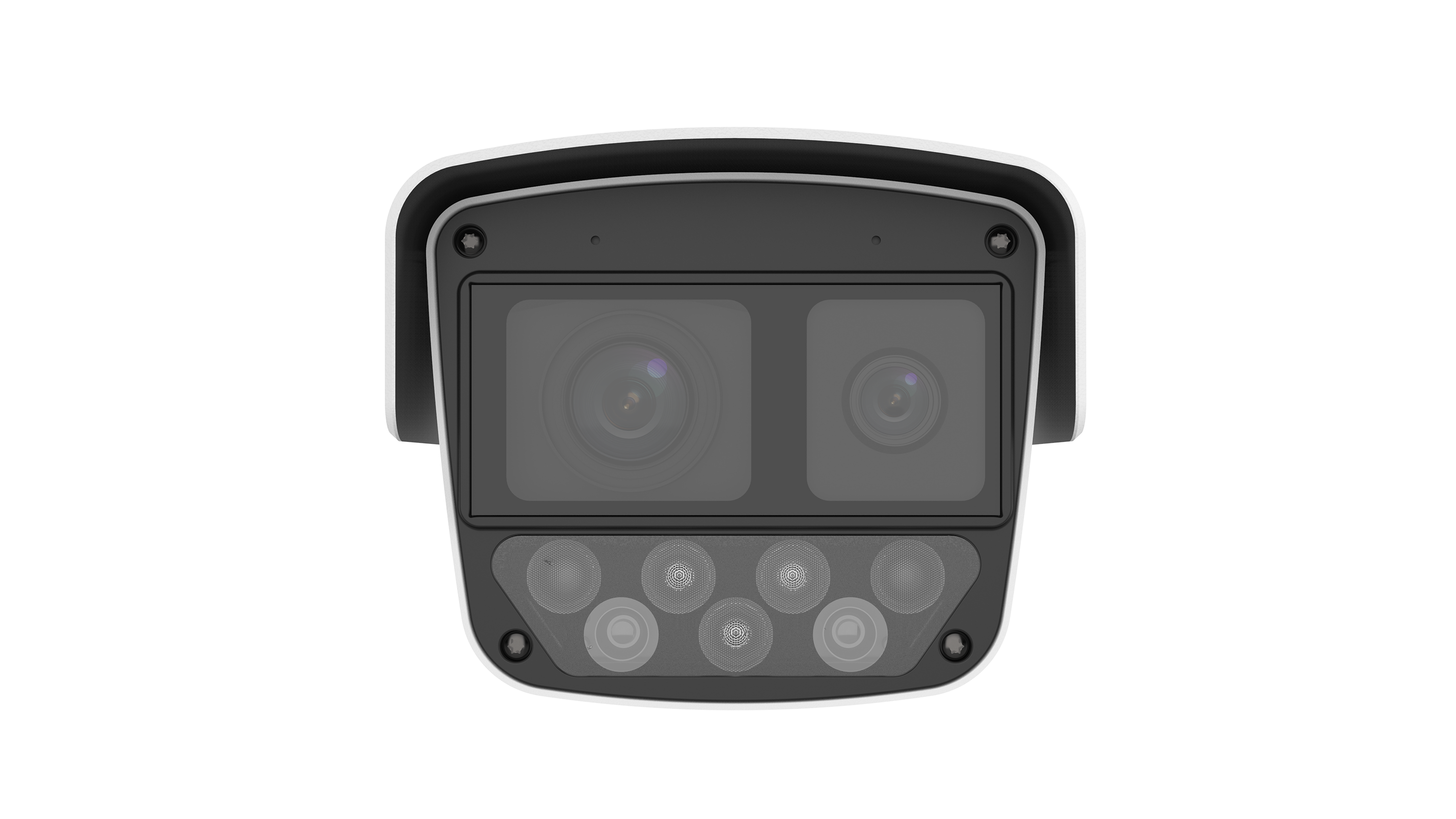

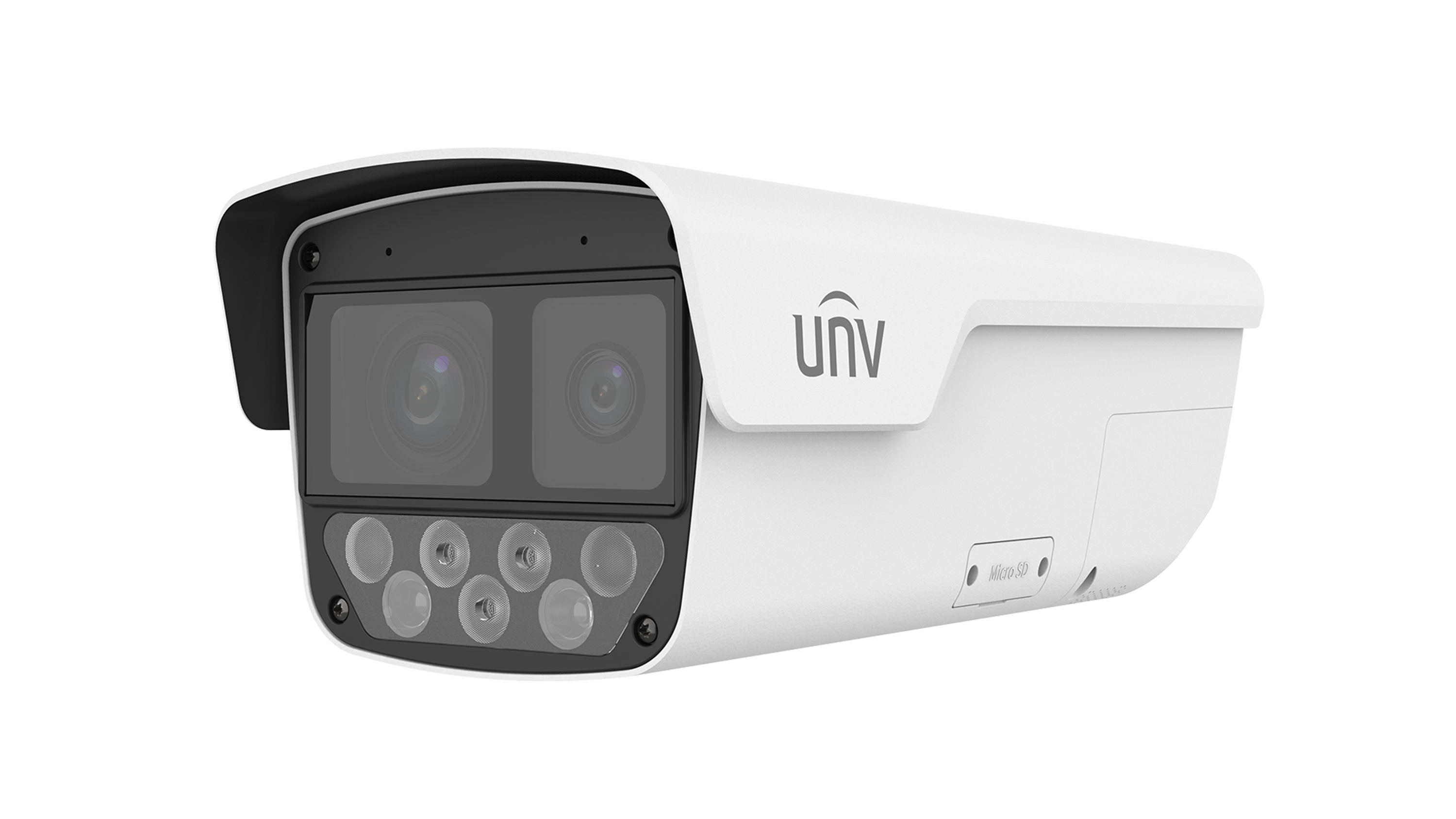

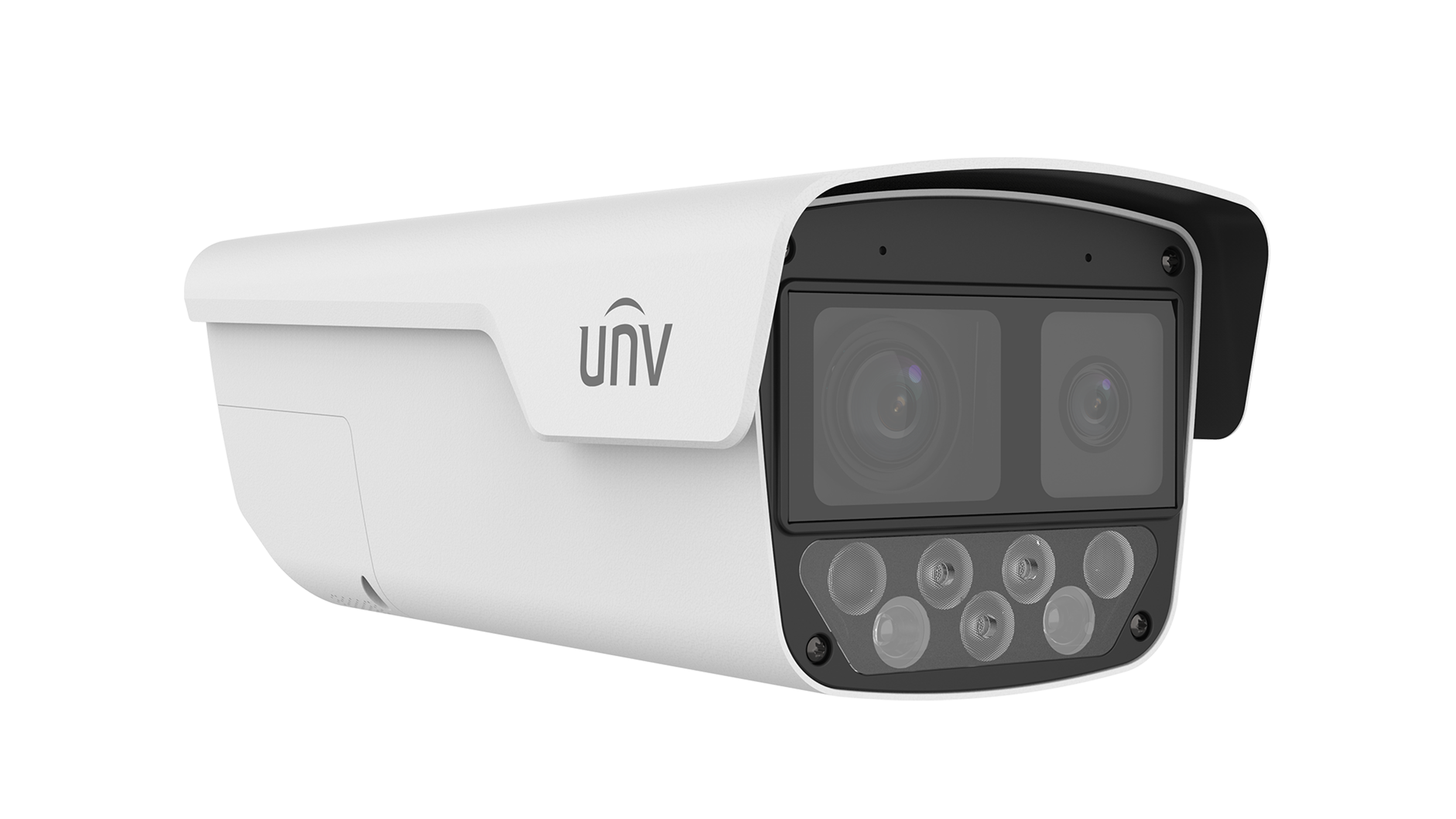

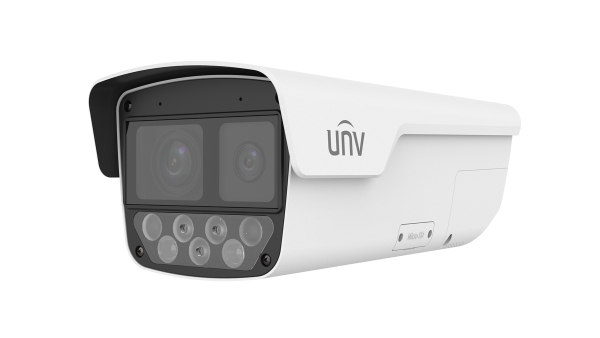

IPC28184EA-ADX5K-F40-I1 | ||||||||
Channel | ||||||||
Camera | ||||||||
Max Resolution | 4 MP | 8 MP | ||||||
Sensor | 1/1.8" CMOS | 1/1.8" CMOS | ||||||
Min. Illumination | Colour:0.0005lux (F1.0, AGC ON) | Colour:0.005lux (F1.6, AGC ON) 0 lux with IR |
||||||
Day/Night | N/A | IR-cut filter with auto switch (ICR) | ||||||
Shutter | Auto/Manual, 1 to 1/100000 s | Auto/Manual, 1 to 1/100000 s | ||||||
Adjustment Angle | Tilt: -10° to 10° (electric control , for installation and debugging) | Tilt: -10° to 10° (electric control , for installation and debugging) | ||||||
WDR | 120 dB | 120 dB | ||||||
S/N | >56 dB | >56 dB | ||||||
Lens | ||||||||
Focal Length | 4.0 mm | 10 to 50 mm | ||||||
Optical Zoom | N/A | 5X | ||||||
Iris Type | Fixed | DC-iris | ||||||
Iris | F1.0 | F1.6 | ||||||
Field of View (H) | 94.7° | 33.8°~8.4° | ||||||
Field of View (V) | 50.3° | 18.8°~4.6° | ||||||
Field of View (D) | 116.5° | 39.9°~10.0° | ||||||
DORI | ||||||||
DORI Distance (Detect) | 79.1m(259.6ft) | 292.5m(959.6ft)~1237.5m(4060.0ft) | ||||||
DORI Distance (Observe) | 31.7m(103.9ft) | 117.0m(383.9ft)~495.0m(1624.0ft) | ||||||
DORI Distance (Recognize) | 15.8m(51.9ft) | 58.5m(191.9ft)~247.5m(812.0ft) | ||||||
DORI Distance (Identify) | 7.9m(26.0ft) | 29.3m(96.0ft)~123.8m(406.0ft) | ||||||
Illuminator | ||||||||
Illumination Distance (Warm Light) | Up to 30m (98.43ft) | Up to 30m (98.43ft) | ||||||
Illumination Distance (IR) | N/A | Up to 50m (164.0ft) | ||||||
Wavelength | N/A | 750 nm | ||||||
Light On/Off Control | Auto/Manual | Auto/Manual | ||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG | ||||||
Frame Rate-Main Stream | 4MP(2688*1520), Max 30fps | 8MP(3840*2160), Max 30fps | ||||||
Frame Rate-Sub Stream | 2MP (1920*1080), Max 30fps | 2MP (1920*1080), Max 30fps | ||||||
Frame Rate-Third Stream | D1 (720*576), Max 30fps | D1 (720*576), Max 30fps | ||||||
Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps | ||||||
U-code | Support | Support | ||||||
ROI | Support | Support | ||||||
Video Stream | Triple Streams | Triple Streams | ||||||
OSD | Up to 10 OSDs | Up to 10 OSDs | ||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | ||||||
Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
Smart IR | Support | Support | ||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | ||||||
HLC | Support | Support | ||||||
BLC | Support | Support | ||||||
Defog | Digital Defog | Digital Defog | ||||||
Intelligent | ||||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||||
Recognition | N/A | Face Recognition: Max support 16 face libraries, Max supports 100000 faces in face library | ||||||
Metadata Analyse | N/A | Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection | ||||||
People Counting | N/A | Support People Flow Counting and Crowd Density Monitoring | ||||||
Events | ||||||||
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind | ||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | ||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | G.711U, G.711A | ||||||
Audio Bitrate | 128 Kbps | 128 Kbps | ||||||
Two-way Audio | Support | Support | ||||||
Suppression | Support | Support | ||||||
Sampling Rate | 16KHZ | 16KHZ | ||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
Network Storage | ANR, NAS (NFS) | ANR, NAS (NFS) | ||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | ||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||||||
Client | EZStation, UNV-Link, UNV-Link Pro | EZStation, UNV-Link, UNV-Link Pro | ||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||||||
Interface | ||||||||
Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | ||||||
Alarm I/O | 3/2 | 3/2 | ||||||
Serial Port | 1 channel RS485 interface | 1 channel RS485 interface | ||||||
Built-in Mic | Built-in two mics | Built-in two mics | ||||||
Built-in Speaker | Support | Support | ||||||
Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet | ||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
General | ||||||||
Power | AC 24 V±25% | AC 24 V±25% | ||||||
Power Consumption | Max 31w | Max 31w | ||||||
Power Interface | Wires with cold-pressed terminal | Wires with cold-pressed terminal | ||||||
Dimensions | 326 x 147 x 121 mm (12.8" x 5.8" x 4.8") (L x W x H) | 326 x 147 x 121 mm (12.8" x 5.8" x 4.8") (L x W x H) | ||||||
Weight | 2.11kg | 2.11kg | ||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
Surge Protection | 6 KV | 6 KV | ||||||
Reset Button | Support | Support | ||||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
