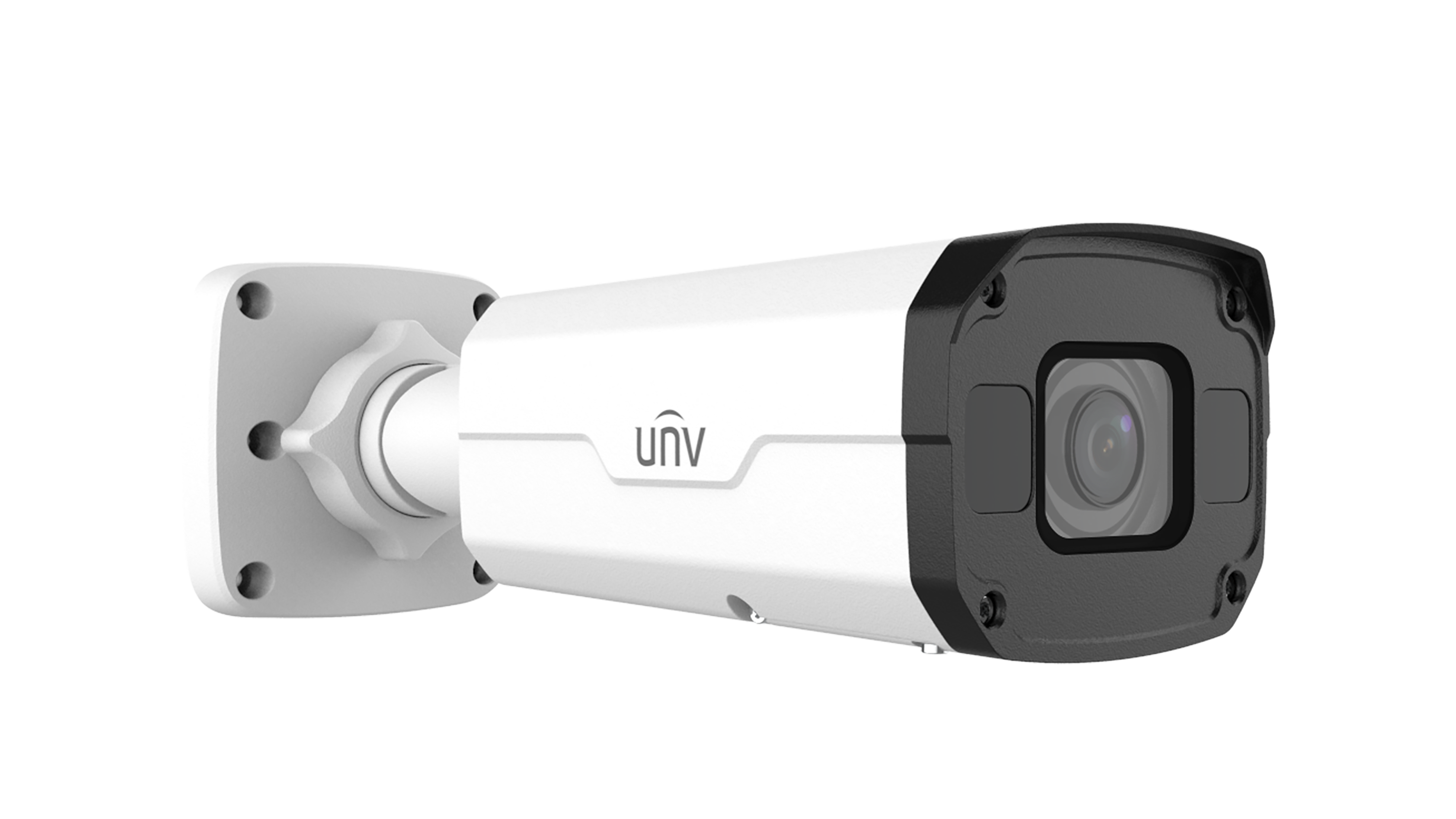

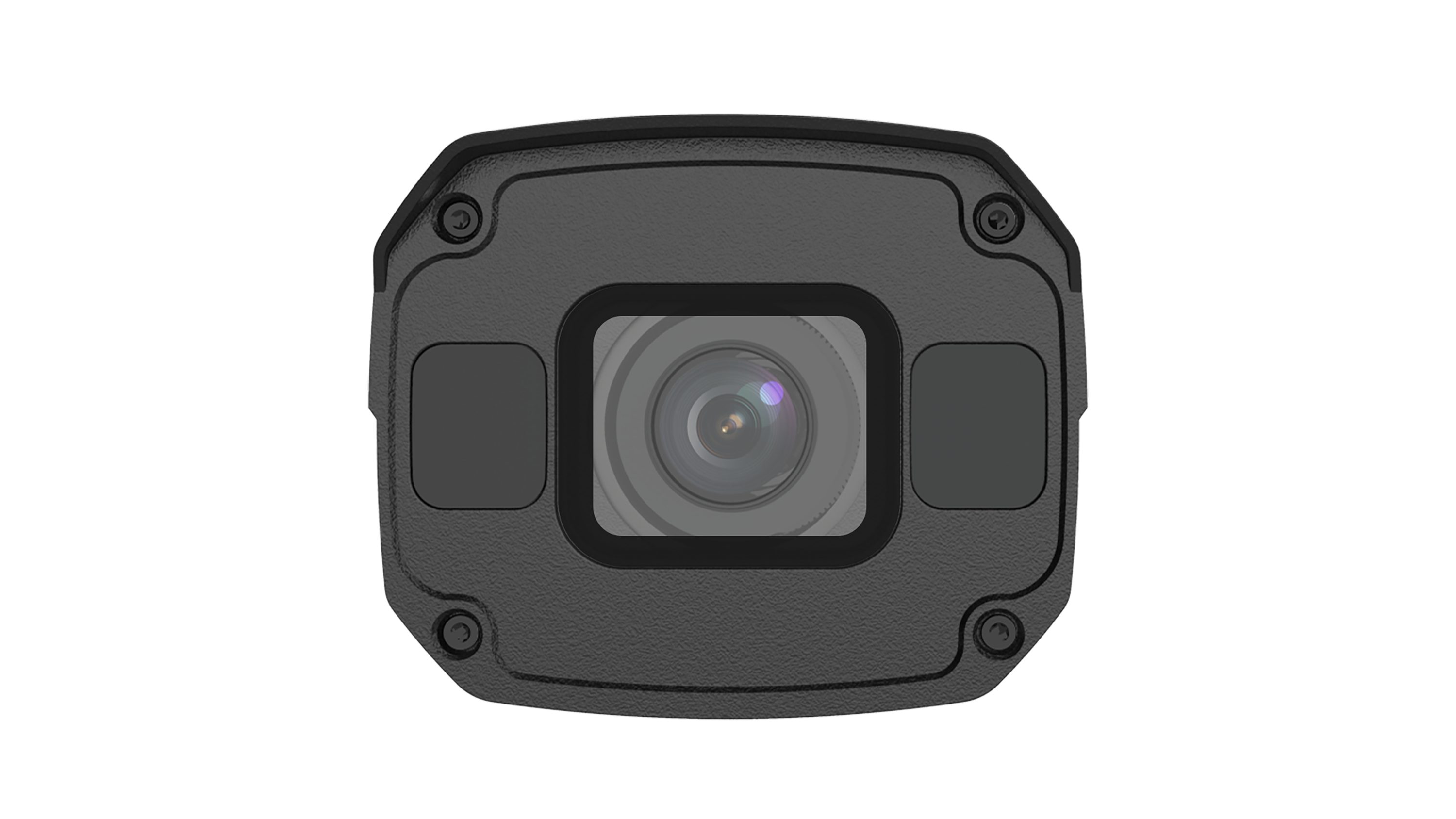

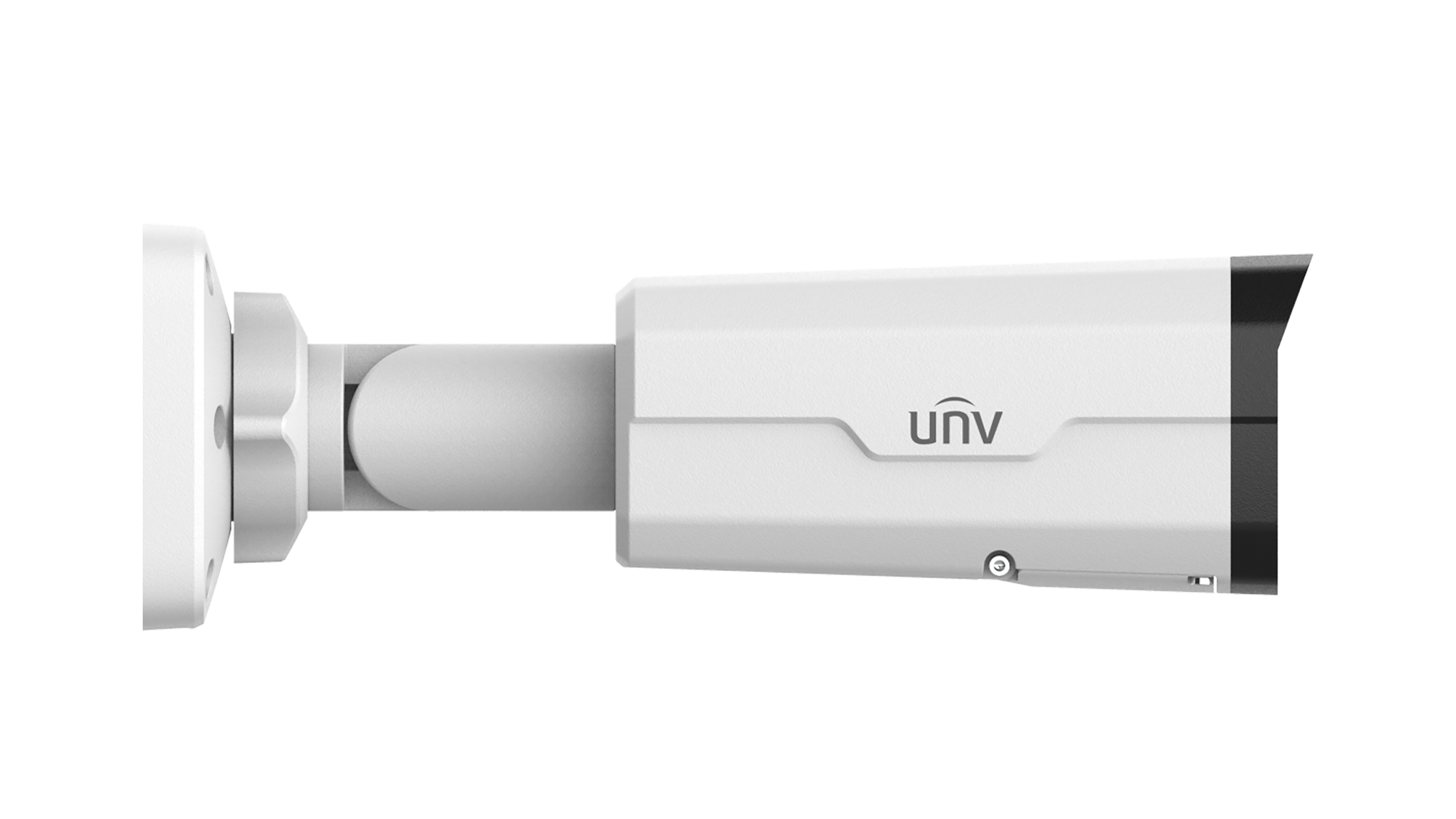

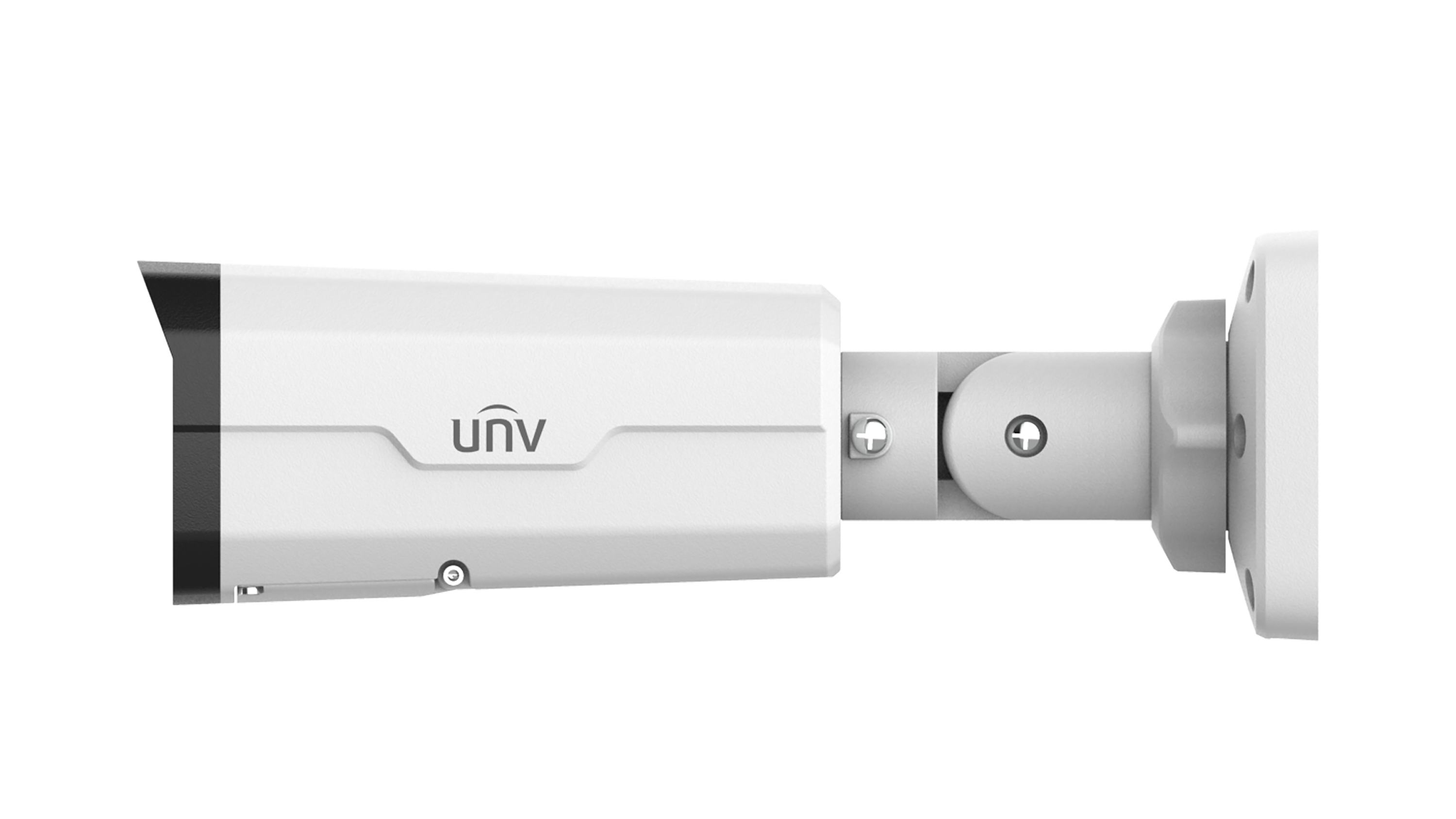

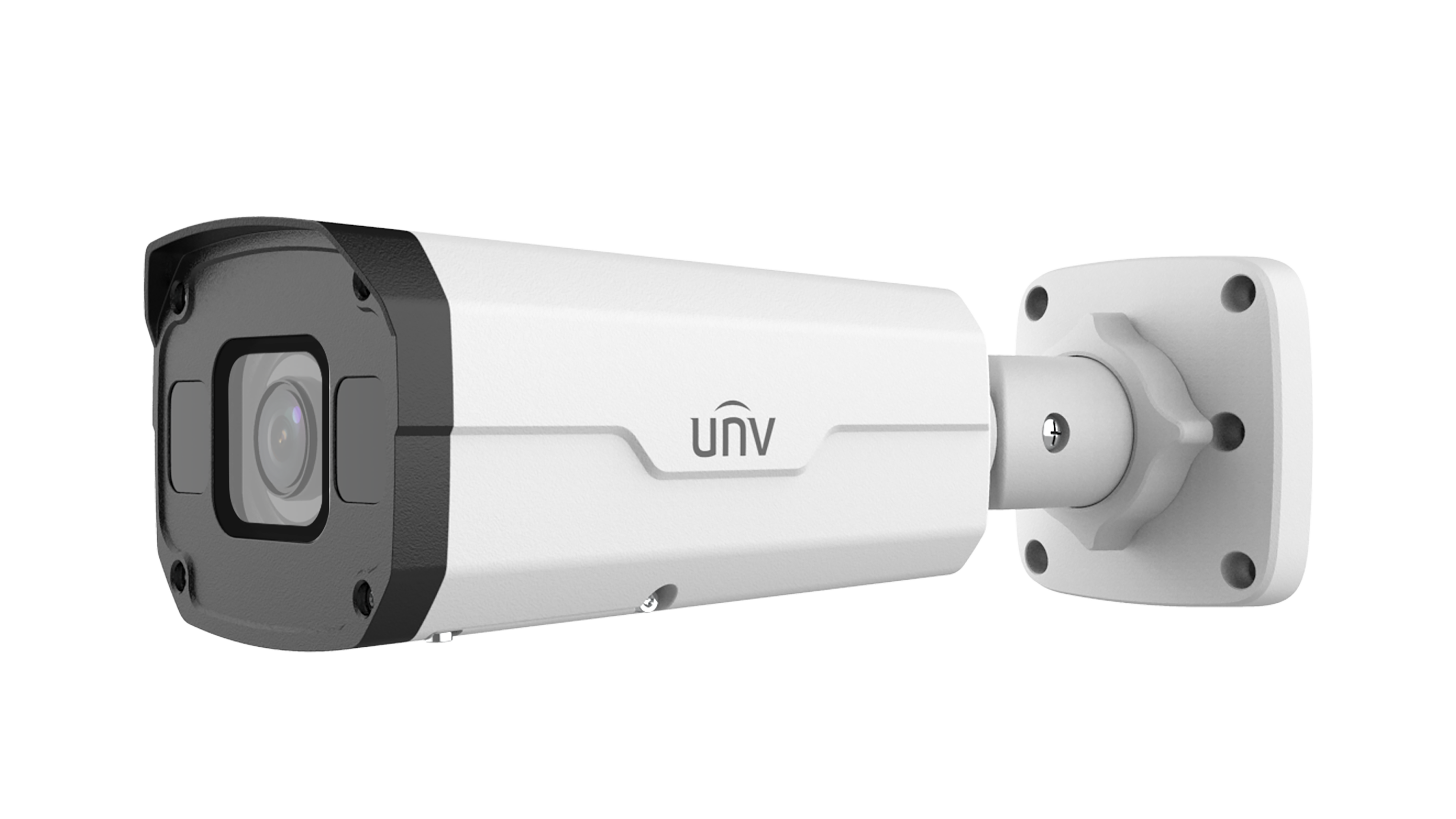

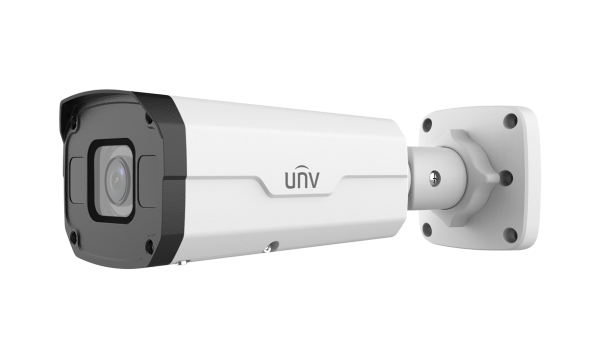

| IPC2322SB-HDZK-I0 | ||||||||
| Camera | ||||||||
| Sensor | 1/2.8" CMOS | |||||||
| Min. Illumination | Color: 0.001 Lux (F1.2, AGC ON), 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | |||||||
| S/N | >52 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.7 to 13.5 mm | |||||||
| Digital Zoom | 16X | |||||||
| Optical Zoom | 5X | |||||||
| Iris | F1.2 | |||||||
| Field of View (H) | 98.2° to 30.6° | |||||||
| Field of View (V) | 53.3° to 17.3° | |||||||
| Field of View (D) | 127.7° to 37.6° | |||||||
| Iris Type | Fixed | |||||||
| DORI | ||||||||
| DORI Distance (Lens) | 2.7 to 13.5 mm | |||||||
| DORI Distance (Detect) | 70.9 m to 247.5 m (232.5 ft. to 812.0 ft) | |||||||
| DORI Distance (Observe) | 28.4 m to 99.0 m (93.2 ft. to 324.8 ft) | |||||||
| DORI Distance (Recognize) | 14.2 m to 49.5 m (46.5 ft. to 162.4 ft) | |||||||
| DORI Distance (Identify) | 7.1 m to 24.8 m (23.3 ft. to 81.4 ft) | |||||||
| Video | ||||||||
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 60 fps; Sub Stream: 1080P (1920 × 1080), max. 60 fps; Third Stream: D1 (720 × 576), max. 60 fps | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| OSD | Up to 10 OSDs | |||||||
| Frame Rate-Main Stream | 1080P (1920 × 1080), max. 60 fps | |||||||
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 60 fps | |||||||
| Frame Rate-Third Stream | D1 (720 × 576), max. 60 fps | |||||||
| Intelligent | ||||||||
| Exception Detection | Object removed, Object Left Behind, Scene change | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| People Counting | Support people flow counting and crowd density monitoring | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Smart IR | Support | |||||||
| Defog | Digital defog | |||||||
| Heatwave Reduction | N/A | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 128 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 16KHZ | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | 50 m (164.0 ft) | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Wavelength | 850 nm | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Alarm I/O | 1/1 | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | N/A | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | 1 BNC (for debugging) | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||||
| General | ||||||||
| Power | DC 12 V (±25%), PoE (IEEE 802.3af) | |||||||
| Power Consumption | Max. 8 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | 245 mm × 86 mm × 85 mm (9.6" × 3.4" × 3.4") (L × W × H) | |||||||
| Weight | 0.92 kg (2.03 lb) | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 6 KV | |||||||
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | |||||||
| Configurable | ||||||||
| P/N | Support | |||||||
