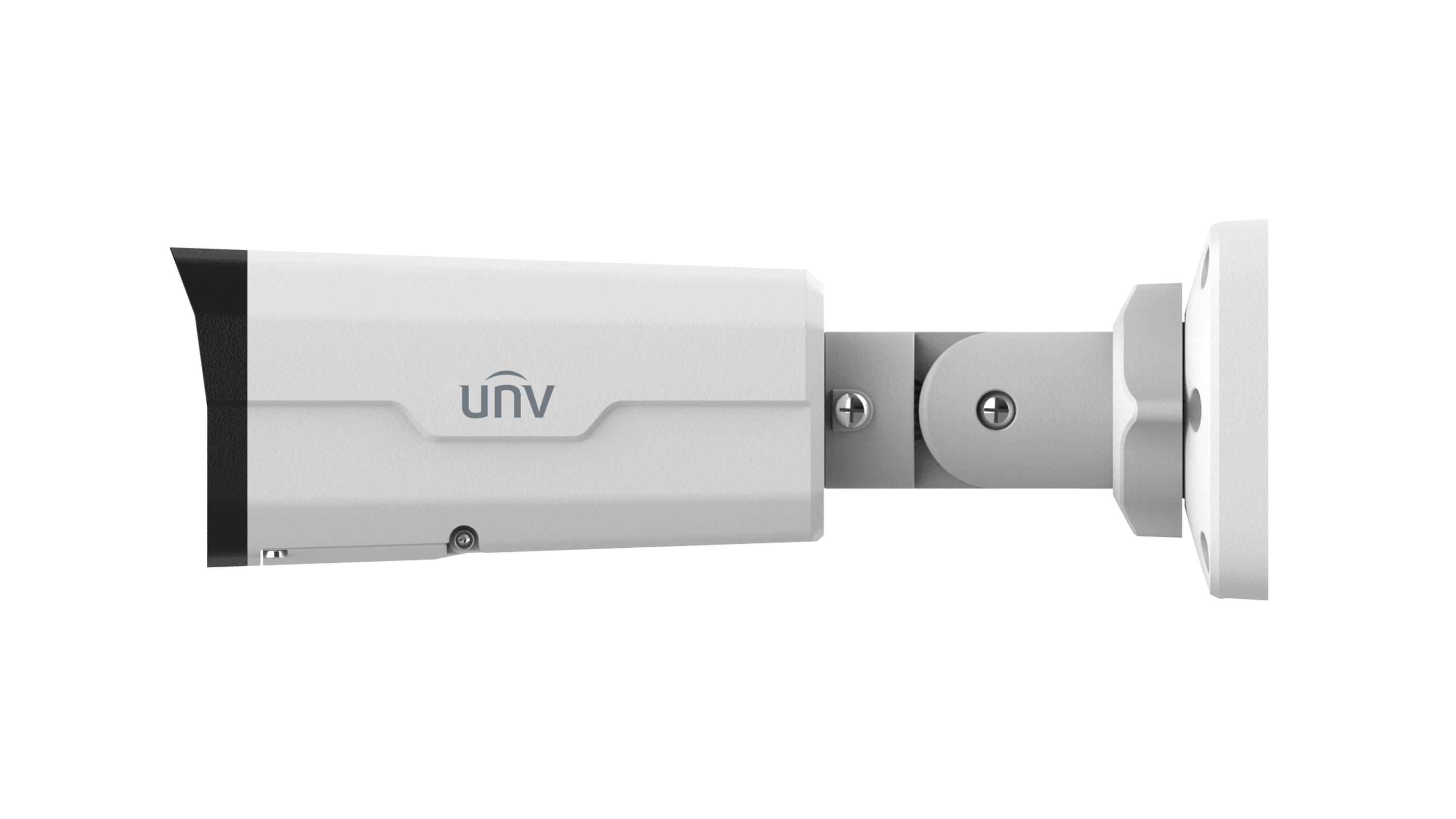

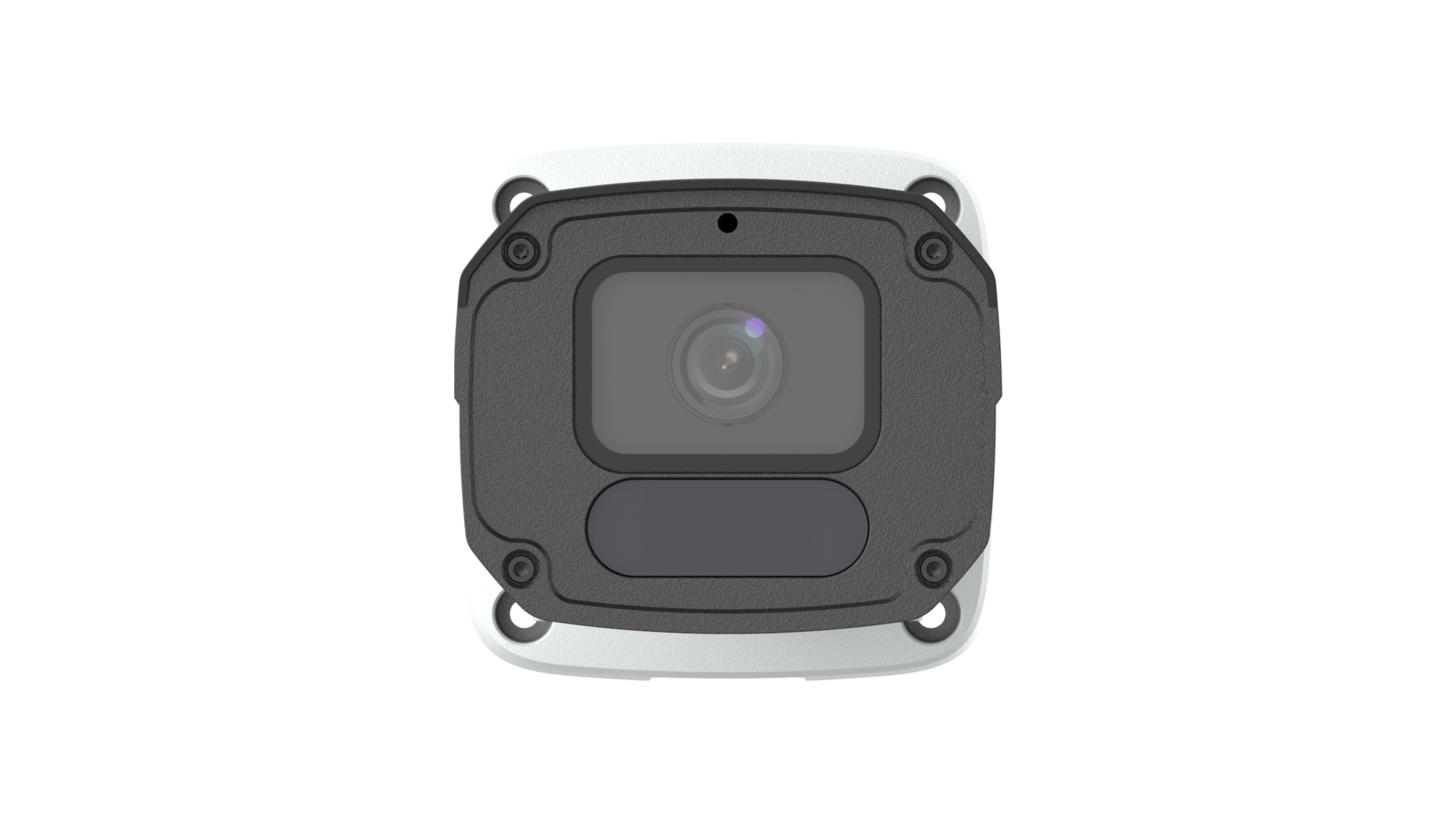

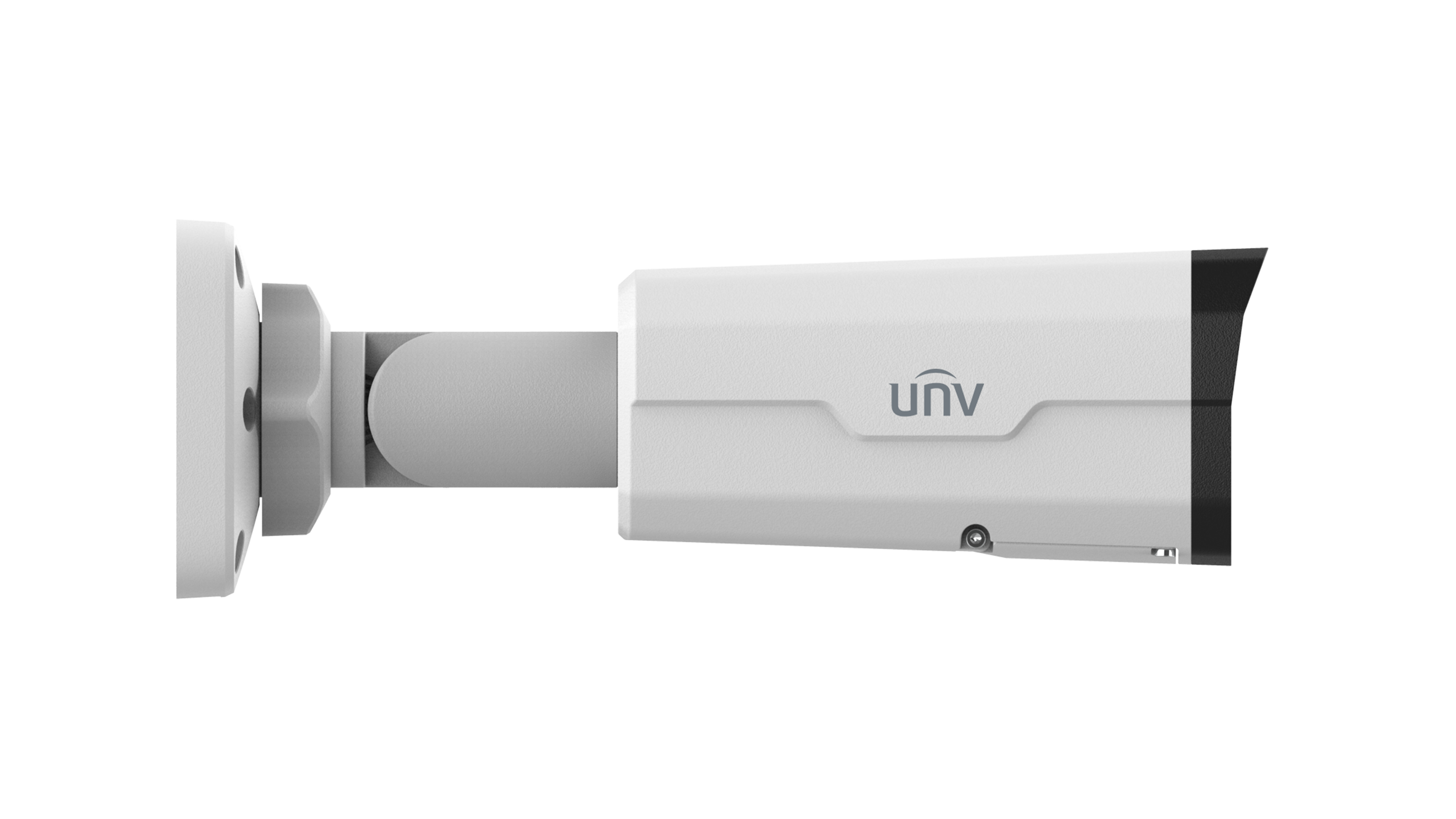

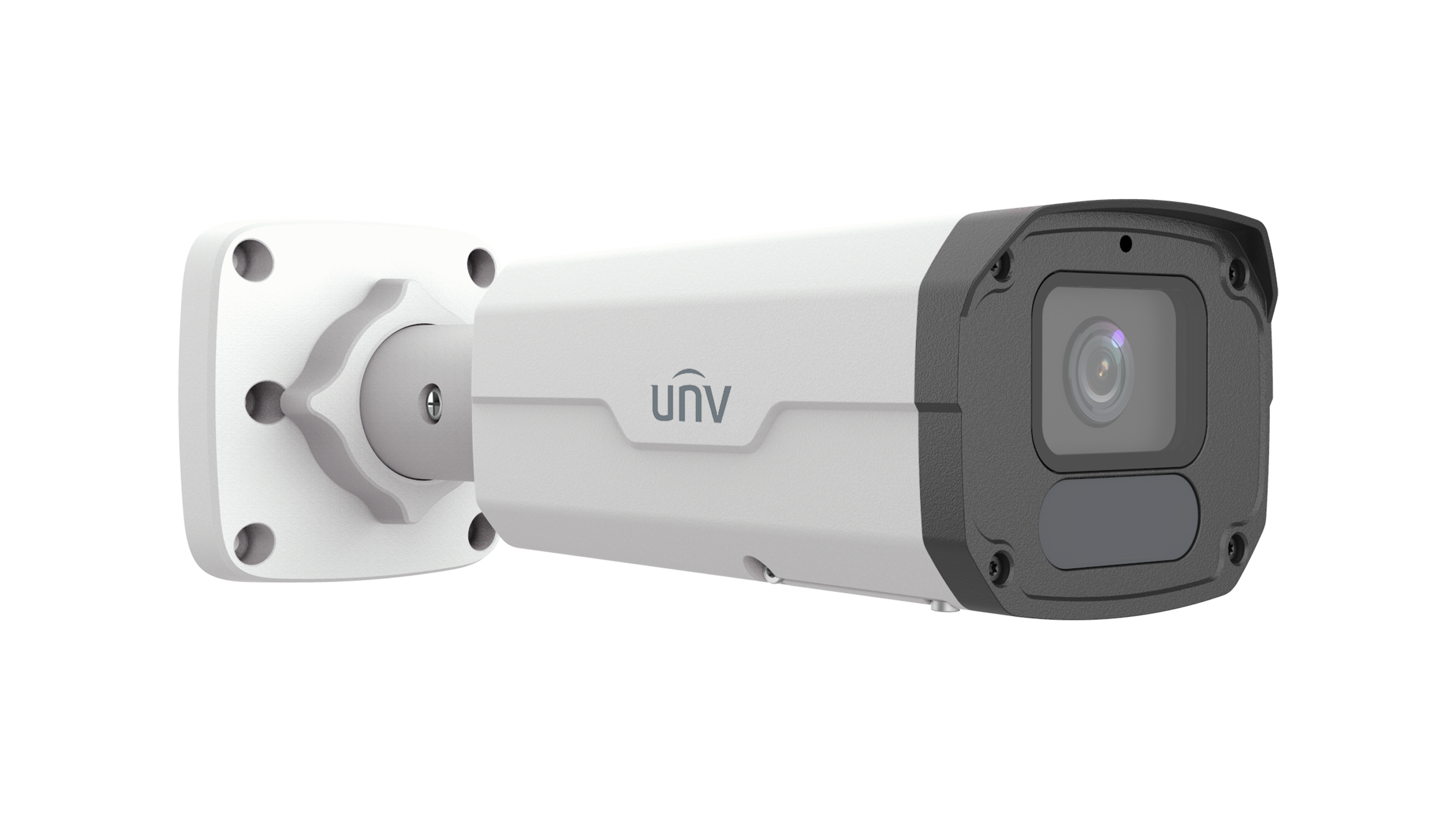

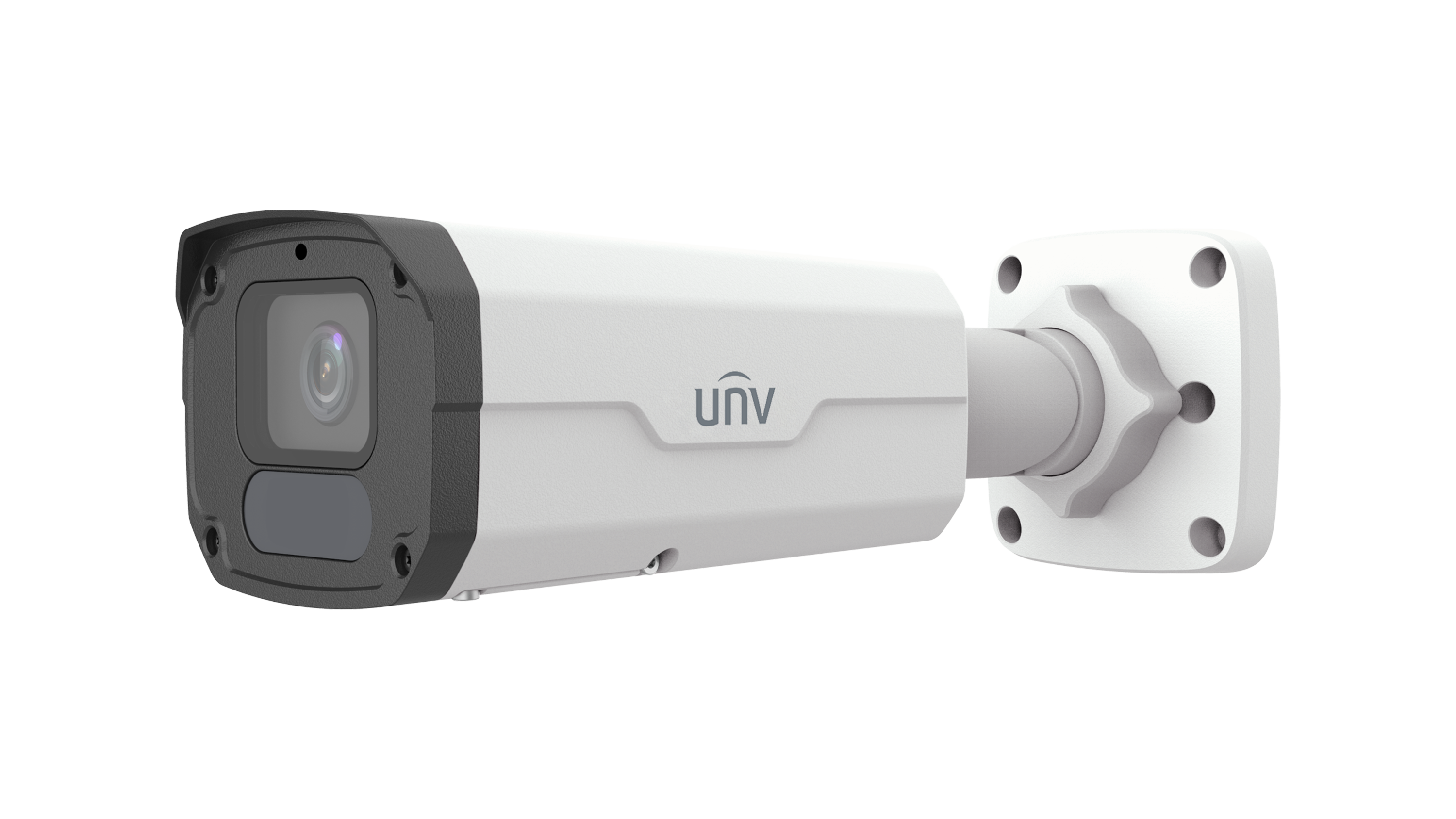

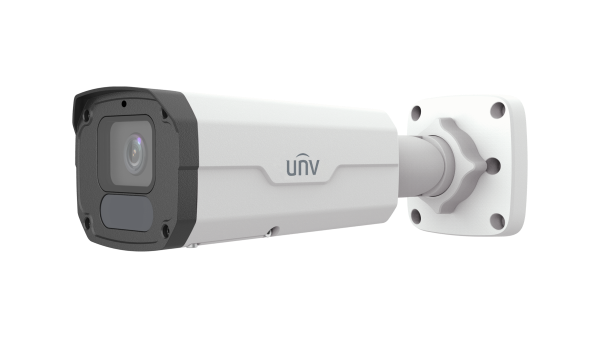

| IPC2228SB-ADF28KM-I1 |
Camera |
Max Resolution | 8 MP |
Sensor | 1/2.8" CMOS |
Min. Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 to 1/100000 s |
WDR | 120 dB |
S/N | >56 dB |
Lens |
Focal Length | 2.8 mm |
Iris | F1.6 |
Field of View (H) | 97° |
Field of View (V) | 53° |
Field of View (D) | 126.1° |
Iris Type | Fixed |
DORI |
DORI Distance (Lens) | 2.8 mm |
DORI Distance (Detect) | 87.0 m (285.3 ft) |
DORI Distance (Observe) | 34.8 m (114.2 ft) |
DORI Distance (Recognize) | 17.4 m (57.1 ft) |
DORI Distance (Identify) | 8.7 m (28.5 ft) |
Illuminator |
Illumination Distance (IR) | 80 m (262.5 ft) |
Wavelength | 850 nm |
Video |
Frame Rate-Main Stream | 8 MP (3840 × 2160), max. 30 fps |
Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 30 fps |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Privacy Mask | Up to 8 areas (8 blacks/ 8 mosaics) |
Video Bit Rate | 128 Kbps to 16 Mbps |
Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps |
ROI | Support |
Video Stream | Triple streams |
OSD | Up to 10 OSDs |
Image |
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Smart IR | Support |
Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
HLC | Support |
Defog | Digital defog |
Intelligent |
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
Events |
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
Audio |
Audio Compression | G.711U, G.711A |
Two-way Audio | Support |
Suppression | Support |
Sampling Rate | 8 kHz, 16 kHz |
Storage |
Edge Storage | MicroSD, up to 512 GB |
Network Storage | ANR, NAS (NFS) |
Network |
Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
Client | EZStation, UNV-Link, UNV-Link Pro |
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
Interface |
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
Alarm I/O | 1/1 |
Built-in Mic | Support |
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
General |
Built-in DC12V Output | Support |
Power | DC 12 V (±25%), PoE (IEEE 802.3af) |
Power Consumption | Max. 10 W |
Power Interface | Ø5.5 mm coaxial power plug |
Dimensions | 245 mm × 87 mm × 86 mm (9.6" × 3.4" × 3.4") (L × W × H) |
Weight | 0.82 kg (1.81 lb) |
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
Certification |
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 3rd Ed., 2021-10-22 ) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
