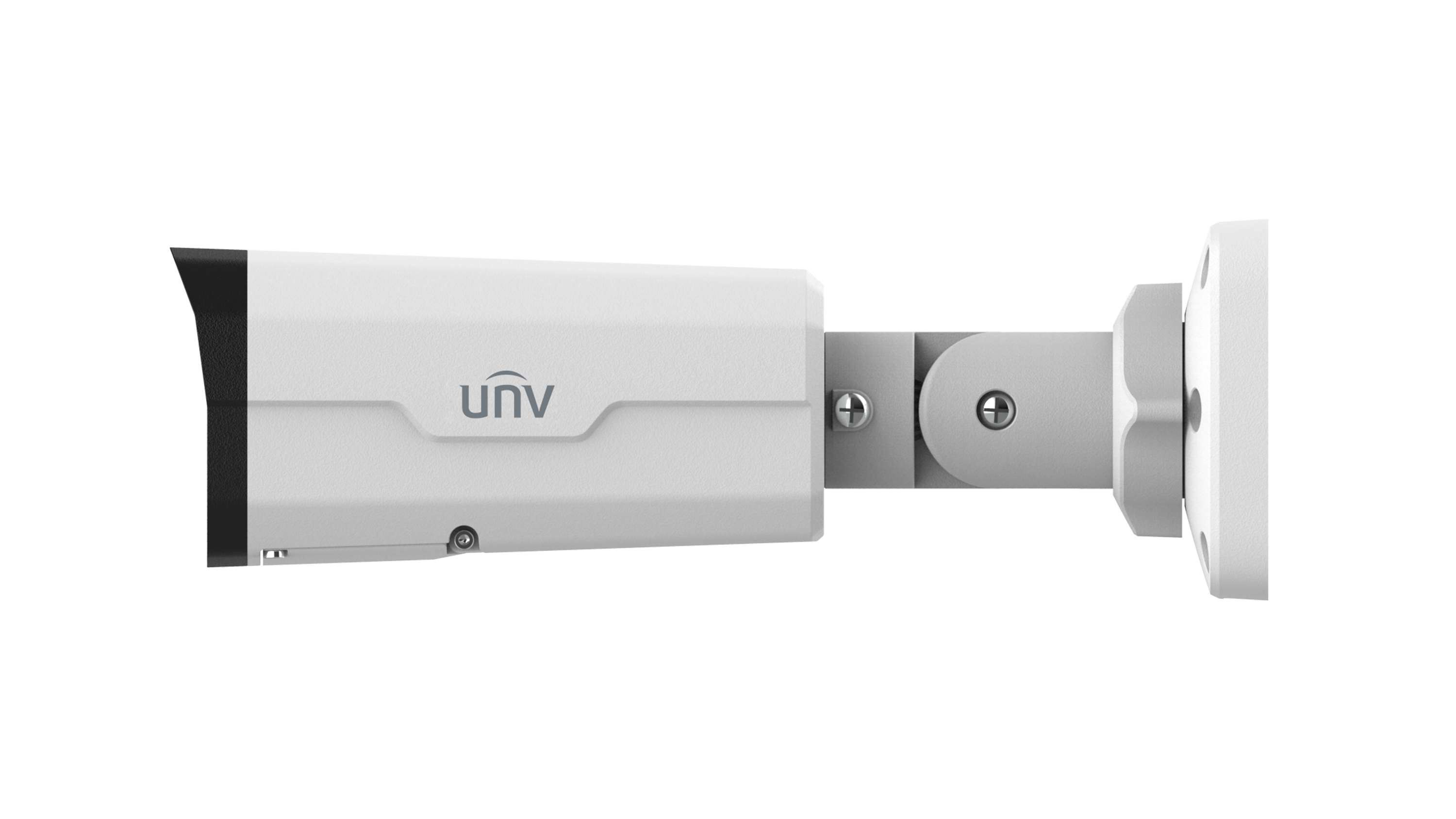

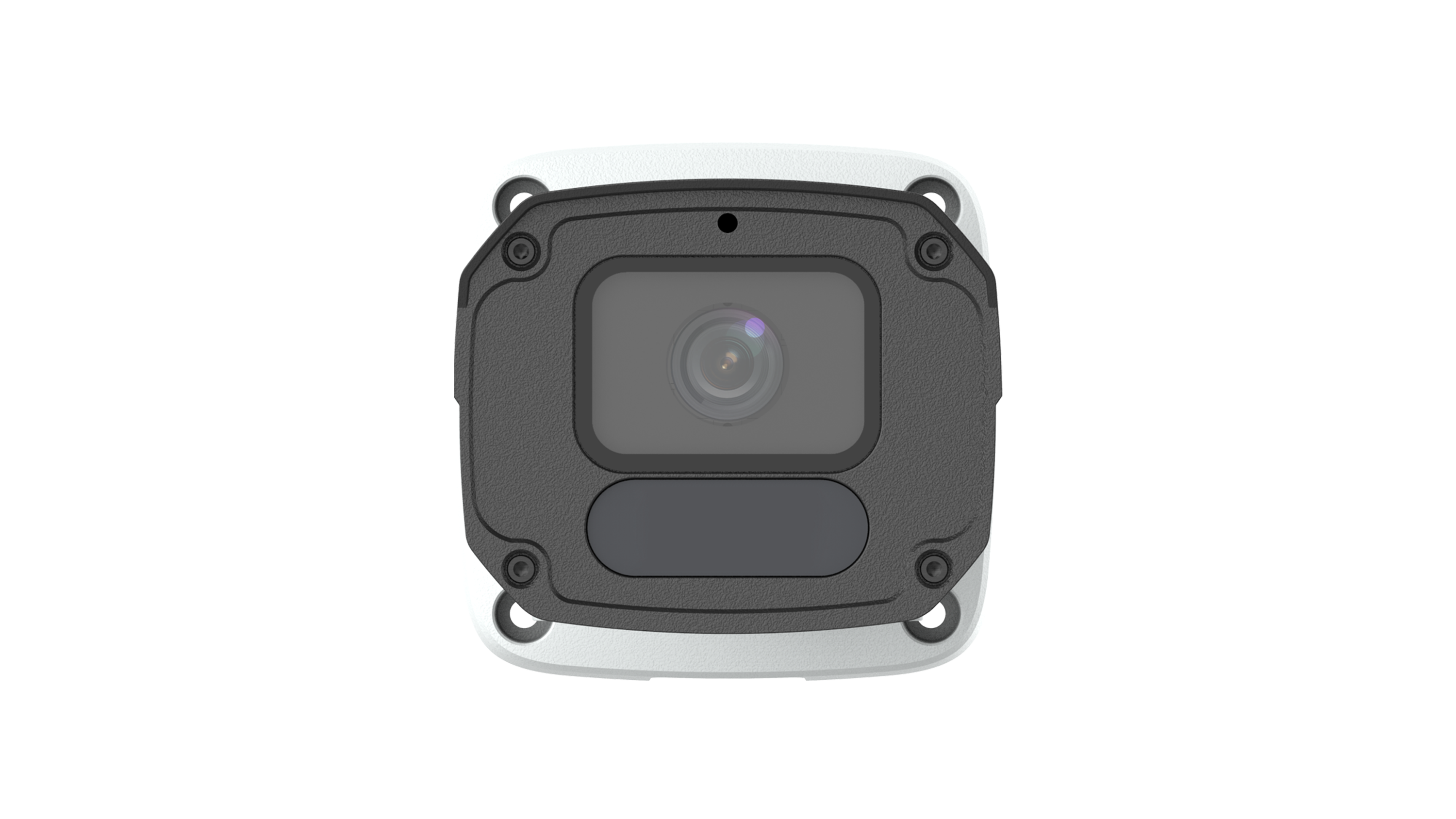

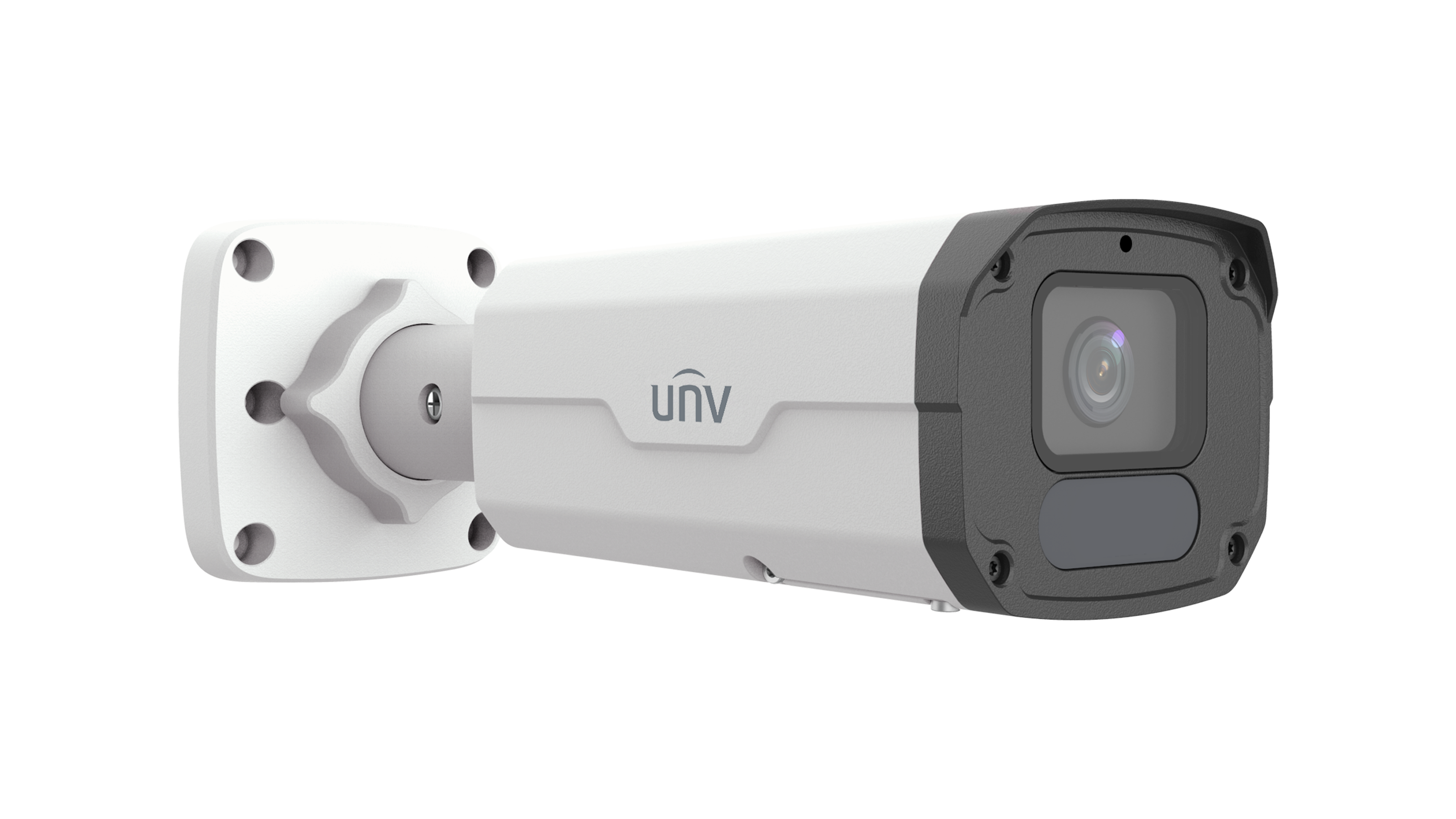

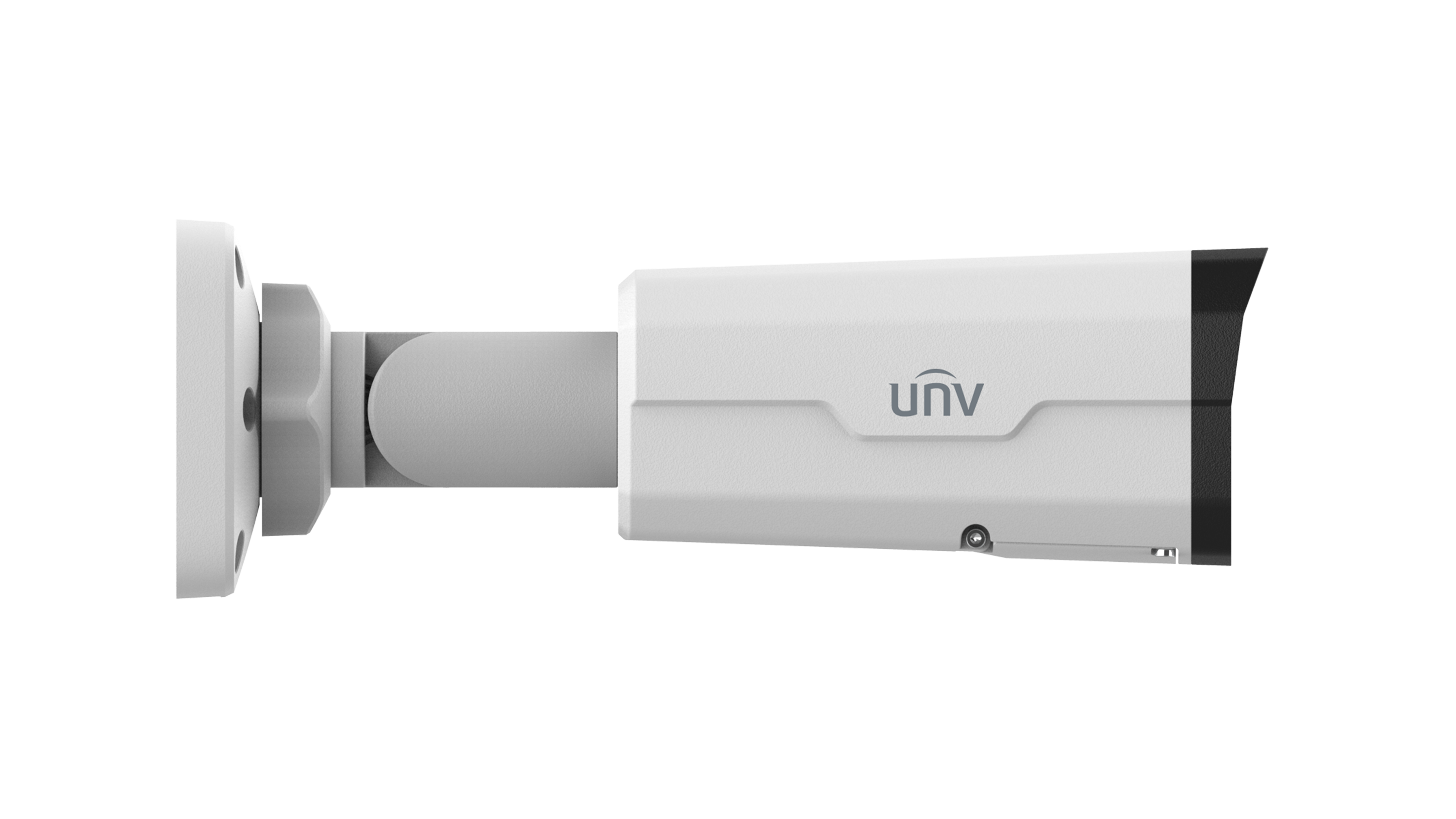

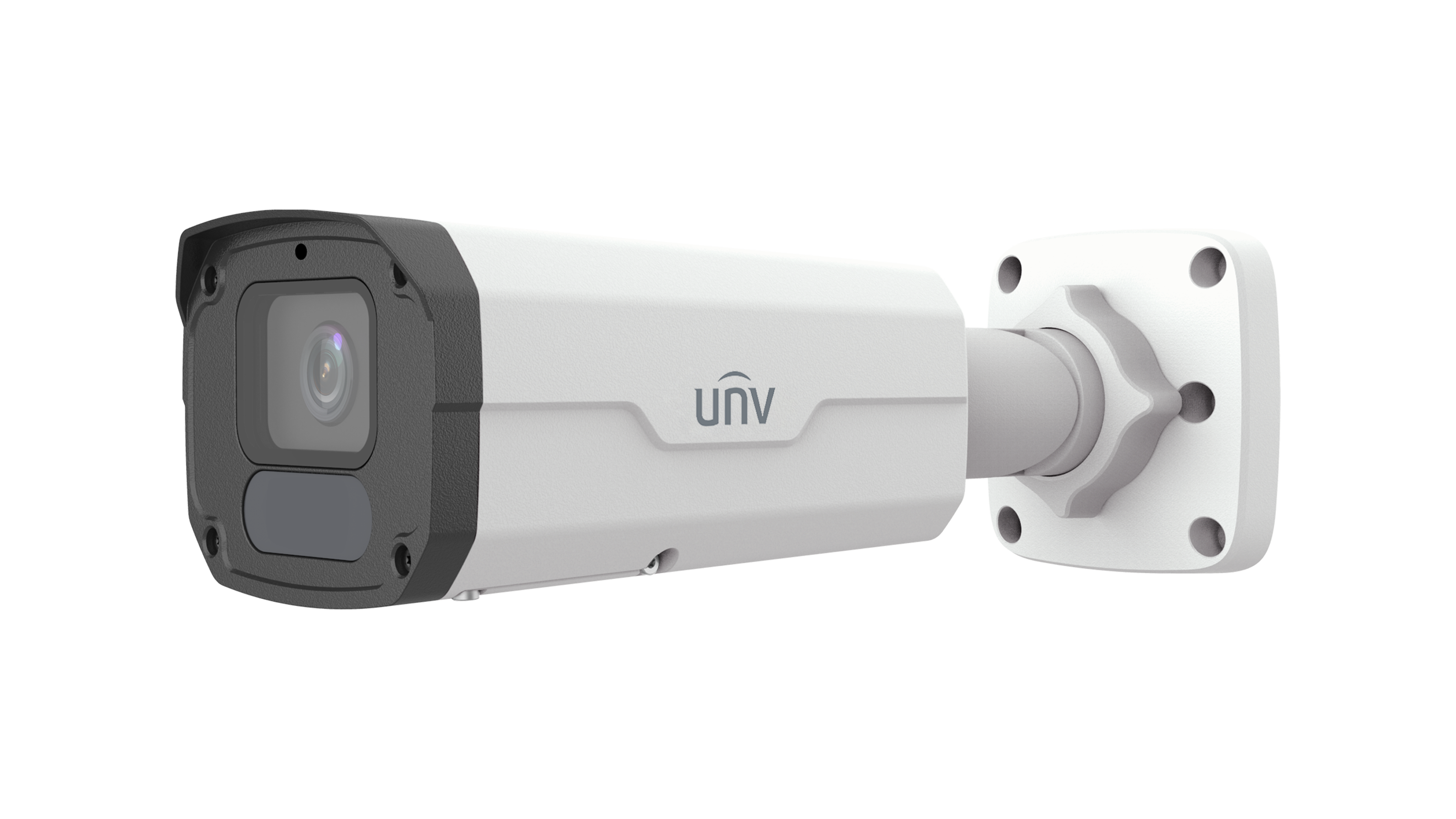

IPC2225SB-ADF40KM-I1 | ||||||||
Camera | ||||||||
Sensor | 1/2.7" CMOS | |||||||
Min. Illumination | Colour:0.003 lux (F1.6, AGC ON) 0 lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual,1 to 1/100000 s | |||||||
WDR | 120 dB | |||||||
S/N | >56 dB | |||||||
Lens | ||||||||
Focal Length | 4.0 mm | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 91.5° | |||||||
Field of View (V) | 46.7° | |||||||
Field of View (D) | 112.5° | |||||||
Iris Type | Fixed | |||||||
DORI | ||||||||
DORI Distance (Lens) | 4.0mm | |||||||
DORI Distance (Detect) | 90.0m(295.3ft) | |||||||
DORI Distance (Observe) | 36.0m(118.1ft) | |||||||
DORI Distance (Recognize) | 18.0m(59.1ft) | |||||||
DORI Distance (Identify) | 9.0m(29.5ft) | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | 80 m (262 ft) | |||||||
IR On/Off Control | Auto/Manual | |||||||
Wavelength | 850 nm | |||||||
Video | ||||||||
Privacy Mask | Up to 4 areas per scene | |||||||
Frame Rate-Main Stream | 5MP (2880*1620), Max 30fps | |||||||
Frame Rate-Sub Stream | 720P (1280*720), Max 30fps | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
ROI | Support | |||||||
Video Stream | Dual Streams | |||||||
OSD | Up to 4 OSDs | |||||||
Image | ||||||||
Defog | Digital Defog | |||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Heatwave Reduction | N/A | |||||||
Intelligent | ||||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle) | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Ultra Motion Detection (based on Human Body and Vehicle Detection), Tampering Alarm, Audio Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication, Alarm input, Alarm output | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | TLS1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Built-in Mic | Support | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||||
General | ||||||||
Power | DC12V(±25%) , PoE (IEEE 802.3af) | |||||||
Power Consumption | Max 8W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | 245 x 87 x 86mm (9.6” x 3.4” x 3.4”) (L x W x H) | |||||||
Weight | 0.82kg(1.81lb) | |||||||
Working Environment | -30℃ ~ 60℃ (-22°F ~ 140°F), Humidity: 5%~95% RH (non-condensing) | |||||||
Storage Environment | -40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: 5%~95% RH (non-condensing) | |||||||
Web Client Language | 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
