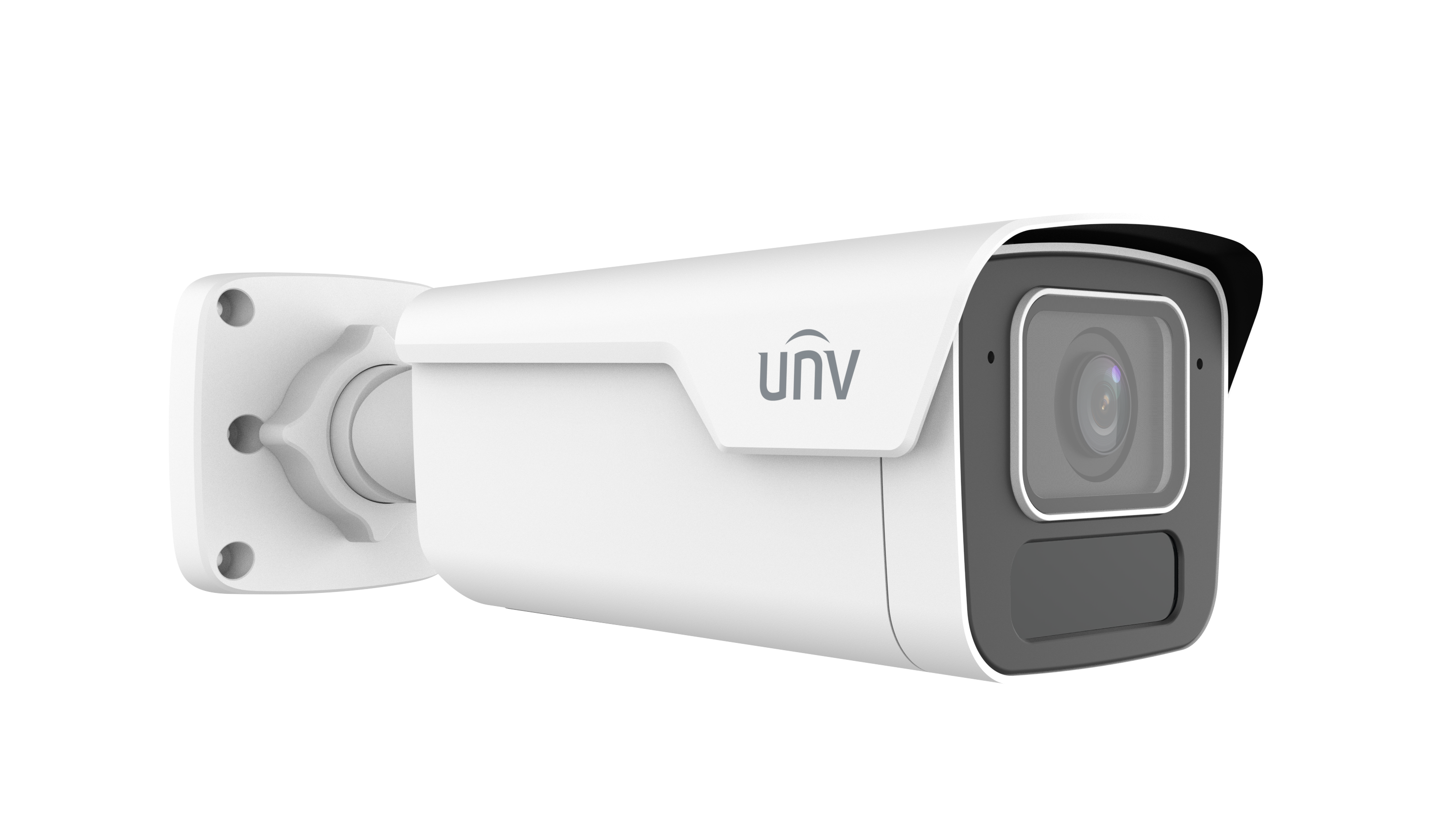

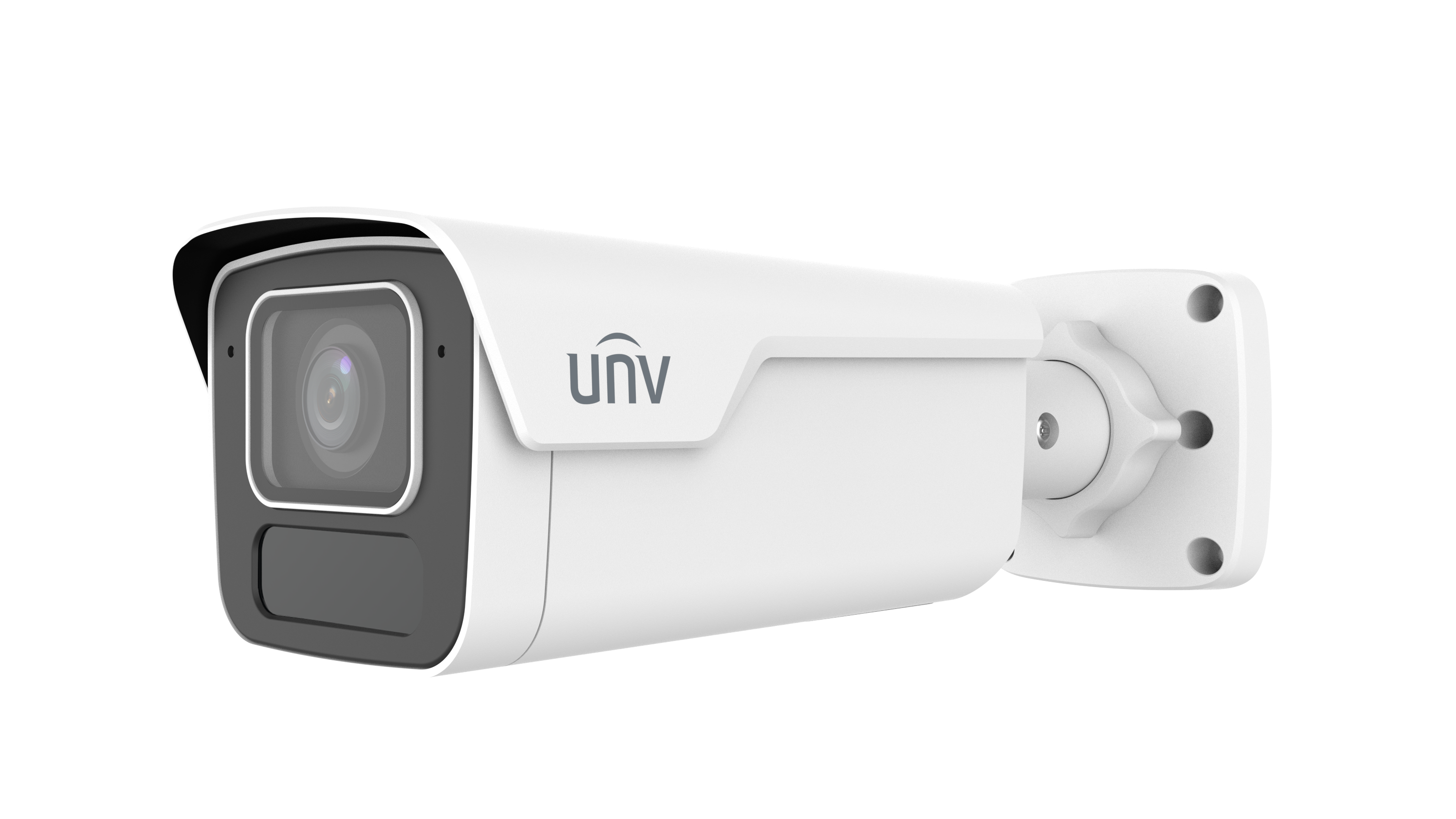

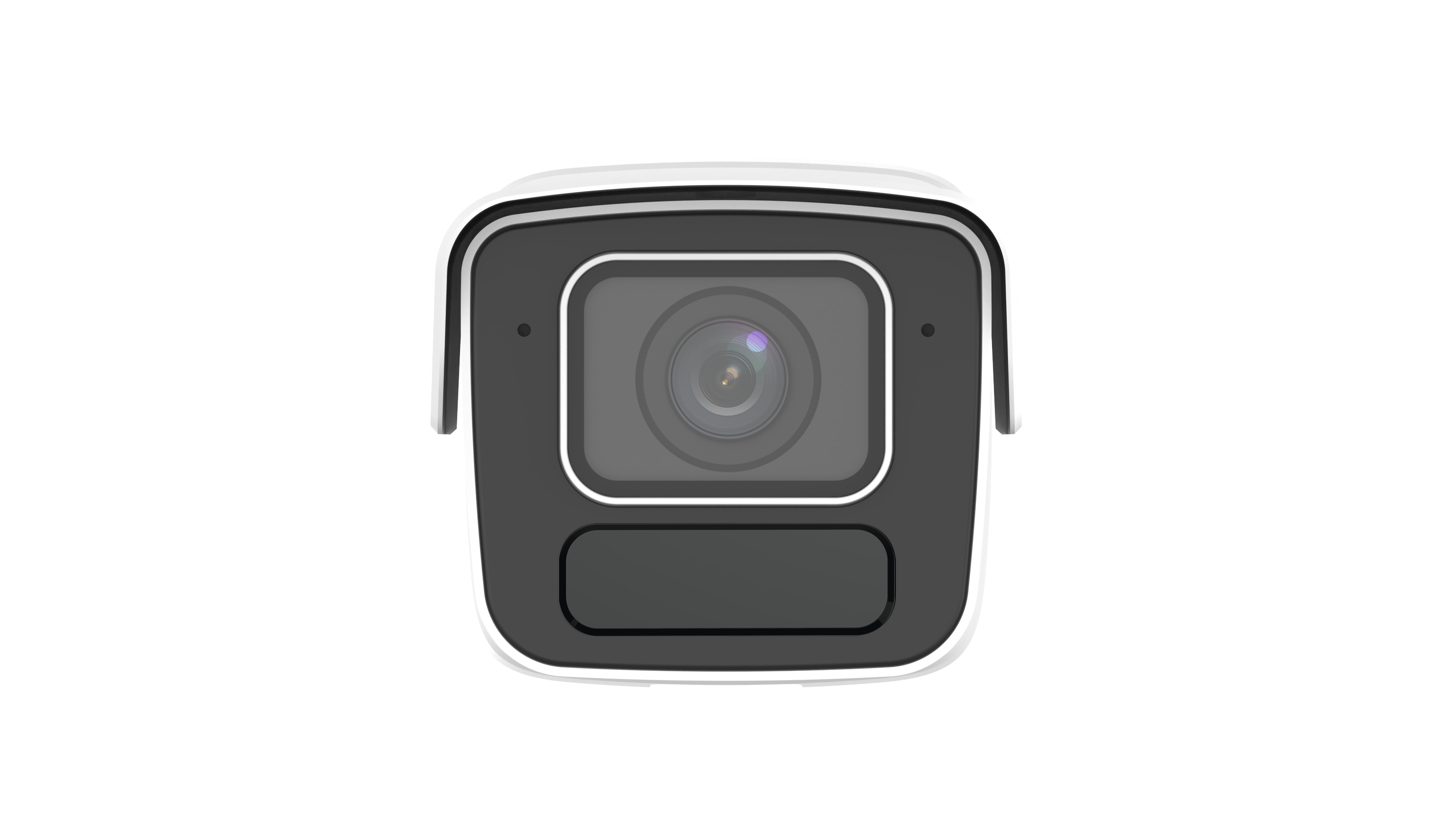

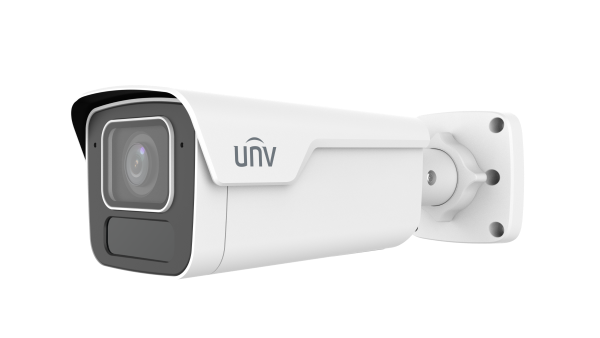

IPC2B24SA-AHDZK-PI-I1 | ||||||||
Camera | ||||||||
Max Resolution | 4 MP | |||||||
Sensor | 1/2.8" CMOS | |||||||
Min. Illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
WDR | 130 dB | |||||||
Adjustment Angle | Pan: 0° to 360° Tilt: 0° to 90° Rotate: 0° to 360° | |||||||
S/N | >56 dB | |||||||
Lens | ||||||||
Focal Length | 2.7 to 13.5 mm | |||||||
Optical Zoom | 5X | |||||||
Iris | F1.6 | |||||||
Field of View (H) | 98.7° ~ 31° | |||||||
Field of View (V) | 52.6° ~ 18° | |||||||
Field of View (D) | 116.5° ~ 35.8° | |||||||
Iris Type | P-iris | |||||||
DORI | ||||||||
DORI Distance (Lens) | 2.7 ~ 13.5 (mm) | |||||||
DORI Distance (Detect) | 74.3m (243.6ft) ~ 229.5 m (753.0ft) | |||||||
DORI Distance (Observe) | 29.7m (97.4ft) ~ 91.8m (301.2ft) | |||||||
DORI Distance (Recognize) | 14.9m (48.7ft) ~ 45.9m (150.6ft) | |||||||
DORI Distance (Identify) | 7.4m (24.4ft) ~ 23.0m (75.3ft) | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | 80 m (262 ft) | |||||||
IR On/Off Control | Auto/Manual | |||||||
Video | ||||||||
Frame Rate-Main Stream | 4MP (2688*1520), Max 60fps | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate-Sub Stream | 2MP (1920*1080), Max 60fps | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
U-code | Support | |||||||
ROI | Up to 8 areas | |||||||
Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) | |||||||
Video Stream | Triple Streams | |||||||
OSD | Up to 10 OSDs | |||||||
Frame Rate-Third Stream | D1 (720*576), Max 60fps | |||||||
Image | ||||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Flip | Flip Vertical, Flip Horizontal, Normal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Defog | Digital Defog | |||||||
Intelligent | ||||||||
People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Audio Detection, Tampering Alarm, Ultra Motion Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16 kHz | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 1/1 | |||||||
Serial Port | 1 channel RS485 interface | |||||||
Built-in Mic | Built-in two mics | |||||||
Built-in Speaker | N/A | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC-SDoC (47 CFR Part15, Subpart B) | |||||||
Safety | CE LVD (EN IEC 62368-1) UL (UL 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |||||||
General | ||||||||
Power | DC12V (±25%) , PoE (IEEE 802.3af) | |||||||
Power Consumption | Max 10W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | 268 x 96 x 86 mm (10.5" x 3.7" x 3.4") (L x W x H) | |||||||
Weight | 1kg (2.2lb) | |||||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 6 KV | |||||||
Reset Button | Support | |||||||
Heater | N/A |
