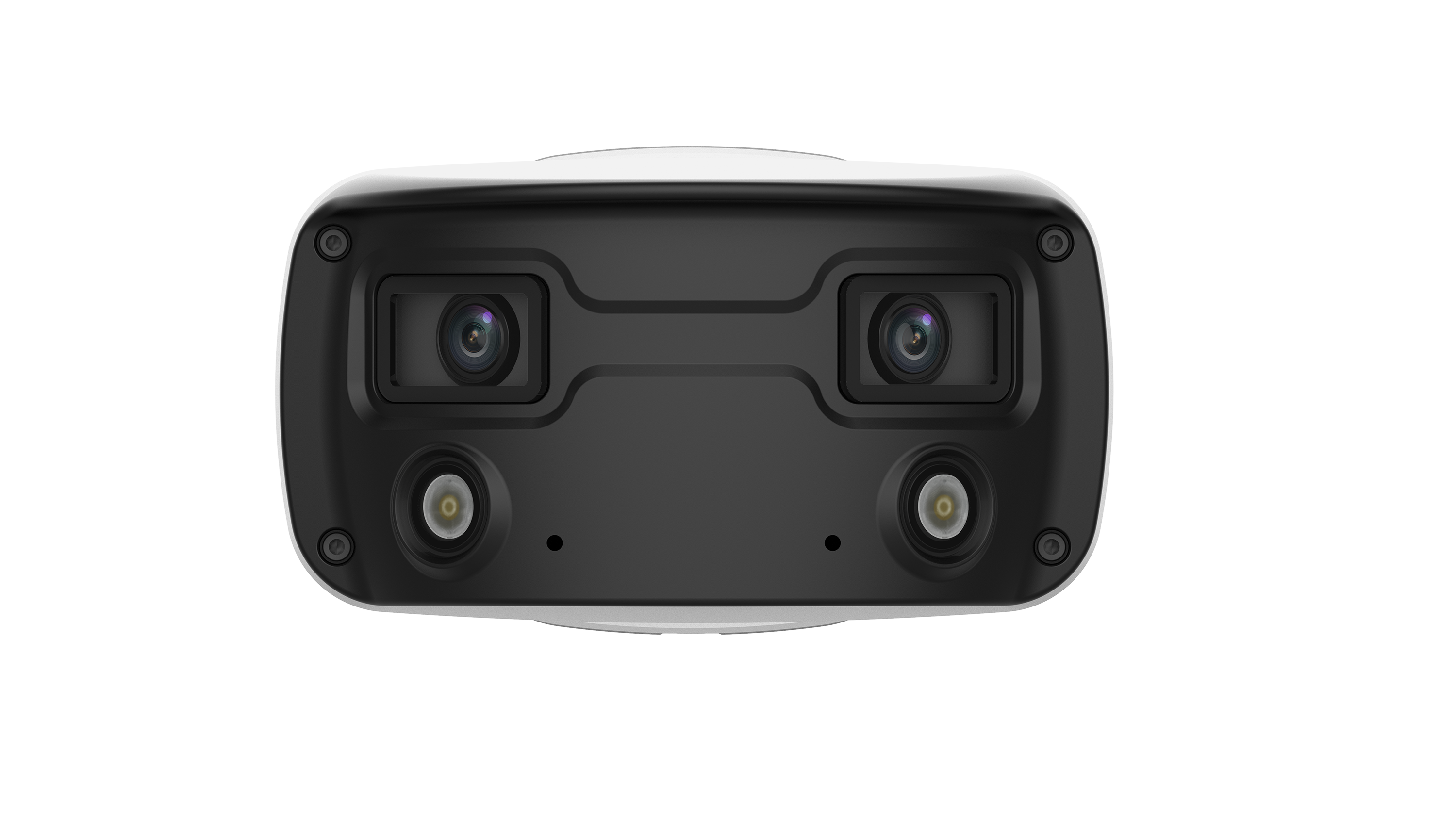

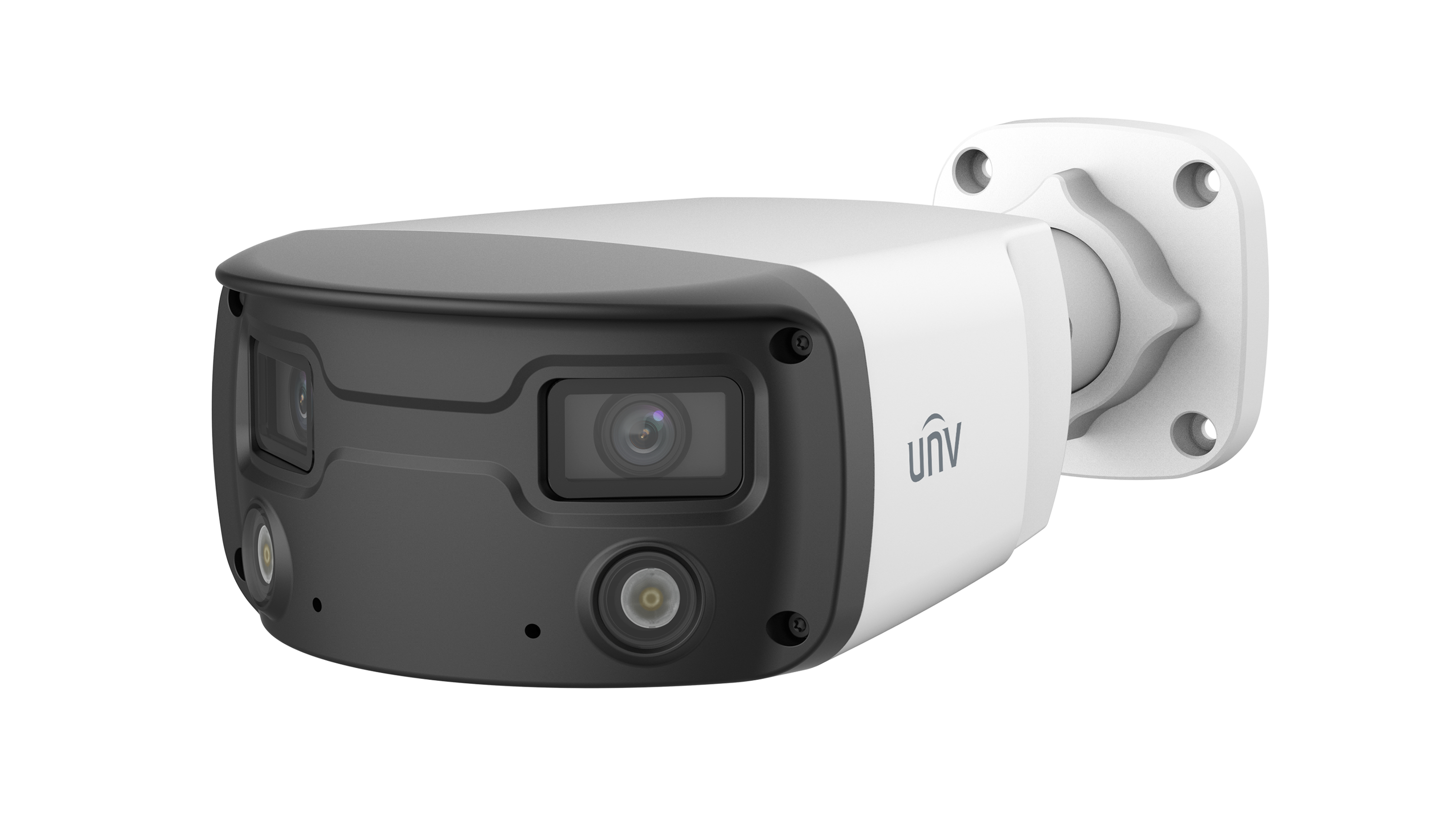

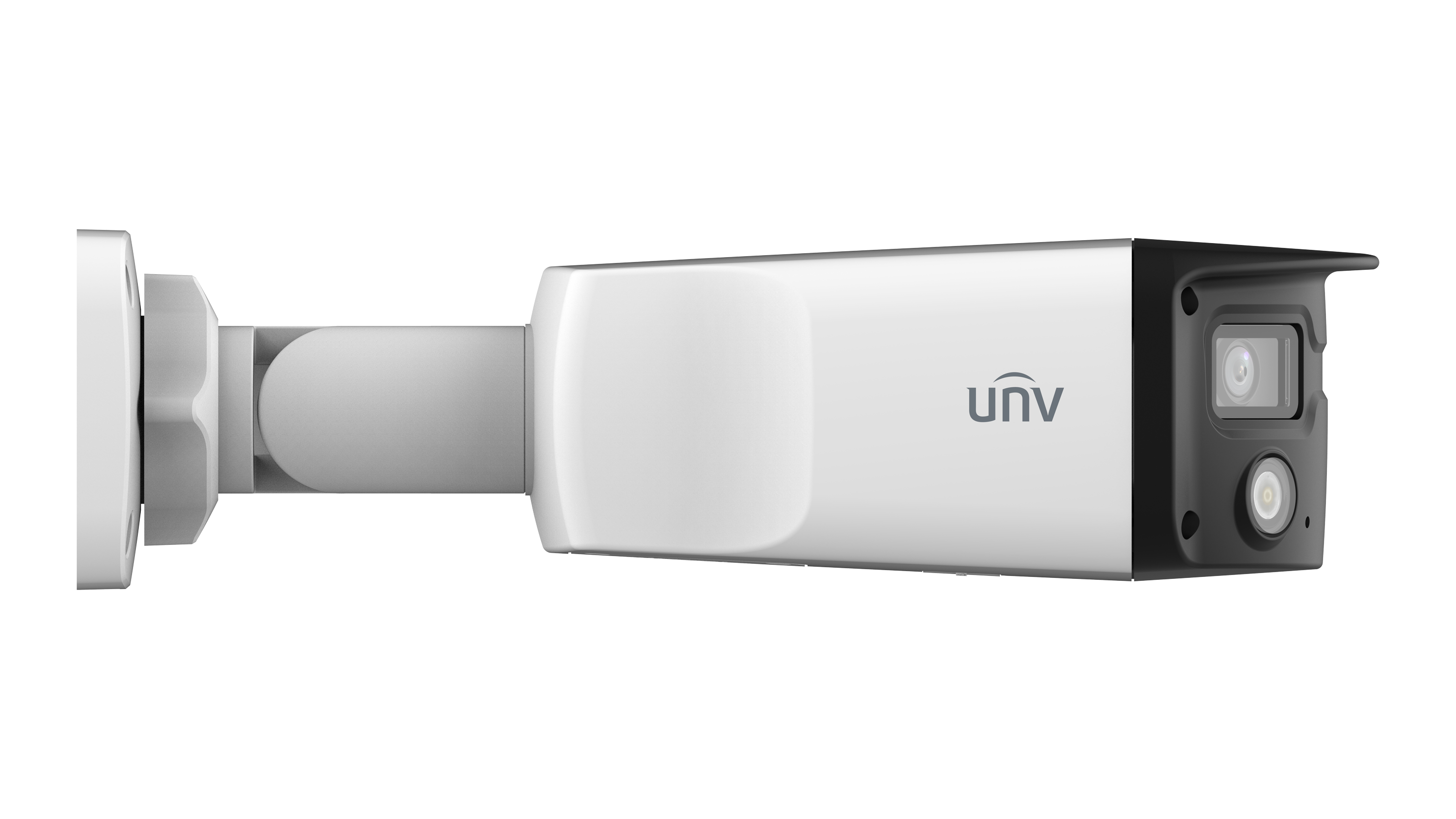

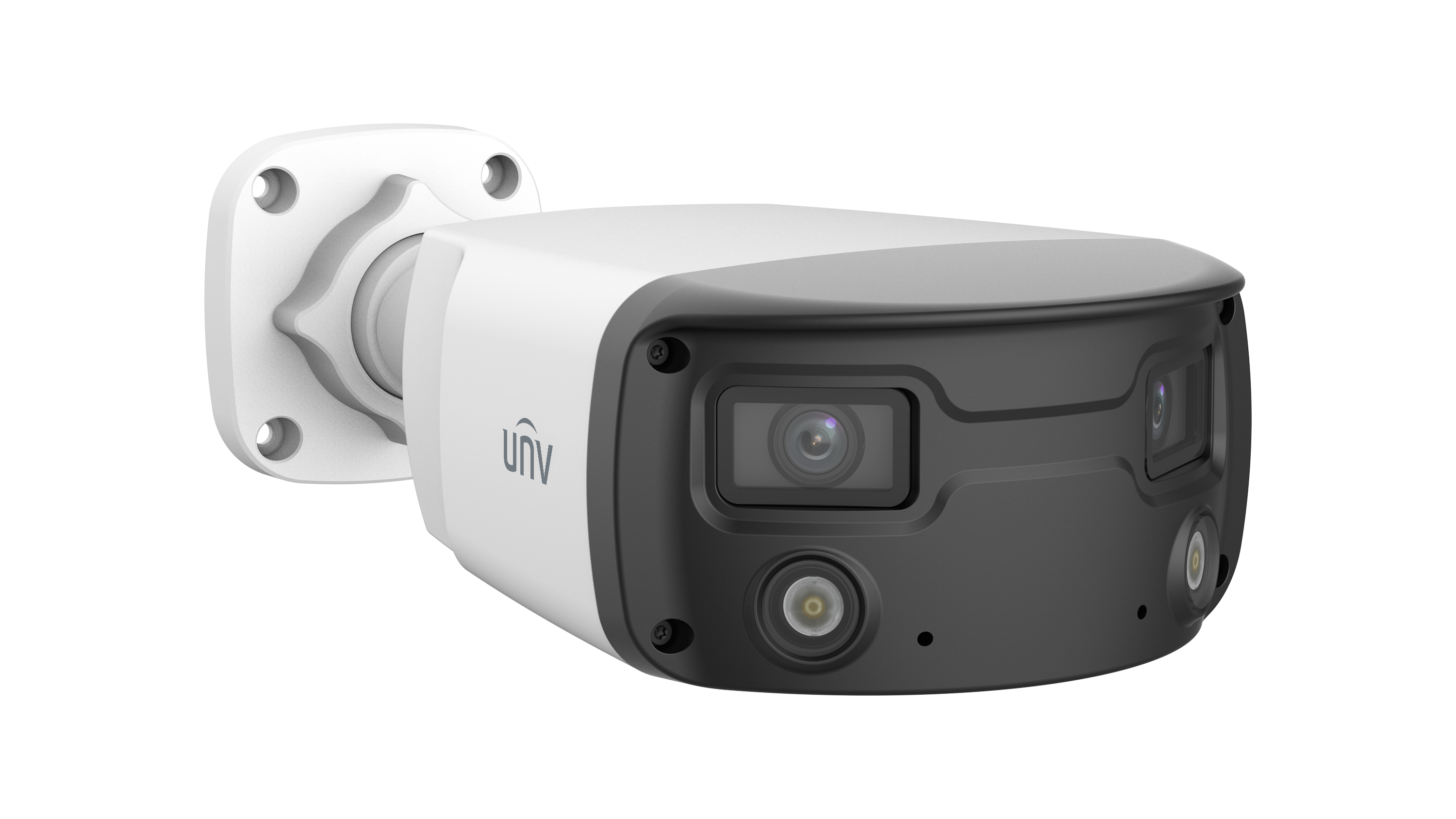

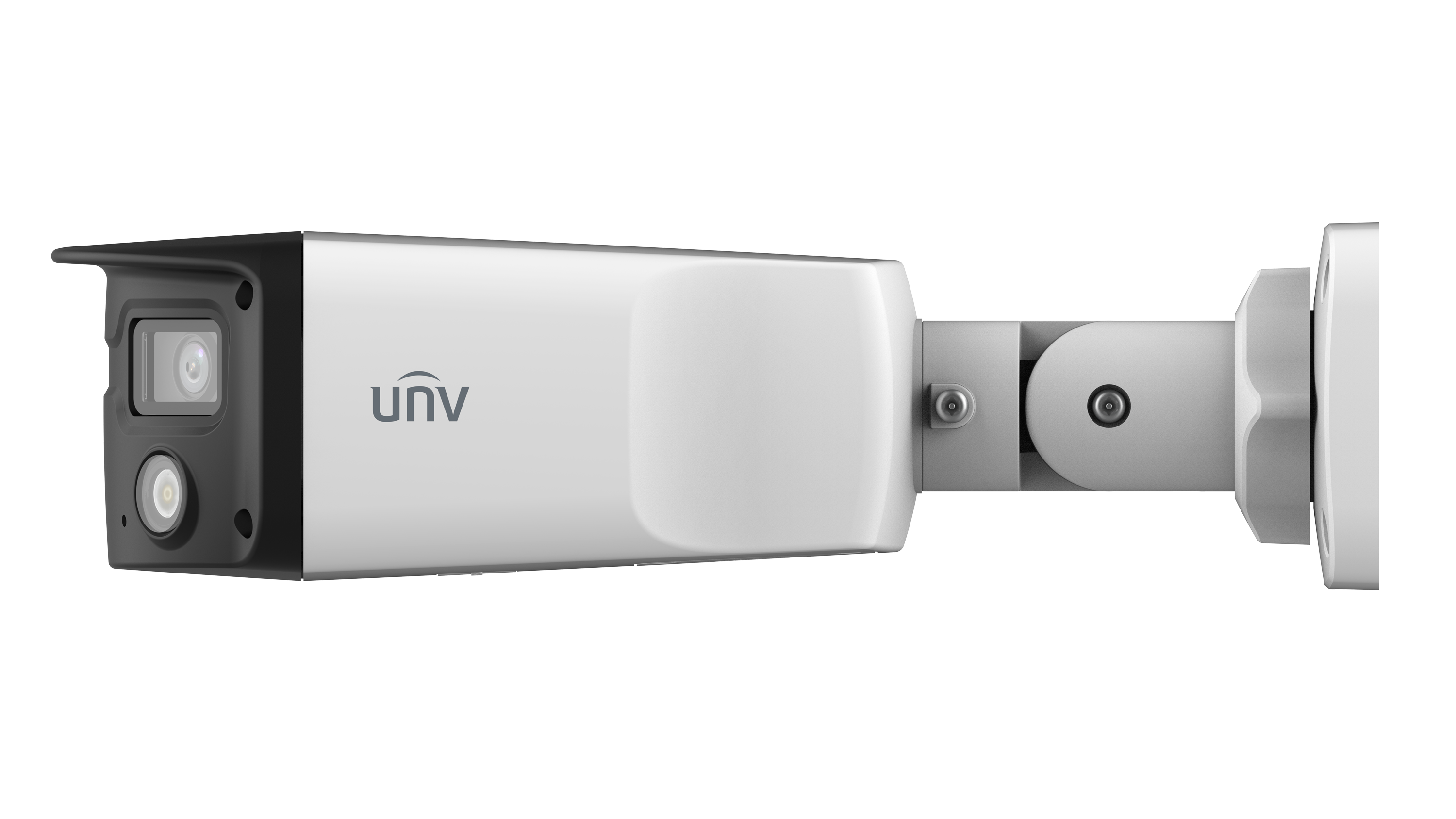

| IPC2K28SE-ADF40KMC-WL-I0 |
Camera |
Sensor | 1/2.7" CMOS |
Min. Illumination | Color: 0.0005 Lux (F1.0, AGC ON) |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
S/N | >52 dB |
WDR | 130 dB |
Lens |
Focal Length | 2 × 4.0 mm |
Iris | F1.0 |
Field of View (H) | 180°±10° |
Field of View (V) | 47.41° |
Field of View (D) | 180.13°±10° |
Lens Type | Fixed |
DORI |
DORI Distance (Lens) | 4 mm |
DORI Distance (Detect) | 90.0 m (295.3 ft) |
DORI Distance (Observe) | 36.0 m (118.1 ft) |
DORI Distance (Recognize) | 18.0 m (59.1 ft) |
DORI Distance (Identify) | 9.0 m (29.5 ft) |
Illuminator |
Supplemental Light | Warm light |
Illumination Distance (Warm Light) | 30 m (98.4 ft) |
Light On/Off Control | Auto/Manual |
Video |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
H.264 Code Profile | Baseline profile, Main profile, High profile |
Frame Rate | Main Stream: 8 MP (5120 × 1440), max. 20 fps Sub Stream: 2560 × 720, max. 20 fps |
Video Bit Rate | 128 Kbps to 16 Mbps |
U-code | Support |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Support |
Video Stream | Double streams |
Image |
Smart Illumination | Support |
Auto Scene Match (ASM) | Support (only WDR) |
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Flip | N/A |
Dewarping | N/A |
HLC | Support |
BLC | Support |
Defog | Digital defog |
Image Stabilization | N/A |
Intelligent |
People Counting | Support people flow counting and crowd density monitoring |
Attribute Collection | SIP with color retrieval |
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
Statistical Analysis | N/A |
Events |
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
Audio |
Audio Compression | G.711U, G.711A |
Audio Bitrate | 64 Kbps |
Two-way Audio | Support |
Suppression | Support |
Sampling Rate | 8 kHz |
Storage |
Edge Storage | MicroSD, up to 512 GB |
Network Storage | ANR, NAS (NFS) |
Network |
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
Client | UNV-Link, UNV-Link Pro, EZStation |
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
Interface |
Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
Alarm I/O | 1/1 |
Serial Port | N/A |
Built-in Mic | Built-in dual-mic |
Built-in Speaker | Support |
WIFI | N/A |
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
Video Output | N/A |
Certification |
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013) |
General |
Power | DC 12 V±25%, PoE (IEEE 802.3af) |
Power Consumption | Max. 13 W |
Power Interface | Ø5.5 mm coaxial power plug |
Dimensions | 273 mm × 130 mm × 76 mm (10.7" × 5.1" × 3.0") (L × W × H) |
Weight | 0.96 kg (2.12 lb) |
Material | Metal |
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
Surge Protection | 4 KV |
Reset Button | Support |
Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
