IPC2124LE-ADF28(40)KMC-DL

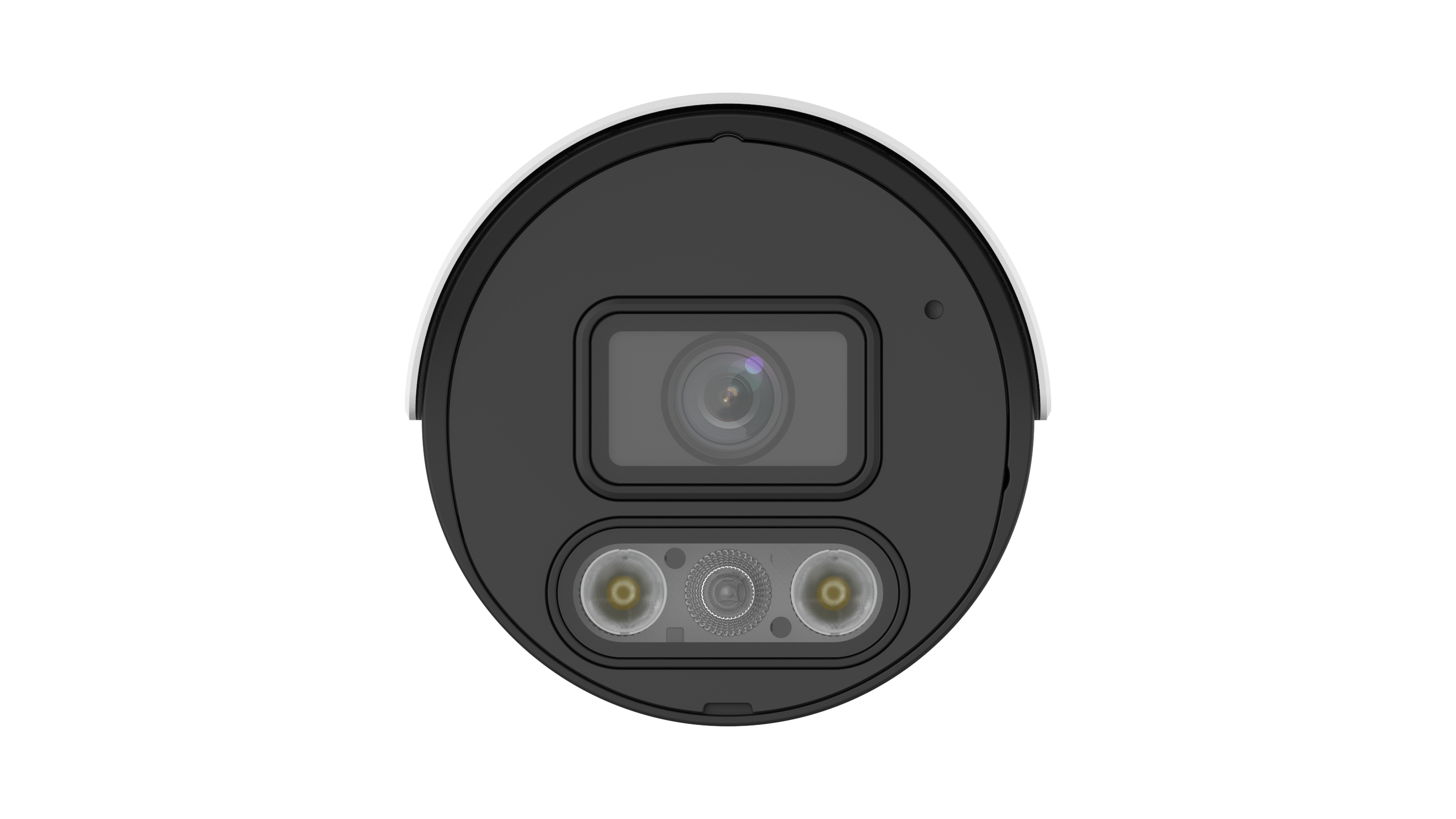

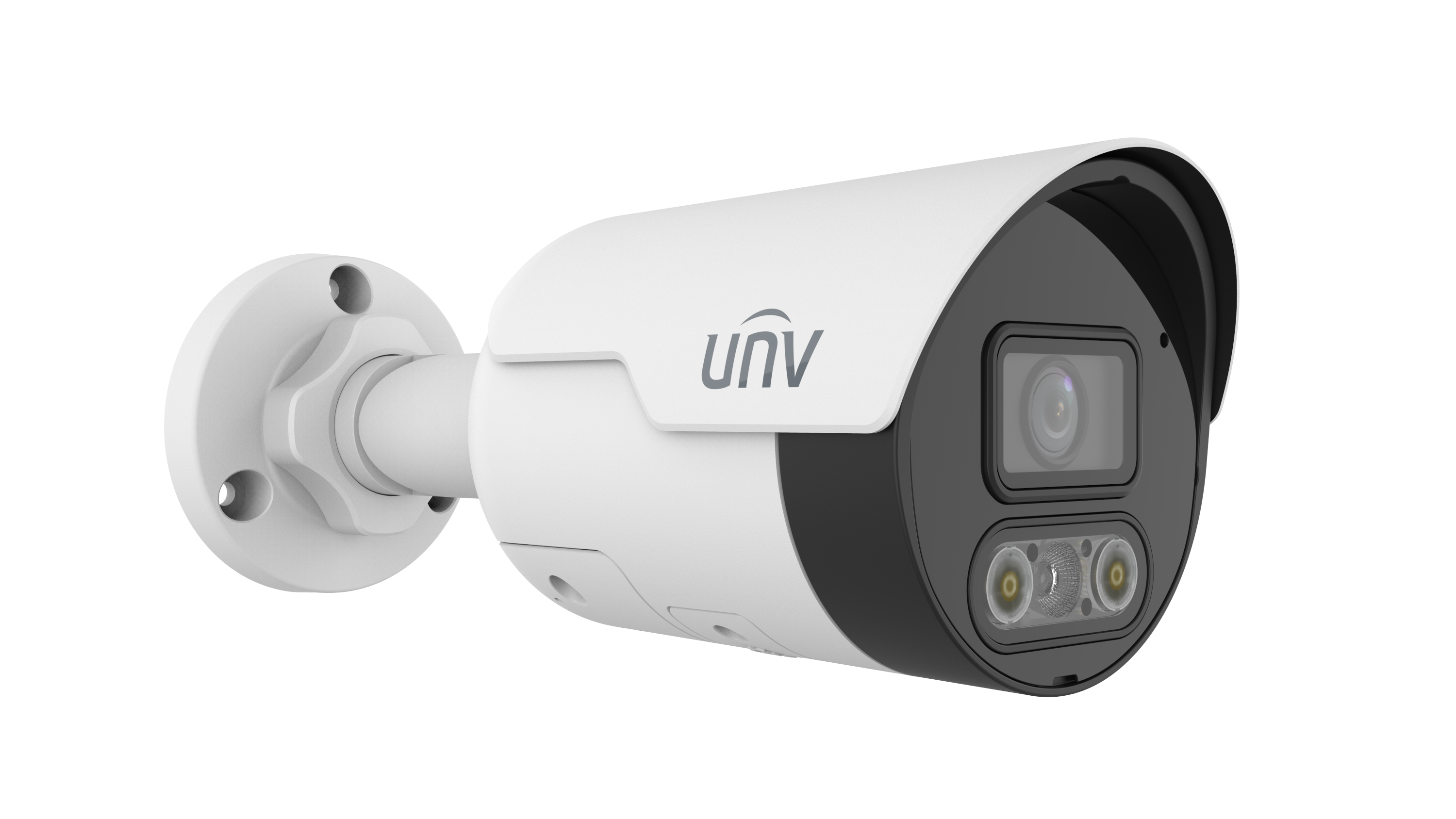

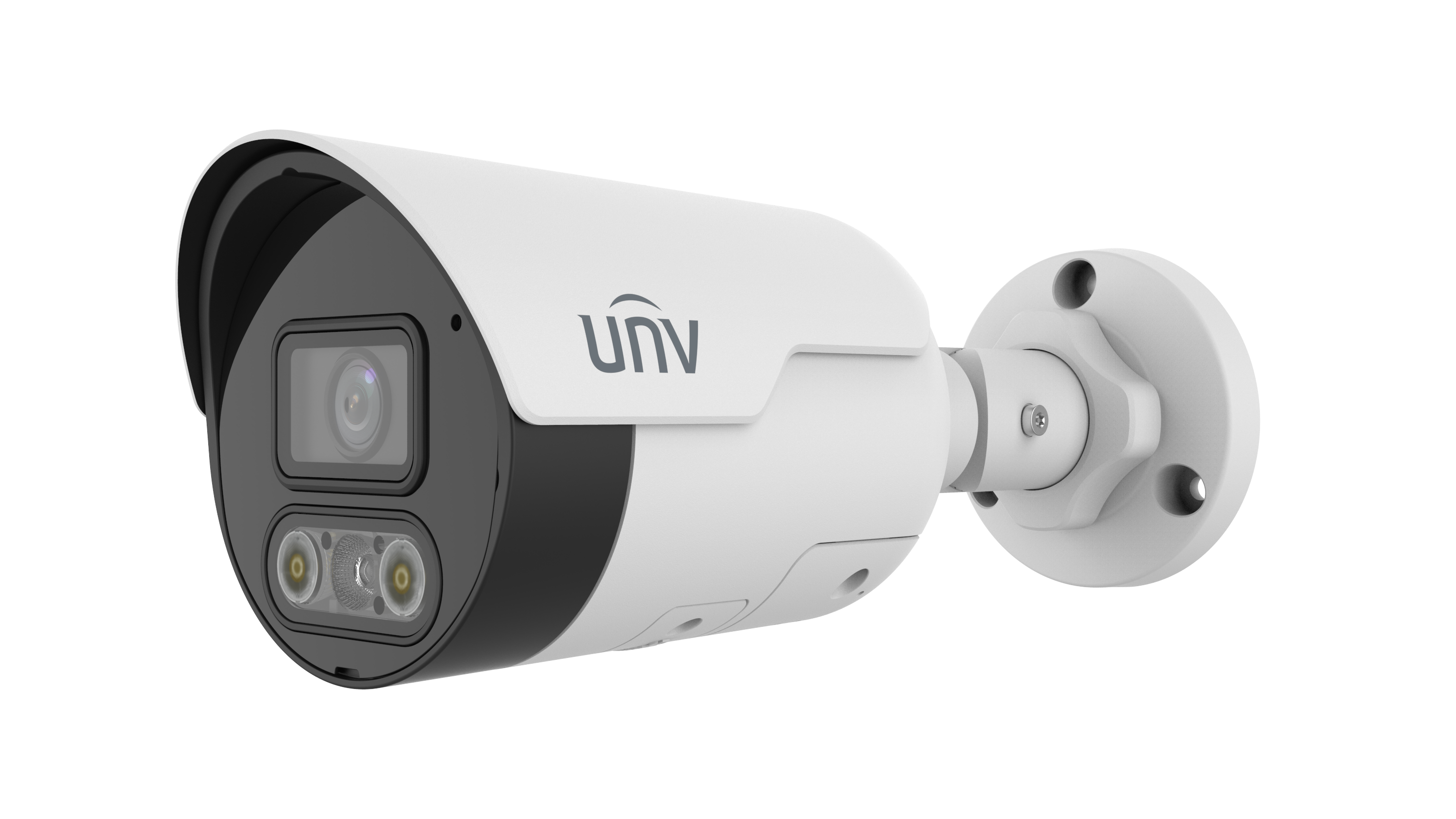

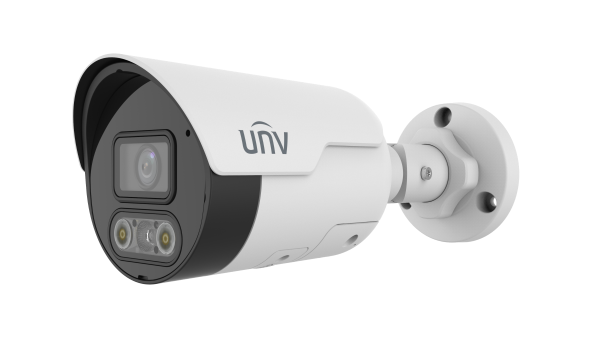

4MP ColorHunter Fixed Dual-light Bullet Network Camera
Specification
Accessories
Download
How to buy
 IPC2124LE-ADF28KMC-DLIPC2124LE-ADF40KMC-DL
Camera
Max Resolution4 MP
Sensor1/3.0" CMOS
Min. IlluminationColour: 0.003 lux ( F1.6, AGC ON)
0 Lux with light
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N>52 dB
WDR120 dB
Lens
Focal Length2.8 mm4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)97.0°79.0°
Field of View (V)52.2°42.3°
Field of View (D)107.5°85.1°
DORI
DORI Distance (Lens)2.8mm4.0mm
DORI Distance (Detect)63.0m(206.7ft)90.0m(295.2ft)
DORI Distance (Observe)25.2m(82.7ft)36.0m(118.1ft)
DORI Distance (Recognize)12.6m(41.3ft)18.0m(59.1ft)
DORI Distance (Identify)6.3m(20.7ft)9.0m(29.5ft)
Illuminator
Supplemental LightDual light
Illumination Distance (IR)30 m (98.4 ft)
Illumination Distance (Warm Light)30 m (98.4 ft)
Light On/Off ControlAuto/Manual
Wavelength850 nm
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual Streams
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Events
Basic DetectionCross line (based on human body detection), Intrusion (based on human body detection), Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T),
API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientUNV-Link, UNV-Link Pro, EZStation
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerSupport
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax 9.0W
Power InterfaceØ5.5 mm coaxial power plug
Dimensions192×75×74mm (7.6”×2.9”×2.9”) (L x W x H)
Weight0.40kg (0.88lb)
MaterialGraphene + Metal
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language4 Languages: English, Russian, Spanish, Vietnamese
