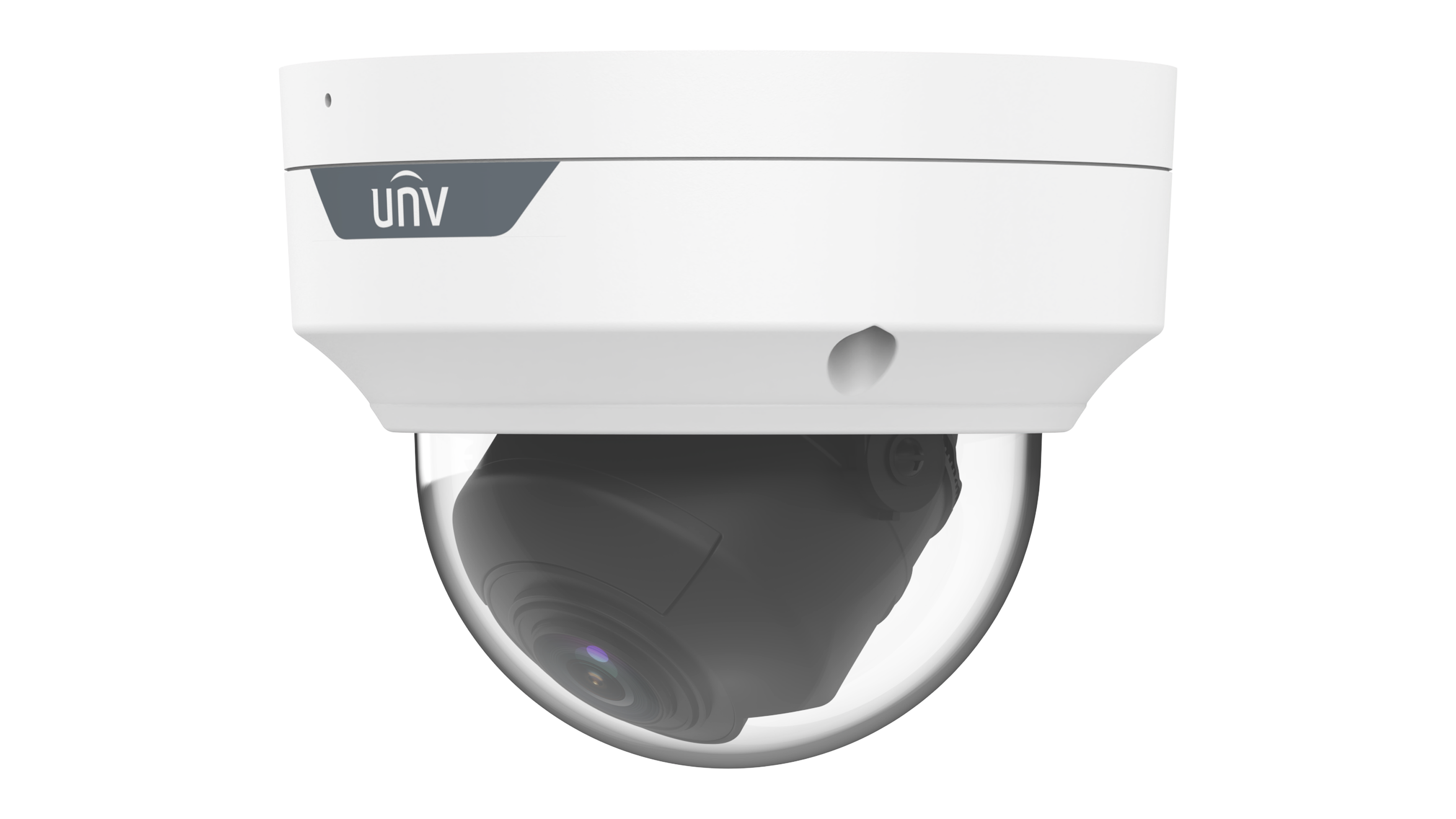

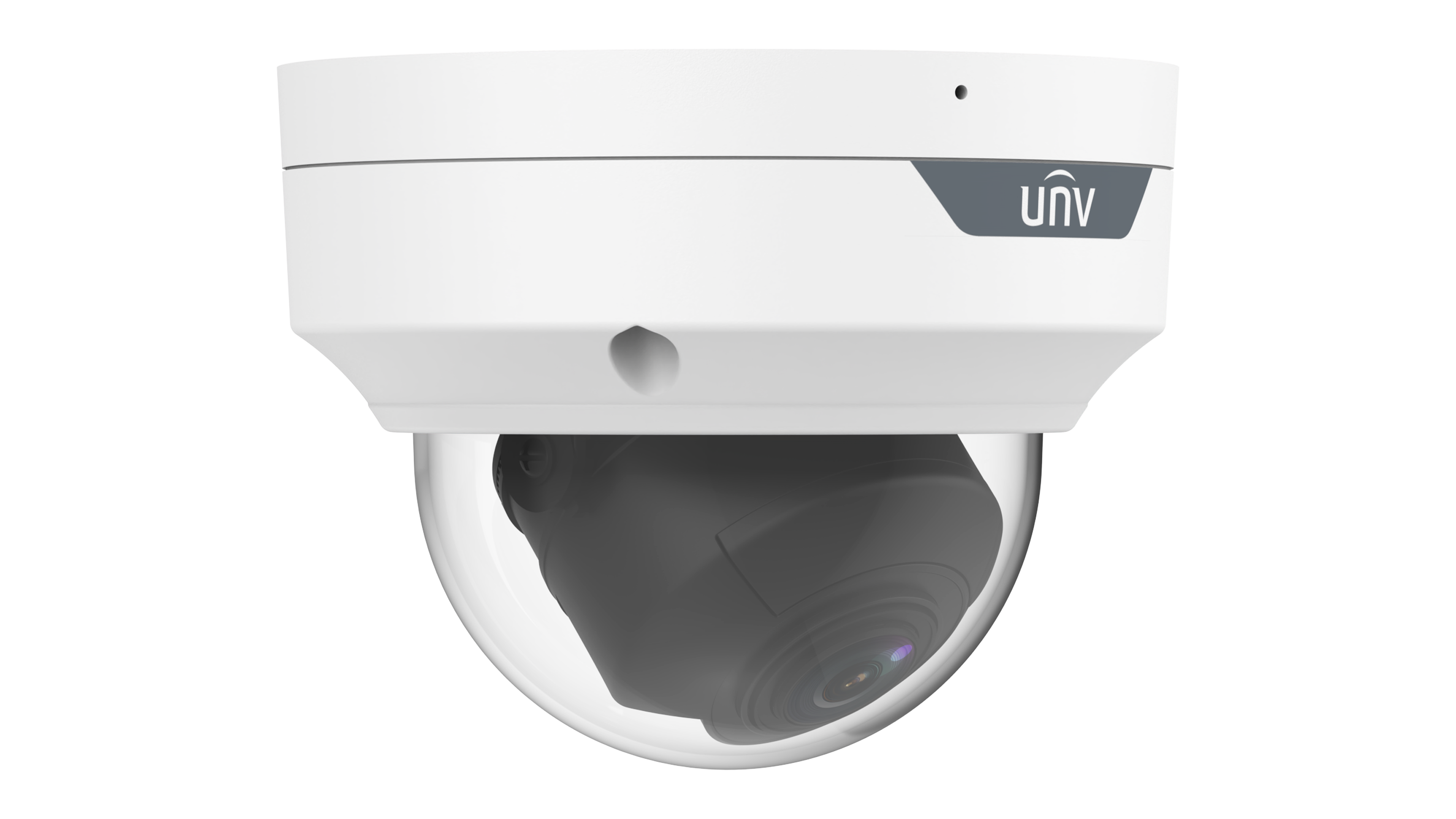

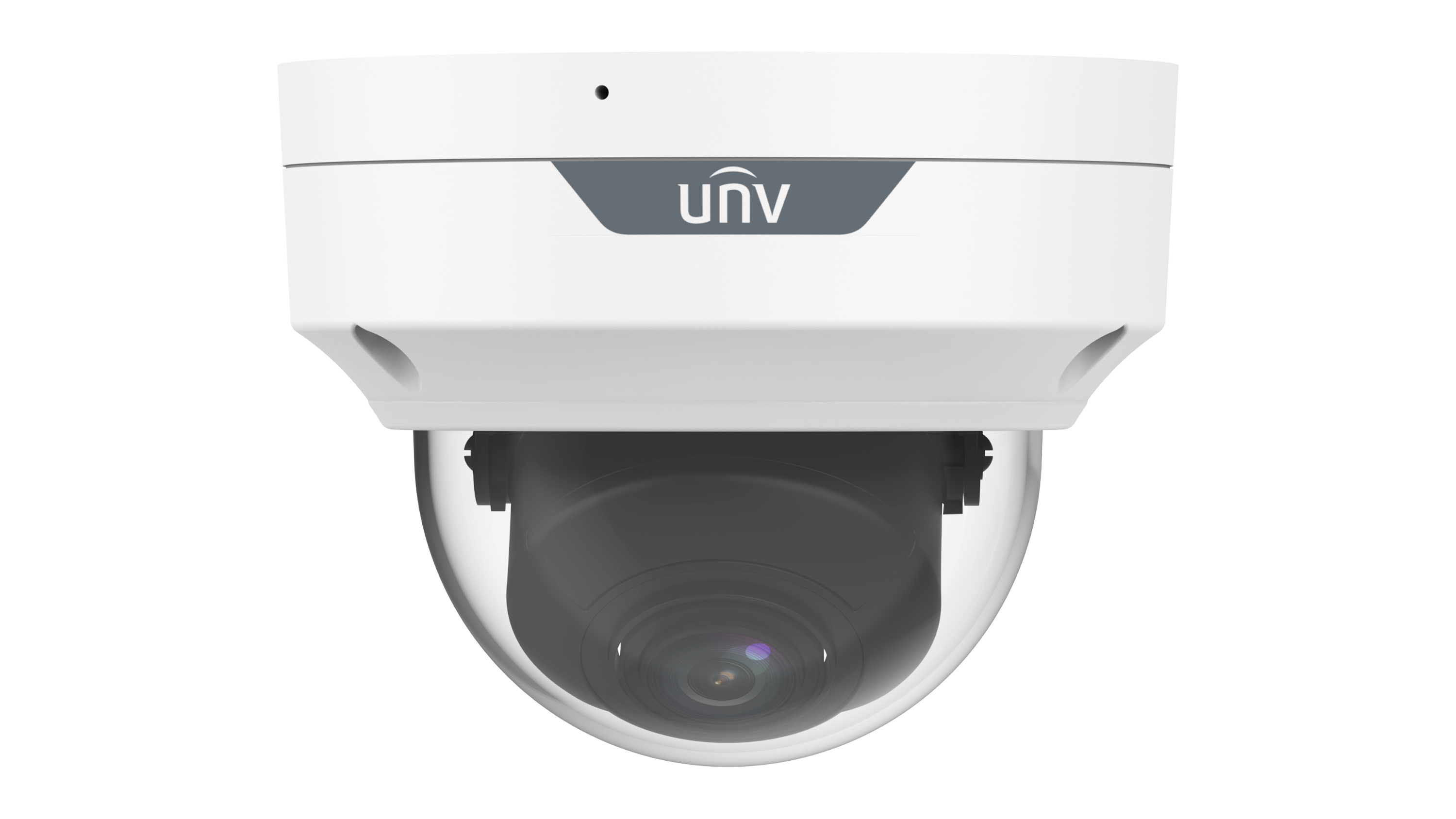

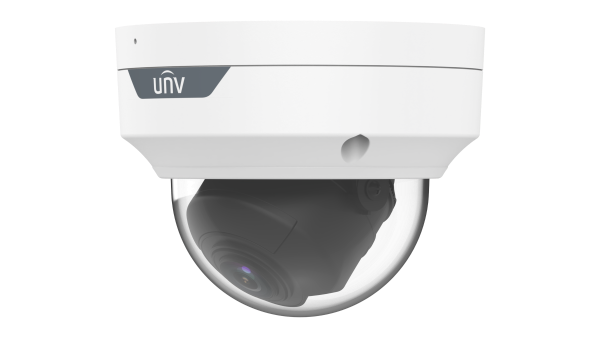

IPC3534LB-ADZK-H
4MP VF IR Dome Network Camera
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520) @25/20fps; 4MP (2560*1440) @25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Smart IR, up to 40m (131ft) IR distance
• Supports 512 G Micro SD card
• IP67 protection
• IK10 protection
• Support PoE power supply
• 3-Axis
Specification
Accessories
Download
How to buy
 IPC3534LB-ADZK-H
Camera
Max Resolution4 MP
Sensor1/3.0" CMOS
Min. IlluminationColour: 0.003 lux (F1.6, AGC ON)
0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360°
S/N>52 dB
WDR120 dB
Lens
Focal Length2.8 to 12 mm
Iris TypeFixed
IrisF1.6
Field of View (H)91.5°~34°
Field of View (V)51.0°~18.9°
Field of View (D)96.0°~36.9°
DORI
DORI Distance (Lens)2.8mm, 12mm
DORI Distance (Detect)63m(206.7ft), 270.0m(885.8ft)
DORI Distance (Observe)25.2m(82.7ft), 108.0m(354.3ft)
DORI Distance (Recognize)12.6m(41.3ft), 54.0m(177.2ft)
DORI Distance (Identify)6.3m(20.7ft), 27.0m(88.6ft)
Illuminator
Supplemental LightIR
Illumination Distance (IR)40 m (131.2 ft)
IR On/Off ControlAuto/Manual
Wavelength850 nm
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual Streams
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Events
Basic DetectionMotion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T),
API, SDK
User/HostUp to 32 users, 2 user levels: administrator and common user
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientUNV-Link, UNV-Link Pro, EZStation
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
IK10 (IEC 62262)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax 8.0W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ128mmx100mm (Ø5.0” x 3.9”) (Ø x H)
Weight0.66kg(1.46lb)
MaterialMetal + Plastic
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection6 KV
Reset ButtonSupport
Web Client Language4 Languages: English, Russian, Spanish, Vietnamese
