PKC1150@4-Z28-C-P

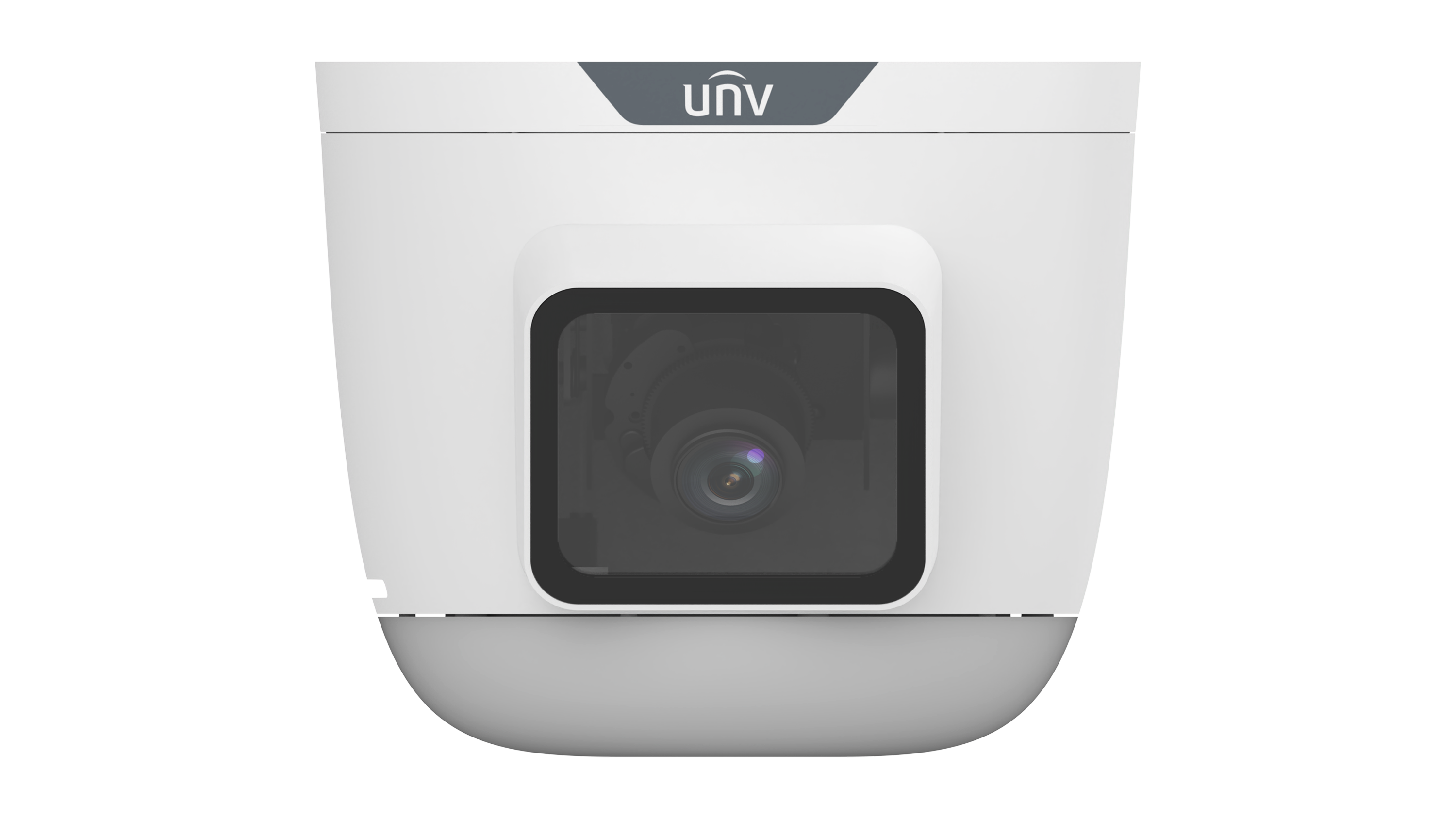

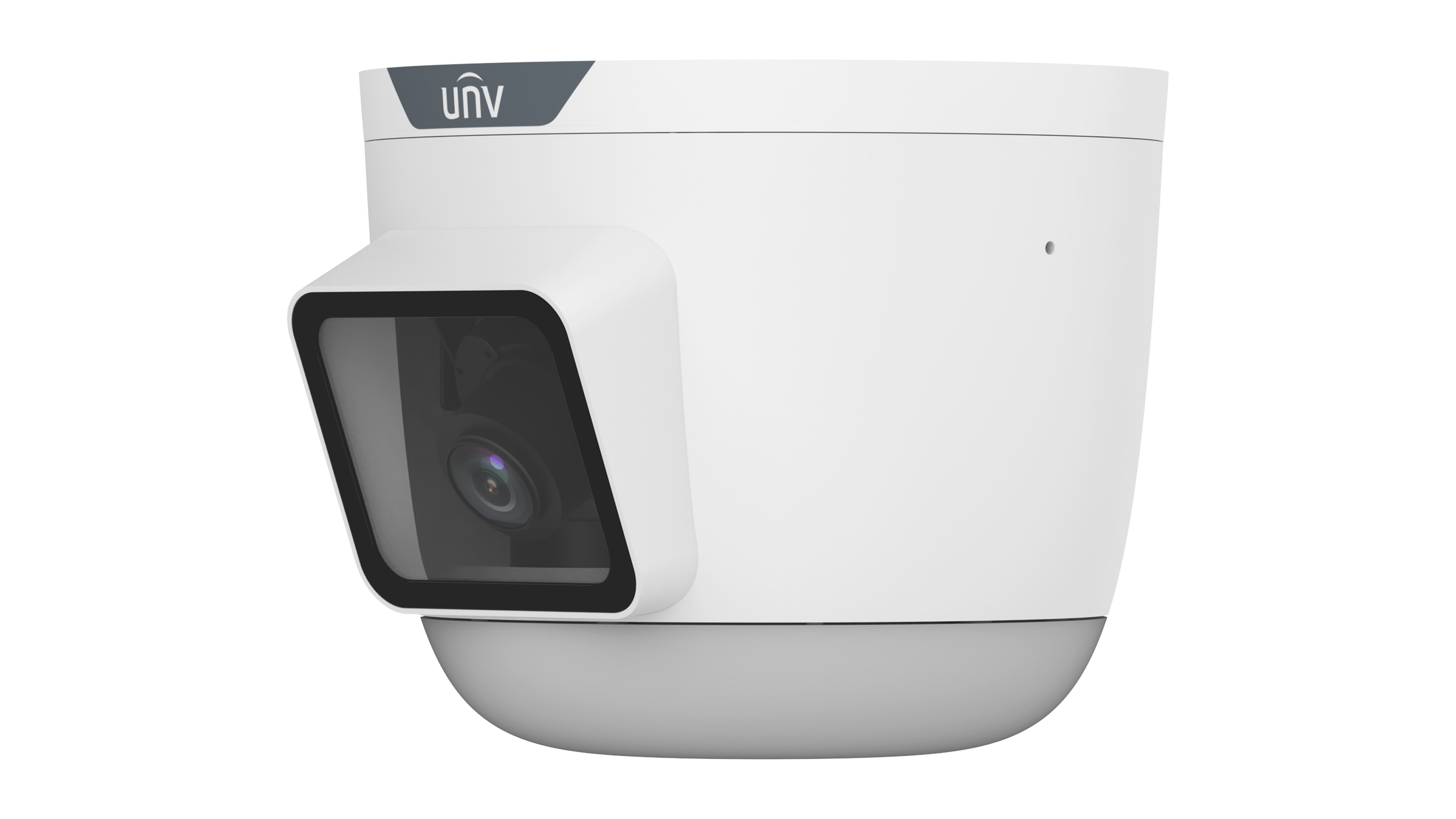

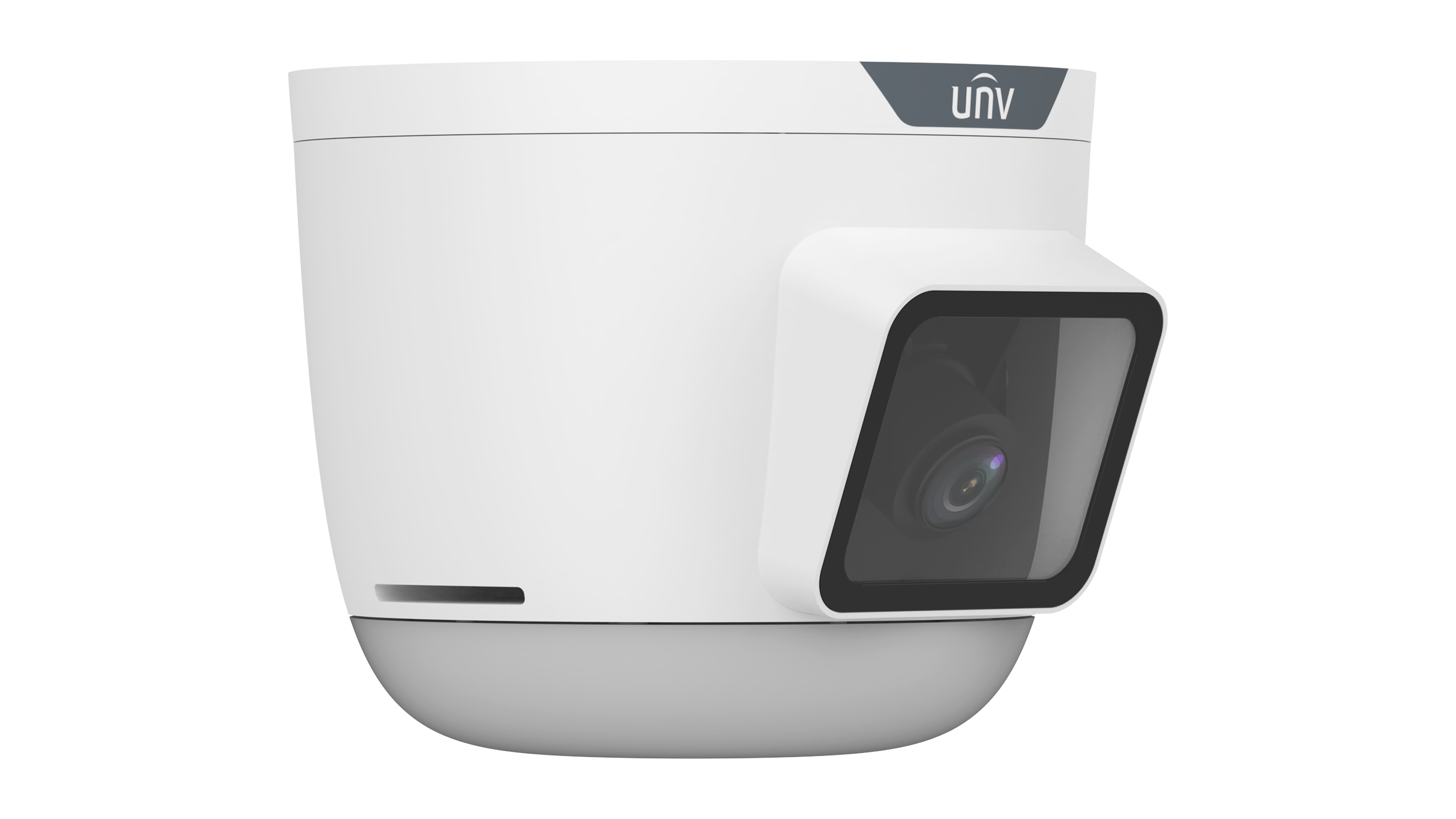

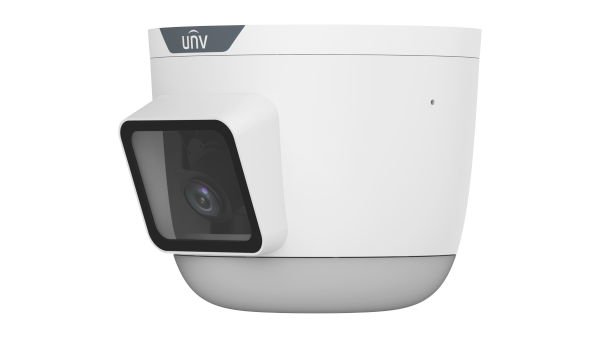

5MP Parking Space Detection Camera

• Optics
• Built-in 2.8mm to 12mm zoom lens.
• Compression
• Supports main stream, sub stream, and third stream video output.
• Advanced H.265 encoding technology improves compression efficiency.
• Custom OSD allows various vehicle information to be overlaid on the video image.
• Smart
• Built-in intelligent vehicle algorithm.
• Supports motion detection, tampering detection, cross line detection, and alarm-triggered actions.
• Structure
• Electric PTZ, supports the pan range of -10° to -35°.
• PoE (802.3af) power supply.
• 7-color indicator allows to configure idle, occupied, and alarm scenarios.
• Built-in mic and speaker.
• IP66 protection.

Datasheet
HD Image
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/27 1:41:48	UNV PKC1150@4-Z28-C-P 5MP Parking Space Detection Camera.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/8/5 15:43:55	PKC1150@4-Z28-C-P_HD_Image_1.png	png	Download
HD Image	2025/8/5 15:43:55	PKC1150@4-Z28-C-P_HD_Image_2.png	png	Download
HD Image	2025/8/5 15:43:55	PKC1150@4-Z28-C-P_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2025/5/8 4:04:22	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2025/8/5 15:43:55	PKC1150@4-Z28-C-P_Dimensions_1.png	Download

	PKC1150@4-Z28-C-P
Camera
Sensor	1/2.7" 5MP CMOS
Focal length	2.8mm to 12mm zoom lens
Shutter	1/100000 to 1/25s
Lens type	zoom lens
Minimum illumination	0.002lux (F1.35-F2.68)
FOV	Horizontal FOV: 107.8° to 33.8°, Vertical FOV: 55.9° to 17.6°, Diagonal FOV: 129.4° to 42.4°
Display Parameters
Resolution	Main stream: 28801620, 23041296, 1080P, 720P; Sub stream: 1080P, 720P, D1, 2CIF, CIF; Third stream: D1, 2CIF, CIF
Frame rate	30, 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
Video compression	H.264 (default), H.265
ROI	Support, up to 8 areas
Video OSD	Supports customized OSD on live view and photo
Image OSD	Supports customized OSD on live view and photo
Privacy mask	Support, up to 4 areas
Interface
Network interface	1 x 10M/100M adaptive Ethernet electrical interface
Serial port	1 xRS485
Boolean output	1 x alarm output
Boolean input	2 x alarm input
Built-in mic	Support
Built-in speaker	Support
Service Config
Third-party server	Two photo servers via HTTP, VIID, and FTP protocols; MQTT server via MQTT protocol
Smart
Parking space detection	Supports 4 parking space detection and 4 plate recognition
Parking space detection rate	99.5%
Structure
Dimensions (D x W x H)	152mm x 167mm x 128mm
Indicator	7-color LED indicator, displays the parking space status
Electric PTZ	Pan range: -10° to -35°
Mount method	Adapter panel
General
Power supply	DC 12V±25%, PoE (802.3af), supports 12V 100mA power backfeed
Weight	0.9kg
Operating environment	-30°C to 60°C
Ingress protection	IP66
