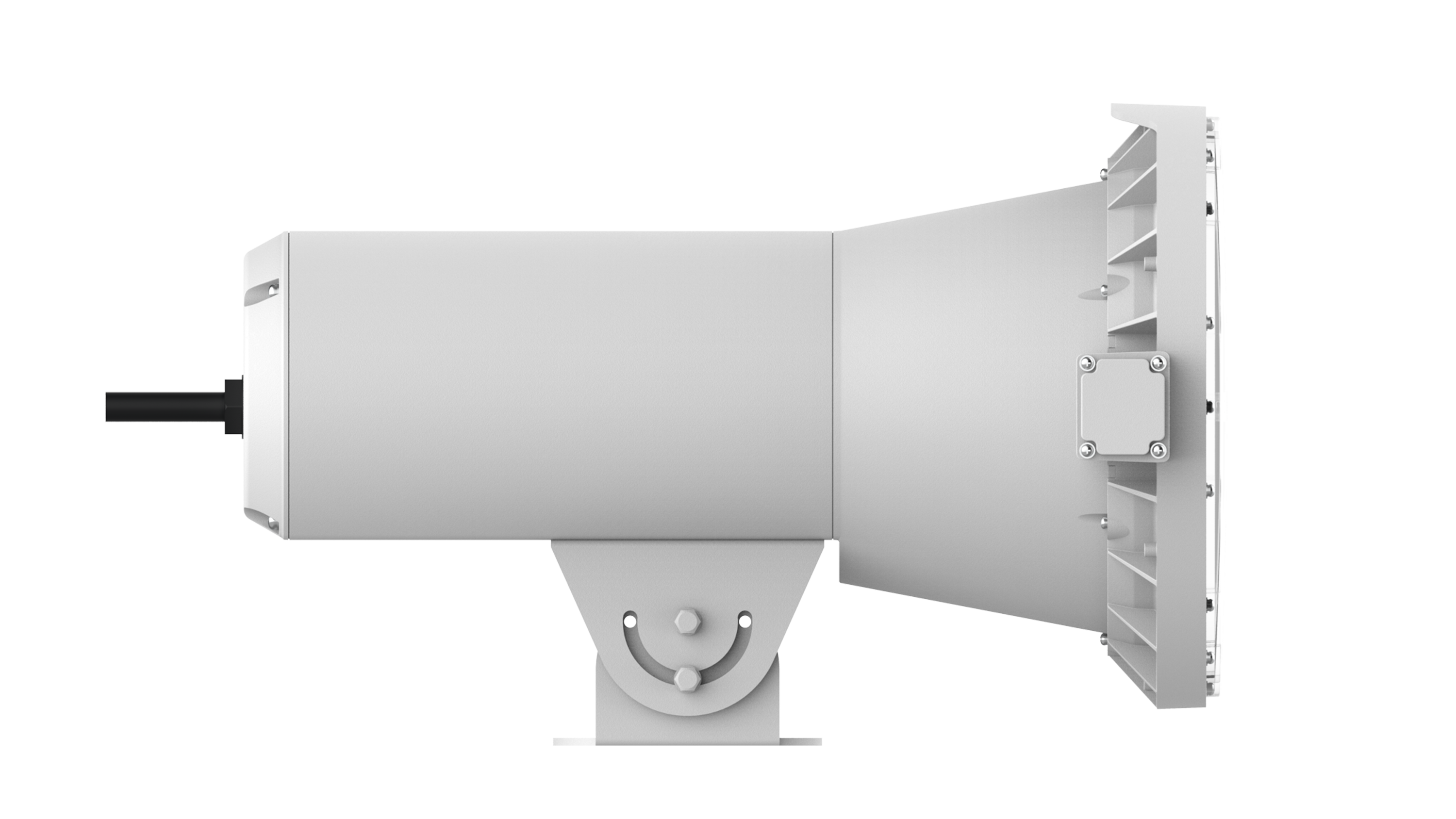

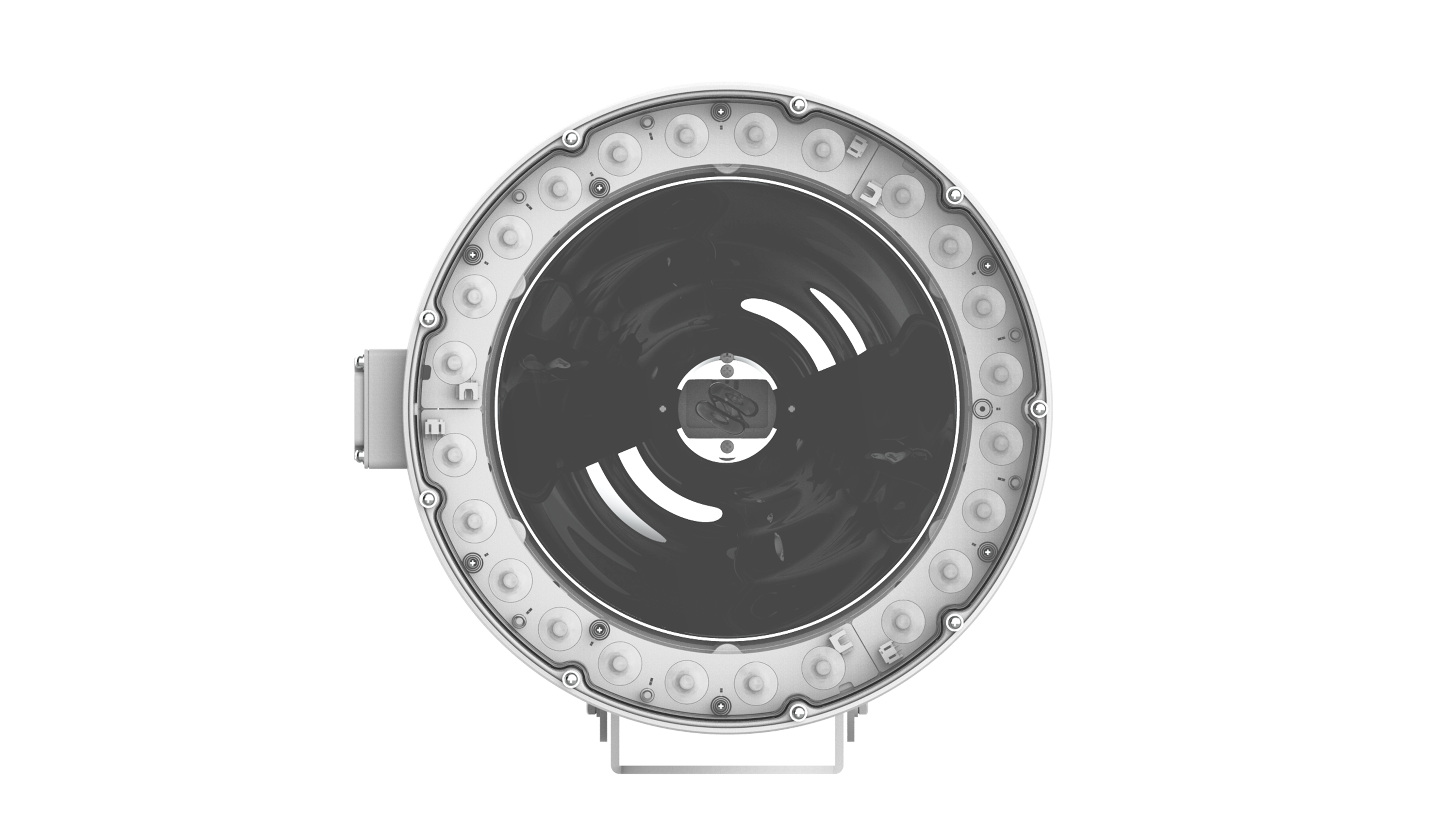

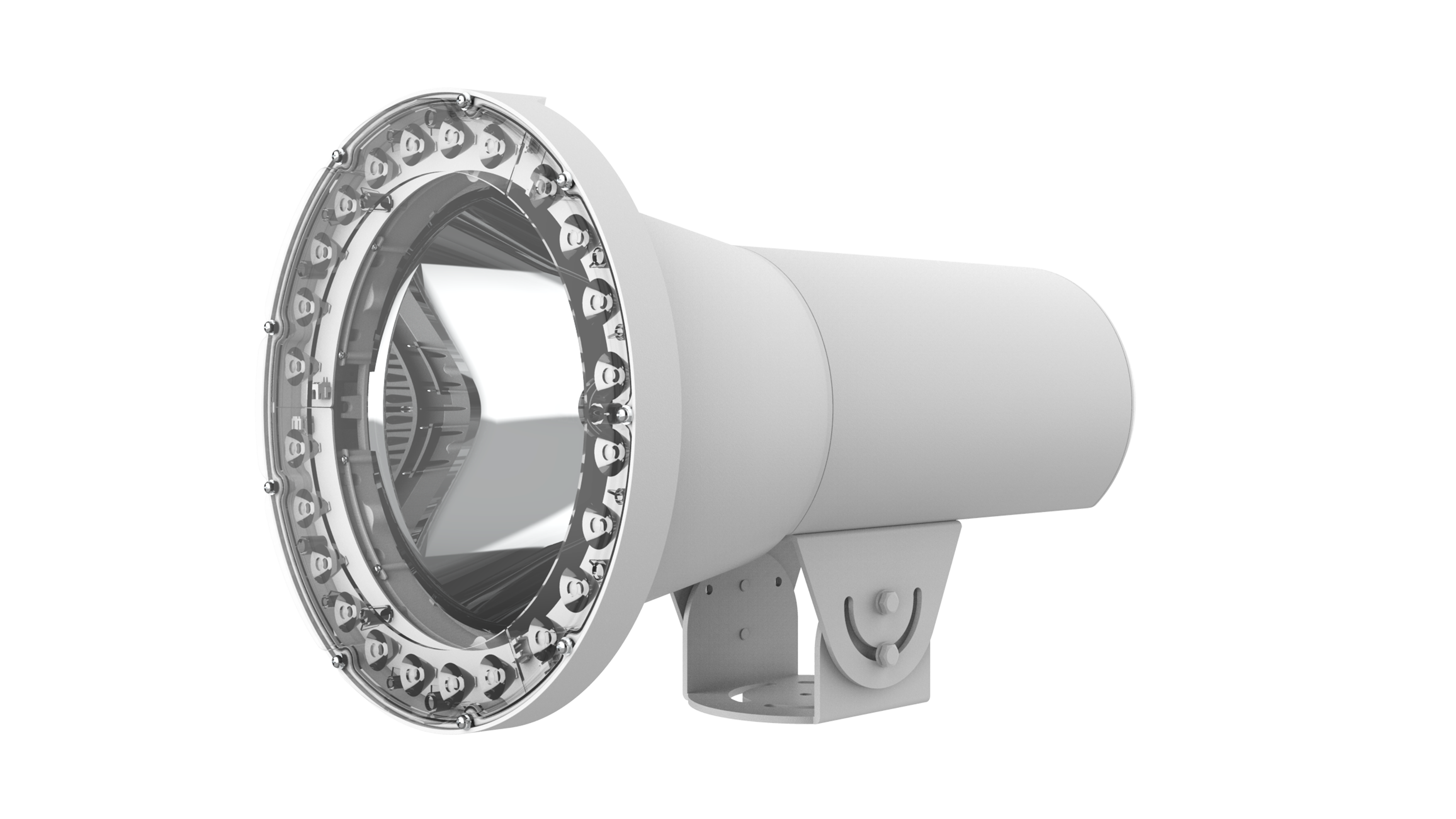

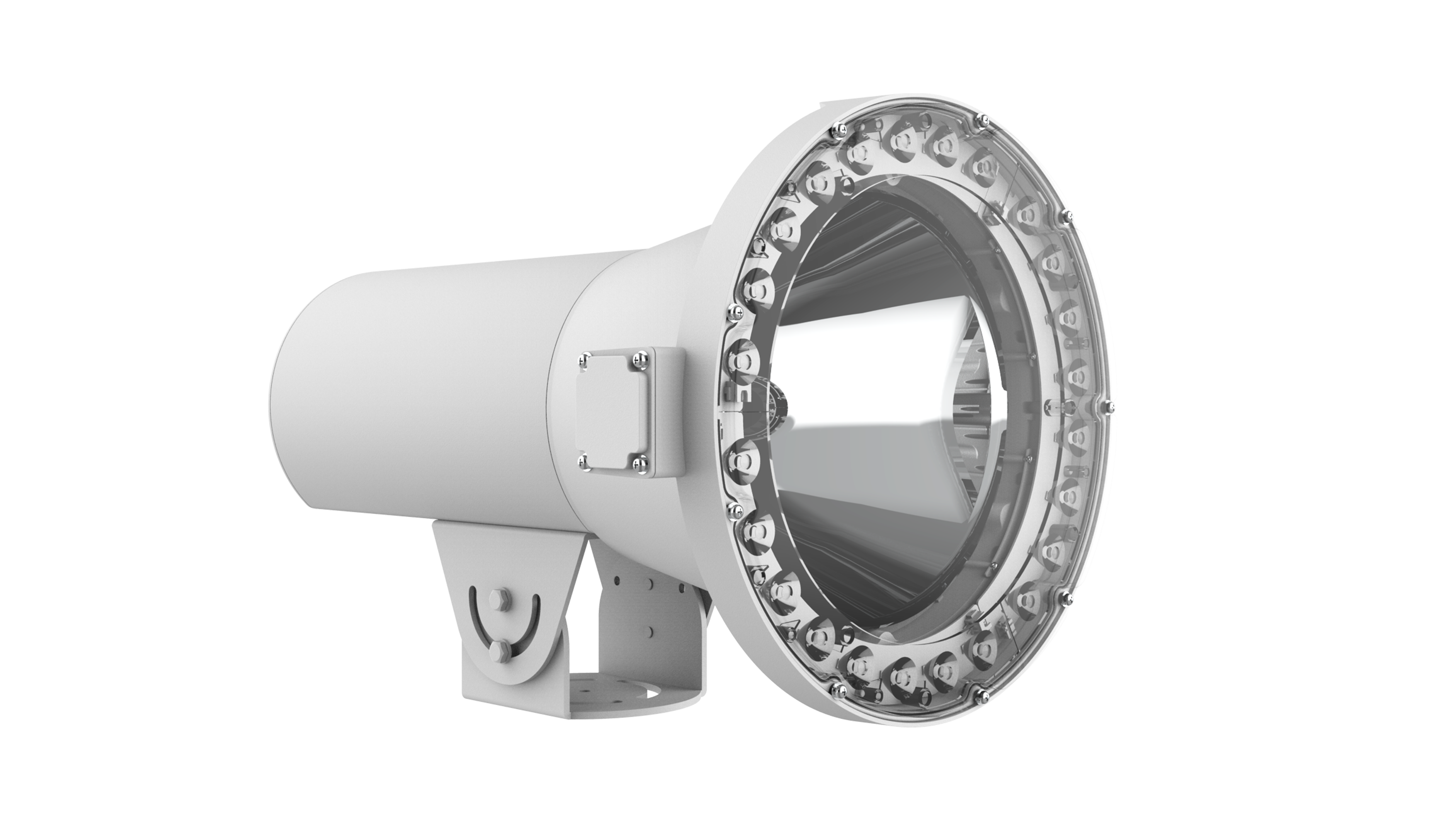

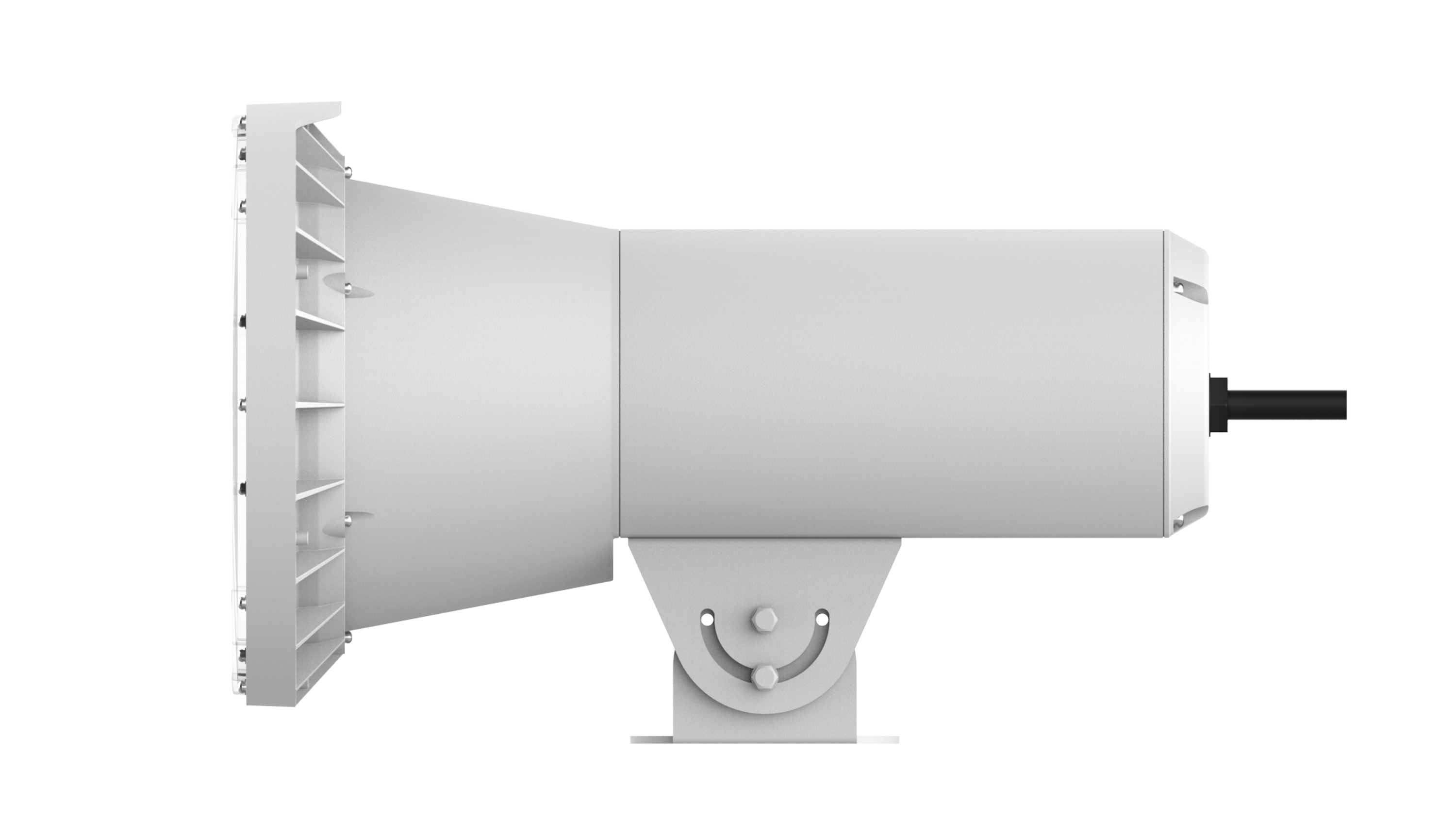

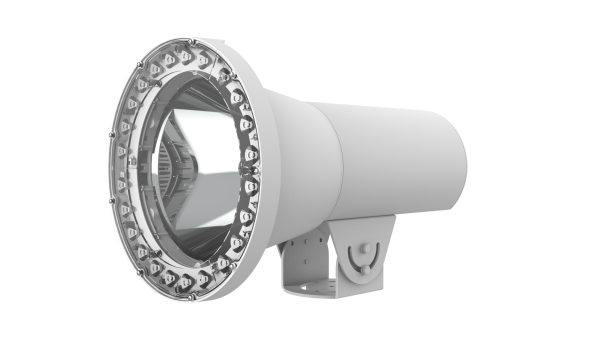

LAMP-H25@B-OS | ||||||||
LED strobe | ||||||||
Trigger mode | Strobe: TTL level/switch Flash: Switch | |||||||
White light flash | ||||||||
Color temperature | Xenon 6000±500K LED 4000±200K | |||||||
Output energy | Flash 40J to 80J | |||||||
White light flash lifetime | ≥10 million times | |||||||
硬件参数 | ||||||||
Strobe power | 34.5W@3A/40% (active power) | |||||||
Strobe illumination angle | 10° | |||||||
Flash duration | 300us by default | |||||||
Exposure index | 40 to 64 (GN) | |||||||
Response time | ≤55ms (220V) | |||||||
Interface | 1 power input;1 flash trigger input;1 strobe trigger input | |||||||
Operating temperature | -30°C to +60°C | |||||||
Operating humidity | 5% to 95% RH (non-condensing) | |||||||
Structure | ||||||||
Power | AC 220V±20%, 40 to 60Hz | |||||||
Be in common use | ||||||||
Weight | 4.5kg | |||||||
Dimensions (L × W × H) | 436.1mm*282mm*279.6mm | |||||||
Ingress protection | IP65 |
