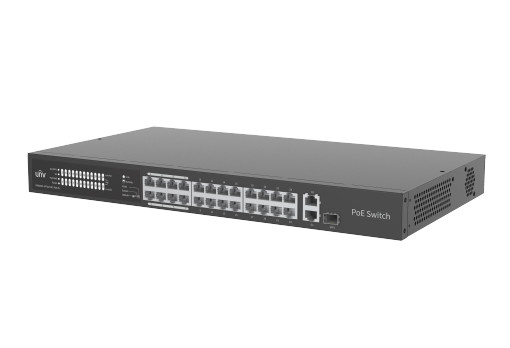

NSW2020-24T1GT1GC-POE-IN-NB

Unmanaged Ethernet PoE Switches

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
• CE, FCC & UL Certified

Model	NSW2020-24T1GT1GC-POE-IN-NB
Hardware Specification
Ports Type	24×100Mbps PoE ports (RJ45)/PoE+ ports + 2×1000Mbps Giga Ethernet ports +1×1000Mbps Combo ports
Switching capacity	8.8 Gbps
Packet Buffer	4 M bit
MAC	16K
Forwarding performance	6.55Mpps
Prior Ports	1 to 8
Cooling Fans	1
Mean Time Between Failure (MTBF)	> 50000 hours
Dimensions (W×D×H)	44025044mm
Standards	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Max. PoE Power	Max capacity: 370W,Max capacity for single port 30W
Switch Max. Power Consumption	390W
Weight	2.93KG
Operating humidity	10%～90% (noncondensing)
Working Mode	Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
PoE Mode	802.3at/af , ModeB :(4/5+, 7/8)
