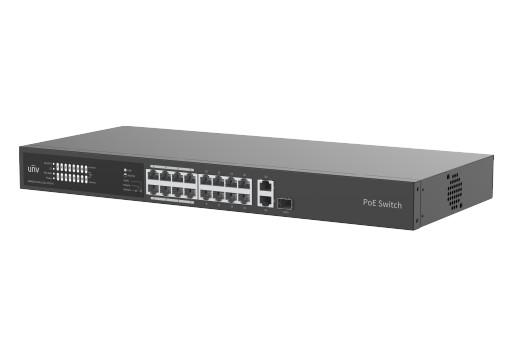

NSW2020-16T1GT1GC-POE-IN-NB

Ethernet POE Switches

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
• CE, FCC & UL Certified

Model	NSW2020-16T1GT1GC-POE-IN-NB
Hardware Specification
Ports Type	16×100Mbps PoE ports (RJ45) / PoE+ ports + 2x1000Mbps Giga Ethernet ports + 1×1000Mbps Combo ports
Switching capacity	7.2 Gbps
Packet Buffer	4 M bit
Forwarding performance	5.36Mpps
MAC	16K
Dimensions (W×D×H)	44019544mm
Prior Ports	1 to 8
Standards	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Max. PoE Power	Max capacity: 250W,Max capacity for single port: 30W
Switch Max. Power Consumption	265W
Cooling Fans	1
Mean Time Between Failure (MTBF)	> 50000 hours
Weight	2.12KG
Operating humidity	10%～90% (noncondensing)
Working Mode	Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
PoE Mode	802.3at/af , ModeB :(4/5+, 7/8)
