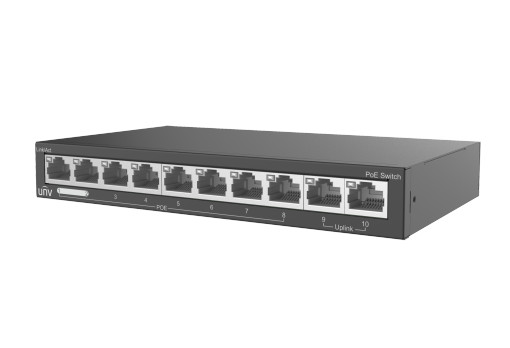

NSW2020-10T-POE-IN-NB

Ethernet PoE Switches Datasheet

• Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
• Support port traffic control
• Up to 250m transmission distance on Extend mode
• Support buffer optimization
• All metal housing, safe and reliable
• CE, FCC, UL Certified

Model	NSW2020-10T-POE-IN-NB
Hardware Specification
Ports Type	10×100Mbps network ports (RJ45), including 8 PoE ports/PoE+ ports + 2 x 100Mbps Uplink Ports
Switching capacity	2 Gbps
Packet Buffer	448K bit
MAC	1K
Forwarding performance	1.49Mpps
Prior Ports	1 to 2
Cooling Fans	0
Dimensions (W×D×H)	17110325mm
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Max. PoE Power	Max Capacity: 120W,Max Capacity for single port: 30W
Switch Power	122W
Weight	0.29KG
Operating humidity	10%～90% (noncondensing)
Working Mode	Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
