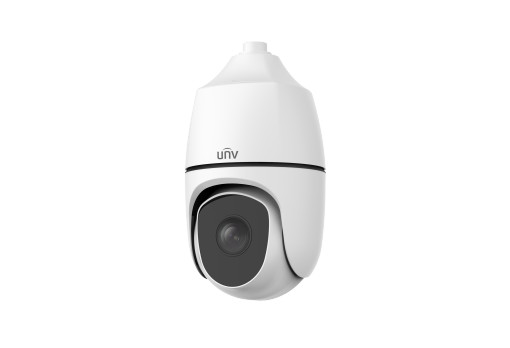

| Model | IPC6852ER‑X45‑AE |
| Camera | |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR |
| Day/Night | IR‑cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >52 dB |
| Lens | |
| Focal Length | 5.7 to 256.5 mm |
| Optical Zoom | 45X |
| Digital Zoom | 16X |
| Iris | F1.2 to F4.6 |
| Field of View (H) | 59.5° ~ 2.2° |
| Field of View (V) | 35.6° ~ 1.2° |
| Field of View (D) | 73.19° ~ 2.60° |
| DORI | |
| DORI Distance (Lens) | 5.7~256.5(mm) |
| DORI Distance (Detect) | 88.4m~3980.2m(290.2ft~13058.3ft) |
| DORI Distance (Observe) | 35.4m~1592.1m(116.1ft~5223.3ft) |
| DORI Distance (Recognize) | 17.7m~796.0m(58.0ft~2611.7ft) |
| DORI Distance (Identify) | 8.8m~398.0m(29.0ft~1305.8ft) |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U‑code | Support |
| ROI | Support |
| Video Stream | Triple Streams |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| OSD | Up to 10 OSDs |
| Events | |
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two‑way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV‑Link, UNV‑Link Pro |
| Web Browser | Plug‑in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Intelligent | |
| Exception Detection | Object Removed, Object Left Behind |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non‑motor vehicle and vehicle) |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| PTZ | |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Number of Presets | 1024 |
| Preset Image Freeze | Support |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 180°/s |
| Tilt Range | –15° ~ 90° (auto reverse) |
| Tilt Speed | 0.1°/s ~ 180°/s |
| Image | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital Defog, Optical Defog |
| EIS | Support |
| Heatwave Reduction | Support |
| Image Stabilization | EIS (Gyroscope) |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p‑p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p‑p] |
| WIFI | N/A |
| Alarm I/O | 7/2 |
| Serial Port | 1 * RS485 |
| Built‑in Mic | N/A |
| Built‑in Speaker | N/A |
| Network | 1 × RJ45 10 M/100 M Base‑TX Ethernet |
| Video Output | N/A |
| Illuminator | |
| Illumination Distance (IR) | 250m |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Certification | |
| EMC | CE‑EMC (EN 55032:2015+A11:2020; EN IEC 61000‑3‑2:2019; EN 61000‑3‑3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4‑2014) |
| Safety | CE LVD (EN 62368‑1:2014+A11:2017) UL (UL 62368‑1, 2nd Ed., Issue Date: 2014‑12‑01) |
| Environment | CE‑ROHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General | |
| Power | AC 24V ±25%, DC 24V±25%, PoE++ (IEEE 802.3bt) |
| Power Consumption | Max 61W |
| Power Interface | Wires with cold‑pressed terminal |
| Dimensions | Ø 270 x 497mm (Ø 10.6" x 19.6") (Ø x H) |
| Weight | 10.3kg(22.66lb) |
| Working Environment | ‑40 ℃ to 70 ℃ (‑40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non‑condensing) |
| Storage Environment | ‑40 ℃ to 70 ℃ (‑40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non‑condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Heater | Support |
