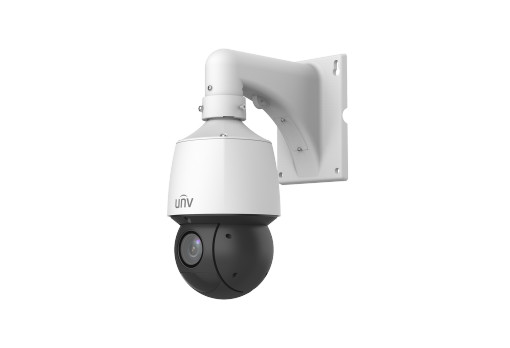

Model | IPC6422SR‑X25‑AE |
Camera | |
Sensor | 1/2.8" CMOS |
Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR |
Day/Night | IR‑cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 ~ 1/100000s |
WDR | 120 dB |
S/N | >52 dB |
Lens | |
Focal Length | 5 to 125 mm |
Digital Zoom | 16X |
Optical Zoom | 25X |
Iris | F1.5 to F4.0 |
Field of View (H) | 54.37° ~ 2.68° |
Field of View (V) | 32.23° ~ 1.51° |
Field of View (D) | 66.88° ~ 3.16° |
DORI | |
DORI Distance (Lens) | 5~125(mm) |
DORI Distance (Detect) | 77.6m~1939.7m(254.5ft~6363.7ft) |
DORI Distance (Observe) | 31.0m~775.9m(101.8ft~2545.5ft) |
DORI Distance (Recognize) | 15.5m~387.9m(50.9ft~1272.7ft) |
DORI Distance (Identify) | 7.8m~194.0m(25.5ft~636.4ft) |
Illuminator | |
Illumination Distance (IR) | 100 m (328.1 ft) |
IR On/Off Control | Auto/Manual |
Wavelength | 850 nm |
Video | |
Privacy Mask | 24 areas, up to 4 areas per scene |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps Sub Stream: 2MP (1920*1080), Max 60fps Third Stream: D1 (720*576), Max 60fps |
Video Bit Rate | 128 Kbps to 16 Mbps |
U‑code | Support |
ROI | Support |
Video Stream | Triple Streams |
OSD | Up to 10 OSDs |
Intelligent | |
Exception Detection | Object Removed, Object Left Behind |
People Counting | Support People Flow Counting and Crowd Density Monitoring |
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non‑motor vehicle and vehicle) |
Image | |
Defog | Digital Defog |
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Smart IR | Support |
Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
HLC | Support |
BLC | Support |
Heatwave Reduction | Support |
Events | |
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind |
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output |
Audio | |
Audio Compression | G.711U, G.711A |
Audio Bitrate | 128 Kbps |
Two‑way Audio | Support |
Suppression | Support |
Sampling Rate | 16KHZ |
Storage | |
Edge Storage | Micro SD, up to 512 GB |
Network Storage | ANR, NAS (NFS) |
Network | |
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
Client | EZStation, UNV‑Link, UNV‑Link Pro |
Web Browser | Plug‑in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
PTZ | |
Number of Presets | 1024 |
Preset Patrol | 16 patrols, up to 64 presets for each patrol |
Route Patrol | 16 patrols, up to 32 actions for each patrol |
Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
Patrol Stay Time | 15 s to 1800 s |
Preset Image Freeze | Support |
Home Position | Support |
Pan Range | 360° (endless) |
Tilt Range | ‑15° ~ 90° (auto reverse) |
Pan Speed | 0.1°/s ~ 200°/s |
Tilt Speed | 0.1°/s ~ 120°/s |
Interface | |
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p‑p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p‑p] |
Alarm I/O | 2/1 |
Serial Port | 1 * RS485 |
Network | 1 × RJ45 10 M/100 M Base‑TX Ethernet |
Video Output | 1 BNC (For debugging) |
Certification | |
EMC | CE‑EMC (EN 55032: 2015+A1:2020,EN 61000‑3‑3: 2013+A1: 2019,EN IEC 61000‑3‑2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4‑2014) |
Safety | CE LVD (EN 62368‑1:2014+A11:2017) UL (UL 62368‑1, 2nd Ed., Issue Date: 2014‑12‑01) |
Environment | CE‑RoHS (2011/65/EU;(EU)2015/863) |
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
General | |
Power | DC12V(±25%,3A), PoE+(IEEE 802.3at) |
Power Consumption | MAX 21W |
Power Interface | Ø5.5 mm coaxial power plug |
Dimensions | Ø 162 x 295mm (Ø 6.4" x 11.6") (Ø x H) |
Weight | 3.05kg(6.72lb) |
Working Environment | ‑40 ℃ to 70 ℃ (‑40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non‑condensing) |
Storage Environment | ‑40 ℃ to 70 ℃ (‑40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non‑condensing) |
Surge Protection | 6 KV |
Reset Button | Support |
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
