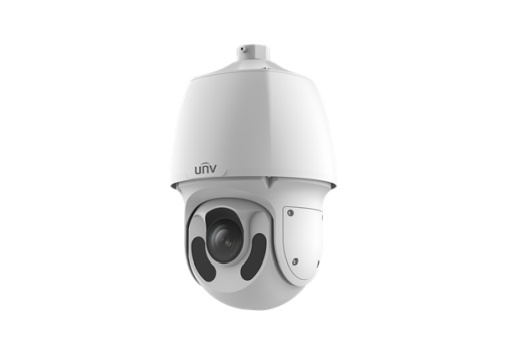

Model | IPC6624SRX33VF-PS | ||||
Camera | Camera | ||||
Sensor | 1/2.8" CMOS | ||||
Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR | ||||
Day/Night | IRcut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, 1 to 1/100000 s | ||||
WDR | 120 dB | ||||
S/N | >56 dB | ||||
Lens | Lens | ||||
Focal Length | 4.5 to 160 mm | ||||
Optical Zoom | 33X | ||||
Digital Zoom | 16X | ||||
Iris | F1.5 to F4.0 | ||||
Field of View (H) | 51.4° ~ 2.5° | ||||
Field of View (V) | 30.3° ~ 1.4° | ||||
Field of View (D) | 63.2° ~ 3.0° | ||||
DORI | DORI | ||||
DORI Distance (Lens) | 4.5~160(mm) | ||||
DORI Distance (Detect) | 105.8m~3172.5m(346.9ft~10408.5ft) | ||||
DORI Distance (Observe) | 42.3m~1269.0m(138.8ft~4163.4ft) | ||||
DORI Distance (Recognize) | 21.2m~634.5m(69.4ft~2081.7ft) | ||||
DORI Distance (Identify) | 10.6m~317.3m(34.7ft~1040.8ft) | ||||
Video | Video | ||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps | ||||
Video Bit Rate | 128 Kbps to 16 Mbps | ||||
Ucode | Support | ||||
ROI | Support | ||||
Video Stream | Triple streams | ||||
Privacy Mask | 24 areas, up to 4 areas per scene | ||||
OSD | Up to 10 OSDs | ||||
Events | Events | ||||
Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind | ||||
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output | ||||
Audio | Audio | ||||
Audio Compression | G.711U, G.711A | ||||
Audio Bitrate | 128 Kbps | ||||
Twoway Audio | Support | ||||
Suppression | Support | ||||
Sampling Rate | 16KHZ | ||||
Storage | Storage | ||||
Edge Storage | Micro SD, up to 512 GB | ||||
Network Storage | ANR, NAS (NFS) | ||||
Network | Network | ||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | ||||
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||||
Client | EZStation, UNVLink, UNVLink Pro | ||||
Web Browser | Plugin required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||||
Intelligent | Intelligent | ||||
Exception Detection | Object removed, Object Left Behind | ||||
Auto Tracking | Support, target filtering: human, nonmotor vehicle and vehicle | ||||
Face Capture | Support, Face attributes: gender, age range, glasses, mask | ||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, nonmotor vehicle and vehicle) | ||||
People Counting | Support people flow counting and crowd density monitoring | ||||
PTZ | PTZ | ||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | ||||
Recorded Patrol | 16 patrols, up to 128 actions for each patrol | ||||
Number of Presets | 1024 | ||||
Preset Image Freeze | Support | ||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
Patrol Stay Time | 15 s to 1800 s | ||||
Home Position | Support | ||||
Pan Range | 360° (endless) | ||||
Pan Speed | 0.1°/s ~ 200°/s | ||||
Tilt Range | –15° ~ 90° (auto reverse) | ||||
Tilt Speed | 0.1°/s ~ 200°/s | ||||
Image | Image | ||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | ||||
Digital Noise Reduction | 2D/3D DNR | ||||
Flip | Normal, Flip vertical, Flip horizontal, 180° | ||||
HLC | Support | ||||
BLC | Support | ||||
Smart IR | Support | ||||
Defog | Digital defog | ||||
Heatwave Reduction | Support | ||||
Interface | Interface | ||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [pp], 1 Output: impedance 600 Ω, amplitude 2.5 V [pp] | ||||
WIFI | N/A | ||||
Alarm I/O | 2/1 | ||||
Serial Port | 1 * RS485 | ||||
Builtin Mic | N/A | ||||
Builtin Speaker | N/A | ||||
Network | 1 × RJ45 10 M/100 M BaseTX Ethernet | ||||
Video Output | 1 BNC (for debugging) | ||||
Illuminator | Illuminator | ||||
Illumination Distance (IR) | 200 m (656 ft) | ||||
IR On/Off Control | Auto/Manual | ||||
Wavelength | 850 nm | ||||
Certification | Certification | ||||
EMC | CEEMC (EN 55032:2015+A11:2020; EN IEC 6100032:2019; EN 6100033:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.42014) | ||||
Safety | CE LVD (EN 623681:2014+A11:2017) UL (UL 623681, 2nd Ed., Issue Date: 20141201) | ||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013), IK10 Vandal Resistant | ||||
General | General | ||||
Power | AC 24V±25%, DC 24V±25%, PoE+ (IEEE802.3 at) | ||||
Power Consumption | Max 25W | ||||
Power Interface | Wires with coldpressed terminal | ||||
Dimensions | Ø 227 x 384.8 mm (Ø 8.9" x 15.1") (Ø x H) | ||||
Weight | 5.28kg(11.64lb) | ||||
Working Environment | 40 ℃ to 70 ℃ (40 ℉ to 158 ℉), Humidity: ≤ 95% RH (noncondensing) | ||||
Storage Environment | 40 ℃ to 70 ℃ (40 ℉ to 158 ℉), Humidity: ≤ 95% RH (noncondensing) | ||||
Surge Protection | 6 KV | ||||
Reset Button | Support | ||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | ||||
Heater | Support | ||||
TR-UF45-A-IN | TR-SE45-A-IN | TR-SE45-IN | |||
Dome Indoor Ceiling Mounting Pedestal | Dome Ceiling Mounting Pole 500 | Dome Ceiling Mounting Pole 200 | |||
TR-CE45-IN | TR-WE45-IN | TR-WE45-A-IN | |||
Dome Indoor Ceiling Mounting Bracket | Dome Wall Mounting Bracket | Long Wall Mounting Bracket for Dome | |||
TR-JB12-IN | TR-WE45-B-IN | TR-UP08-A-IN | |||
Dome Junction Box | Dome Gooseneck Bracket | Dome Pole Mounting Bracket | |||
TR-UP08-B-IN | TR-UC08-A-IN | TR-UC08-B-IN | |||
Aluminium Alloy Pole Mounting Bracket | Dome Corner Mounting Bracket | Aluminium Alloy Corner Mounting Bracket | |||
