IPC3636SS-ADF28KMC-I1-Au - Uniview - Leader of AIoT Solution

IPC3636SS-ADF28KMC-I1

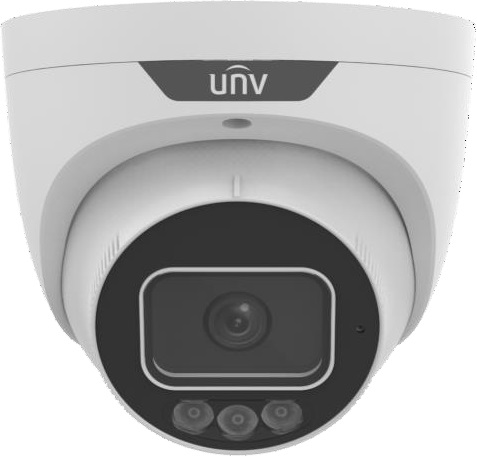

6MP HD Intelligent Light and Audible Warning Fixed Eyeball Network Camera

High quality image with 6MP, 1/2.7"CMOS sensor

6MP (3072*2048)@ 30/25(default)fps; 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps;

2MP (1920*1080) @30/25fps

Ultra 265, H.265, H.264, MJPEG

Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection

Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle

Intelligent People Flow Counting and Crowd Density Monitoring Auto Scene Match (ASM)（Only WDR）

130dB true WDR technology enables clear image in strong light scene

Support red & blue warning light

Support 9:16 Corridor Mode

Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic and Speaker

Smart IR, up to 30m (98.4 ft) IR distance

Supports 256 G Micro SD card

IP67 protection

	IPC3636SS-ADF28KMC-I1
Camera
Sensor	1/2.7", 6.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.001 Lux (F1.0, AGC ON) 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 80°			Rotate: 0° ~ 360°
WDR	130dB
S/N	>56dB
Lens
Lens	2.8mm@F1.0
Iris	Fixed
Field of View (H)	107.2°
Field of View (V)	56.39°
Field of View (D)	110.11°
DORI
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	63.0		25.2	12.6		6.3
Illuminator
IR Range	Up to 30m (98.4 ft)
Warm Light Range	Up to 30m (98.4 ft)
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 6MP (30722048) ), Max 30fps; 5MP (28801620), Max 30fps; 4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; Sub Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Triple streams
Auto Scene Match (ASM)	Support（Only WDR）
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
