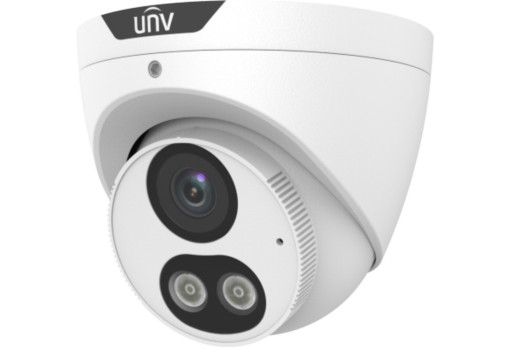

Model | IPC3616LE-ADF28KM-DL | ||||
Camera | Camera | ||||
Max Resolution | 6 MP | ||||
Sensor | 1/2.4" CMOS | ||||
Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° | ||||
S/N | >52 dB | ||||
WDR | 120 dB | ||||
Lens | Lens | ||||
Focal Length | 2.8 mm | ||||
Iris Type | Fixed | ||||
Iris | F1.6 | ||||
Field of View (H) | 102.73° | ||||
Field of View (V) | 53.95° | ||||
Field of View (D) | 106.97° | ||||
Lens Type | Fixed | ||||
DORI | DORI | ||||
DORI Distance (Lens) | 2.8 mm | ||||
DORI Distance (Detect) | 63.1 m (207.0 ft.) | ||||
DORI Distance (Observe) | 25.2 m (82.7 ft.) | ||||
DORI Distance (Recognize) | 12.6 m (41.3 ft.) | ||||
DORI Distance (Identify) | 6.3 m (20.7 ft.) | ||||
Illuminator | Illuminator | ||||
Supplemental Light | Dual light | ||||
Illumination Distance (Warm Light) | 30 m (98.4 ft.) | ||||
Illumination Distance (IR) | 30 m (98.4 ft.) | ||||
Wavelength | 850 nm | ||||
Video | Video | ||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
H.264 Code Profile | Baseline profile, Main profile, High profile | ||||
Frame Rate | Main Stream: 6 MP (3200 × 1800), max. 25 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; | ||||
Video Bit Rate | 128 Kbps to 16 Mbps | ||||
U-code | Support | ||||
OSD | Up to 4 OSDs | ||||
Privacy Mask | Up to 4 areas | ||||
ROI | Support | ||||
Video Stream | Dual streams | ||||
Image | Image | ||||
Smart Illumination | Support | ||||
Smart IR | Support | ||||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance | ||||
Digital Noise Reduction | 2D/3D DNR | ||||
Flip | Normal, Flip vertical, Flip horizontal, 180° | ||||
Dewarping | N/A | ||||
HLC | Support | ||||
BLC | Support | ||||
Defog | Digital defog | ||||
Image Stabilization | N/A | ||||
Events | Events | ||||
Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection | ||||
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||||
Audio | Audio | ||||
Audio Compression | G.711U, G.711A | ||||
Audio Bitrate | 64 Kbps | ||||
Two-way Audio | N/A | ||||
Suppression | Support | ||||
Sampling Rate | 8 kHz | ||||
Storage | Storage | ||||
Edge Storage | MicroSD, up to 512 GB | ||||
Network Storage | ANR, NAS (NFS) | ||||
Network | Network | ||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||||
Client | UNV-Link, UNV-Link Pro, EZStation | ||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | ||||
Interface | Interface | ||||
Audio I/O | N/A | ||||
Alarm I/O | N/A | ||||
Serial Port | N/A | ||||
Built-in Mic | Support | ||||
Built-in Speaker | N/A | ||||
WIFI | N/A | ||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | ||||
Video Output | N/A | ||||
Certification | Certification | ||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) | ||||
Safety | CE-LVD (EN 62368-1) | ||||
Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) | ||||
Protection | IP67 (IEC 60529) | ||||
General | General | ||||
Power | DC 12 V±25%, PoE (IEEE 802.3af) | ||||
Power Consumption | Max. 5.1 W | ||||
Power Interface | Ø5.5 mm coaxial power plug | ||||
Dimensions | Ø110.5 mm × 98.0 mm (Ø4.4" × 3.9") (Ø × H) | ||||
Weight | 0.46 kg (1.01 lb.) | ||||
Material | Metal + Plastic | ||||
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||
Surge Protection | 4 KV | ||||
Reset Button | Support | ||||
Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
