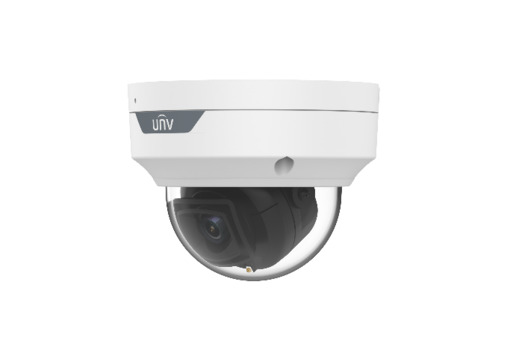

Model | IPC3512LE-ADF28K-WP | IPC3512LE-ADF40K-WP |
Camera | ||
Max Resolution | 2 MP | |
Sensor | 1/2.7" Progressive Scan CMOS | |
Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) | |
Shutter | Auto/Manual, 1 to 1/100000 s | |
Adjustment Angle | Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360° | |
S/N | > 52 dB | |
WDR | 120 dB | |
Lens | ||
Focal Length | 2.8 mm | 4.0 mm |
Iris Type | Fixed | |
Iris | F1.0 | |
Field of View (H) | 99.0° | 85.4° |
Field of View (V) | 53.0° | 47.5° |
Field of View (D) | 118.0° | 98.5° |
Lens Type | Fixed | |
DORI | ||
DORI Distance (Lens) | 2.8 mm | 4 mm |
DORI Distance (Detect) | 45.0 m (147.6 ft.) | 64.3 m (211.0 ft.) |
DORI Distance (Observe) | 18.0 m (59.1 ft.) | 25.7 m (84.3 ft.) |
DORI Distance (Recognize) | 9.0 m (29.5 ft.) | 12.9 m (42.3 ft.) |
DORI Distance (Identify) | 4.5 m (14.8 ft.) | 6.4 m (21.0 ft.) |
Illuminator | ||
Supplemental Light | Warm light | |
Light On/Off Control | Auto/Manual | |
Illumination Distance (Warm Light) | 30 m (98.4 ft.) | |
Video | ||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |
H.264 Code Profile | Baseline profile, Main profile, High profile | |
Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps;Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; | |
Video Bit Rate | 128 Kbps to 6144 Kbps | |
U-code | Support | |
OSD | Up to 4 OSDs | |
Privacy Mask | Up to 4 areas | |
ROI | Support | |
Video Stream | Dual streams | |
Image | ||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |
Smart Illumination | Support | |
Digital Noise Reduction | 2D/3D DNR | |
Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |
Dewarping | N/A | |
HLC | Support | |
BLC | Support | |
Defog | Digital defog | |
Intelligent | ||
Smart Intrusion Prevention (Lite) | Intrusion, crossline detection (both detection are based on human body and vehicle detection) | |
Events | ||
Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection | |
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |
Audio | ||
Audio Compression | G.711U, G.711A | |
Audio Bitrate | 64 Kbps | |
Two-way Audio | N/A | |
Suppression | Support | |
Sampling Rate | 8 kHz | |
Storage | ||
Edge Storage | MicroSD, up to 512 GB | |
Network Storage | ANR, NAS (NFS) | |
Network | ||
Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS | |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |
User/Host | Up to 32 users. 2 user levels: administrator and common user | |
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |
Client | UNV-Link, UNV-Link Pro, EZStation | |
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
Interface | ||
Audio I/O | N/A | |
Alarm I/O | N/A | |
Serial Port | N/A | |
Built-in Mic | Support | |
Built-in Speaker | N/A | |
WIFI | N/A | |
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |
Video Output | N/A | |
Certification | ||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)FCC (FCC 47 CFR part15 B) | |
Safety | CE LVD (EN 62368-1)UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); | |
Protection | IP67 (IEC 60529)IK10 (IEC 62262) | |
General | ||
Power | DC 12 V±25%, PoE (IEEE 802.3af) | |
Power Consumption | Max. 3.0 W | |
Power Interface | Ø5.5 mm coaxial power plug | |
Dimensions | Ø128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H) | |
Weight | 0.51 kg (1.12 lb.) | |
Material | Metal + Plastic | |
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
Surge Protection | 4 KV | |
Reset Button | Support | |
Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
