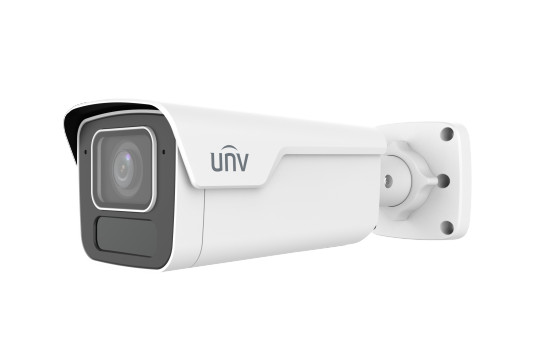

Model | IPC2B24SA-AHDZK-PI-II | ||||
Camera | |||||
Max Resolution | 4 MP | ||||
Sensor | 1/2.8" CMOS | ||||
Min.Illumination | Colour: 0.003 lux(F1.6,AGC ON) 0 lux with IR | ||||
Day/Night | IR-cut filter with auto switch(ICR) | ||||
Shutter | Auto/Manual, 1 to 1/100000s | ||||
WDR | 130 dB | ||||
Adjustment Angle | Pan:0° to 360° Tilt:0° to 90° Rotate:0° to 360° | ||||
S/N | >56 dB | ||||
Lens | |||||
Focal Length | 2.7 to 13.5 mm | ||||
Optical Zoom | 5X | ||||
Iris | F1.6 | ||||
Field of View(H) | 98.7°~31° | ||||
Field of View(V) | 52.6°~18° | ||||
Field of View(D) | 116.5°~35.8° | ||||
Iris Type | P-iris | ||||
DORI | |||||
DORI Distance | Lens(mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
2.7~13.5 | 74.3m(243.6ft)~229.5m(753.0ft) | 29.7m(97.4ft)~91.8m(301.2ft) | 14.9m(48.7ft)~45.9m(150.6ft) | 7.4m(24.4ft)~23.0m(75.3ft) | |
Illuminator | |||||
Illumination Distance(IR) | 80m(262 ft) | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Frame Rate-Main Stream | 4MP(2688 * 1520), Max 60fps | ||||
Video Compression | Ultra 265,H.265,H.264, MJPEG | ||||
Frame Rate-Sub Stream | 2MP(1920 * 1080),Max 60fps | ||||
Video Bit Rate | 128 Kbps to 16 Mbps | ||||
U-code | Support | ||||
ROI | Up to 8 areas | ||||
Privacy Mask | Up to 8 areas(8 blacks/ 8 mosaics) | ||||
Video Stream | Triple Streams | ||||
OSD | Up to 10 OSDs | ||||
Frame Rate-Third Stream | D1(720 * 576), Max 60fps | ||||
Image | |||||
White Balance | Auto, Outdoor,Fine Tune,Sodium Lamp, Locked,Auto2 | ||||
Digital Noise Reduction | 2D/3D DNR | ||||
Flip | Flip Vertical,Flip Horizontal, Normal, 180°,90°Clockwise,90°Anti-clockwise | ||||
HLC | Support | ||||
BLC | Support | ||||
Defog | Digital Defog | ||||
Intelligent | |||||
People Counting | Support People Flow Counting and Crowd Density Monitoring | ||||
Exception Detection | Object Removed, Object Left Behind | ||||
Smart Intrusion Prevention | Cross line detection,intrusion detection,enter area detection, leave area detection(support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||
Events | |||||
Basic Detection | Motion Detection, Audio Detection, Tampering Alarm, Ultra Motion Detection | ||||
General Function | Watermark,IP Address Filtering,Access Policy,ARP Protection,RTSP Authentication,User Authentication,HTTP Authentication,Alarm Input,Alarm Output | ||||
Audio | |||||
Audio Compression | G.711U,G.711A | ||||
Audio Bitrate | 128 Kbps | ||||
Two-way Audio | Support | ||||
Suppression | Support | ||||
Sampling Rate | 16 kHz | ||||
Storage | |||||
Edge Storage | Micro SD, up to 512 GB | ||||
Network Storage | ANR, NAS(NFS) | ||||
Network | |||||
Protocols | SSH,IGMP,RTP,RTCP,SMTP,IPv4,IPv6,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTSP,RTMP, DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,802.1x,SNMP,QoS,SSL/TLS | ||||
Compatible Integration | ONVIF(Profile S, Profile G, Profile T, Profile M),API,SDK | ||||
User/Host | Up to 32 users.3 user levels: administrator, common user and operator | ||||
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||||
Client | UNV-Link, UNV-Link Pro, EZStation | ||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||||
Interface | |||||
Audio I/O | 1 Input:impedance 1 kΩ,amplitude 2.5 V[p-p],1 Output:impedance 600Ω,amplitude 2.5 V[p-p] | ||||
Alarm I/O | 1/1 | ||||
Serial Port | 1 channel RS485 interface | ||||
Built-in Mic | Built-in twomics | ||||
Built-in Speaker | N/A | ||||
Network | 1xRJ45 10 M/100 M Base-TX Ethernet | ||||
Certification | |||||
EMC | CE-EMC(EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC-SDoC(47 CFR Part15, Subpart B) | ||||
Safety | CE LVD(EN IEC 62368-1) UL(UL 62368-1) | ||||
Environment | CE-RoHS(2011/65/EU;(EU)2015/863); WEEE(2012/19/EU) | ||||
Protection | IP67(IEC 60529) IK10(IEC 62262) | ||||
General | |||||
Power | DC12V(±25%),PoE(IEEE 802.3af) | ||||
Power Consumption | Max 10W | ||||
Power Interface | 05.5 mm coaxial power plug | ||||
Dimensions | 268x96x86mm(10.5"x3.7"x3.4")(LxWxH) | ||||
Weight | 1kg(2.2lb) | ||||
Working Environment | -30℃ to 60℃(-22°F to 140°F),Humidity:≤95% RH(non-condensing) | ||||
Storage Environment | 40℃ to 70℃(-40°F to 158°F),Humidity:≤95% RH(non-condensing) | ||||
Surge Protection | 6KV | ||||
Reset Button | Support | ||||
Heater | N/A |
