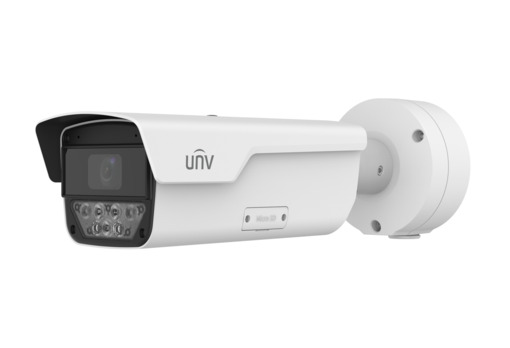

Model | IPC268EA-AHDZK-IK |
Camera | |
Sensor | 1/1.8" CMOS |
Min. Illumination | Colour:0.001 lux (F1.2, AGC ON) B/W:0.0005 lux (F1.2, AGC ON) 0 lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 to 1/100000 s |
WDR | 140 dB |
S/N | >56 dB |
Lens | |
Focal Length | 2.8 to 12 mm |
Optical Zoom | 4X |
Iris | F1.2 |
Iris Type | P-iris |
DORI | |
DORI Distance (Detect) | 108.0m(354.3ft)~180.0m(590.6ft) |
DORI Distance (Observe) | 43.2m(141.7ft)~72.0m(236.2ft) |
DORI Distance (Recognize) | 21.6m(70.9ft)~36.0m(118.1ft) |
DORI Distance (Identify) | 10.8m(35.4ft)~18.0m(59.1ft) |
Illuminator | |
Illumination Distance (IR) | 60 m (196.9 ft) |
IR On/Off Control | Auto/Manual |
Wavelength | 850 nm |
Video | |
Frame Rate-Main Stream | 8MP(3840*2160), Max 60fps |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
Frame Rate-Sub Stream | 2MP(1920*1080), Max 60fps; |
Video Bit Rate | 128 Kbps to 16 Mbps |
Frame Rate-Third Stream | D1 (720*576), Max 60fps |
Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) |
ROI | Support |
Video Stream | Triple streams |
OSD | Up to 10 OSDs |
Image | |
White Balance | Auto&Outdoor&Fine Tune&Sodium Lamp&Locked&Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Smart IR | Support |
EIS | Support |
Flip | Normal&Flip Vertical&Flip Horizontal&180°&90°Clockwise&90°Anti-clockwise |
BLC | Support |
HLC | Support |
Defog | Digital defog |
Intelligent | |
Metadata Analyse | Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection |
Recognition | Face recognition: Max support 16 face libraries; Max supports 100000 faces in face library |
People Counting | Support people flow counting and crowd density monitoring |
Exception Detection | Object Removed,Object Left Behind|Scene change|Defocus detection |
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
Events | |
Basic Detection | Motion detection|Tampering alarm|Audio detection|Object removed|Object Left Behind|Scene change|Defocus detection |
General Function | Watermark&IP Address Filtering&Access Policy&ARP Protection&RTSP Authentication&User Authentication&HTTP authentication&Alarm input&Alarm output |
Audio | |
Audio Compression | G.711U&G.711A |
Audio Bitrate | 128 Kbps |
Two-way Audio | Support |
Suppression | Support |
Sampling Rate | 16KHZ |
Storage | |
Edge Storage | Micro SD, up to 512 GB |
Network Storage | ANR, NAS (NFS) |
Network | |
Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3 |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
Client | EZStation, UNV-Link, UNV-Link Pro |
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above&Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
Interface | |
Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
Alarm I/O | 3/2 |
Serial Port | 1 channel RS485 interface |
Built-in Mic | Support, built-in mic*2 |
Built-in Speaker | Support |
Video Output | 1 x BNC (For debugging) |
Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet |
Certification | |
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 3rd Ed., 2021-10-22 ) |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)NEMA 4X |
General | |
Power | DC12V(±25%) , PoE+ (IEEE 802.3at) |
Power Consumption | Max 16W |
Power Interface | Ø5.5 mm coaxial power plug |
Dimensions | 406 x 126 x 130 mm (16.0” x 5.0” x 5.1”) (L x W x H) |
Weight | 1.92kg(4.23lb) |
Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
Surge Protection | 6 KV |
Heater | Support |
