IPC2316LE-ADF28(40)KM-WP - Uniview - Leader of AIoT Solution

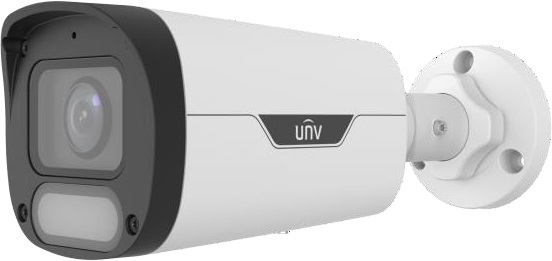

IPC2316LE-ADF28(40)KM-WP

6MP ColorHunter with Wise-ISP Fixed Bullet Network Camera

High quality image with 1/1.8"CMOS sensor and F1.0 large aperture lens

6MP (3072*2048)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;

Ultra 265, H.265, H.264, MJPEG

Support ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes

120dB true WDR technology enables clear image in strong light scene

Built-in Mic

White Light, up to 30m warm light distance

Supports 512 GB Micro SD card

IP67 protection

Support PoE power supply

3-Axis

Camera	Description
Max Resolution	6MP
Sensor	1/1.8" CMOS
Min. Illumination	Colour: 0.0003 lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N	>52dB
WDR	120dB
Lens	Description
Focal Length	IPC2316LE-ADF28KM-WP:2.8 mm IPC2316LE-ADF40KM-WP:4.0 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	IPC2316LE-ADF28KM-WP:110.4° IPC2316LE-ADF40KM-WP:88.2°
Field of View (V)	IPC2316LE-ADF28KM-WP:60.5° IPC2316LE-ADF40KM-WP:47.6°
Field of View (D)	IPC2316LE-ADF28KM-WP:115.2° IPC2316LE-ADF40KM-WP:104.0°
DORI	Description
DORI Distance(Lens)	IPC2316LE-ADF28KM-WP:2.8mm IPC2316LE-ADF40KM-WP:4.0mm
DORI Distance(Detect)	IPC2316LE-ADF28KM-WP:43.4m(142.5ft) IPC2316LE-ADF40KM-WP:62.1(203.6ft)
DORI Distance(Observe)	IPC2316LE-ADF28KM-WP:17.4(57.0ft) IPC2316LE-ADF40KM-WP:24.8(81.5ft)
DORI Distance(Recognize)	IPC2316LE-ADF28KM-WP:8.7(28.5ft) IPC2316LE-ADF40KM-WP:12.4(40.7ft)
DORI Distance(Identify)	IPC2316LE-ADF28KM-WP:4.3(14.3ft) IPC2316LE-ADF40KM-WP:6.2(20.4ft)
