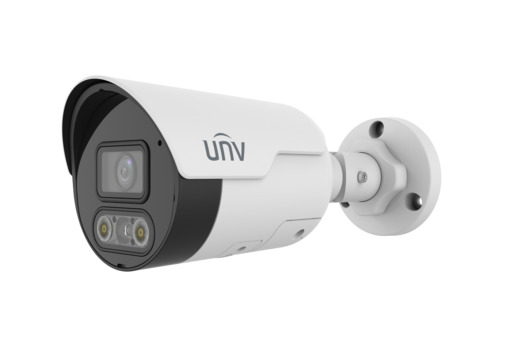

Model | IPC2125LE-ADF28KMC-DL | IPC2125LE-ADF40KMC-DL |
Camera | ||
Max Resolution | 5 MP | |
Sensor | 1/3.0" CMOS | |
Min. Illumination | Colour: 0.003 lux ( F1.6, AGC ON) 0 Lux with light | |
Day/Night | IR-cut filter with auto switch (ICR) | |
Shutter | Auto/Manual, 1 ~ 1/100000s | |
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |
S/N | >52 dB | |
WDR | 120 dB | |
Lens | ||
Focal Length | 2.8 mm | 4.0 mm |
Iris Type | Fixed | |
Iris | F1.6 | |
Field of View (H) | 97.0° | 79.0° |
Field of View (V) | 52.2° | 42.3° |
Field of View (D) | 107.5° | 85.1° |
DORI | ||
DORI Distance (Lens) | 2.8mm | 4.0mm |
DORI Distance (Detect) | 63.0m(206.7ft) | 90.0m(295.2ft) |
DORI Distance (Observe) | 25.2m(82.7ft) | 36.0m(118.1ft) |
DORI Distance (Recognize) | 12.6m(41.3ft) | 18.0m(59.1ft) |
DORI Distance (Identify) | 6.3m(20.7ft) | 9.0m(29.5ft) |
Illuminator | ||
Supplemental Light | Dual light | |
Illumination Distance (IR) | 30 m (98.4 ft) | |
Illumination Distance (Warm Light) | 30 m (98.4 ft) | |
Light On/Off Control | Auto/Manual | |
Wavelength | 850 nm | |
Video | ||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |
H.264 Code Profile | Baseline profile, Main profile, High profile | |
Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; | |
Video Bit Rate | 128 Kbps to 16 Mbps | |
U-code | Support | |
OSD | Up to 4 OSDs | |
Privacy Mask | Up to 4 areas | |
ROI | Support | |
Video Stream | Dual streams | |
Image | ||
White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |
Digital Noise Reduction | 2D/3D DNR | |
Smart IR | Support | |
Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |
Dewarping | N/A | |
HLC | Support | |
BLC | Support | |
Defog | Digital defog | |
Events | ||
Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection | |
General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |
Audio | ||
Audio Compression | G.711U, G.711A | |
Audio Bitrate | 64 Kbps | |
Two-way Audio | Support | |
Suppression | Support | |
Sampling Rate | 8 kHz | |
Storage | ||
Edge Storage | Micro SD, up to 512 GB | |
Network Storage | ANR, NAS (NFS) | |
Network | ||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS | |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |
Client | UNV-Link, UNV-Link Pro, EZStation | |
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
Interface | ||
Audio I/O | N/A | |
Alarm I/O | N/A | |
Serial Port | N/A | |
Built-in Mic | Support | |
Built-in Speaker | Support | |
WIFI | N/A | |
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |
Video Output | N/A | |
Certification | ||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) | |
Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); | |
Protection | IP67 (IEC 60529) | |
General | ||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |
Power Consumption | Max 9.0W | |
Power Interface | Ø5.5 mm coaxial power plug | |
Dimensions | 192×75×74mm (7.6”×2.9”×2.9”) (L x W x H) | |
Weight | 0.40kg (0.88lb) | |
Material | Graphene + Metal | |
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |
Surge Protection | 4 KV | |
Reset Button | Support | |
Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese |
