High quality image with 4MP, 1/3"CMOS sensor
4MP (2688*1520) @ 25/20fps; 4MP (2560*1440) @ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
Ultra 265, H.265, H.264, MJPEG
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built‑in Mic & Speaker
Smart IR, up to 30m (98ft) IR distance
White Light, up to 30m (98ft) warm light distance
Supports 128 G Micro SD card
IP67 protection
Support PoE power supply
3‑Axis

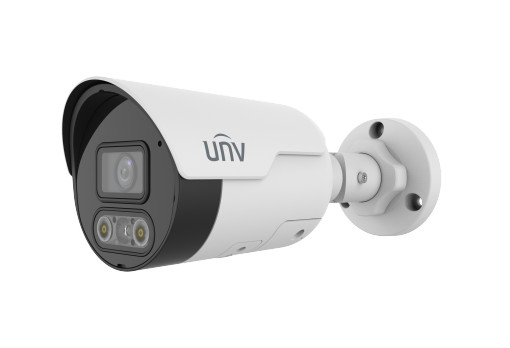

| Model | IPC2124LE‑F28DL-AE | IPC2124LE‑F40DL-AE |
| Camera | ||
| Max Resolution | 4 MP | |
| Sensor | 1/3.0" CMOS | |
| Min. Illumination | Colour: 0.003 lux ( F1.6, AGC ON) 0 Lux with light | |
| Day/Night | IR‑cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |
| S/N | >52 dB | |
| WDR | 120 dB | |
| Lens | ||
| Focal Length | 2.8 mm | 4.0 mm |
| Iris Type | Fixed | |
| Iris | F1.6 | |
| Field of View (H) | 97.0° | 79.0° |
| Field of View (V) | 52.2° | 42.3° |
| Field of View (D) | 107.5° | 85.1° |
| DORI | ||
| DORI Distance (Lens) | 2.8mm | 4.0mm |
| DORI Distance (Detect) | 63.0m(206.7ft) | 90.0m(295.2ft) |
| DORI Distance (Observe) | 25.2m(82.7ft) | 36.0m(118.1ft) |
| DORI Distance (Recognize) | 12.6m(41.3ft) | 18.0m(59.1ft) |
| DORI Distance (Identify) | 6.3m(20.7ft) | 9.0m(29.5ft) |
| Illuminator | ||
| Supplemental Light | Dual light | |
| Illumination Distance (IR) | 30 m (98.4 ft) | |
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | |
| Light On/Off Control | Auto/Manual | |
| Wavelength | 850 nm | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 Code Profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; | |
| Video Bit Rate | 128 Kbps to 16 Mbps | |
| U‑code | Support | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Up to 4 areas | |
| ROI | Support | |
| Video Stream | Dual Streams | |
| Image | ||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |
| Digital Noise Reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti‑clockwise | |
| Dewarping | N/A | |
| HLC | Support | |
| BLC | Support | |
| Defog | Digital Defog | |
| Events | ||
| Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection | |
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | |
| Audio | ||
| Audio Compression | G.711U, G.711A | |
| Audio Bitrate | 64 Kbps | |
| Two‑way Audio | Support | |
| Suppression | Support | |
| Sampling Rate | 8 kHz | |
| Storage | ||
| Edge Storage | Micro SD, up to 512 GB | |
| Network Storage | ANR, NAS (NFS) | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |
| Client | UNV‑Link, UNV‑Link Pro, EZStation | |
| Web Browser | Plug‑in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug‑in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
| Interface | ||
| Audio I/O | N/A | |
| Alarm I/O | N/A | |
| Serial Port | N/A | |
| Built‑in Mic | Support | |
| Built‑in Speaker | Support | |
| WIFI | N/A | |
| Network | 1 × RJ45 10 M/100 M Base‑TX Ethernet | |
| Video Output | N/A | |
| Certification | ||
| EMC | CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130) FCC (FCC 47 CFR part15 B) | |
| Safety | CE LVD (EN 62368‑1) UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) | |
| Environment | CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); | |
| Protection | IP67 (IEC 60529) | |
| General | ||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |
| Power Consumption | Max 9.0W | |
| Power Interface | Ø5.5 mm coaxial power plug | |
| Dimensions | 192×75×74mm (7.6”×2.9”×2.9”) (L x W x H) | |
| Weight | 0.40kg (0.88lb) | |
| Material | Graphene + Metal | |
| Working Environment | ‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing) | |
| Storage Environment | ‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing) | |
| Surge Protection | 4 KV | |
| Reset Button | Support | |
| Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese | |
